Malfunction Indicator Lamp Monitoring

For malfunction indicator lamp monitoring information see Fig 1 -Fig 3 .

NOTE: This monitor covers information for DTC P1607.

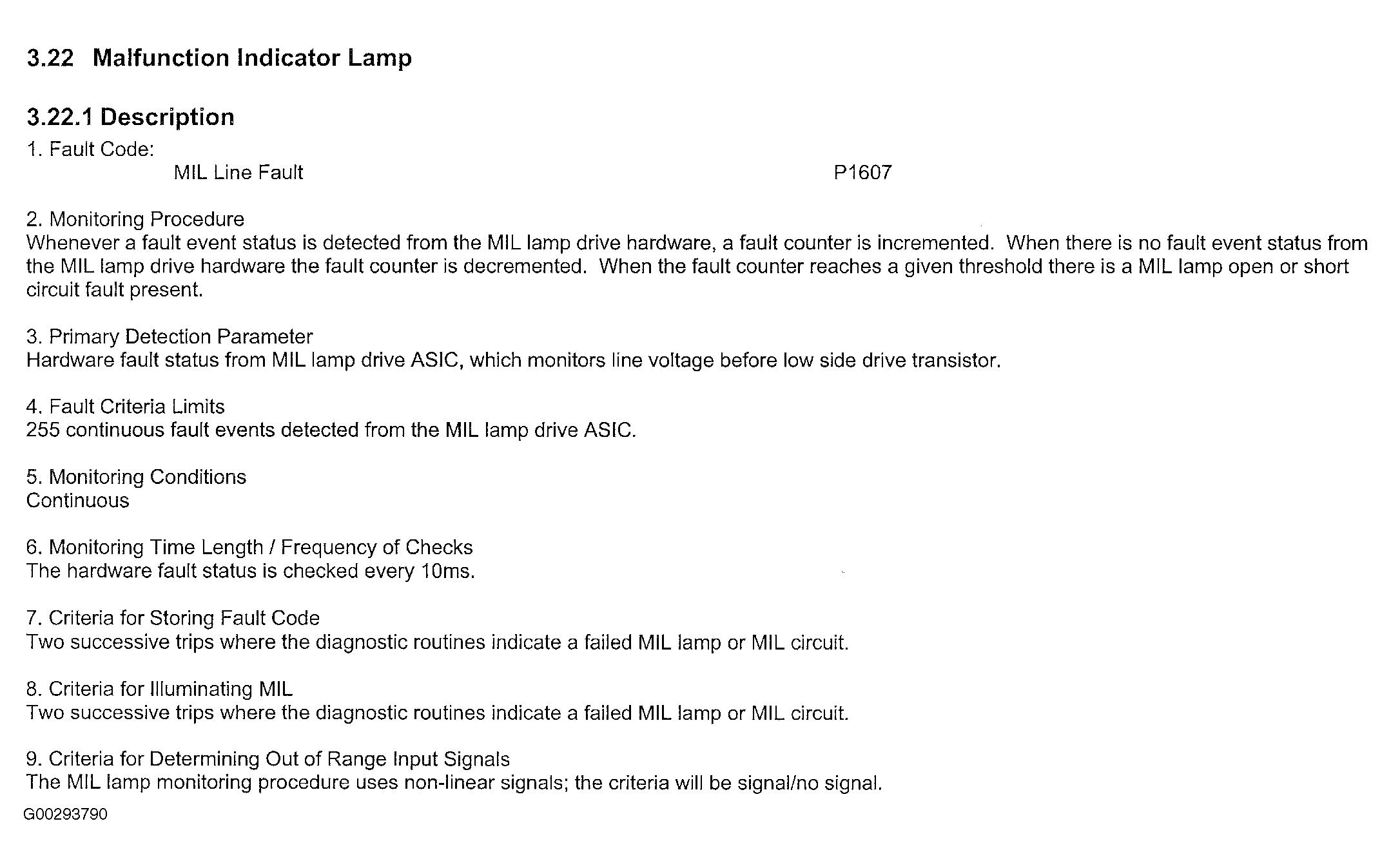

Fig 1: Malfunction Indicator Lamp Monitoring Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

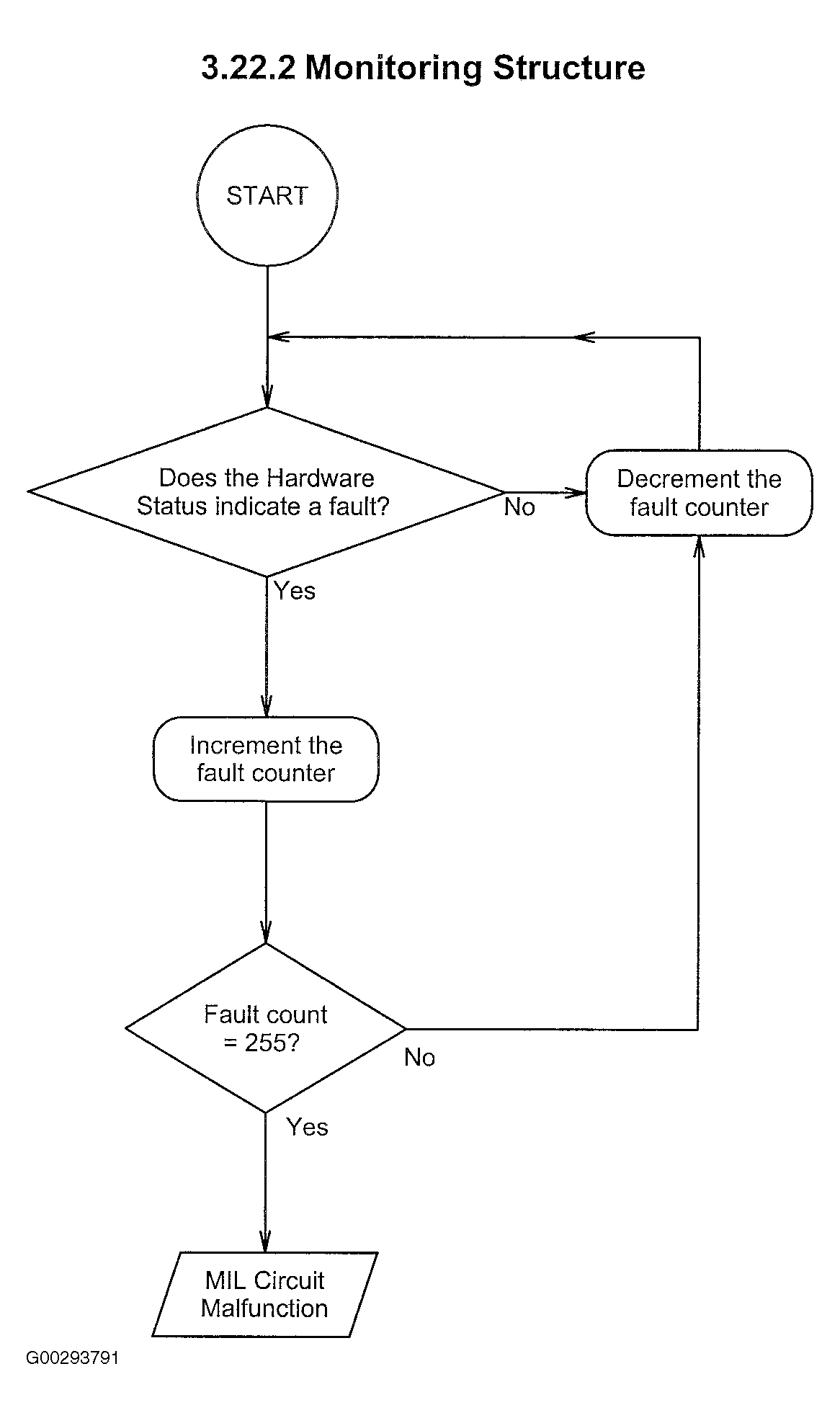

Fig 2: Malfunction Indicator Lamp Monitoring Structure

Courtesy of LAND ROVER NORTH AMERICA, INC.

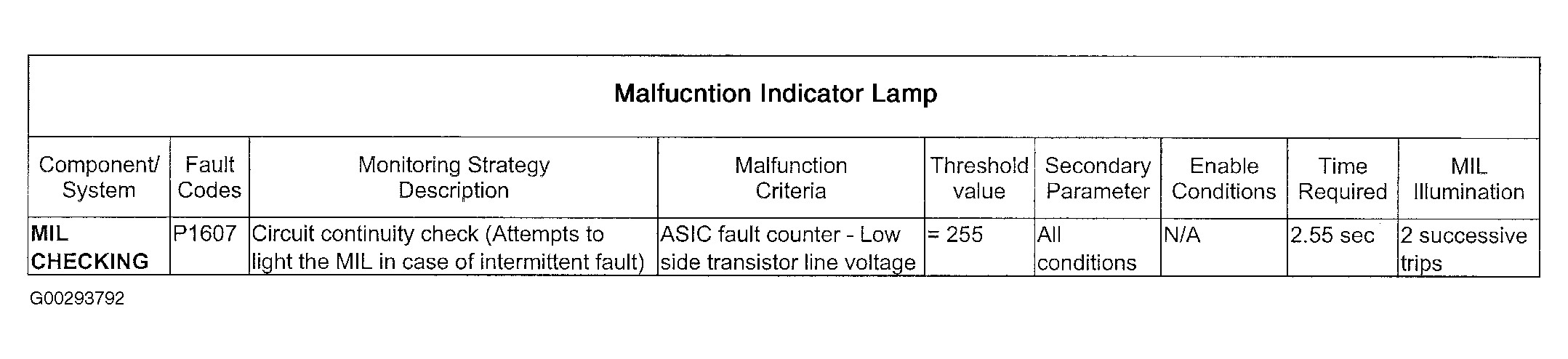

Fig 3: Malfunction Indicator Lamp Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
