Rough Road Signal Monitoring

For rough road signal monitoring information see Fig 1 .

NOTE: This monitor covers information for DTC P1317 and P1318.

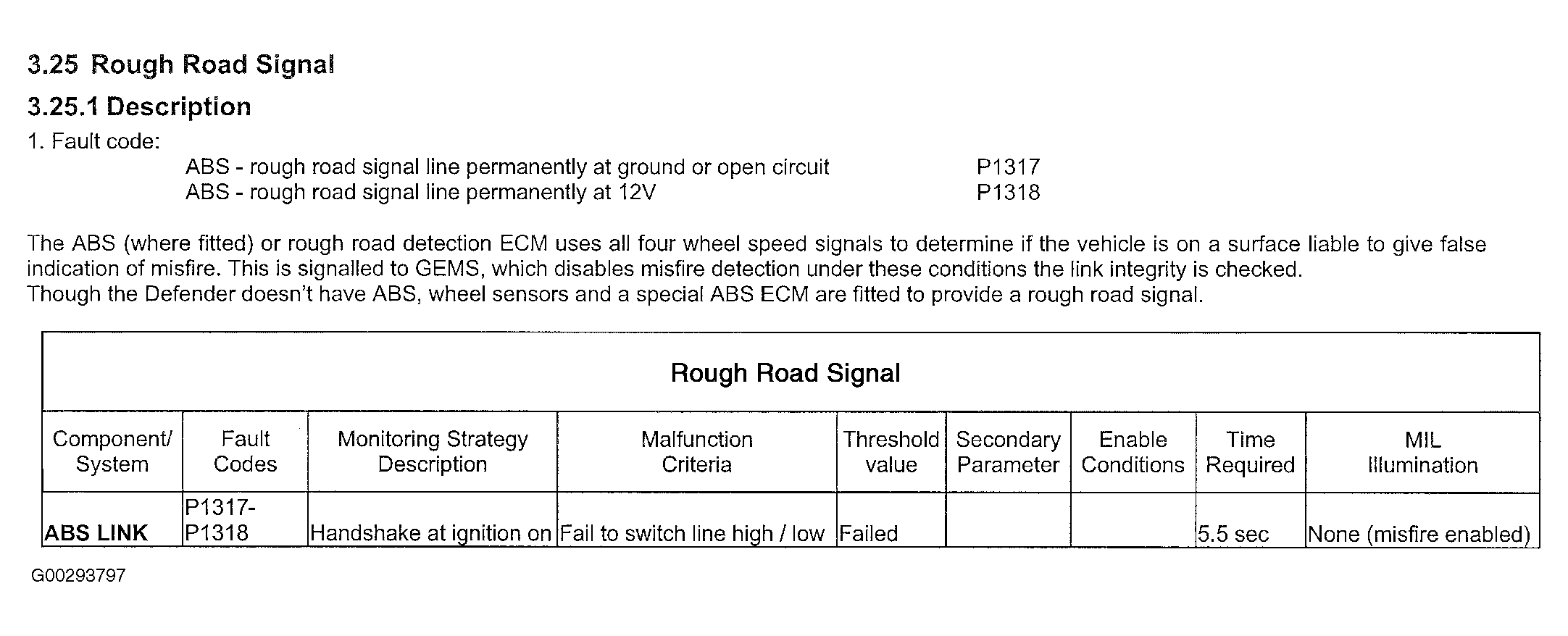

Fig 1: Rough Road Signal Monitoring
G00293797Courtesy of LAND ROVER NORTH AMERICA, INC.
