Throttle Position Sensor Monitoring

For throttle position sensor monitoring information see Fig 1 -Fig 3 .

NOTE: This monitor covers information for DTC P0121-P0123.

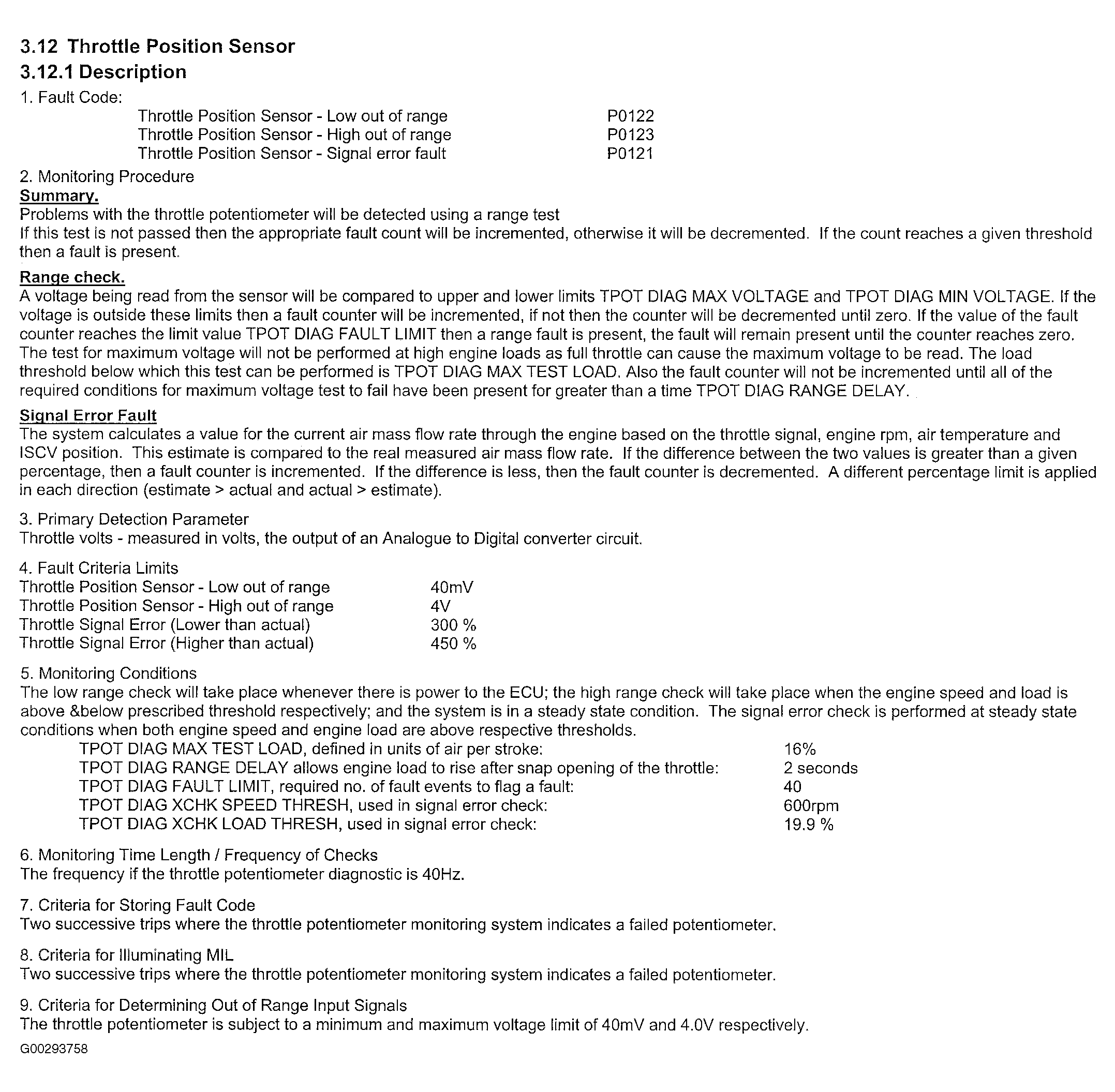

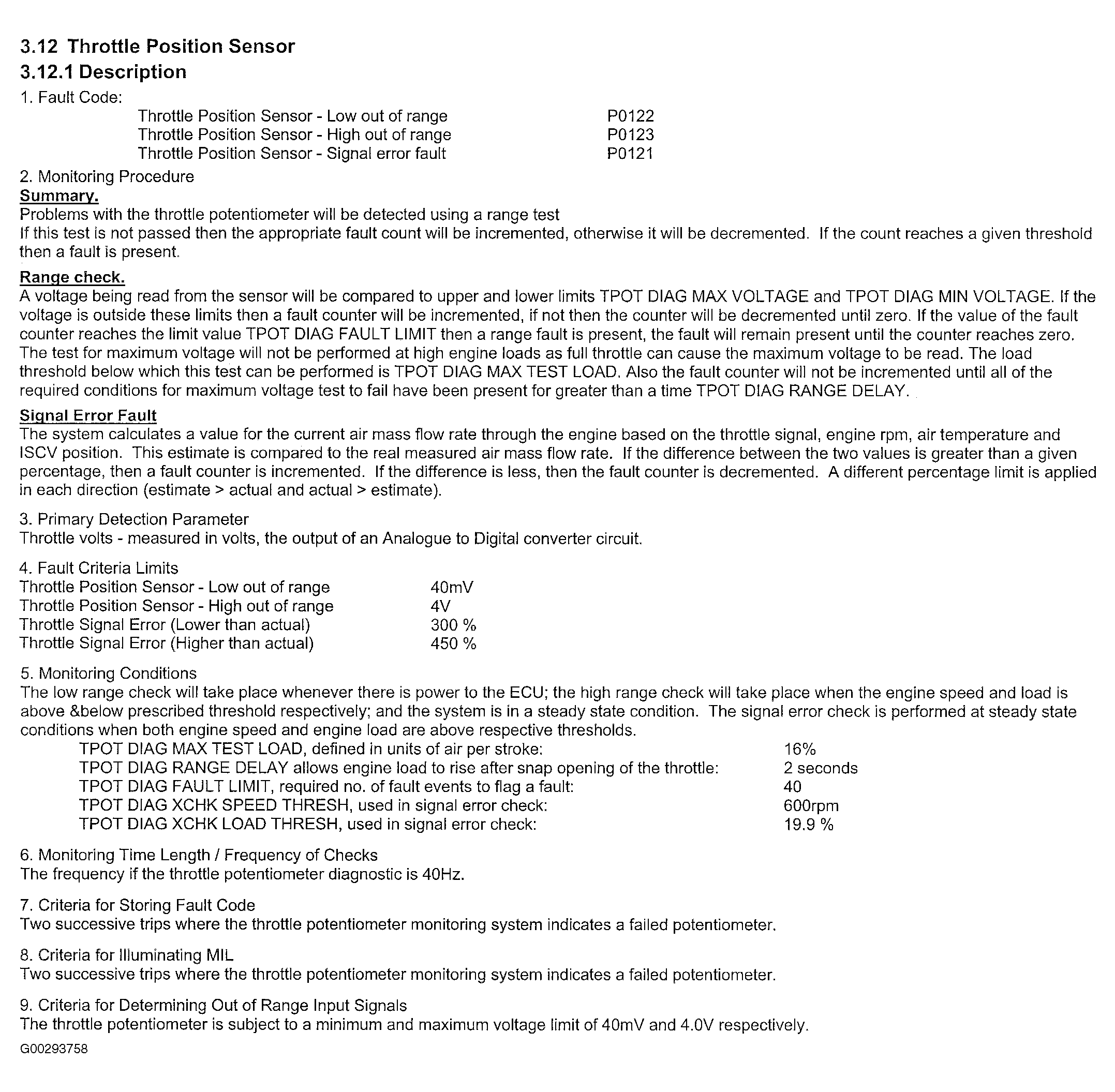

Fig 1: Throttle Position Sensor Monitoring Description
G00293758Courtesy of LAND ROVER NORTH AMERICA, INC.

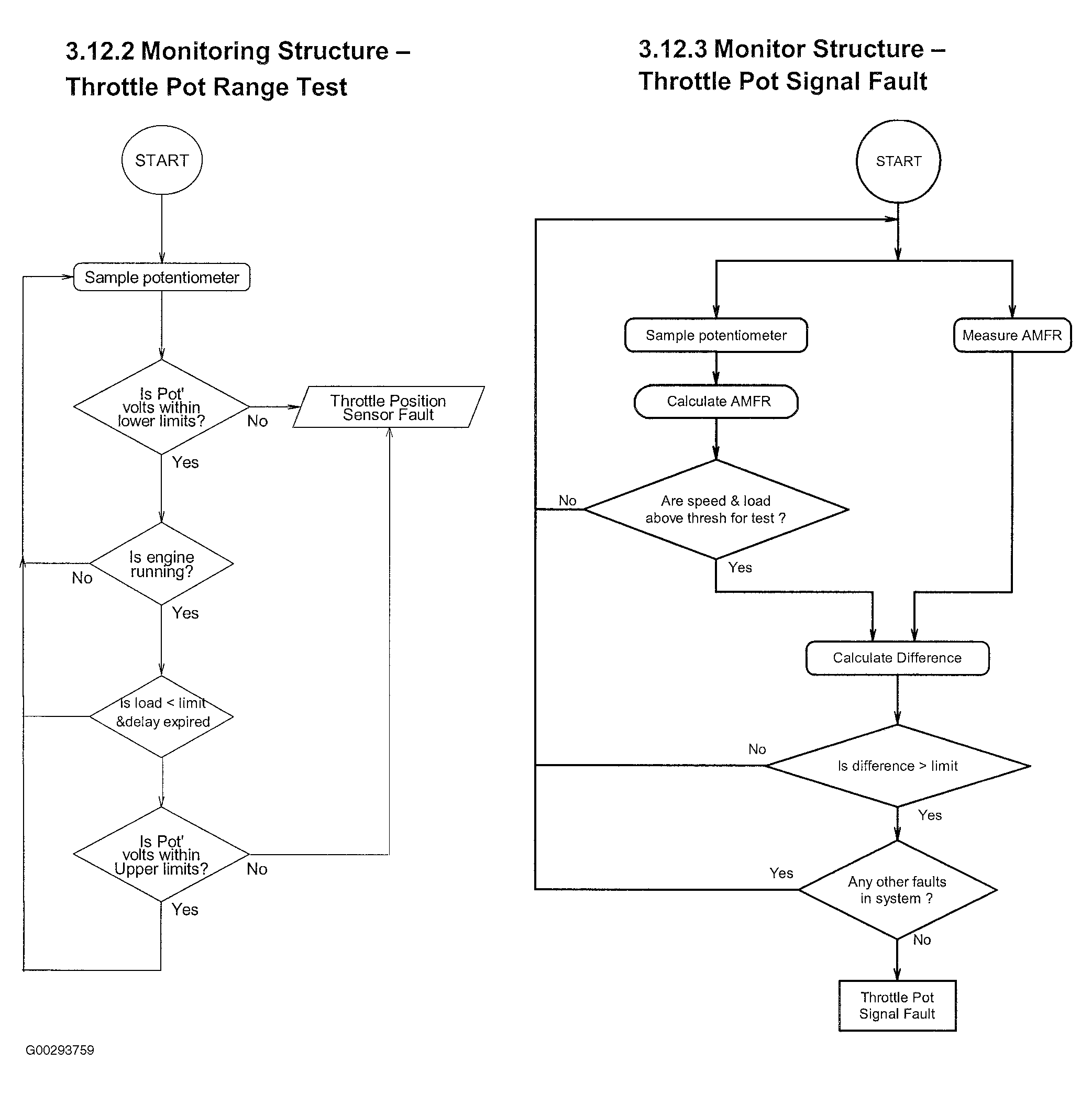

Fig 2: Throttle Position Sensor Monitoring Structure
G00293759Courtesy of LAND ROVER NORTH AMERICA, INC.

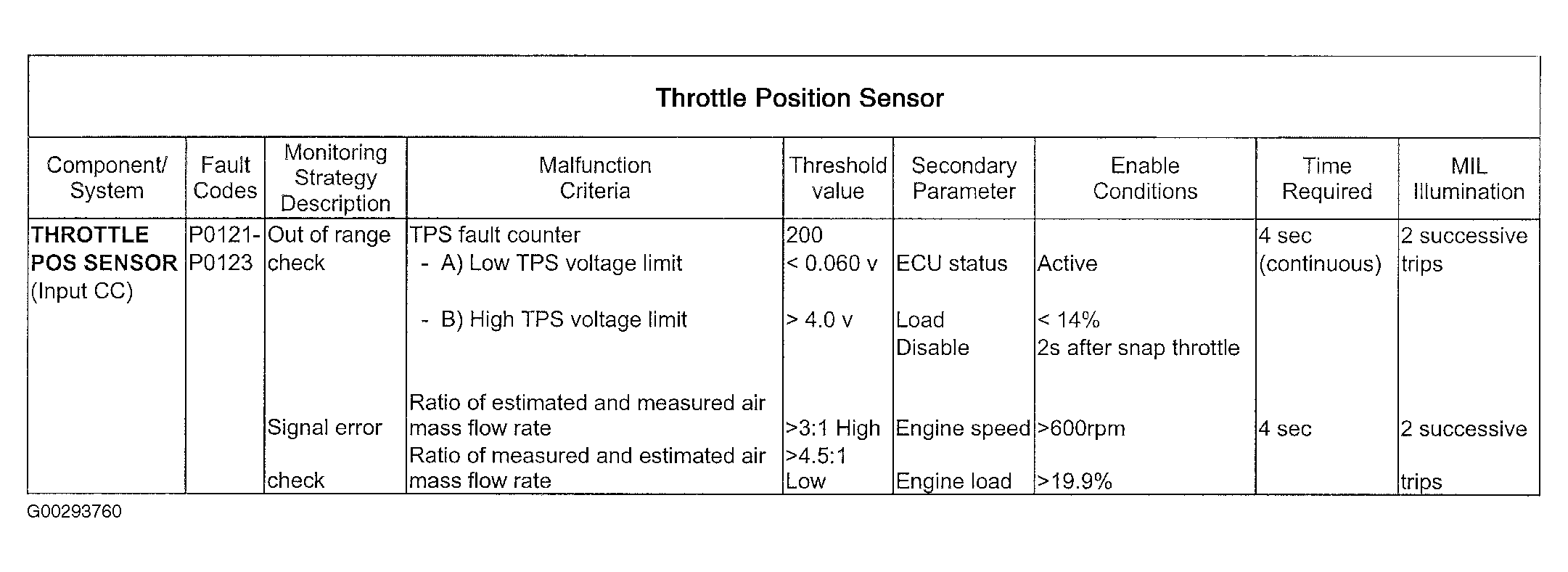

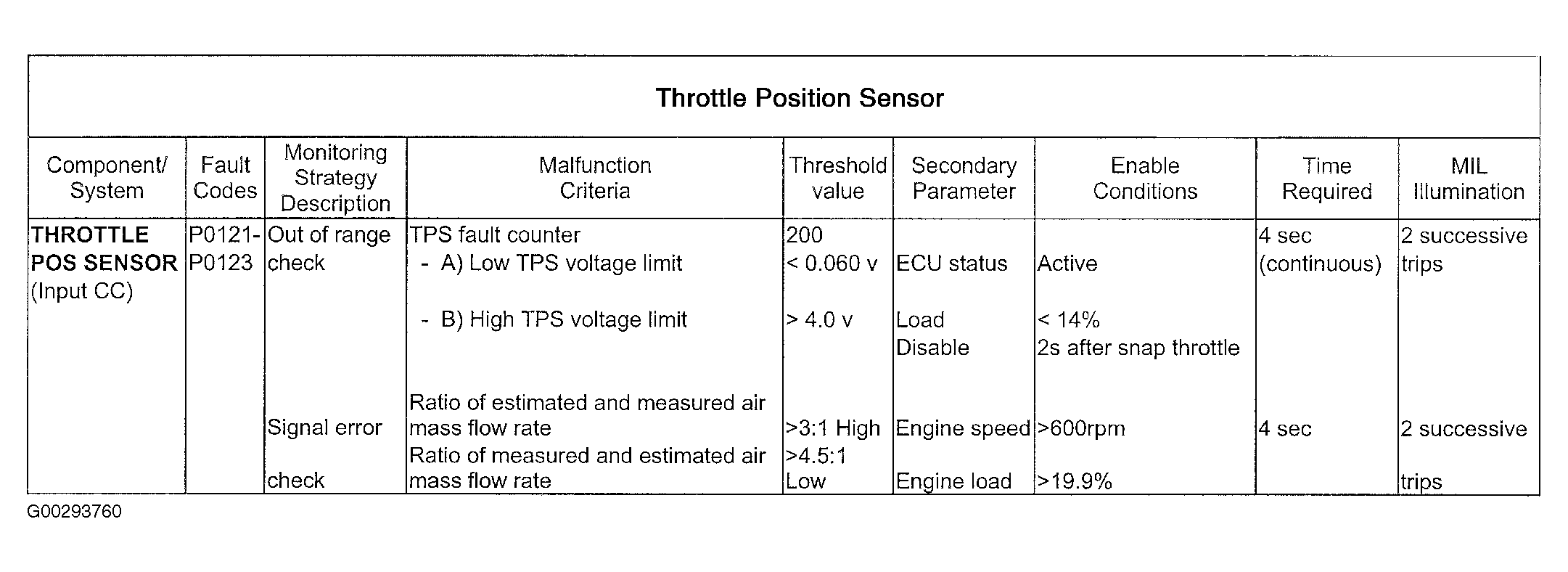

Fig 3: Throttle Position Sensor Monitoring Operation
G00293760Courtesy of LAND ROVER NORTH AMERICA, INC.
