Vehicle Speed Signal Monitoring

For vehicle speed signal monitoring information see Fig 1 -Fig 3 .

NOTE: This monitor covers information for DTC P0500.

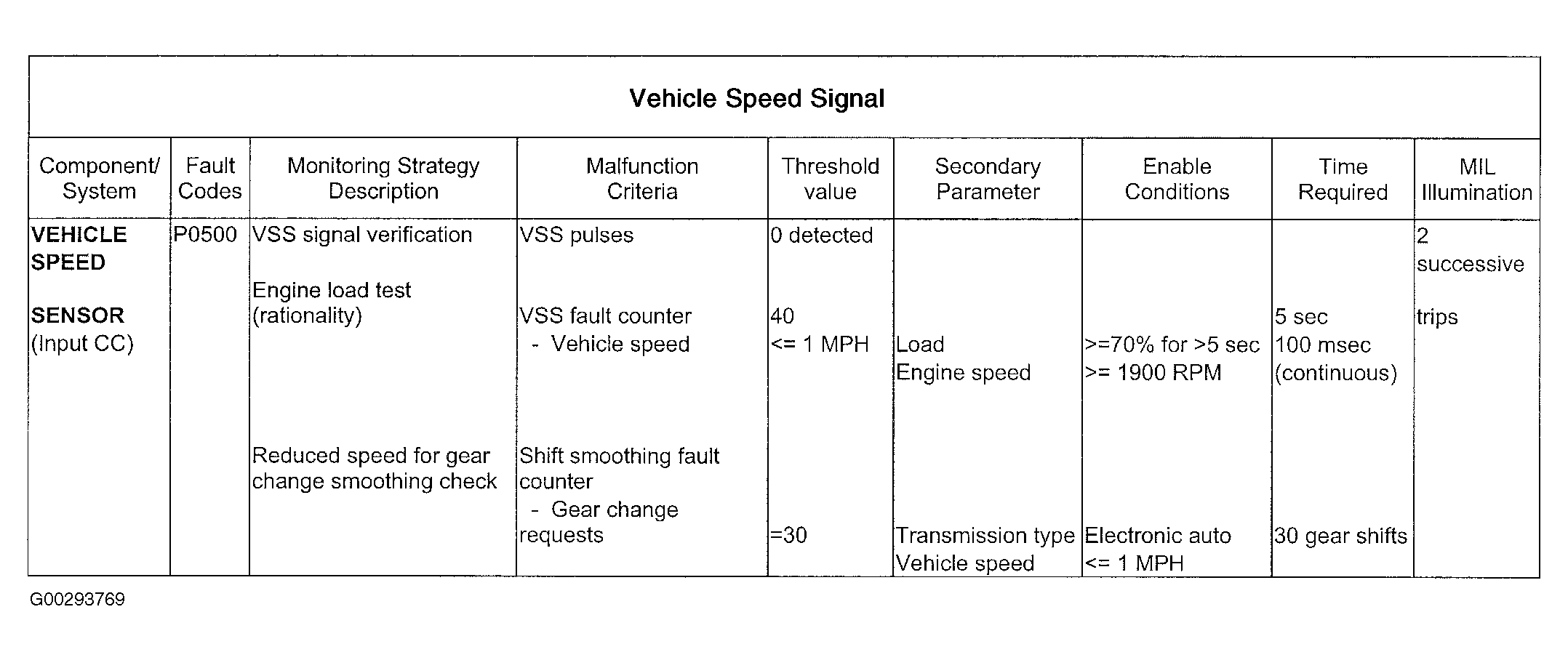

Fig 1: Vehicle Speed Signal Monitoring Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

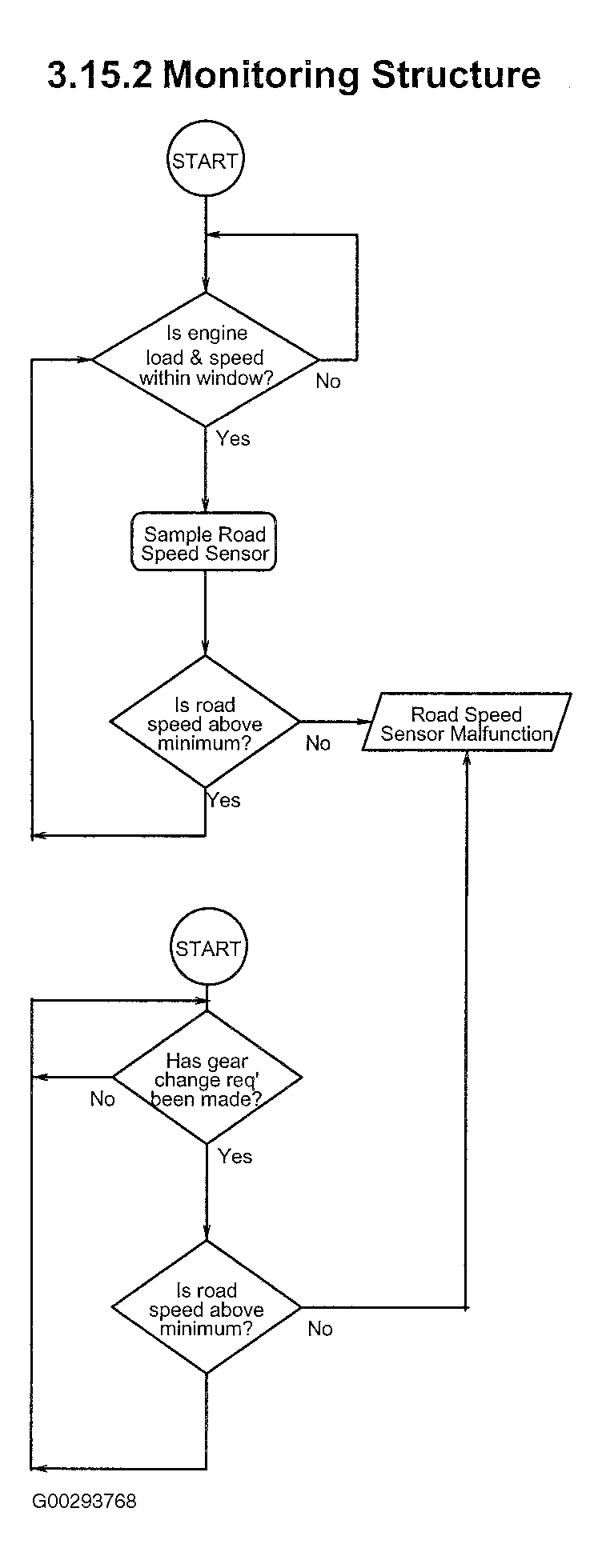

Fig 2: Vehicle Speed Signal Monitoring Structure

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 3: Vehicle Speed Signal Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
