Fuel Evaporative System Monitoring

For fuel evaporative system monitoring information see Fig 1 -Fig 6 .

NOTE: This monitor covers information for DTC P0442-P0443, P1440, P1448 and P1496.

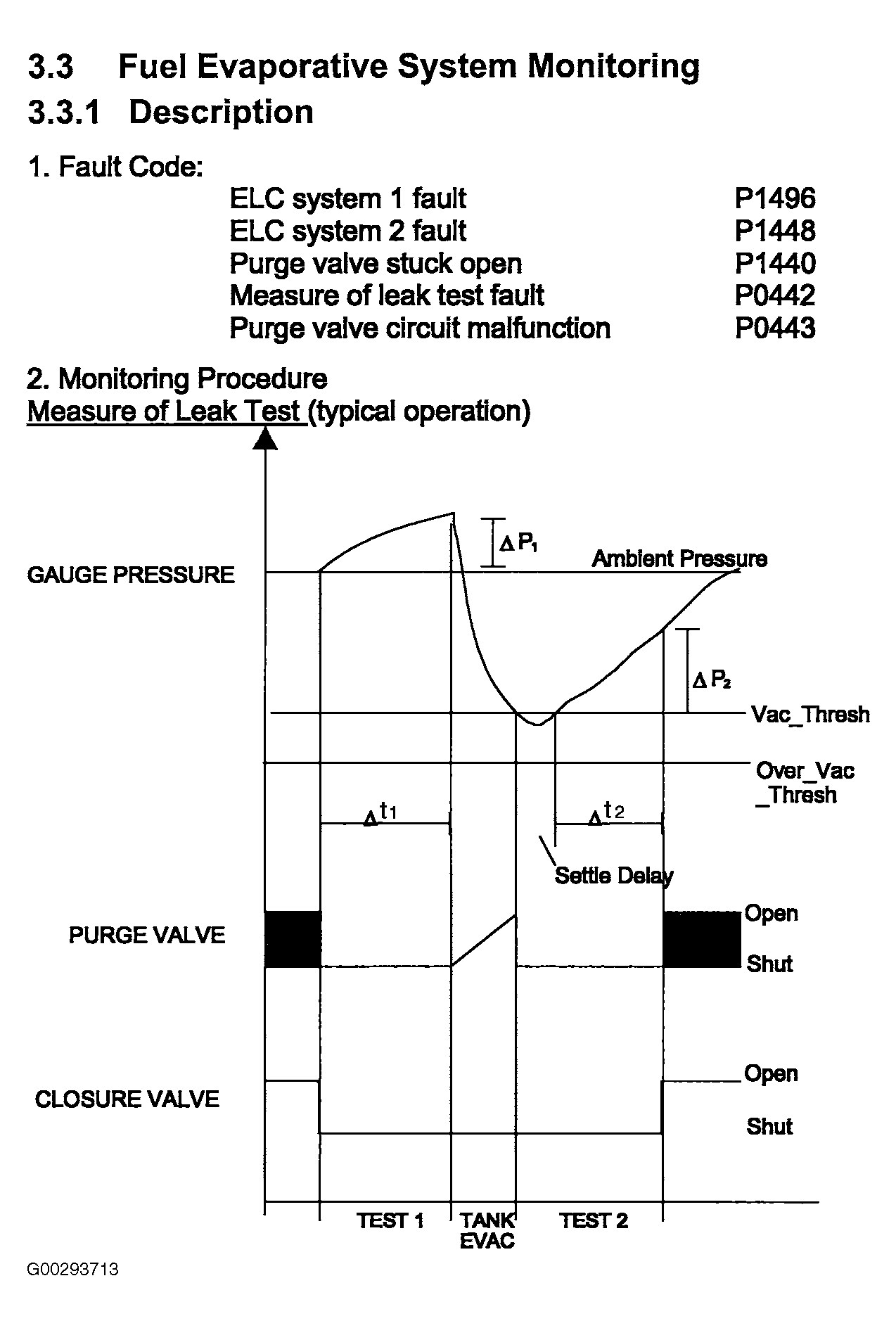

Fig 1: Fuel Evaporative System Monitoring Description (1 Of 3)

G00293713

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 2: Fuel Evaporative System Monitoring Description (2 Of 3)

G00293714

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 3: Fuel Evaporative System Monitoring Description (3 Of 3)

G00293715

Courtesy of LAND ROVER NORTH AMERICA, INC.

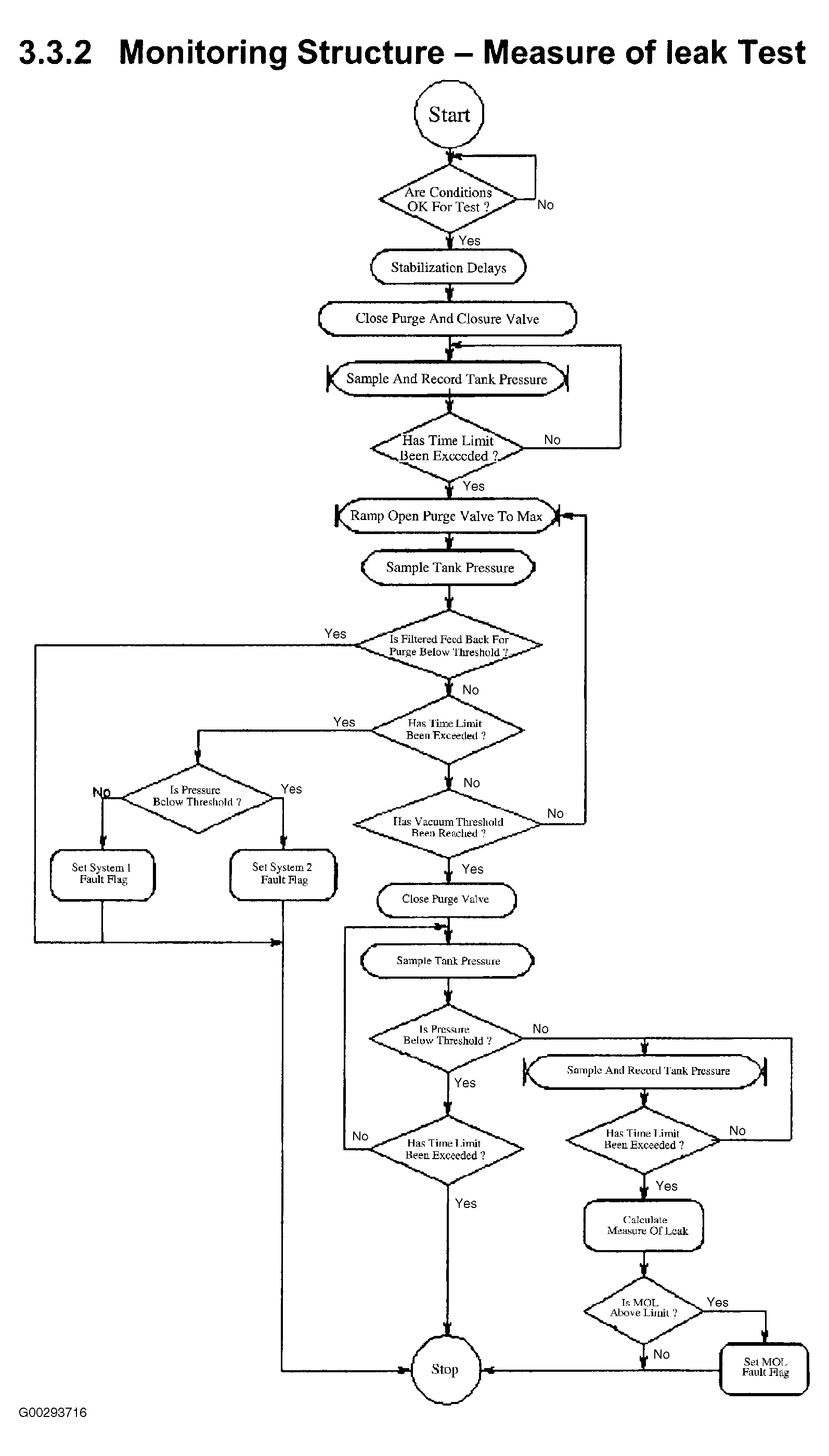

Fig 4: Fuel Evaporative System Monitoring Structure (1 Of 2)

G00293716

Courtesy of LAND ROVER NORTH AMERICA, INC.

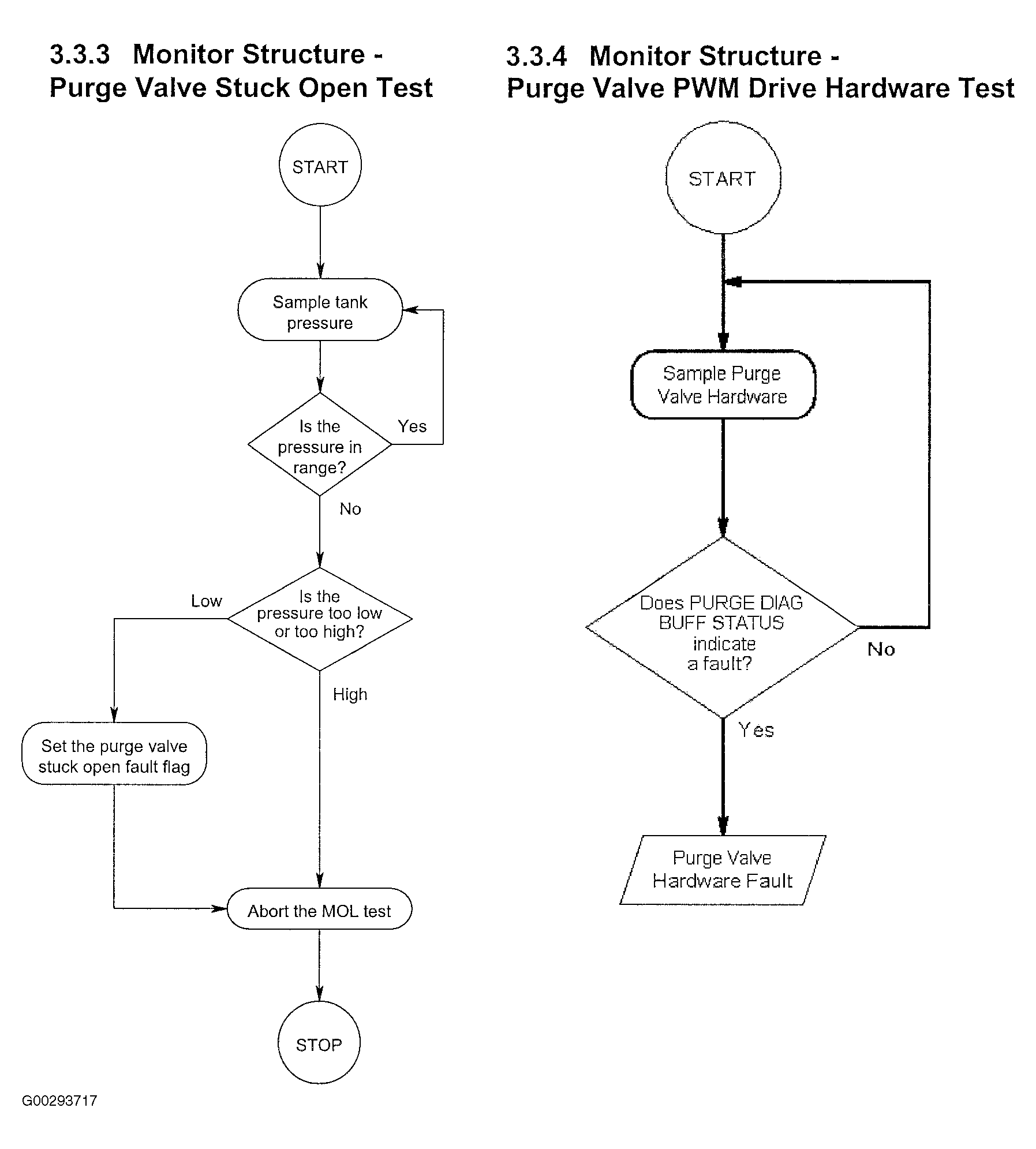

Fig 5: Fuel Evaporative System Monitoring Structure (2 Of 2)

G00293717

Courtesy of LAND ROVER NORTH AMERICA, INC.

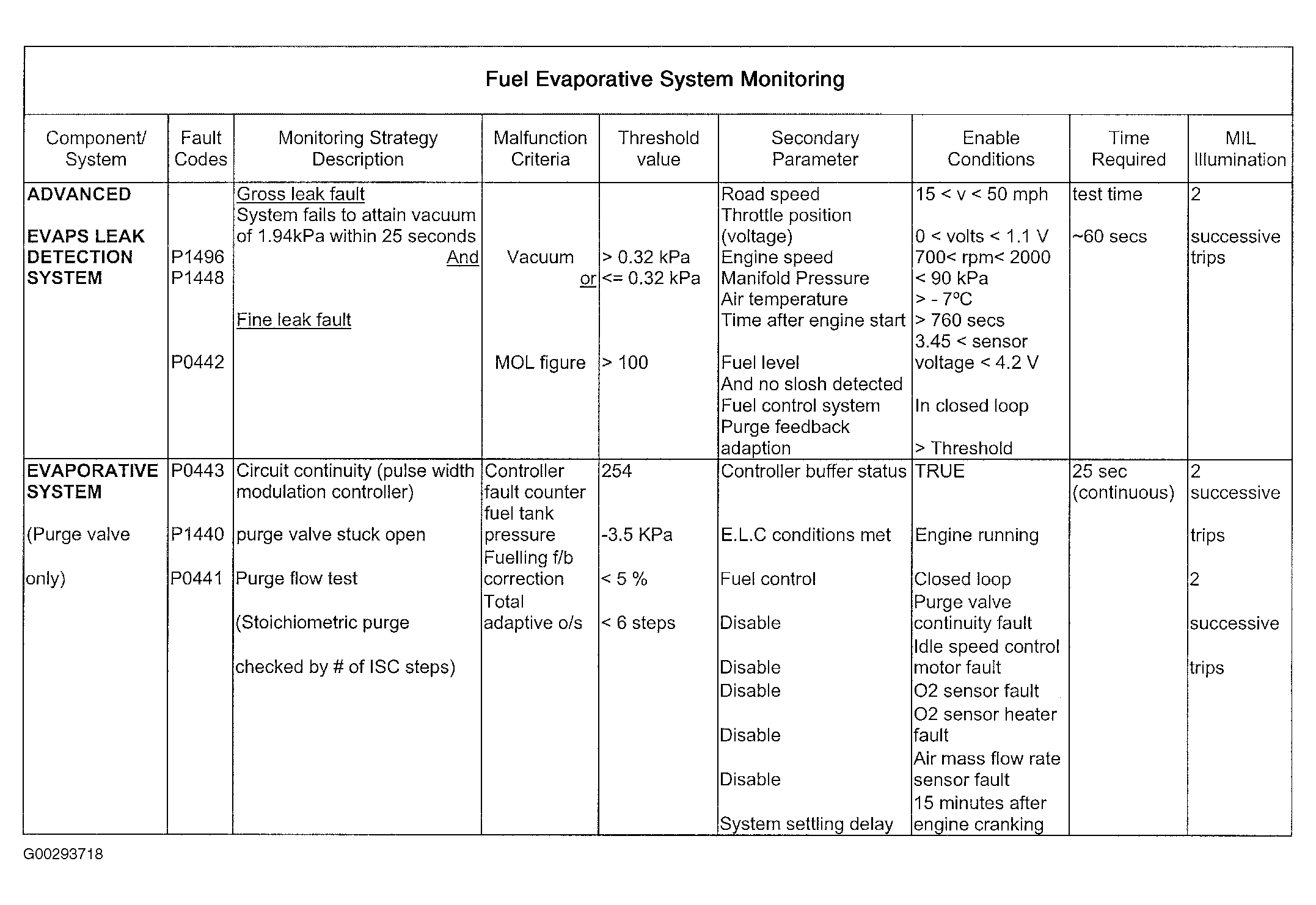

Fig 6: Fuel Evaporative System Monitoring Operation

G00293718

Courtesy of LAND ROVER NORTH AMERICA, INC.
