Oxygen Sensor & Fuel System Monitoring

For oxygen sensor and fuel system monitoring information see Fig 1 -Fig 12 .

NOTE: This monitor covers information for DTC P0130-P0133, P0136-P0138, P0150-P0153, P0156-P0158, P0171, P0172, P0174, P0175, P1137, P1138, P1157, P1158, P1171, P1172, P1176 and P1177-P1179.

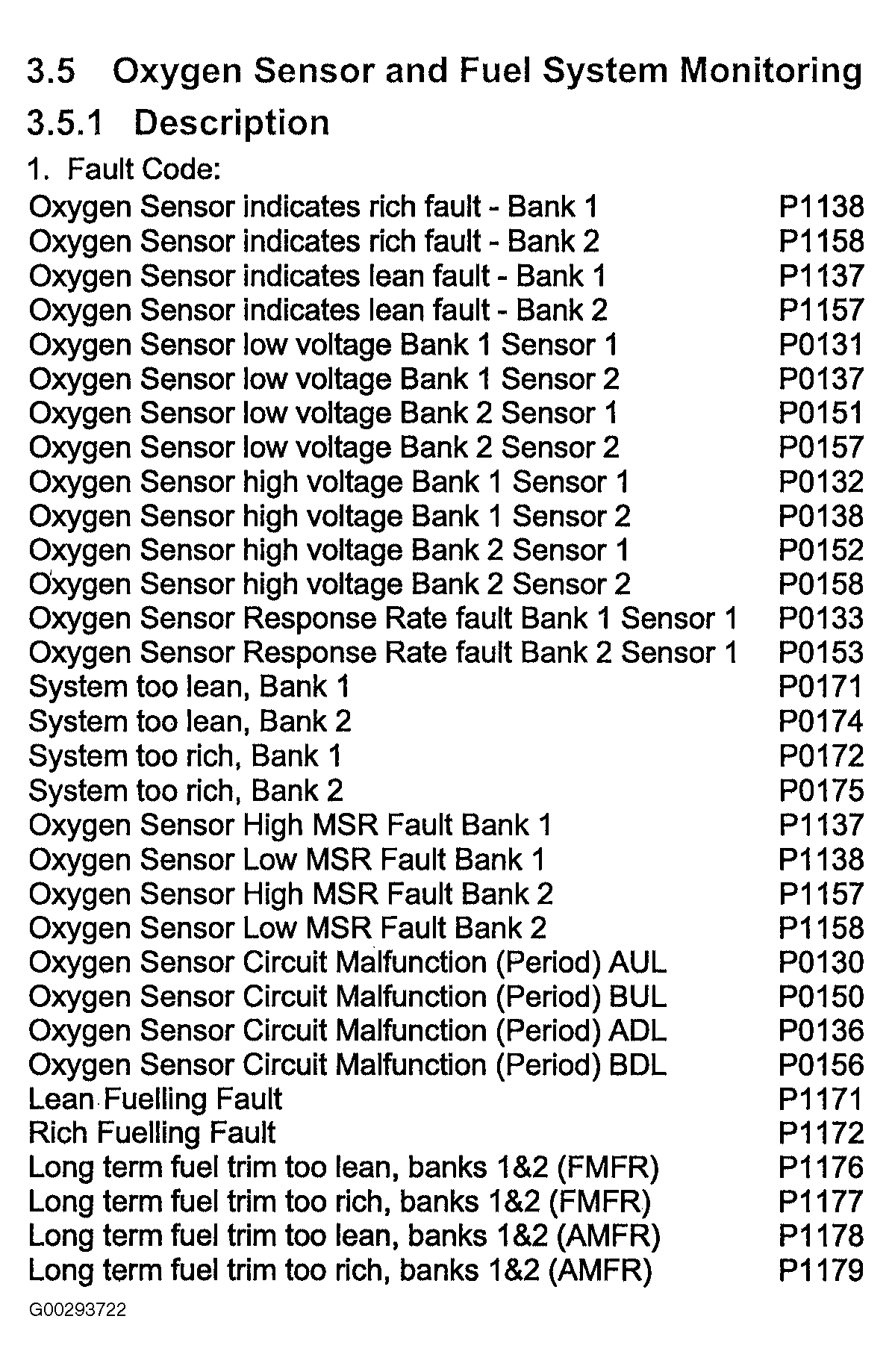

Fig 1: Oxygen Sensor & Fuel System Monitoring Description (1 Of 5)

G00293722

Courtesy of LAND ROVER NORTH AMERICA, INC.

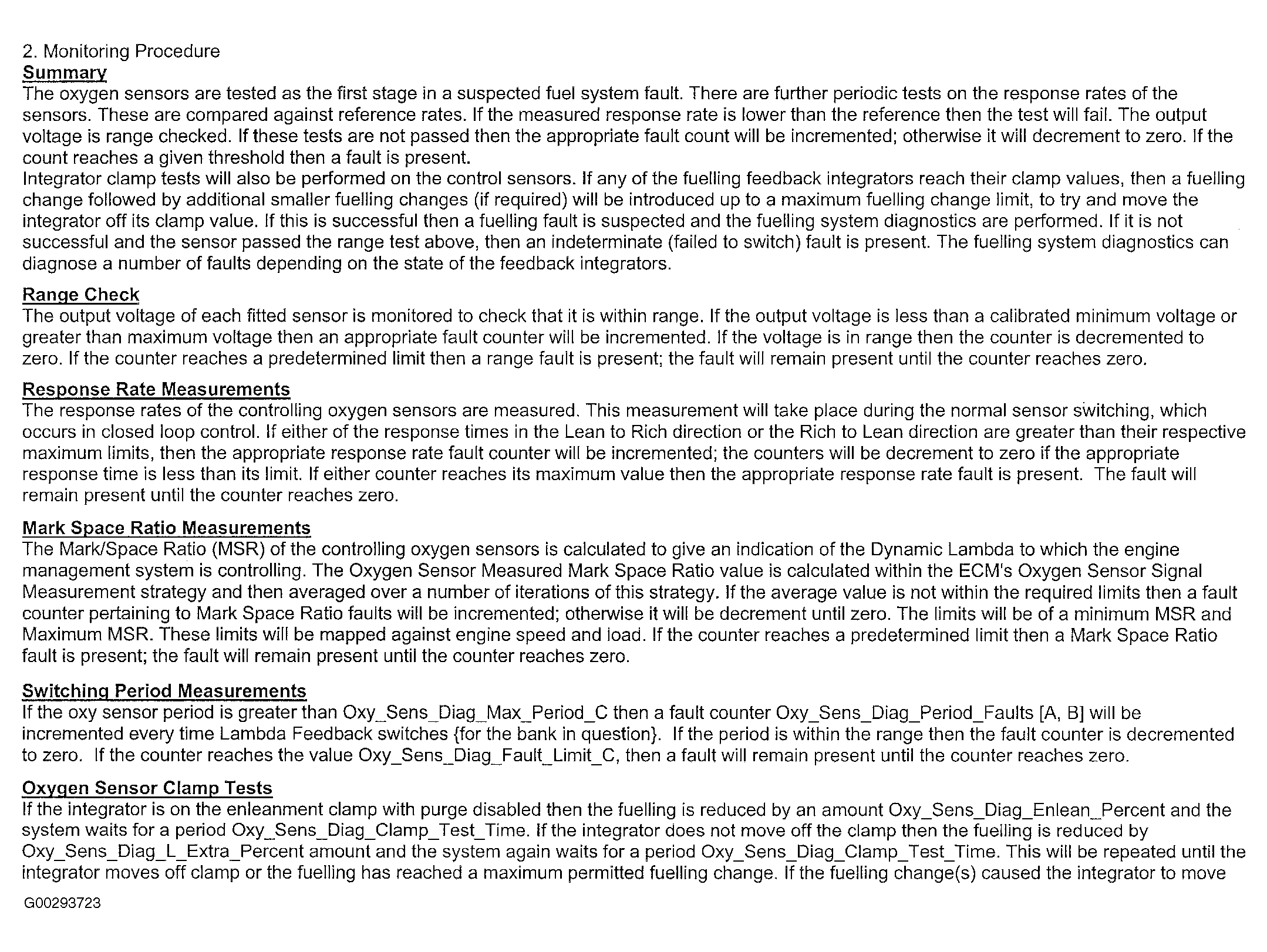

Fig 2: Oxygen Sensor & Fuel System Monitoring Description (2 Of 5)

G00293723

Courtesy of LAND ROVER NORTH AMERICA, INC.

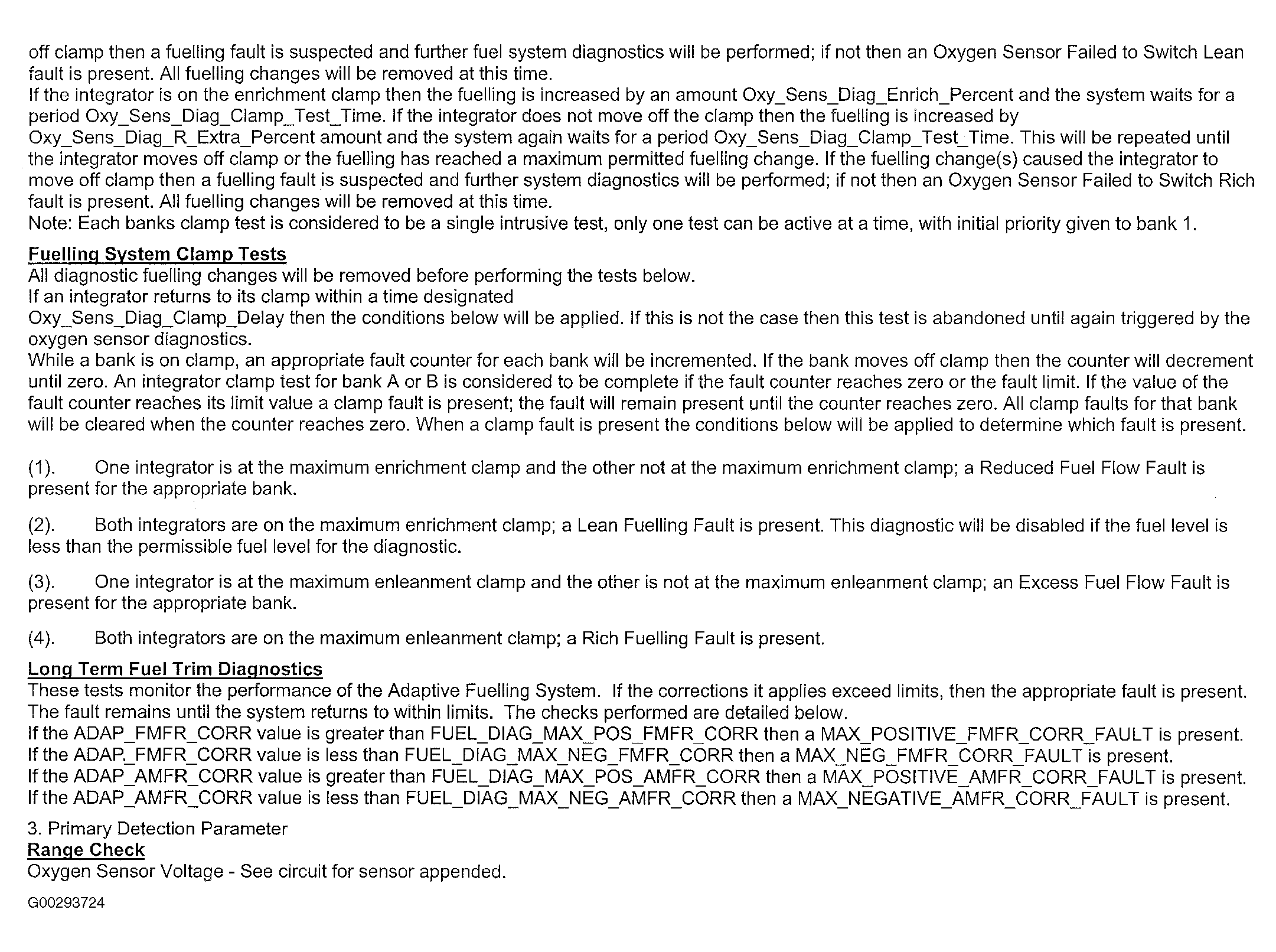

Fig 3: Oxygen Sensor & Fuel System Monitoring Description (3 Of 5)

G00293724

Courtesy of LAND ROVER NORTH AMERICA, INC.

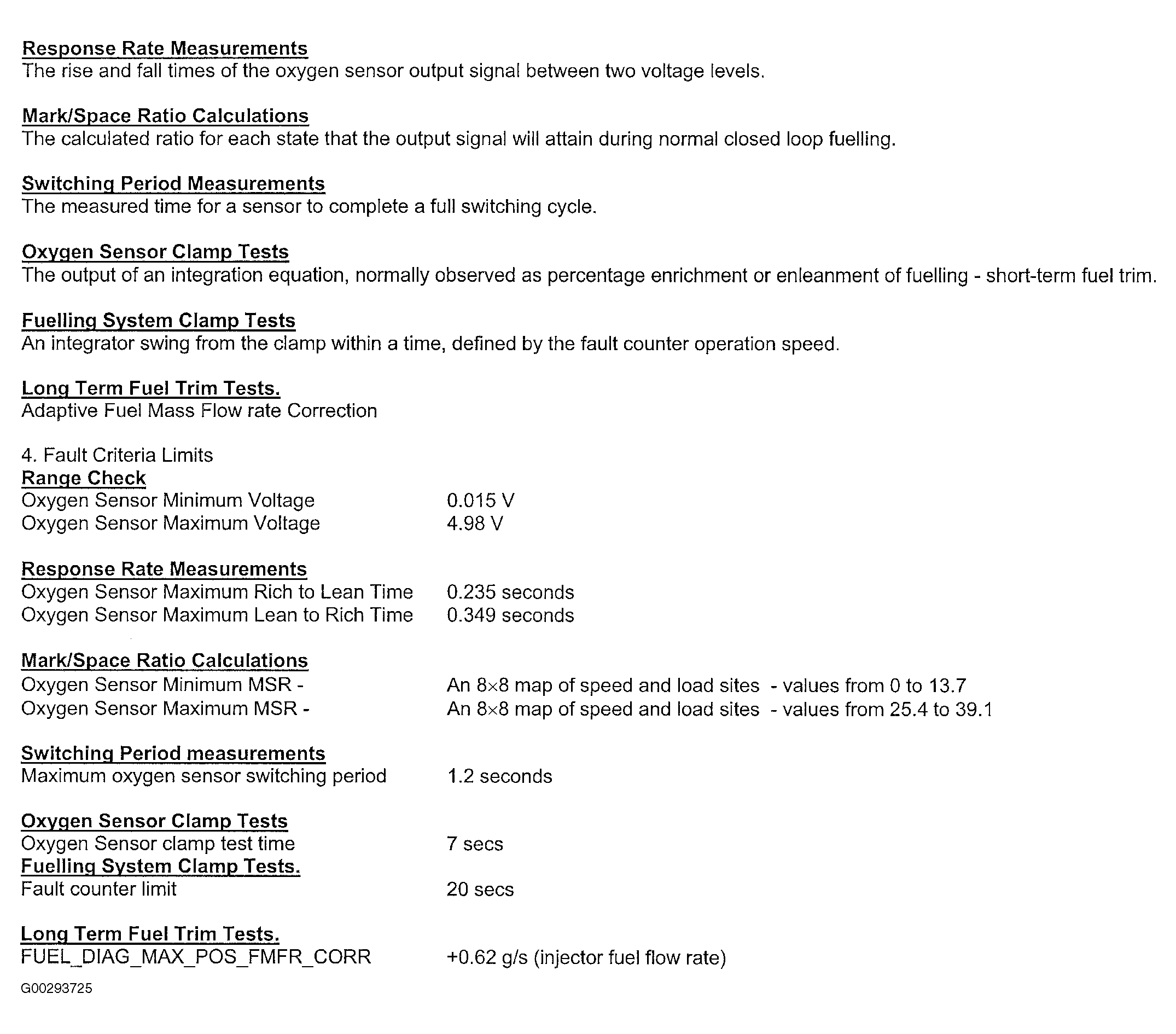

Fig 4: Oxygen Sensor & Fuel System Monitoring Description (4 Of 5)

G00293725

Courtesy of LAND ROVER NORTH AMERICA, INC.

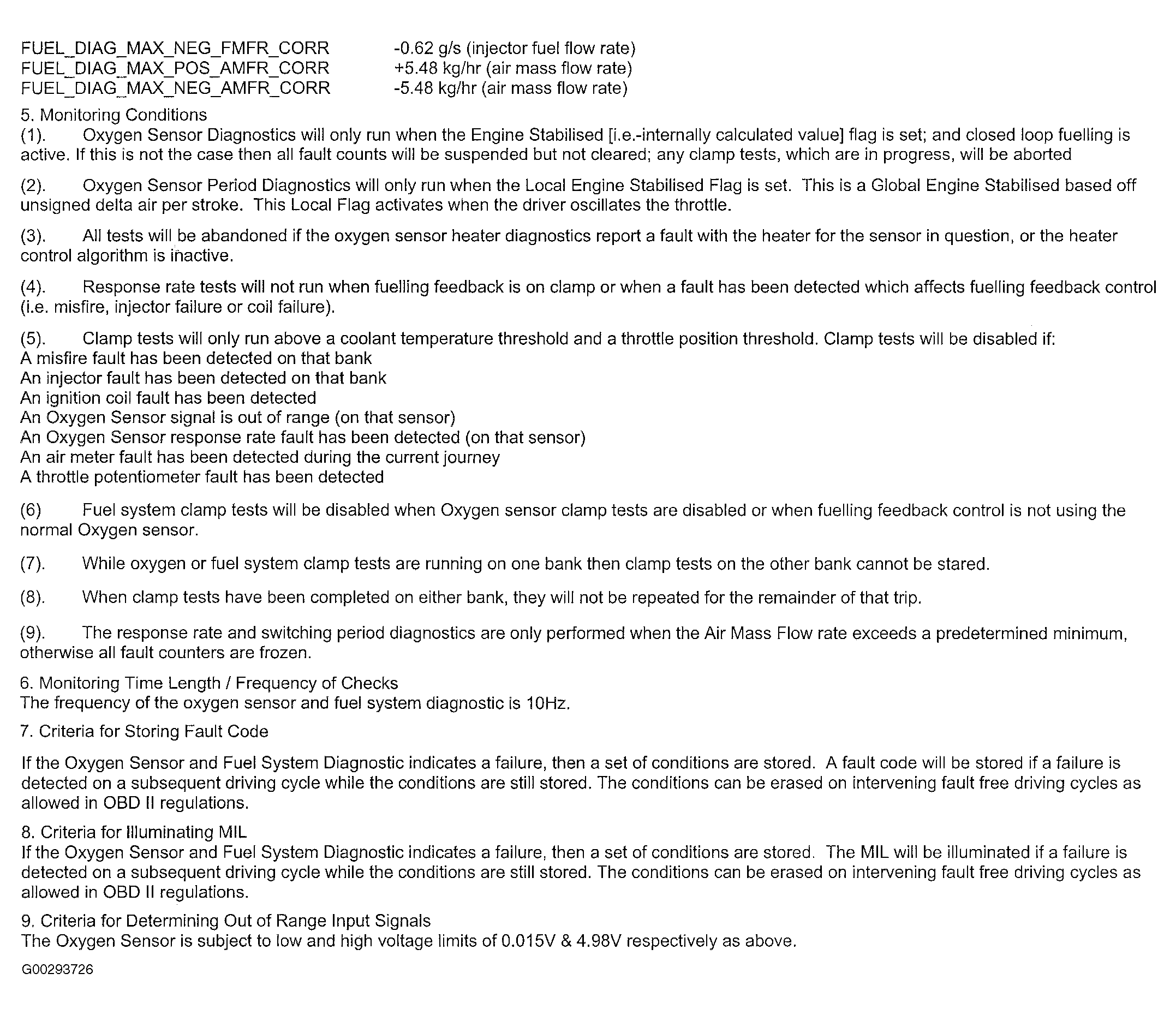

Fig 5: Oxygen Sensor & Fuel System Monitoring Description (5 Of 5)

G00293726

Courtesy of LAND ROVER NORTH AMERICA, INC.

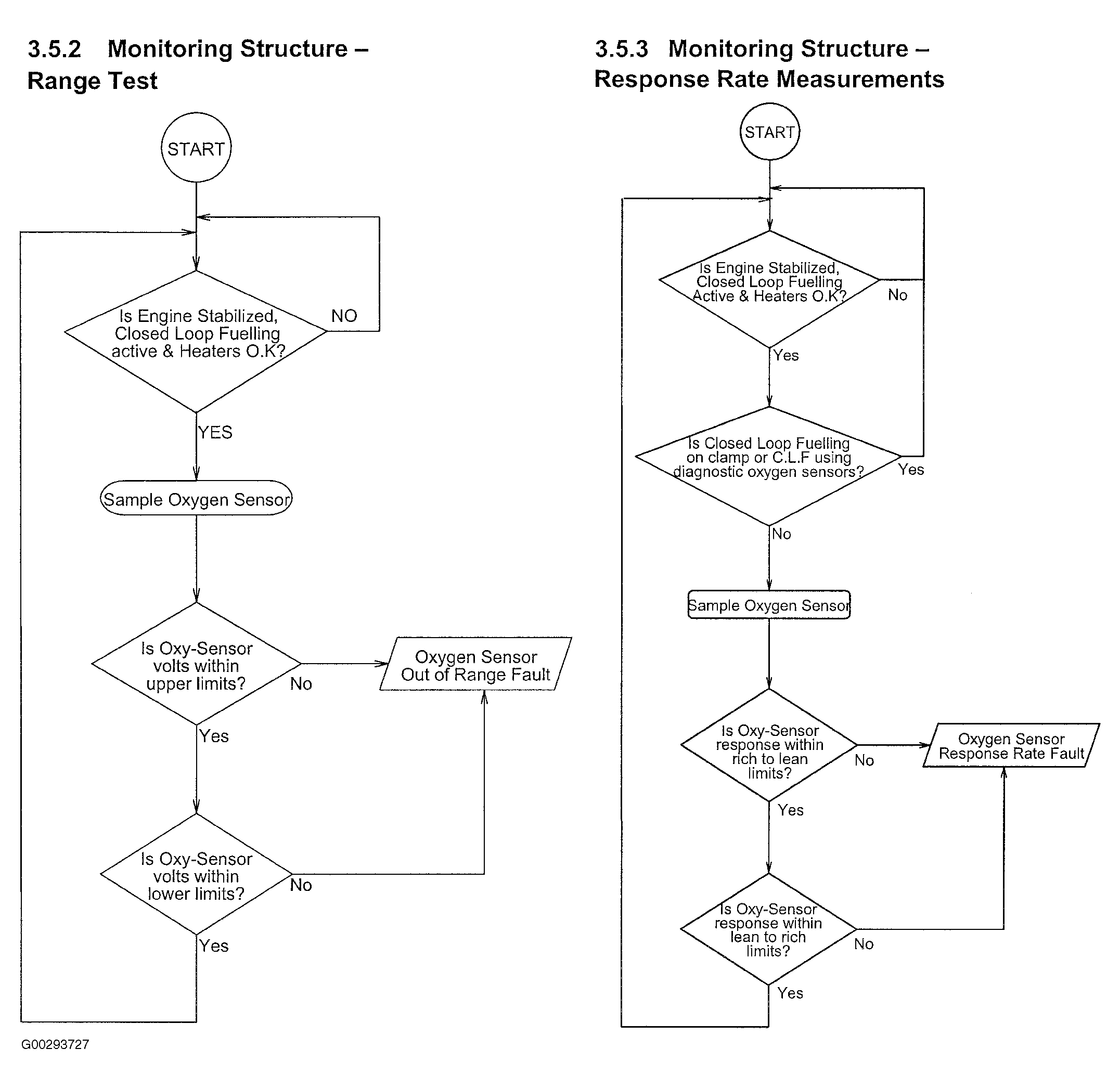

Fig 6: Oxygen Sensor & Fuel System Monitoring Structure (1 Of 5)

G00293727

Courtesy of LAND ROVER NORTH AMERICA, INC.

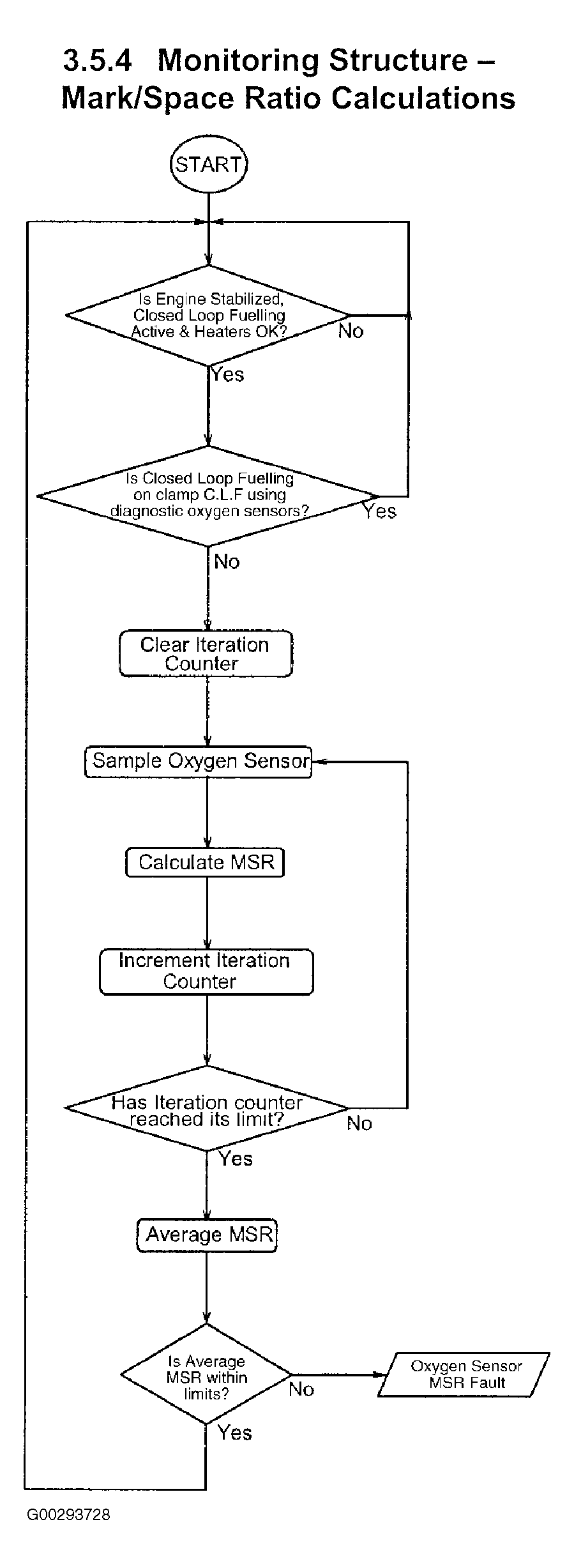

Fig 7: Oxygen Sensor & Fuel System Monitoring Structure (2 Of 5)

G00293728

Courtesy of LAND ROVER NORTH AMERICA, INC.

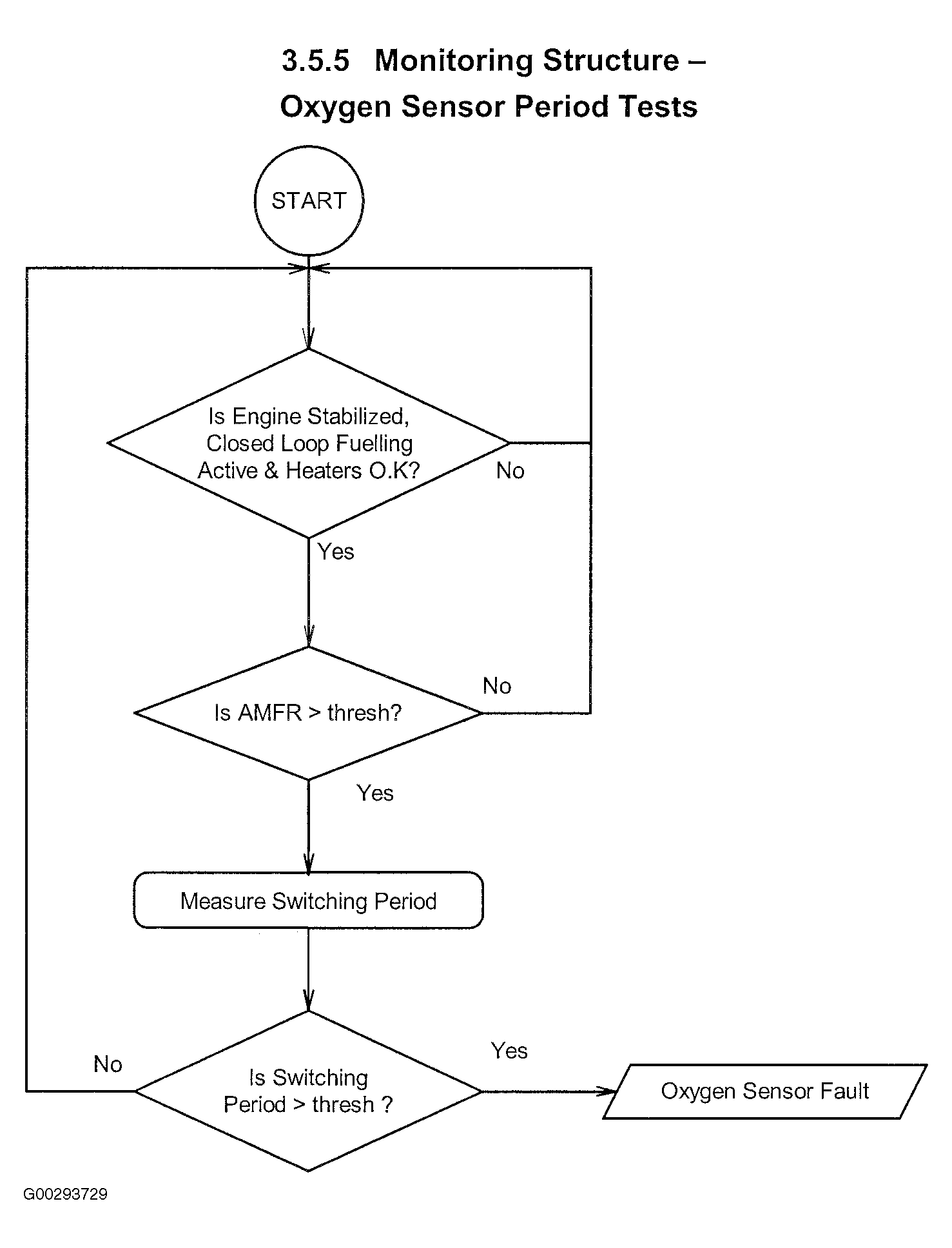

Fig 8: Oxygen Sensor & Fuel System Monitoring Structure (3 Of 5)

G00293729

Courtesy of LAND ROVER NORTH AMERICA, INC.

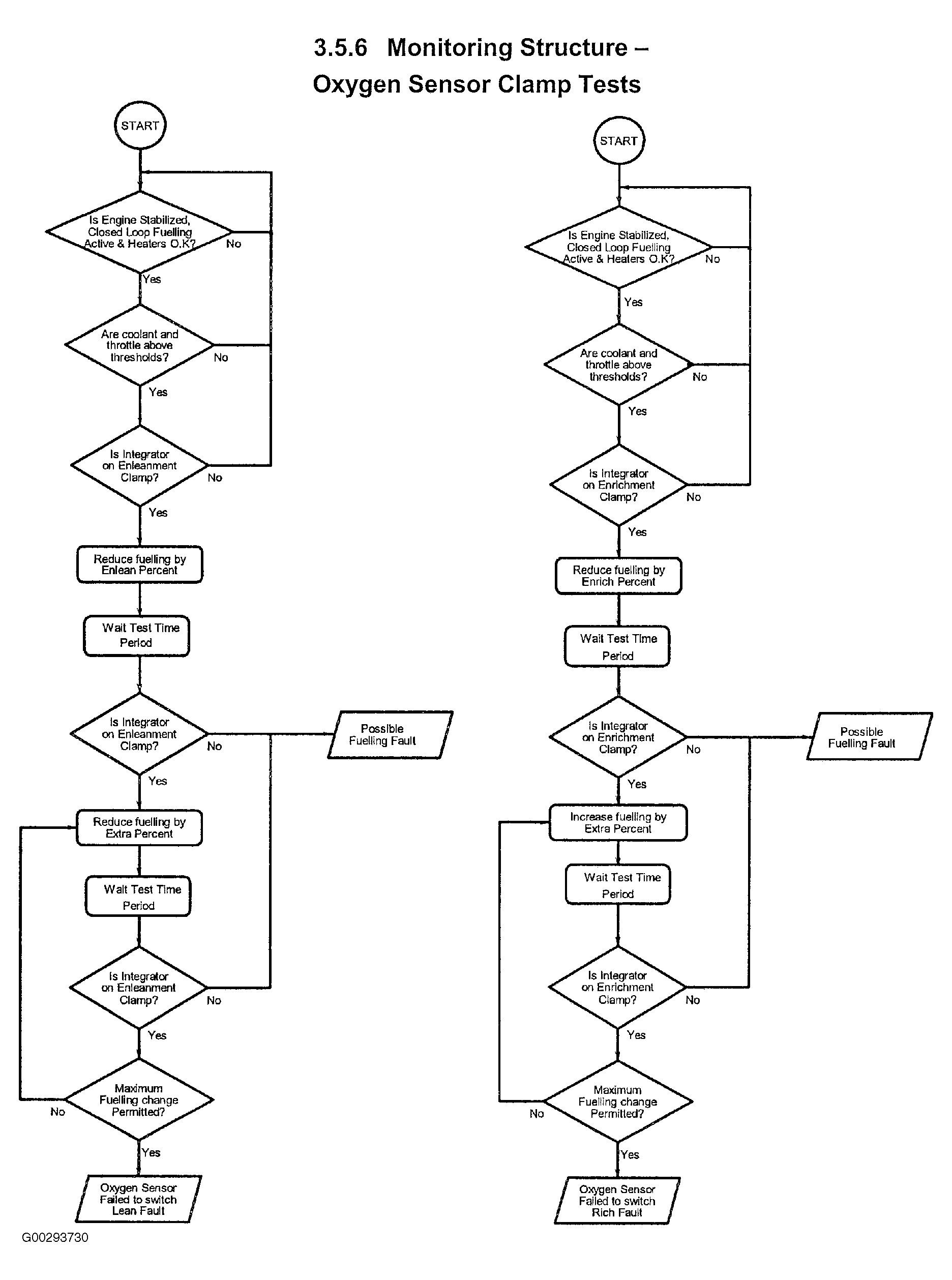

Fig 9: Oxygen Sensor & Fuel System Monitoring Structure (4 Of 5)

G00293730

Courtesy of LAND ROVER NORTH AMERICA, INC.

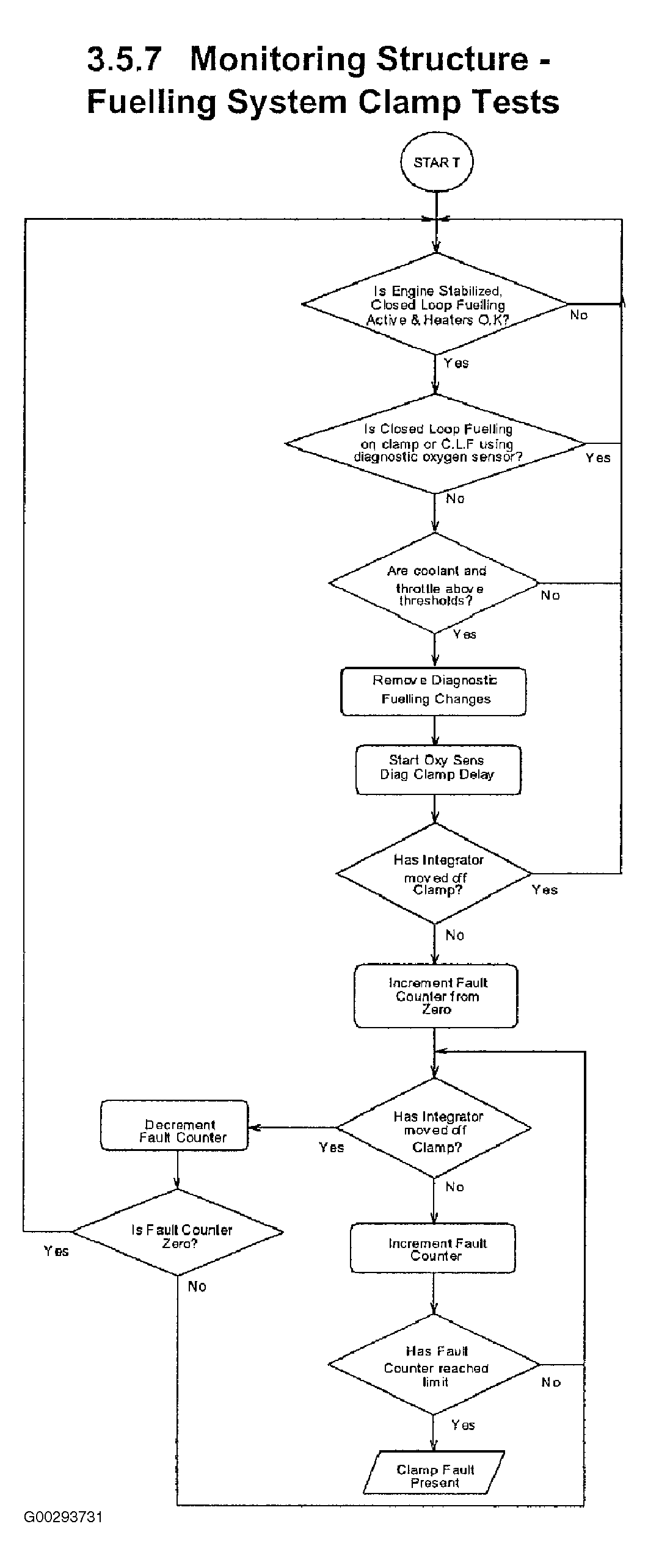

Fig 10: Oxygen Sensor & Fuel System Monitoring Structure (5 Of 5)

G00293731

Courtesy of LAND ROVER NORTH AMERICA, INC.

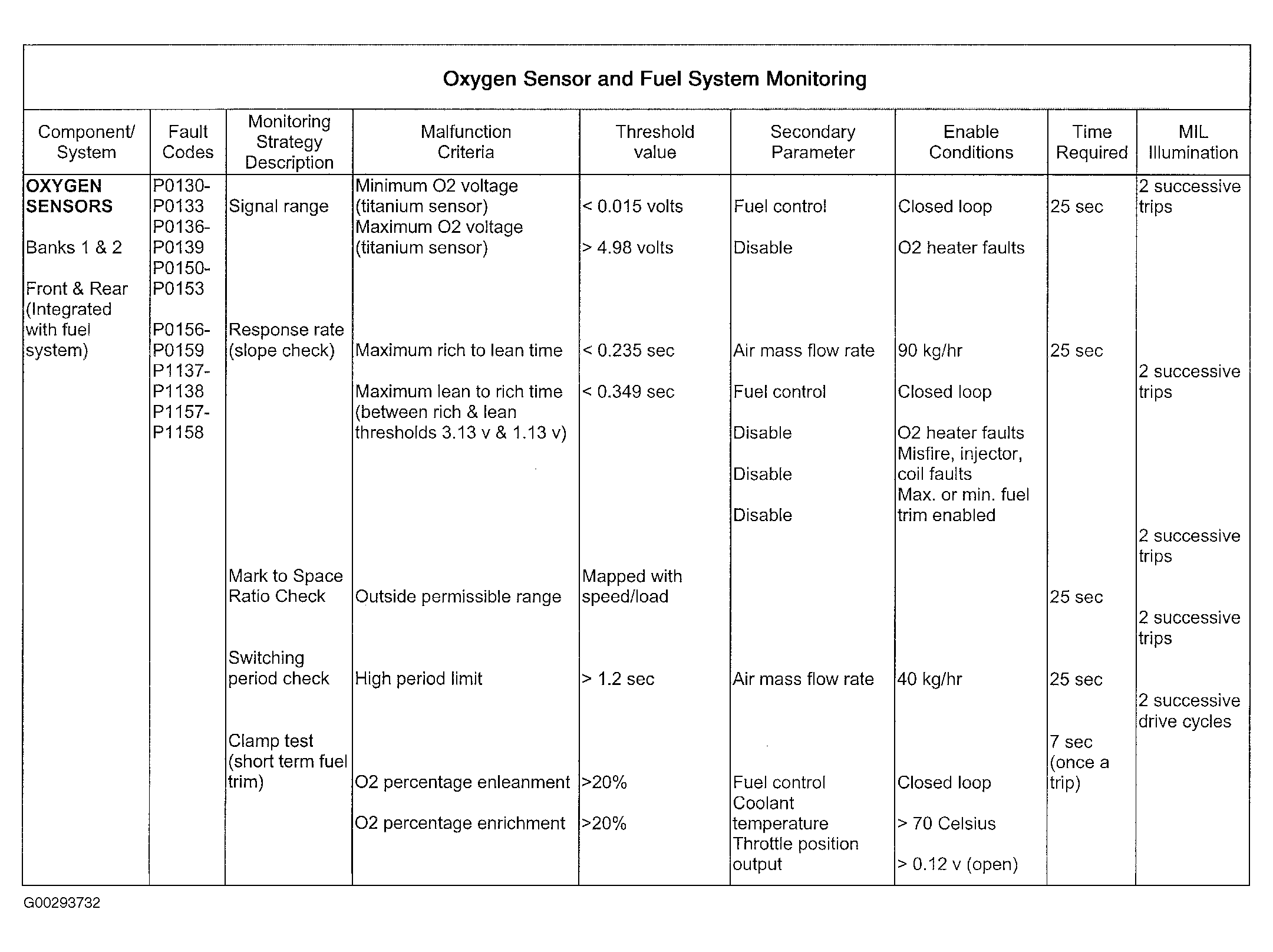

Fig 11: Oxygen Sensor & Fuel System Monitoring Operation (1 Of 2)

G00293732

Courtesy of LAND ROVER NORTH AMERICA, INC.

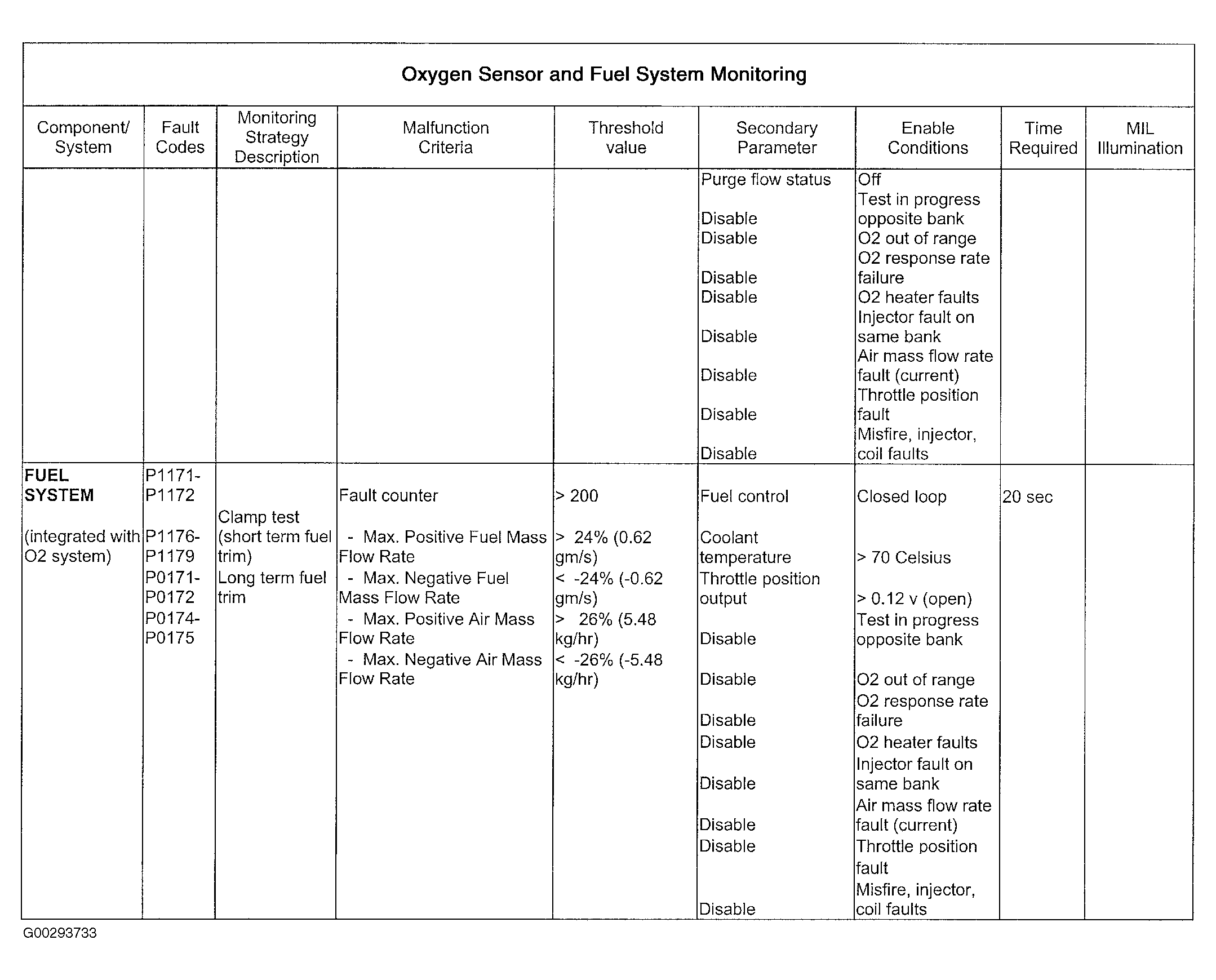

Fig 12: Oxygen Sensor & Fuel System Monitoring Operation (2 Of 2)

G00293733

Courtesy of LAND ROVER NORTH AMERICA, INC.
