Oxygen Sensor Heater Monitoring

For oxygen sensor heater monitoring information see Fig 1 -Fig 5 .

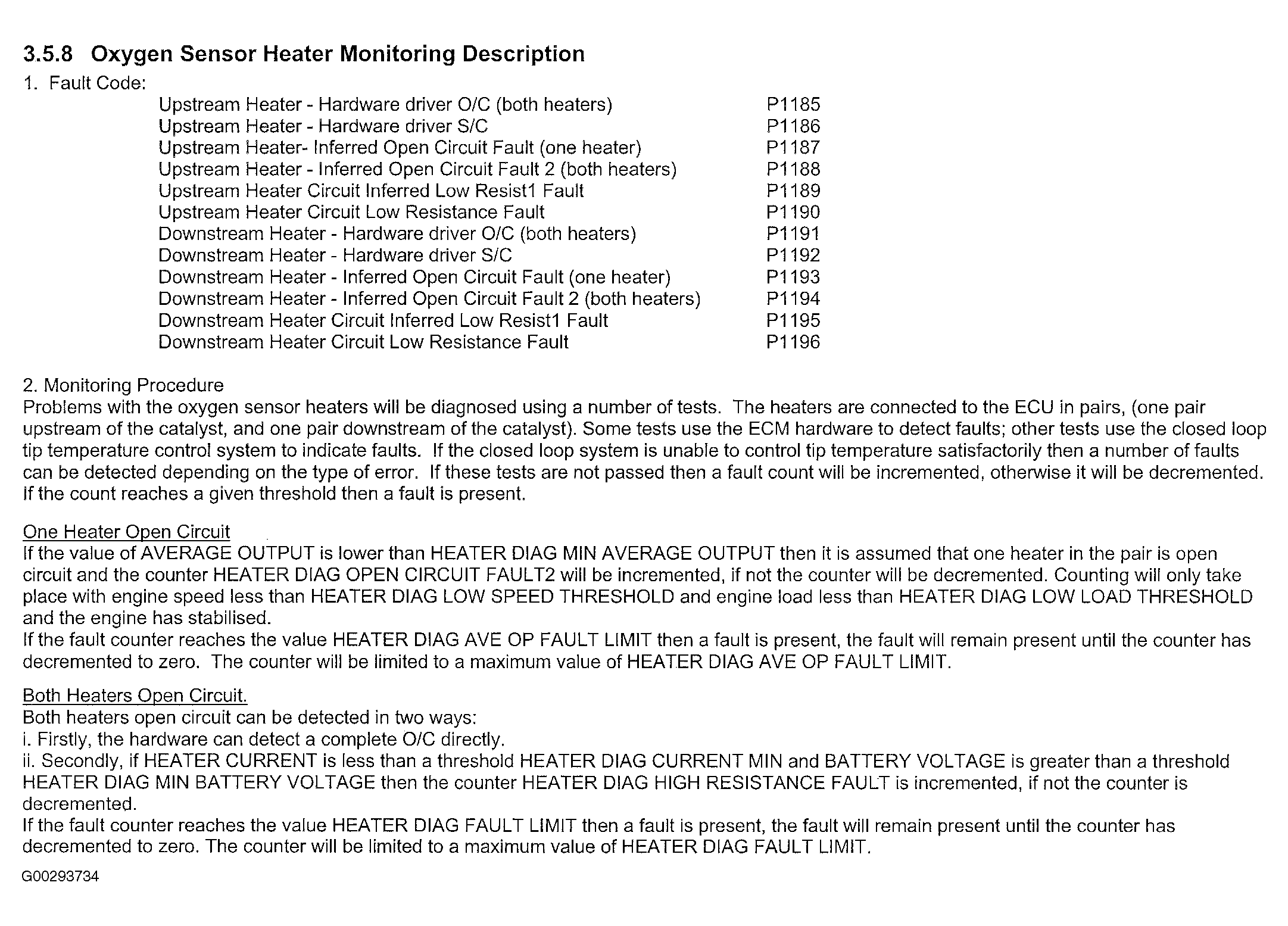

Fig 1: Oxygen Sensor Heater Monitoring Description (1 Of 2 )

Courtesy of LAND ROVER NORTH AMERICA, INC.

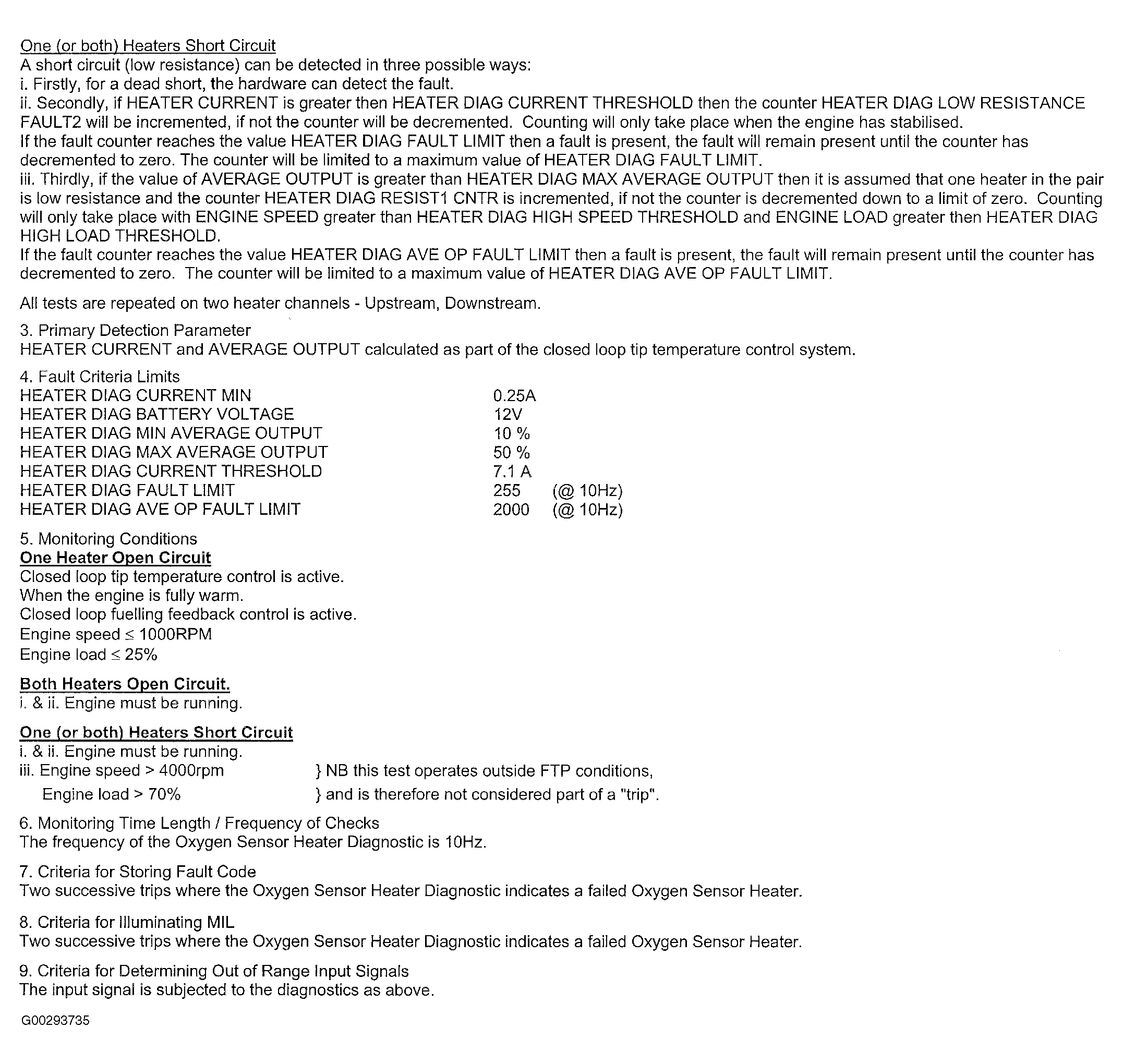

Fig 2: Oxygen Sensor Heater Monitoring Description (2 Of 2 )

Courtesy of LAND ROVER NORTH AMERICA, INC.

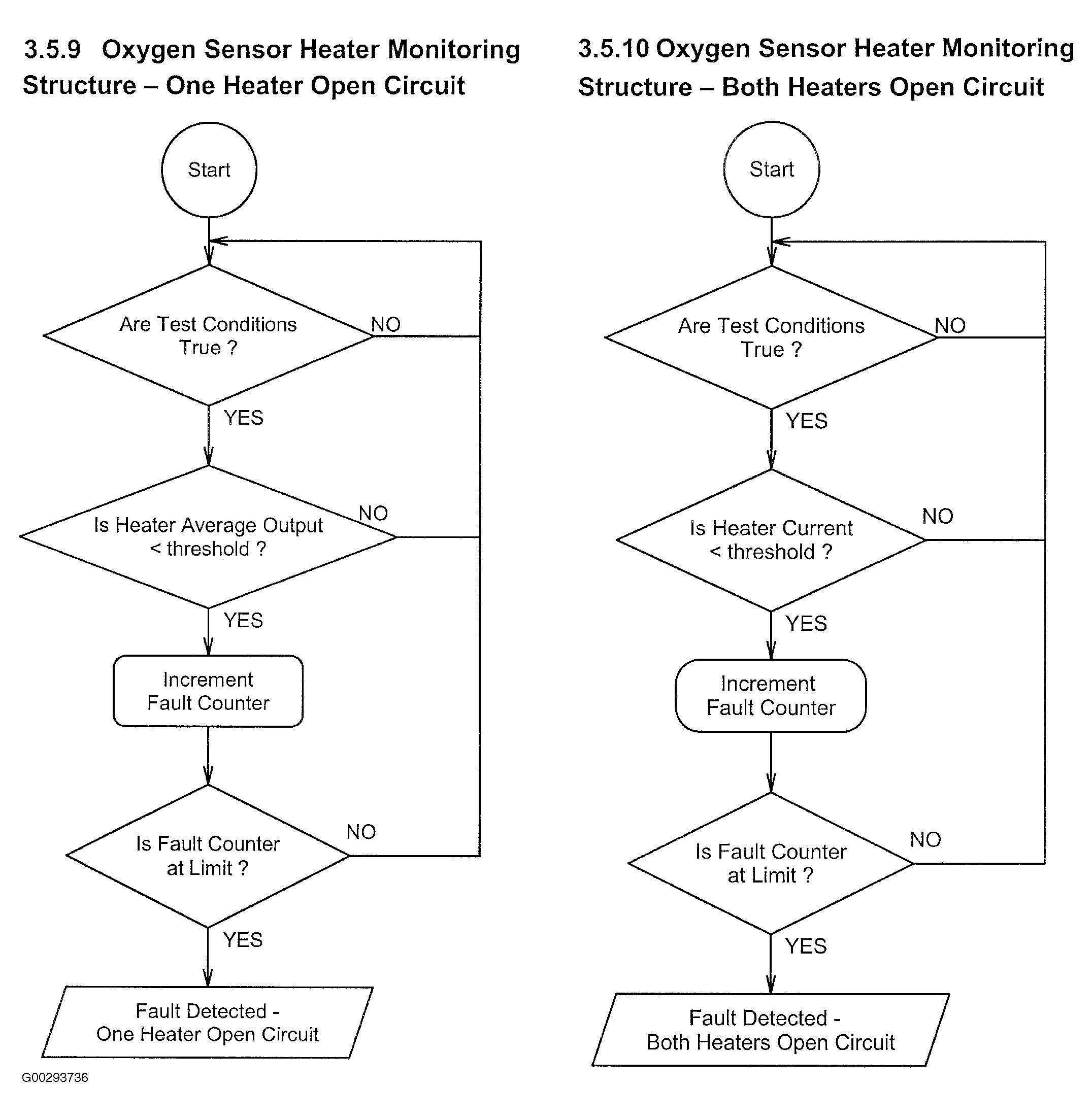

Fig 3: Oxygen Sensor Heater Monitoring Structure (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

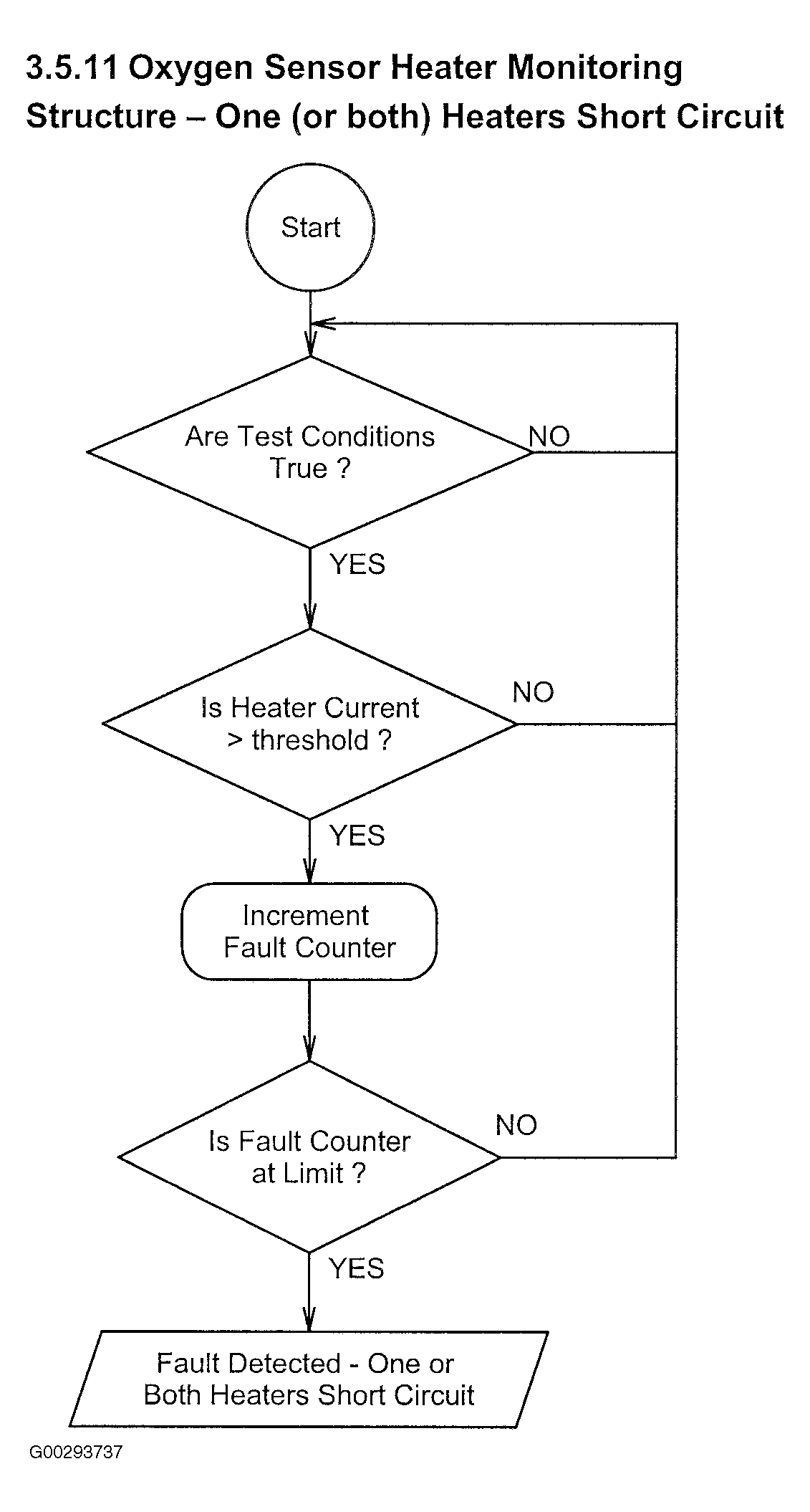

Fig 4: Oxygen Sensor Heater Monitoring Structure (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

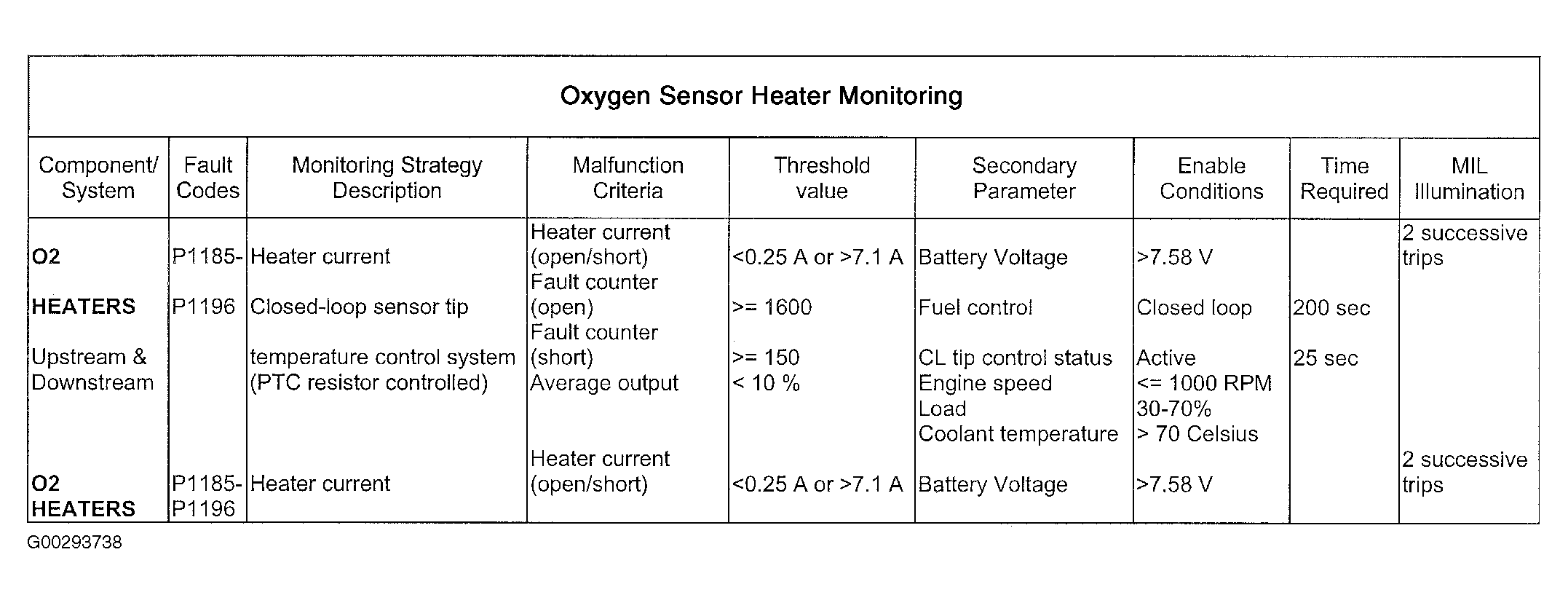

Fig 5: Oxygen Sensor Heater Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
