BCU outputs

The BCU processes the input signals it receives and uses the information to determine the control outputs that need to be established for any given set of conditions. The BCU provides controlled outputs for the following systems:

Simultaneous switching of outputs in different units is limited by the bus transfer time, but the skew is no longer than 100 ms for either the BCU or the IDM. When the processor is reset, all outputs are switched off until the inputs have been read for the first time to check current condition.

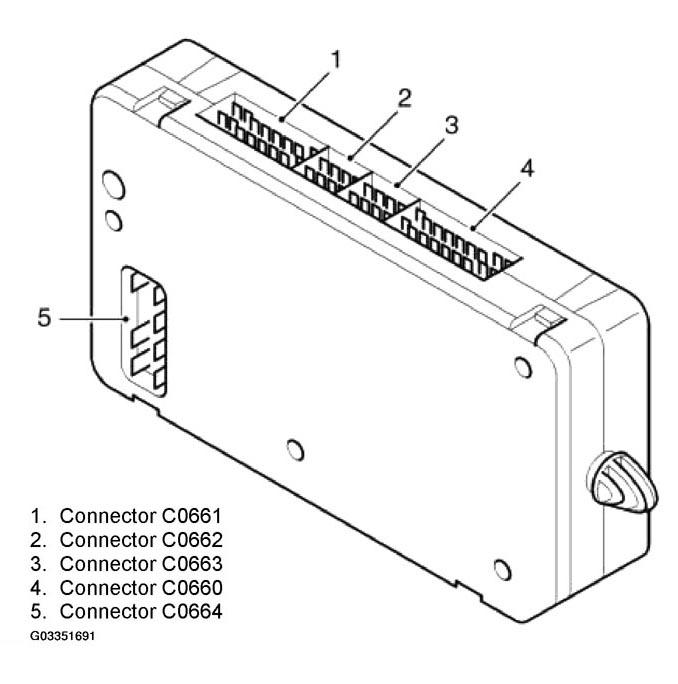

Fig 1: Identifying Terminal Connector
G03351691Courtesy of LAND ROVER NORTH AMERICA, INC.

The pinout details for the BCU connectors are defined below:

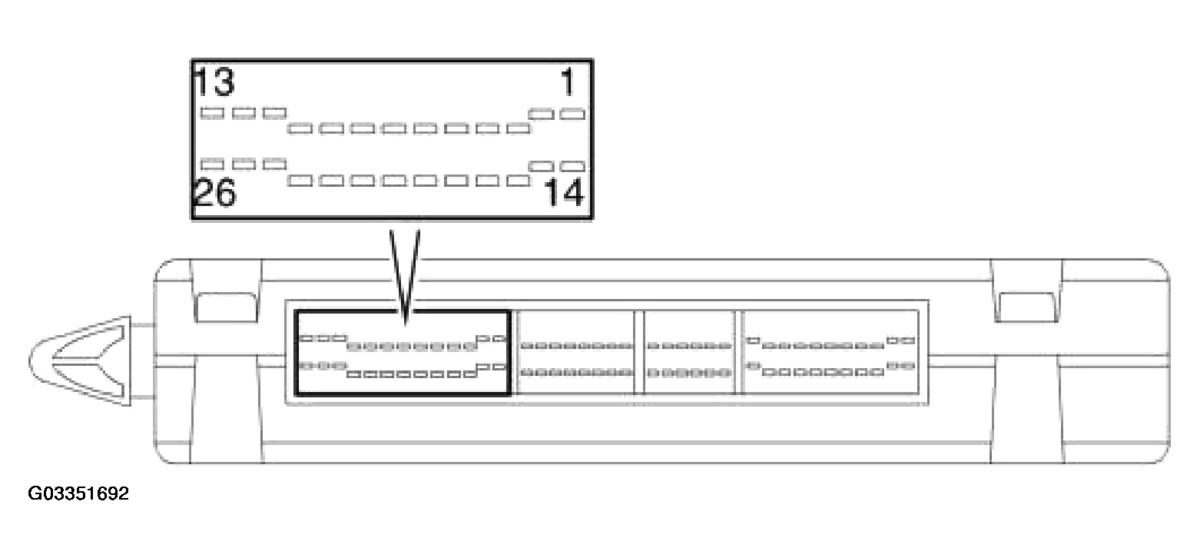

Fig 2: Identifying BCU Connector
G03351692Courtesy of LAND ROVER NORTH AMERICA, INC.
PIN DESCRIPTION

Pin No. Description Input/Output
1 Ignition power supply Input
2 Right front window - down Input
3 Auxiliary power supply Input
4 Passenger or rear door open Input
5 Driver's door key lock Input
6 RH indicator selected Input
7 Front fog lamps selected Input
8 Gear position feedback 'R' Output
9 Gear position feedback 'P' Output
10 SLS too high (audible warning) Input
11 Earth -
12 Vehicle raise/lower request Output
13 Battery power supply Input
14 Heated front screen selected Input
15 Bonnet open Input
16 CDL doors lock Input
17 Driver's door open Input
18 Left front window up Input
19 Right front window up Input
20 Rear washer pump Input
21 Front intermittent wiper switch Input
22 Gear position feedback '1' Output
23 Gear position feedback '2' Output
24 Gear position feedback '3' Output
25 Gear position feedback 'D' Output
26 Gear position feedback 'N' Output

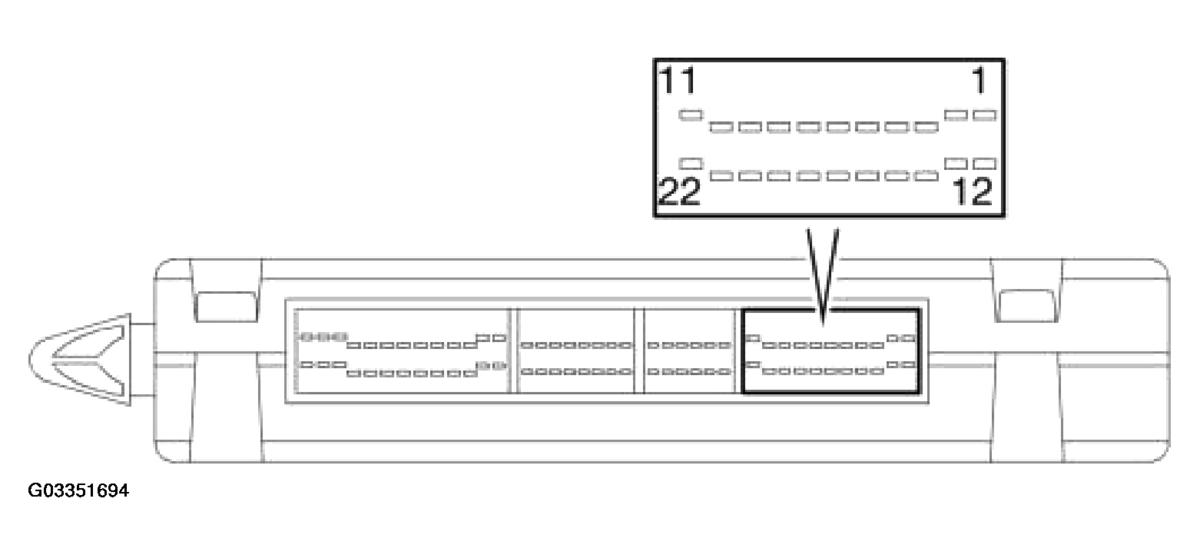

Fig 3: Identifying Connector
G03351694Courtesy of LAND ROVER NORTH AMERICA, INC.
PIN DESCRIPTION

Pin No. Description Input/Output
1 Serial bus to instrument pack and IDM Input/Output
2 Not used -
3 Battery backed up sounder code (AL) Output
4 Diagnostic bi-directional 'K'-line Input/Output
5 RF regulated power supply Output
6 RF receiver input Input
7 Brake switch activated Input
8 Reverse gear selected Input
9 Sunroof enable line Output
10 Robust immobilization Output
11 Front washer pump Input
12 Heated front screen relay Output
13 Heated front screen active Output
14 Battery backed up sounder code (ST) Output
15 Heated rear screen active Output
16 'N' or 'R' or 'P' or brake selected Output
17 Not used -
18 Passive re-mobilization exciter coil Output
19 RF battery supply from fuse 20 in passenger compartment fusebox Input
20 Security status LED Output
21 Front intermittent wiper Input
22 Driver's door key unlock Input

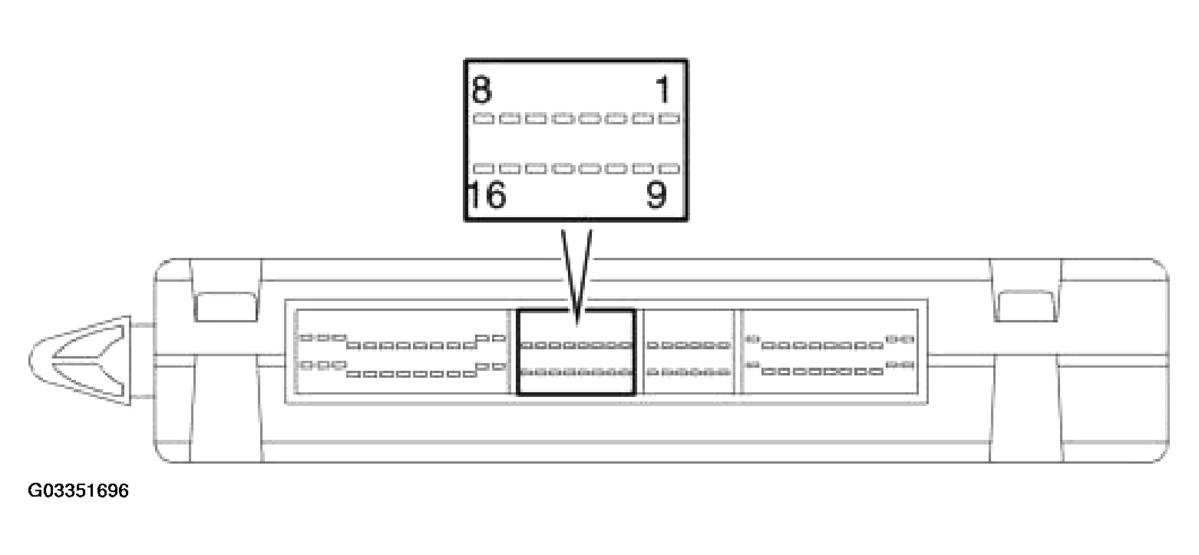

Fig 4: Identifying Front Left Window Terminal Connector
G03351696Courtesy of LAND ROVER NORTH AMERICA, INC.
PIN DESCRIPTION

Pin No. Description Input/Output
1 Front left window - down Input
2 Ignition key inserted Input
3 Rear wiper Input
4 Vehicle horns Input
5 Crank enable Output
6 Gear position switch (Y contacts) Input
7 CDL doors unlock Input
8 Rear fog lamps selected Input
9 Gear position switch (W contacts) Input
10 Drive selected (HDC) Output
11 Ignition key interlock solenoid Output
12 Headlamp powerwash Output
13 Gear position switch (X contacts) Input
14 Not used -
15 Transfer box - neutral selected Input
16 Seat buckle fastened Input

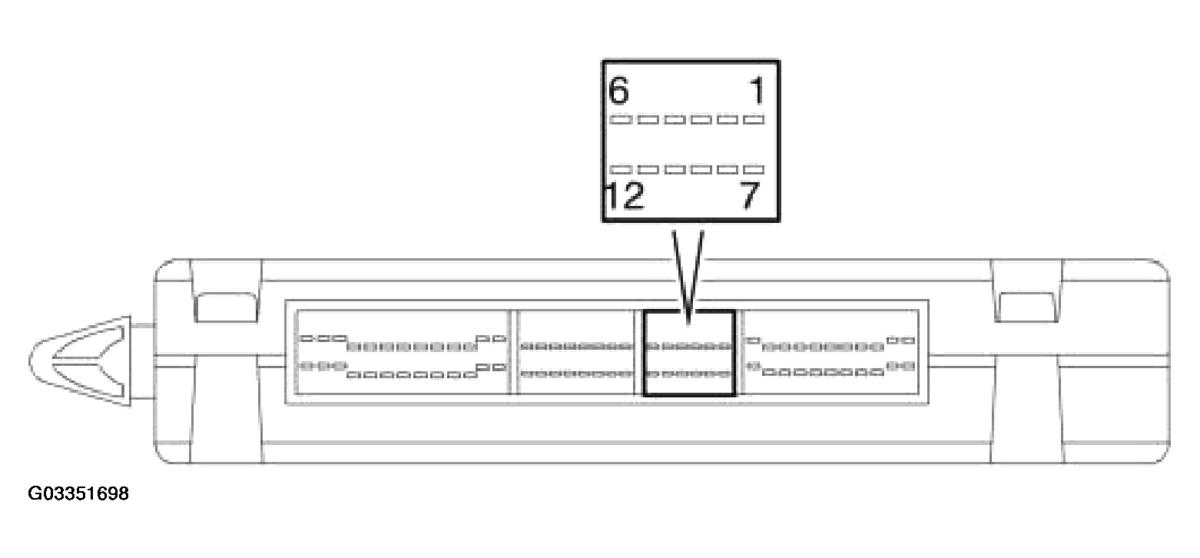

Fig 5: Identifying Terminal Connector
G03351698Courtesy of LAND ROVER NORTH AMERICA, INC.
PIN DESCRIPTION

Pin No. Description Input/Output
1 Crank selected Input
2 LH direction indicator selected Input
3 Driver/Passenger seat enable Output
4 Front fog lamps Output
5 Heated rear screen selected Input
6 Ultrasonic input Input
7 Gear position switch (Z contacts) Input
8 Ultrasonic power supply Output
9 Courtesy lamps Output
10 Feed to gear position switch (W, X, Y, Z contacts) Output
11 Park/Neutral selected Input
12 Hazard warning lamps Input

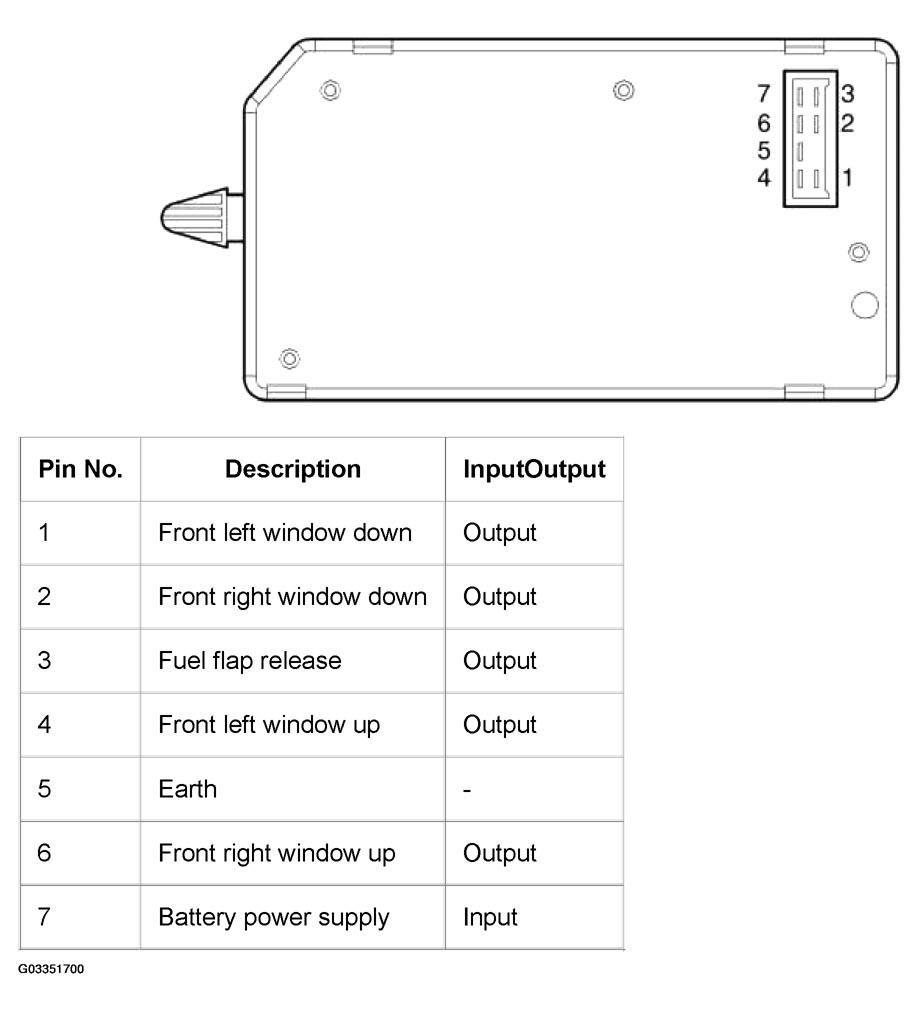

Fig 6: Identifying Terminal Connector
G03351700Courtesy of LAND ROVER NORTH AMERICA, INC.
