86.25.19 Switch - console: Remove

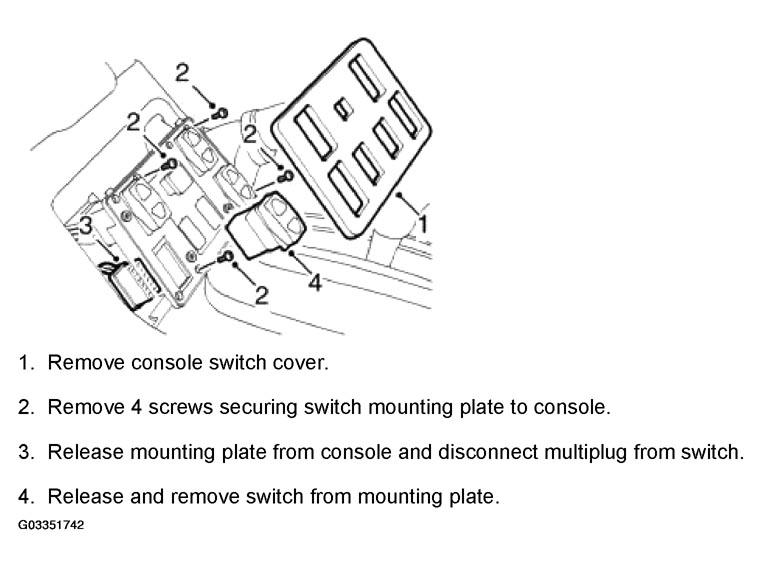

Fig 1: Removing Switch Console
Courtesy of LAND ROVER NORTH AMERICA, INC.
