Front window motors

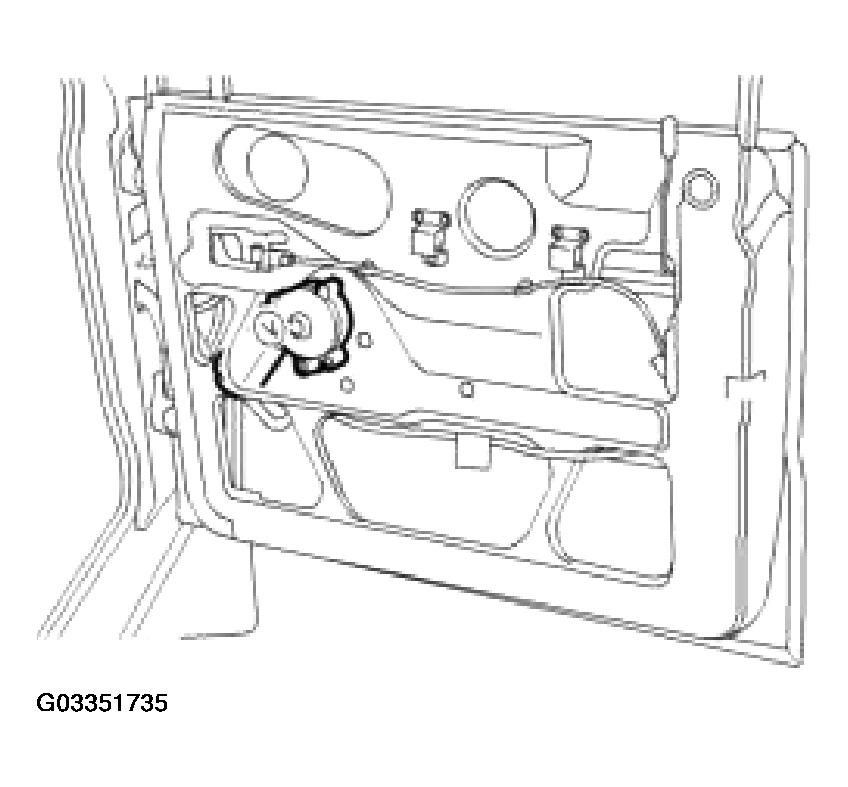

Fig 1: Identifying Front Window Motor

Courtesy of LAND ROVER NORTH AMERICA, INC.

The front window motors are permanent magnet motors. There is a window motor in each front door. The front window motors are controlled by the BCU.

The BCU provides both the voltage and the earth paths to the front window motors. The BCU reverses the direction the window motor operates by switching the voltage and earth paths to the window motor. The BCU also monitors stall current for the front window motors.

TestBook can operate the front window motors remotely.
