Front window switches

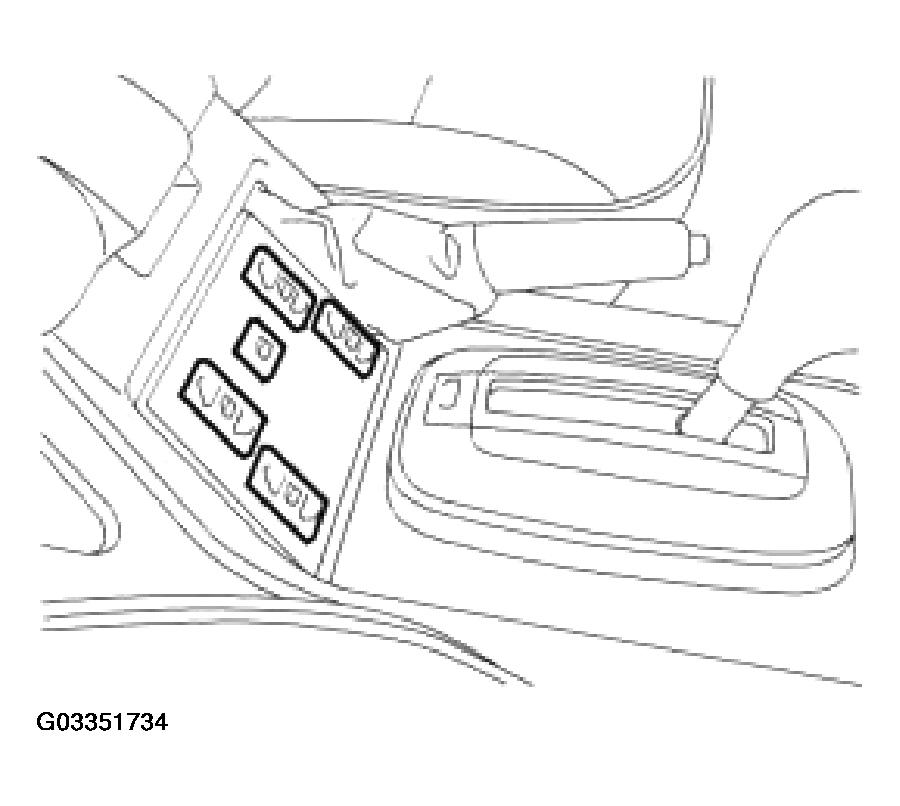

Fig 1: Identifying Front Window Switches

Courtesy of LAND ROVER NORTH AMERICA, INC.

The front window switches are non-latching rocker switches located in the center console. The front window switches contain illumination bulbs that operate when the side lamps or headlamps are on.

The front window switches provide earth signals to the BCU. The BCU determines which direction to operate the front window motors.

TestBook will monitor the real time status of the front window switches.
