Rear window isolation switch

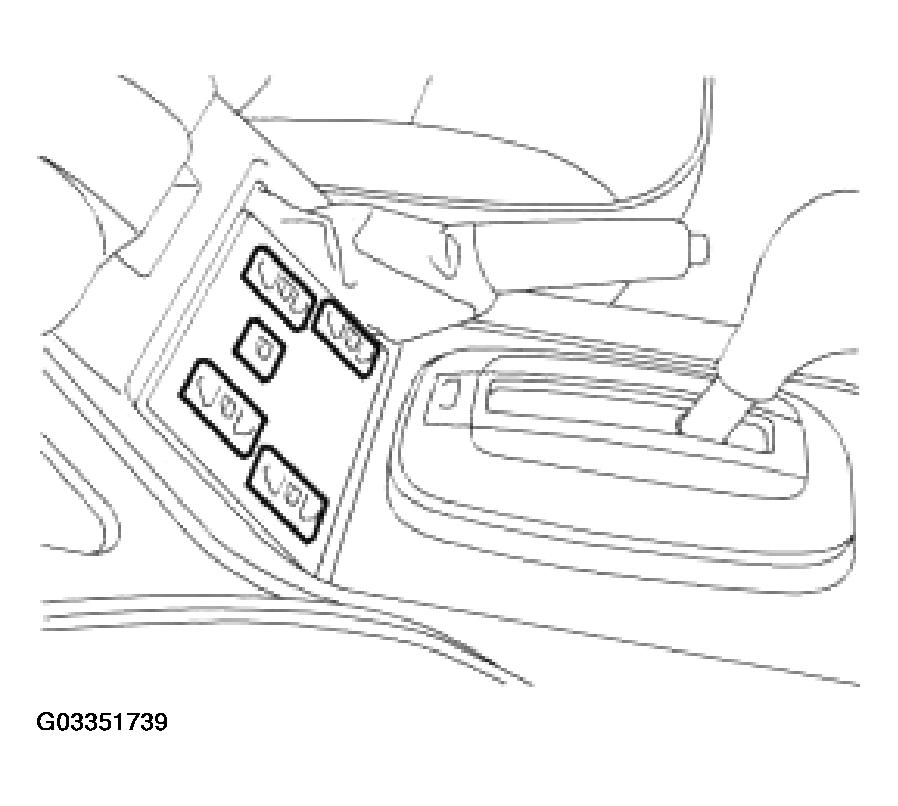

Fig 1: Identifying Rear Window Isolation Switch

Courtesy of LAND ROVER NORTH AMERICA, INC.

The rear window isolation switch allows the front seat occupants to disable the rear window switches.

The rear window isolation switch is located in the center console.

The rear window isolation switch is connected in the earth path in series with the rear door window switches. Operating the rear window isolation switch interrupts the earth path to the rear door window switches, preventing the rear door switches from operating the rear window motors. The rear windows can still be operated from the center console rear window switches.

TestBook cannot monitor the status of the rear window isolation switch.
