88.15.07 Clock: Remove

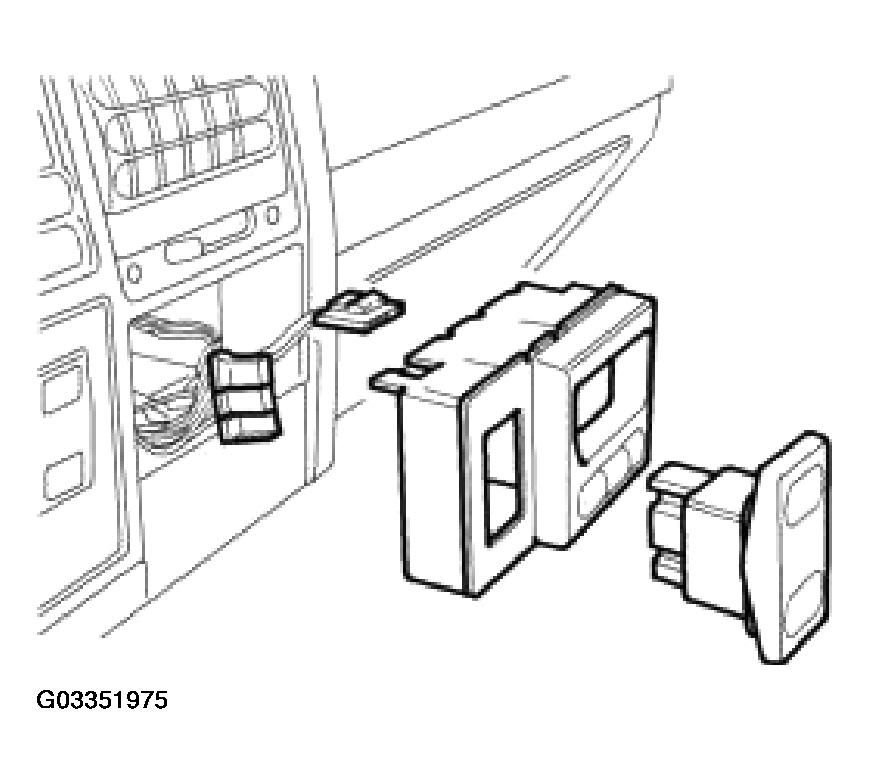

Fig 1: Removing Clock Assembly From Fascia
G03351975Courtesy of LAND ROVER NORTH AMERICA, INC.
  1. Carefully remove clock assembly from fascia.
  2. Disconnect multiplugs from clock and door locking switches.
  3. Remove door locking switch from clock assembly and remove clock assembly.
