Main beam warning lamp

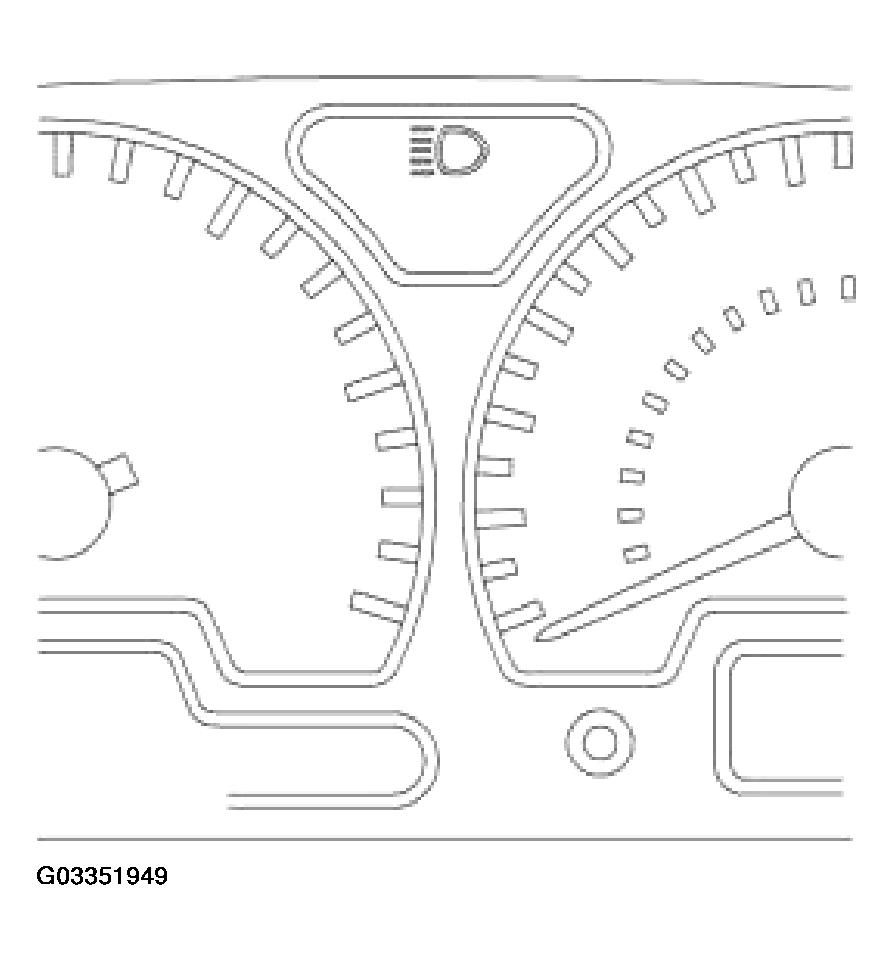

The main beam warning lamp within the instrument pack utilizes a clear 14 volt 2 watt long life bulb and a blue legend. The bulb illuminates when the headlamps are switched to main beam, providing the driver with a visible warning.
There is no self-test performed at ignition on for this warning lamp.
Operating the main beam switch provides the Intelligent Driver Module (IDM) with battery voltage. This feed activates the IDM to supply the power for the main beam warning lamp. The earth path is provided through the instrument pack.
