Instrument pack

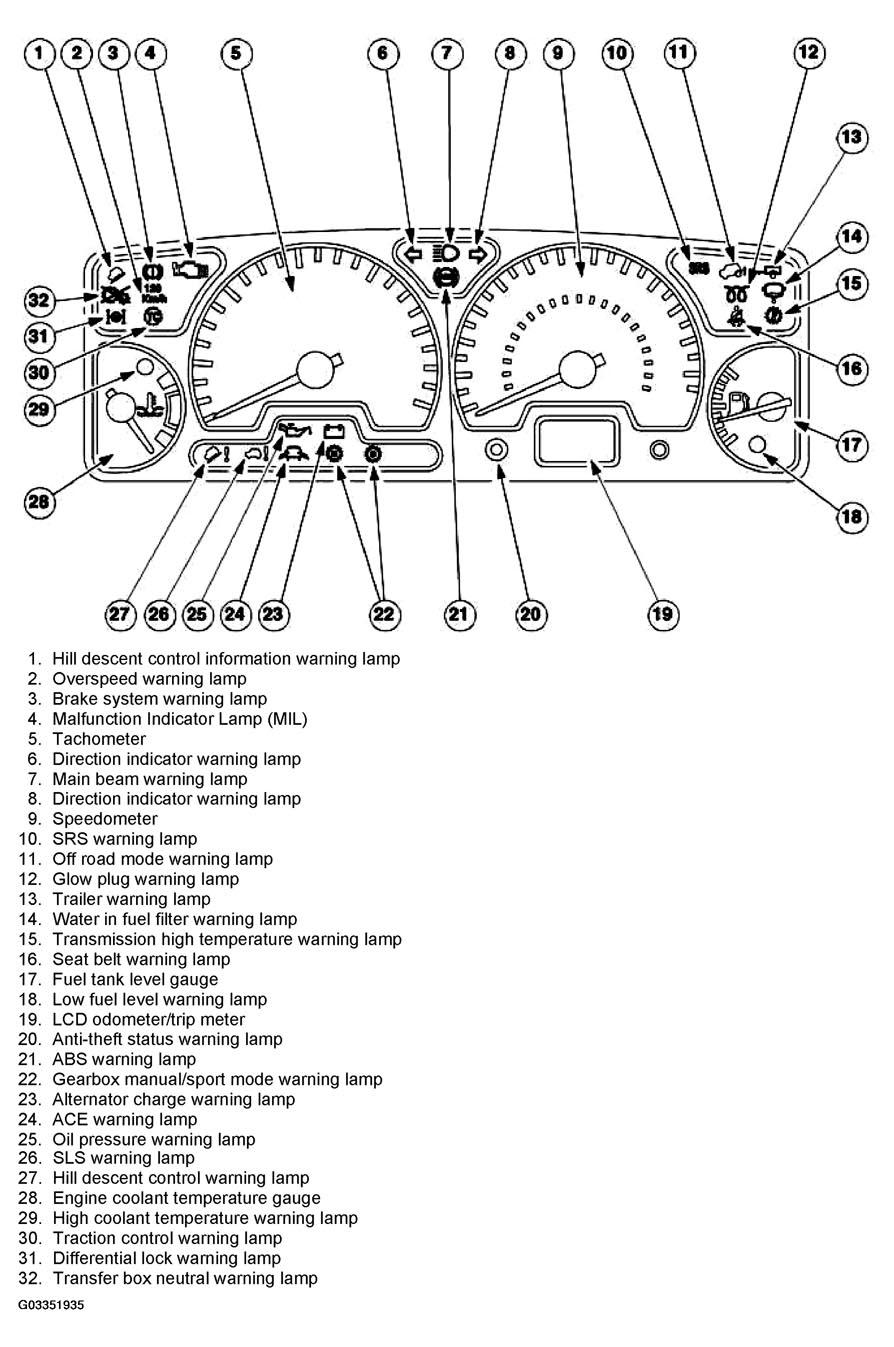

Fig 1: Identifying Instrument Pack Components
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
