Data Link Connector (DLC) Location

On all models, Data Link Connector (DLC) is a 16-pin connector. See Fig 1 . On all Discovery models, DLC is located under steering wheel. On Range Rover, DLC is located in passenger footwell.

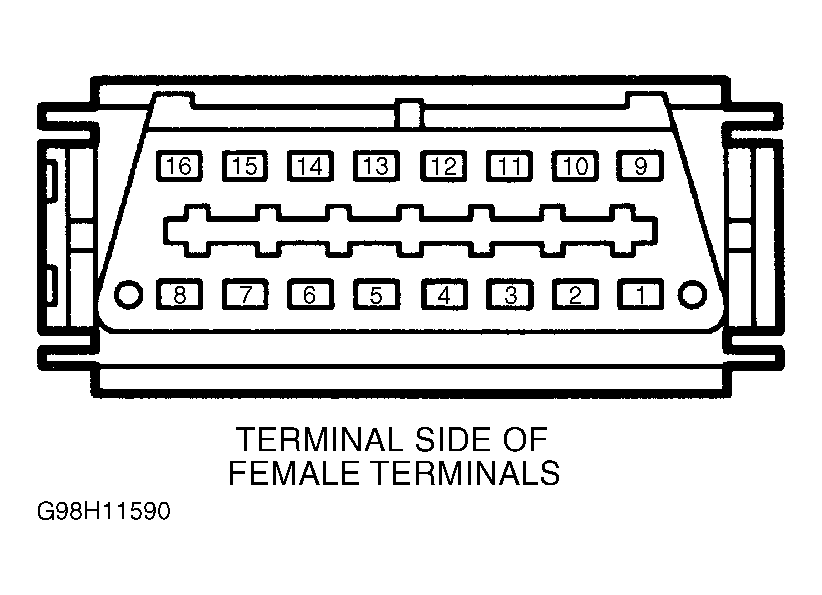

Fig 1: Identifying 16-Pin Data Link Connector (DLC) Terminals

Courtesy of LAND ROVER NORTH AMERICA, INC.
