Fuel System Monitoring: Description: Lambda-Control

The ECM compares the oxygen sensor signal upstream of the catalyst with a reference value and calculates a correction factor for the primary control. See Fig 1 .

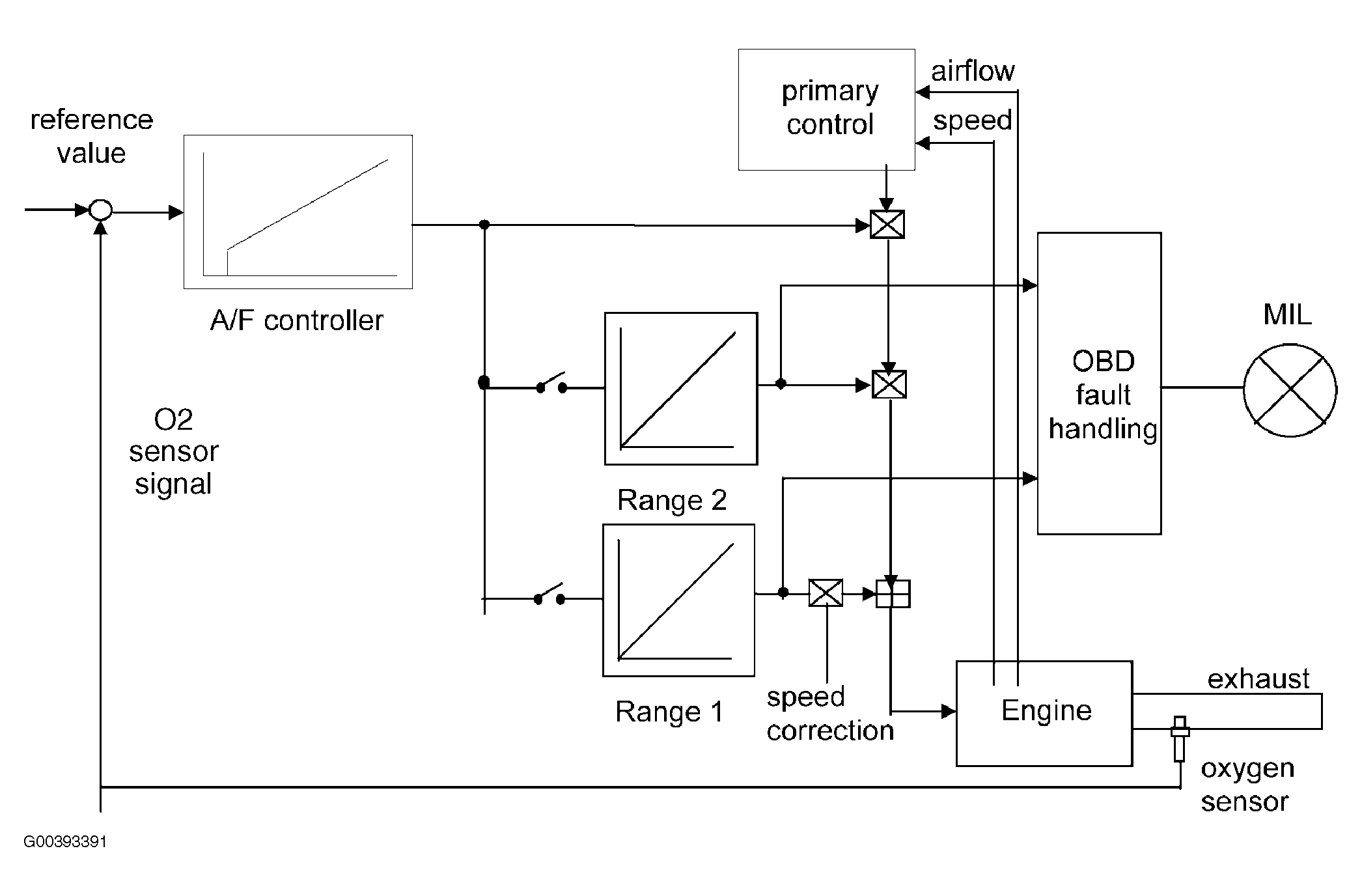

Fig 1: Lambda Control Operation Structure

Courtesy of LAND ROVER NORTH AMERICA, INC.
