Active Secondary Air Injection Diagnostic
If on any drive cycle during which secondary air injection operation has occurred, there are insufficient passive diagnostic test results for fault determination. The system will then attempt to perform an active check of the secondary air injection system. For an active test to occur, the vehicle must be at rest with the engine idling, feedback fuel control enabled, below an altitude threshold, with the engine having been running for longer than a pre-determined time and secondary air injection not operating. If the EVAP canister purge is operating, then it will be ramped down to zero.

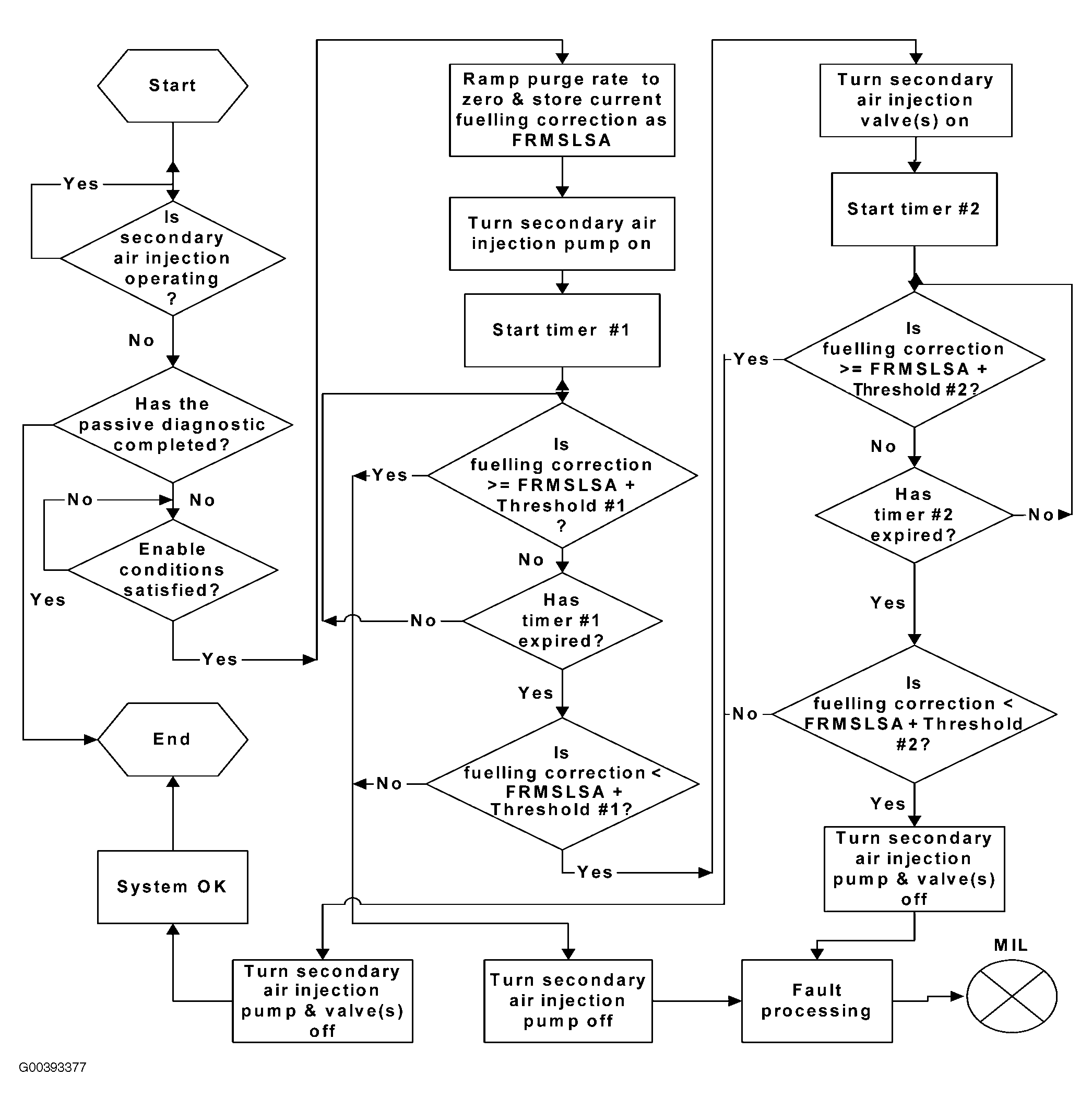

The active test is in two parts. See Fig 1 . First the current feedback correction factor is recorded and the secondary air injection pump turned on, but with the control valves shut. If the fuelling enriches by more than a threshold, then the valves are leaking or stuck open, but if after a timer has elapsed the feedback correction is below the threshold, then the system proceeds with a flow check.
For the second part of the active diagnostic the valves are opened and if after a time limit, the feedback has not enriched the fuelling by more than a second threshold, then a problem exists with the system and if it is present again on a subsequent drive cycle, a fault is stored and the MIL illuminated. See Fig 2 .
