Wheel Alignment Specifications

See Fig 1 for specifications.

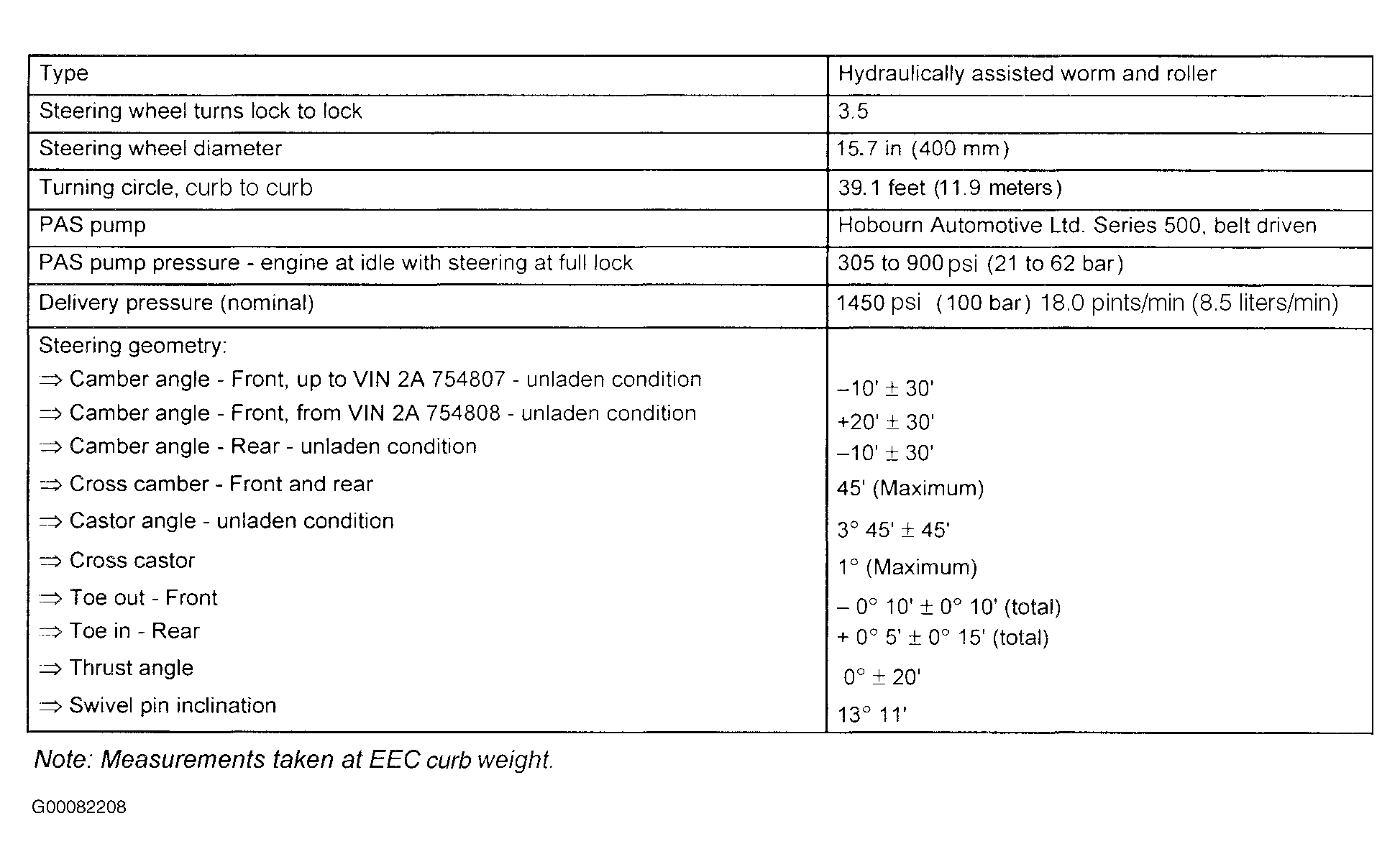

Fig 1: Front Wheel Alignment Specifications
G00082208Courtesy of LAND ROVER NORTH AMERICA, INC.
