Connector Views

NOTE: For connector views, refer to illustrations. See Fig 1 -Fig 3 .

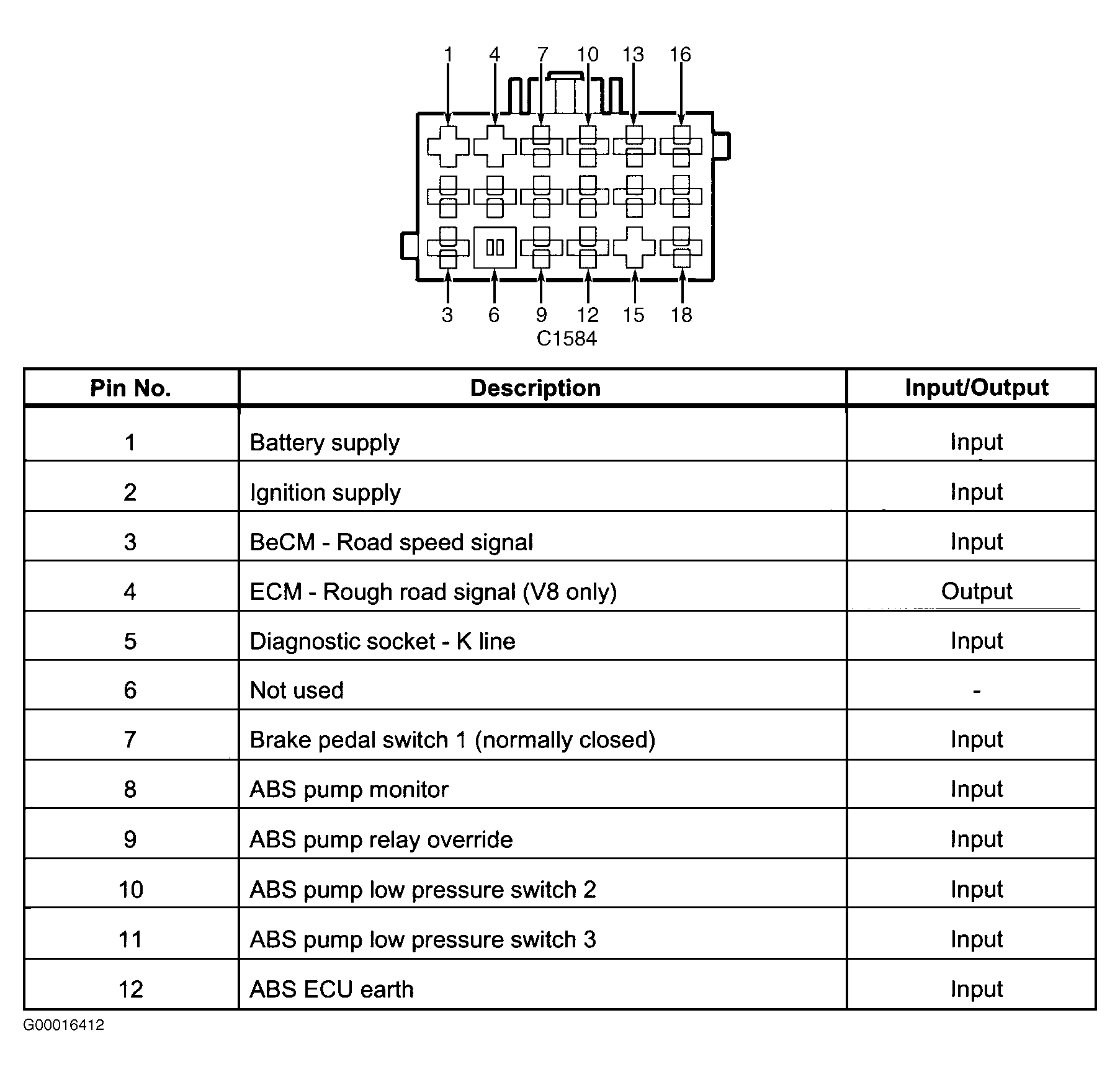

Fig 1: Identifying ABS ECU Connector C1584 Terminals

Courtesy of LAND ROVER NORTH AMERICA, INC.

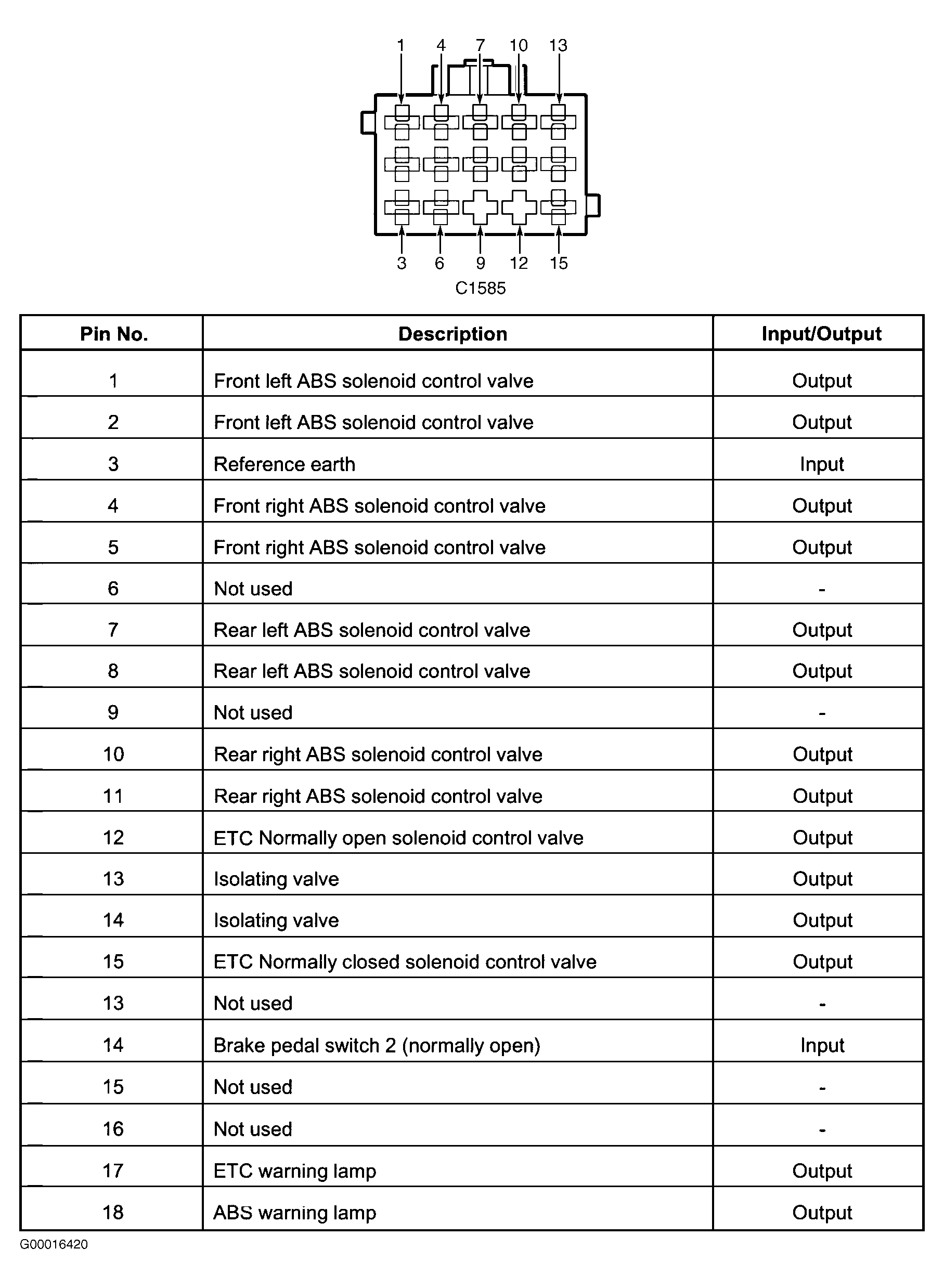

Fig 2: Identifying ABS ECU Connector C1585 Terminals

Courtesy of LAND ROVER NORTH AMERICA, INC.

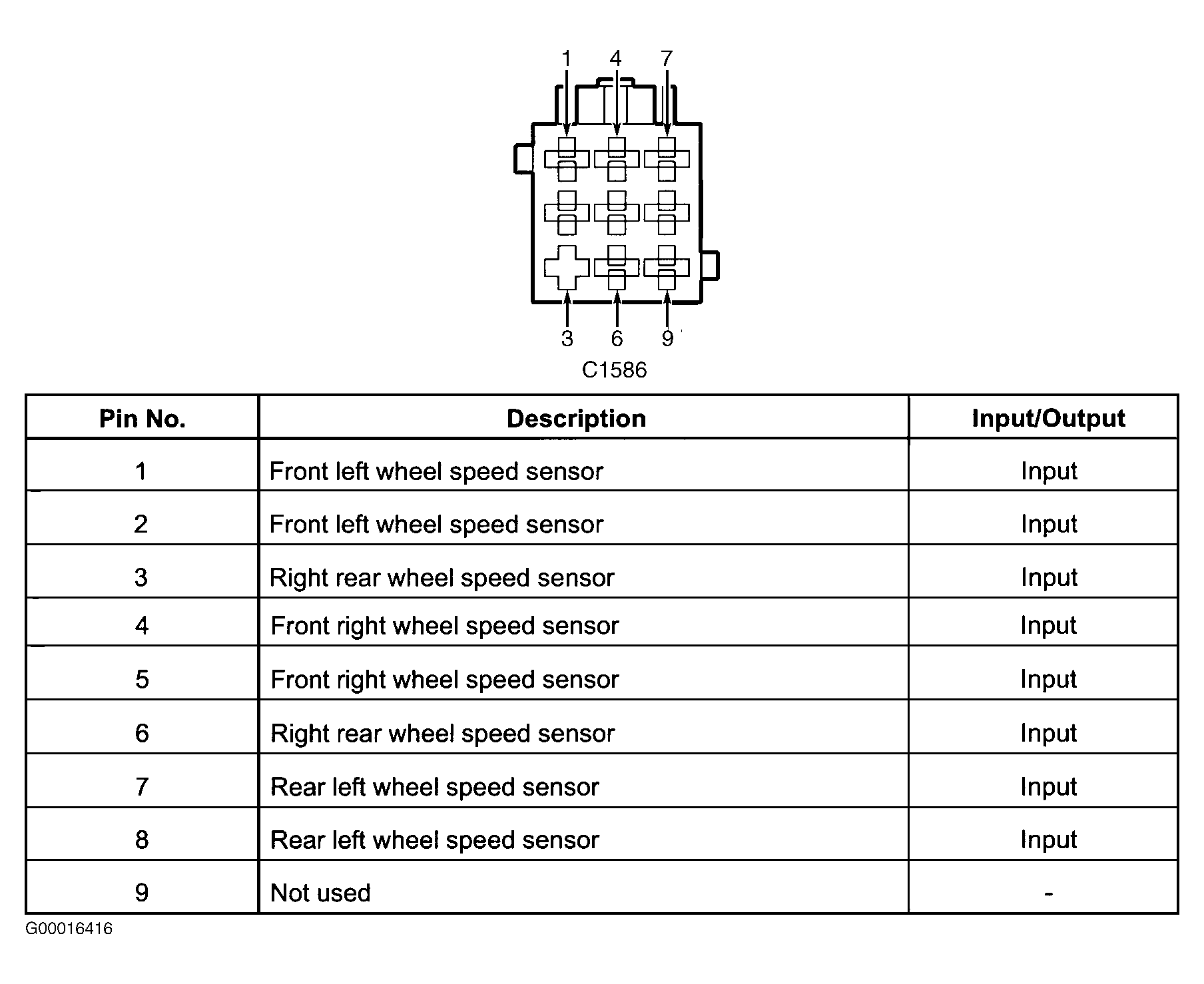

Fig 3: Identifying ABS ECU Connector C1586 Terminals

Courtesy of LAND ROVER NORTH AMERICA, INC.
