Firing Order (Range Rover)

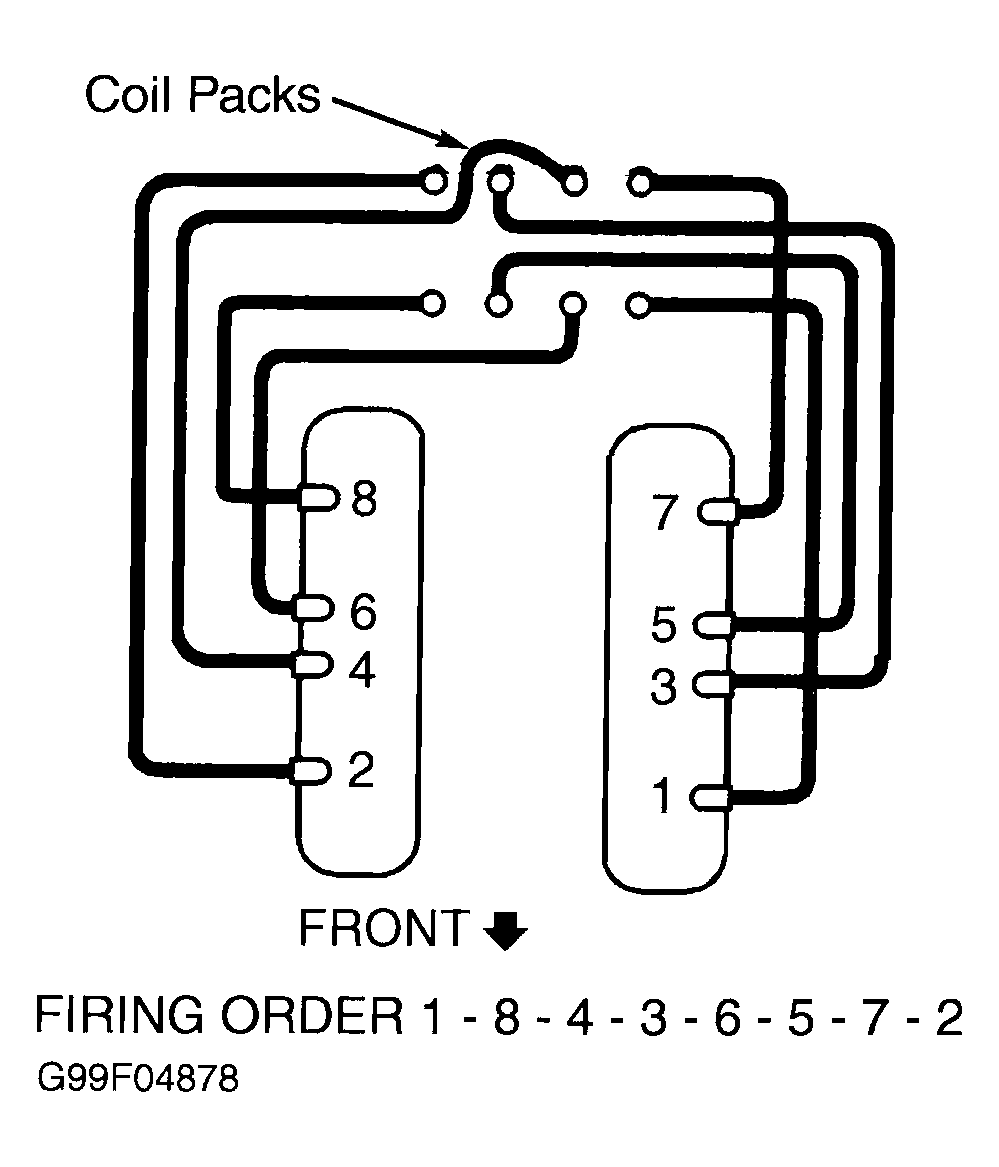

Fig 1: Firing Order & Cylinder Configuration (Range Rover)

G99F04878

Courtesy of LAND ROVER NORTH AMERICA, INC.
