Vacuum Diagrams: Introduction

This article contains underhood views or schematics of vacuum hose routing. Use these vacuum diagrams during visual inspection in BASIC DIAGNOSTIC PROCEDURES article. This will assist in identifying improperly routed vacuum hoses which cause driveability and/or computer indicated malfunctions.

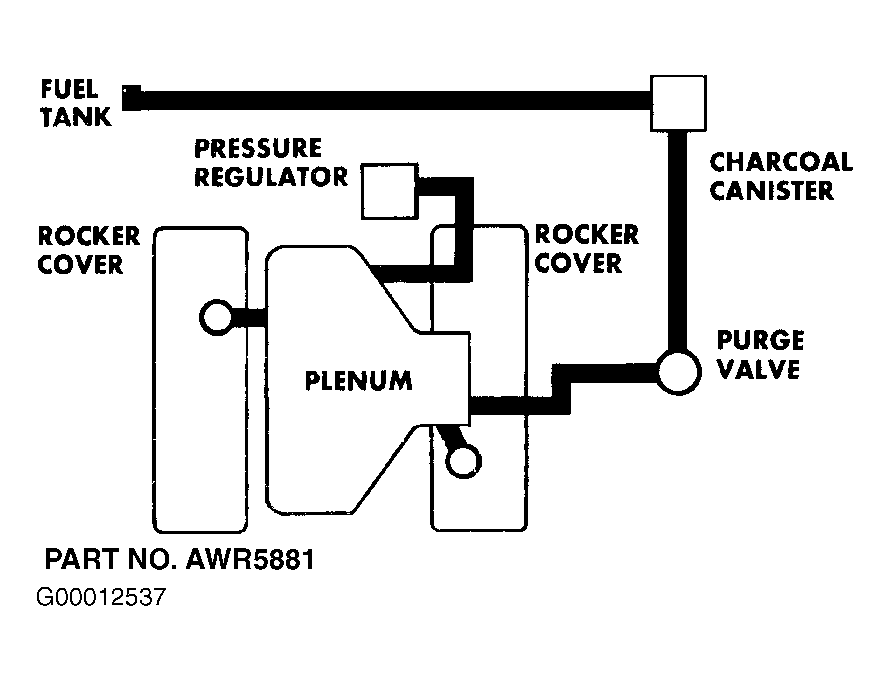

Fig 1: Vacuum Diagram Schematic

Courtesy of LAND ROVER NORTH AMERICA, INC.

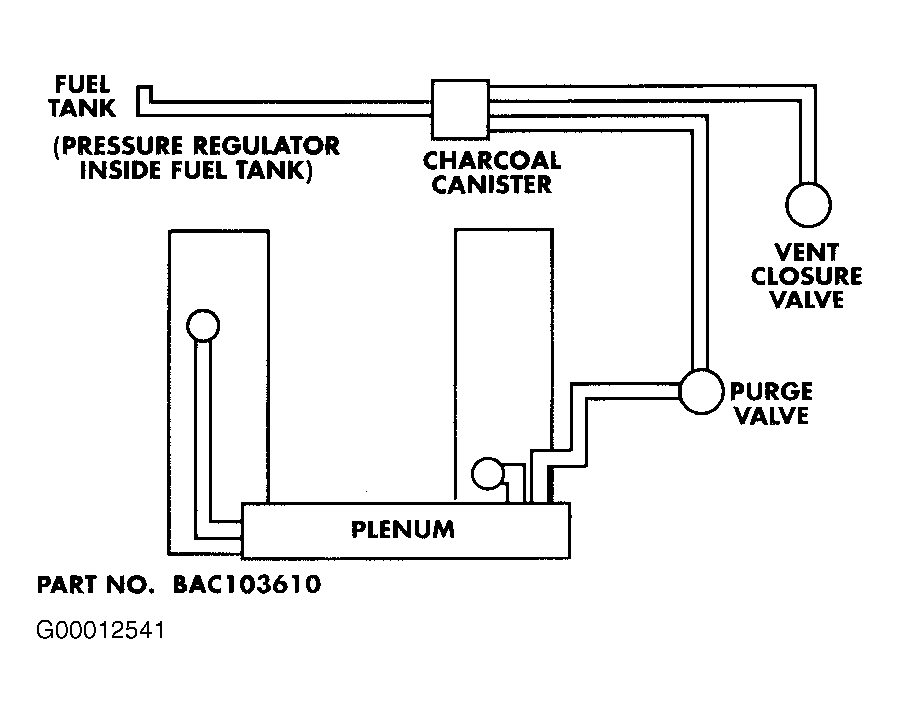

Fig 2: Vacuum Diagram Schematic (VIN MA300001 To VIN XA410082)

Courtesy of LAND ROVER NORTH AMERICA, INC.

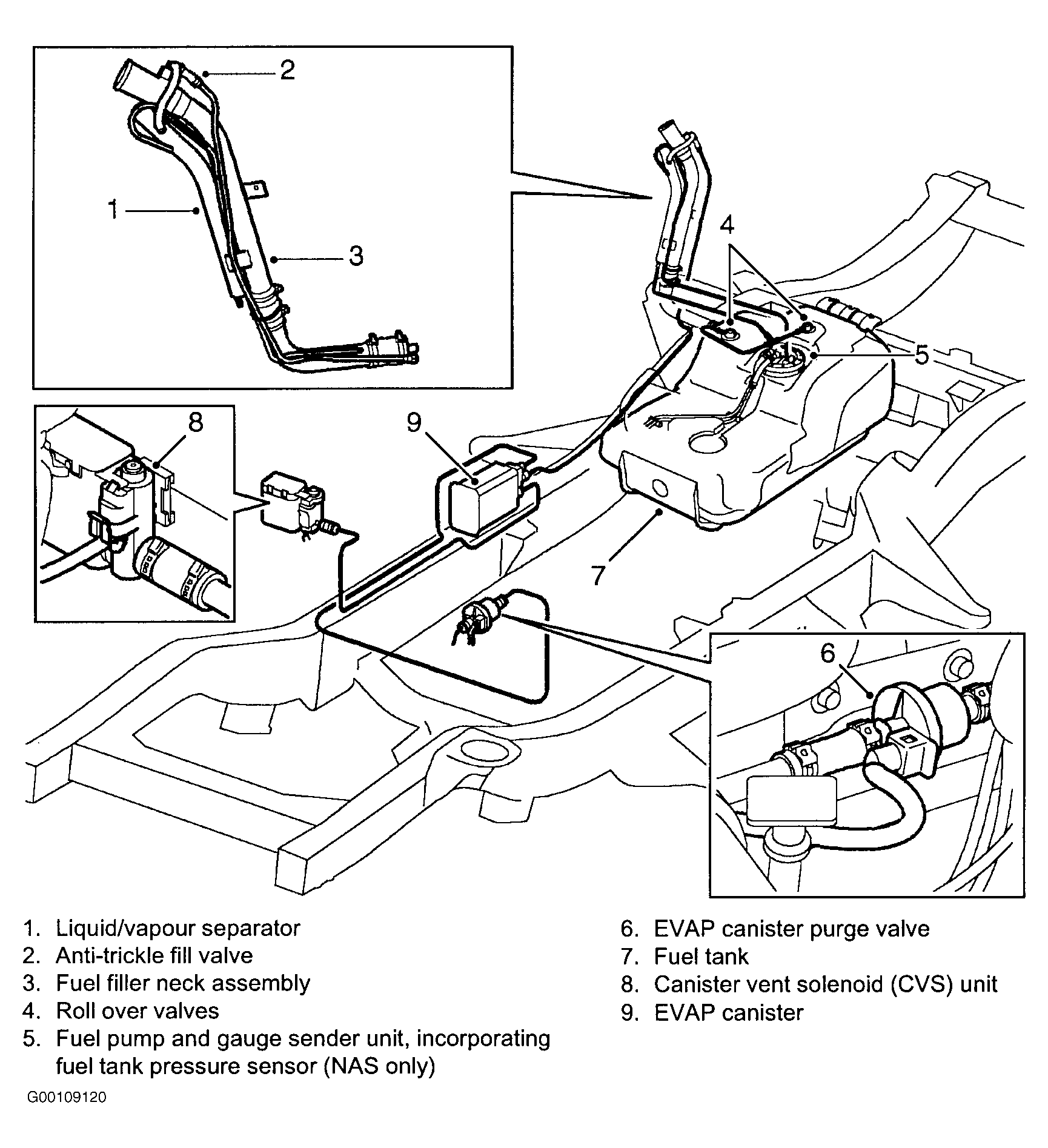

Fig 3: Vacuum Diagram Component Locations

Courtesy of LAND ROVER NORTH AMERICA, INC.
