Cooling System - TD4 Diesel

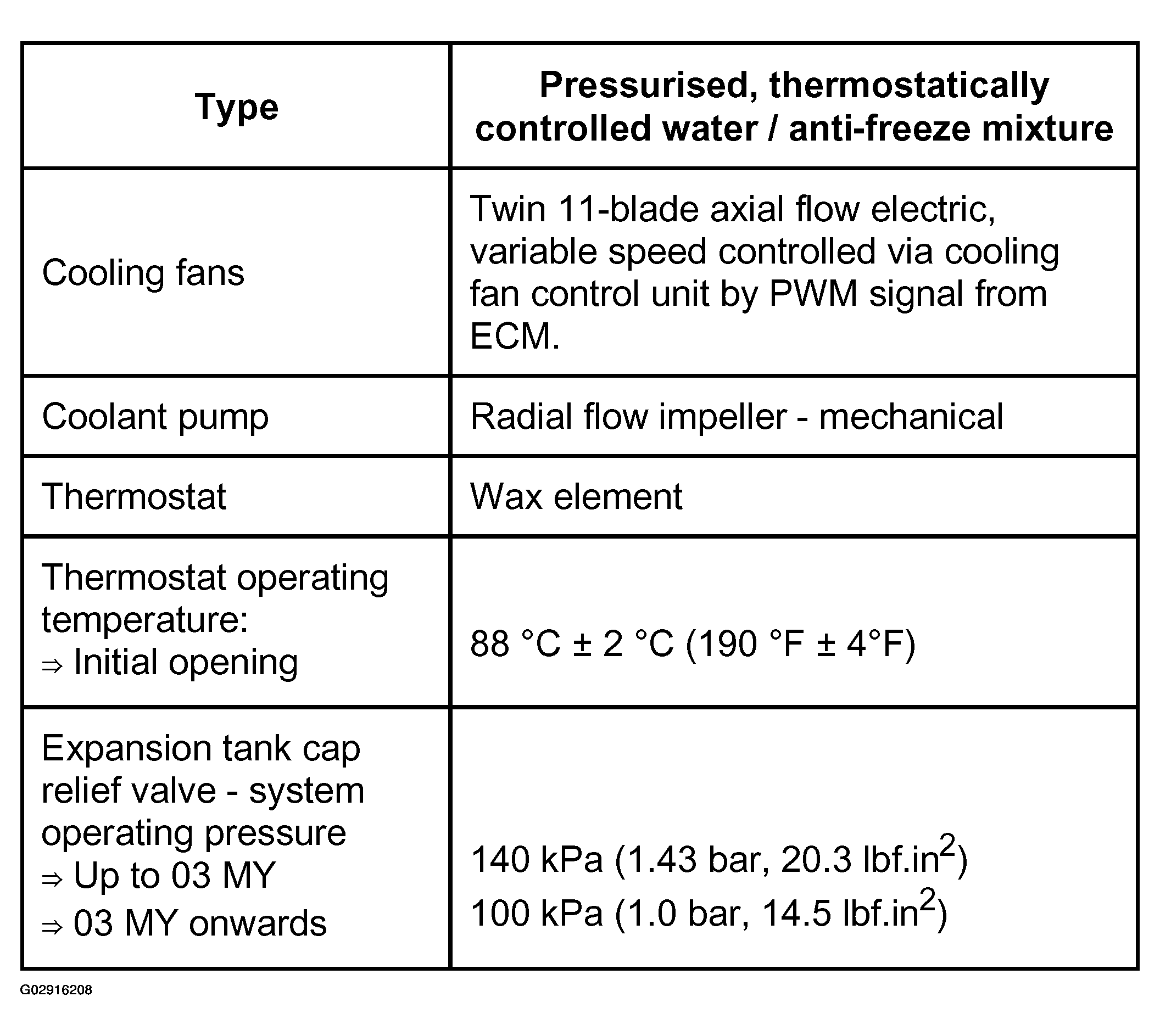

Fig 1: Cooling System Specification - Td4 Diesel
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
