Fuel System - TD4 Diesel

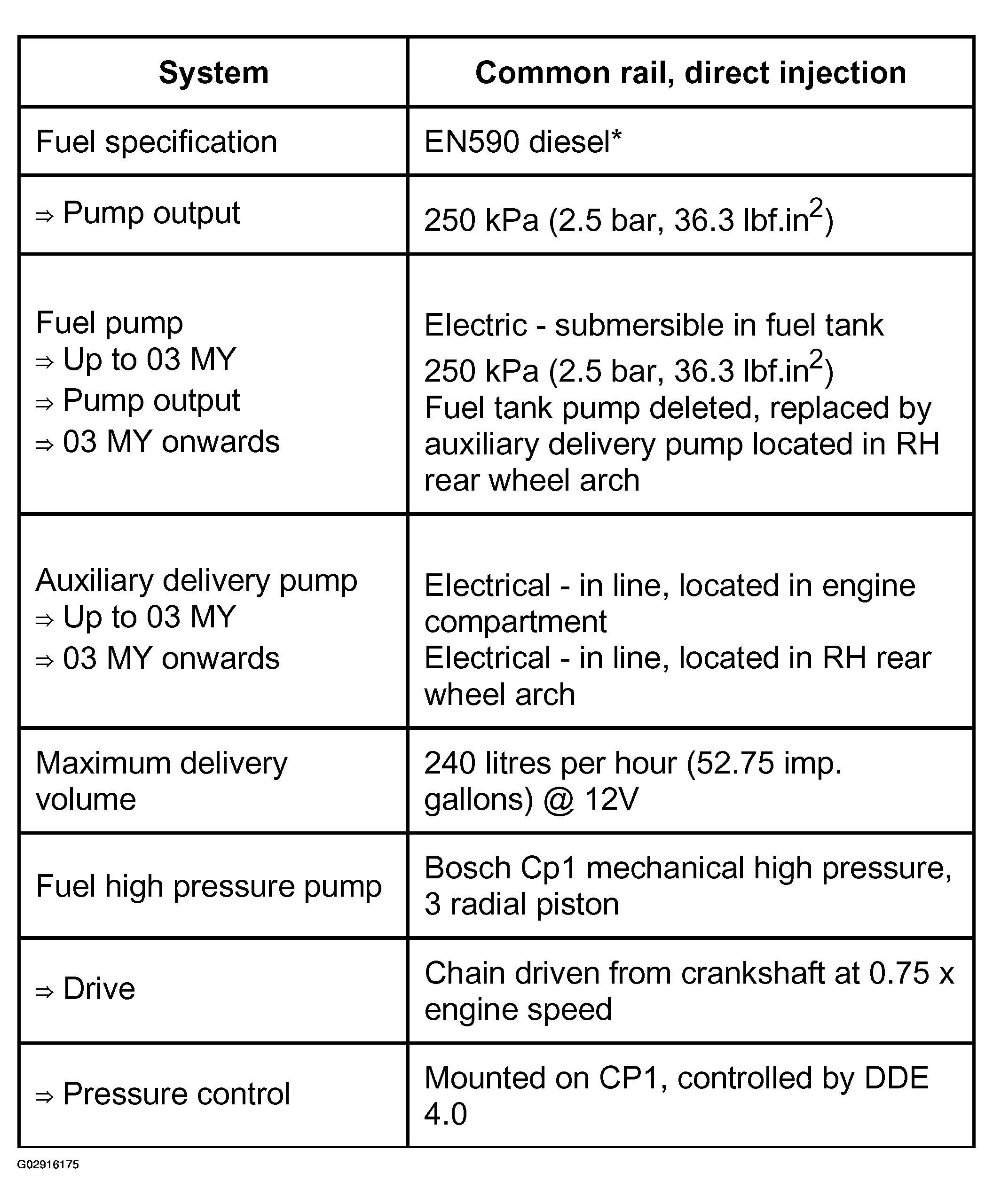

Fig 1: Fuel System Specification - Td4 Diesel (1 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

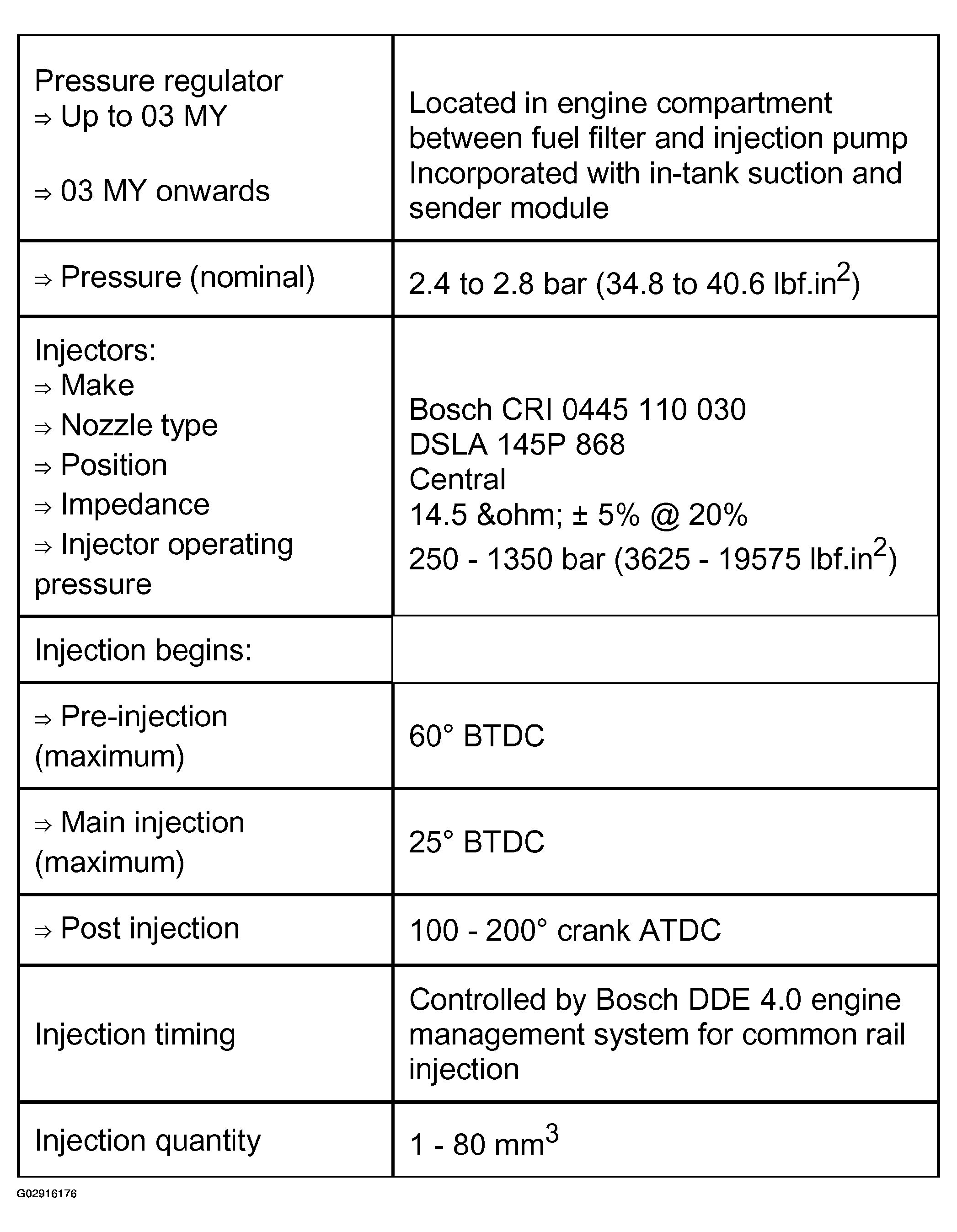

Fig 2: Fuel System Specification - Td4 Diesel (2 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

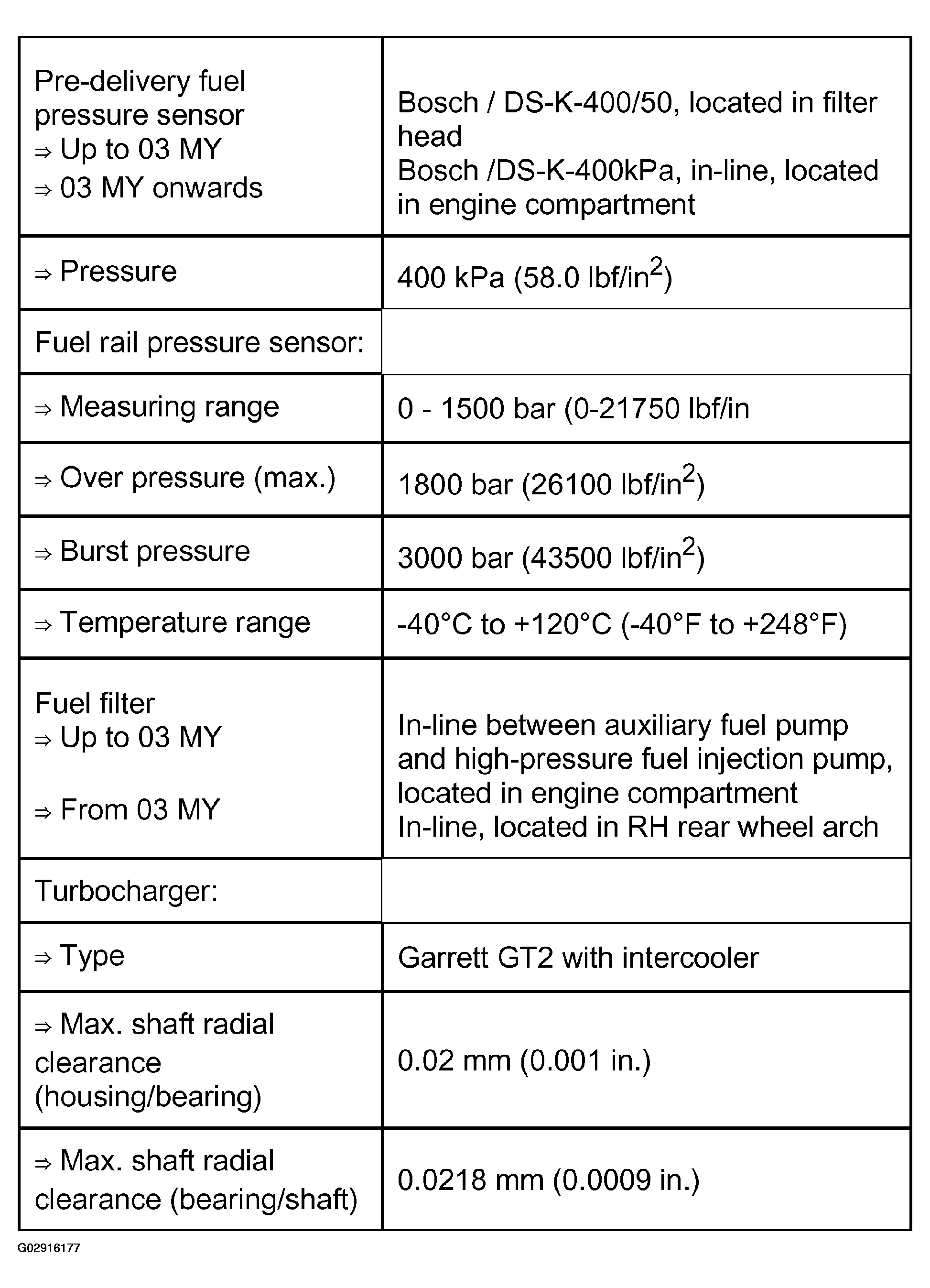

Fig 3: Fuel System Specification - Td4 Diesel (3 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

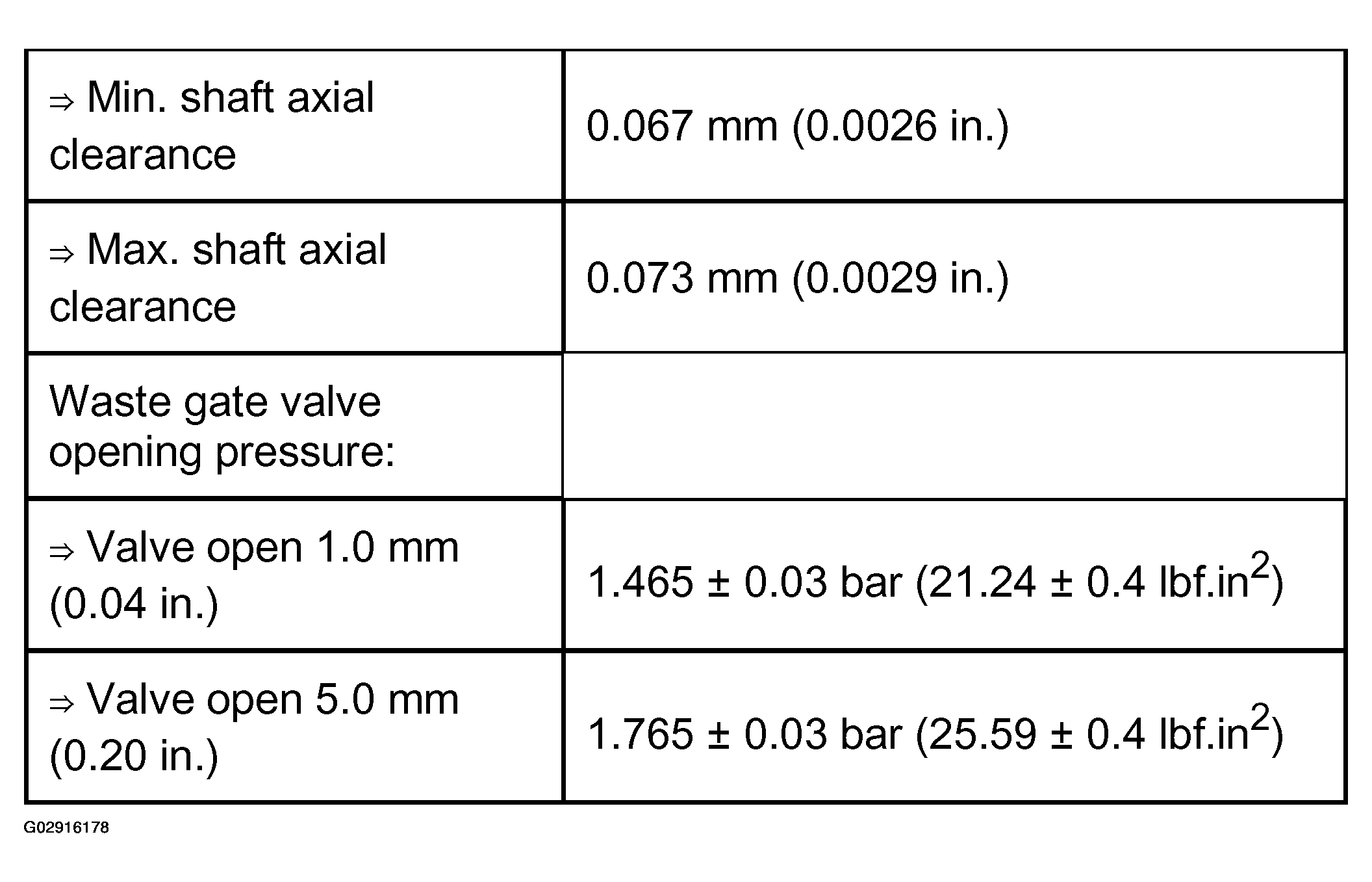

Fig 4: Fuel System Specification - Td4 Diesel (4 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
