Rear Suspension

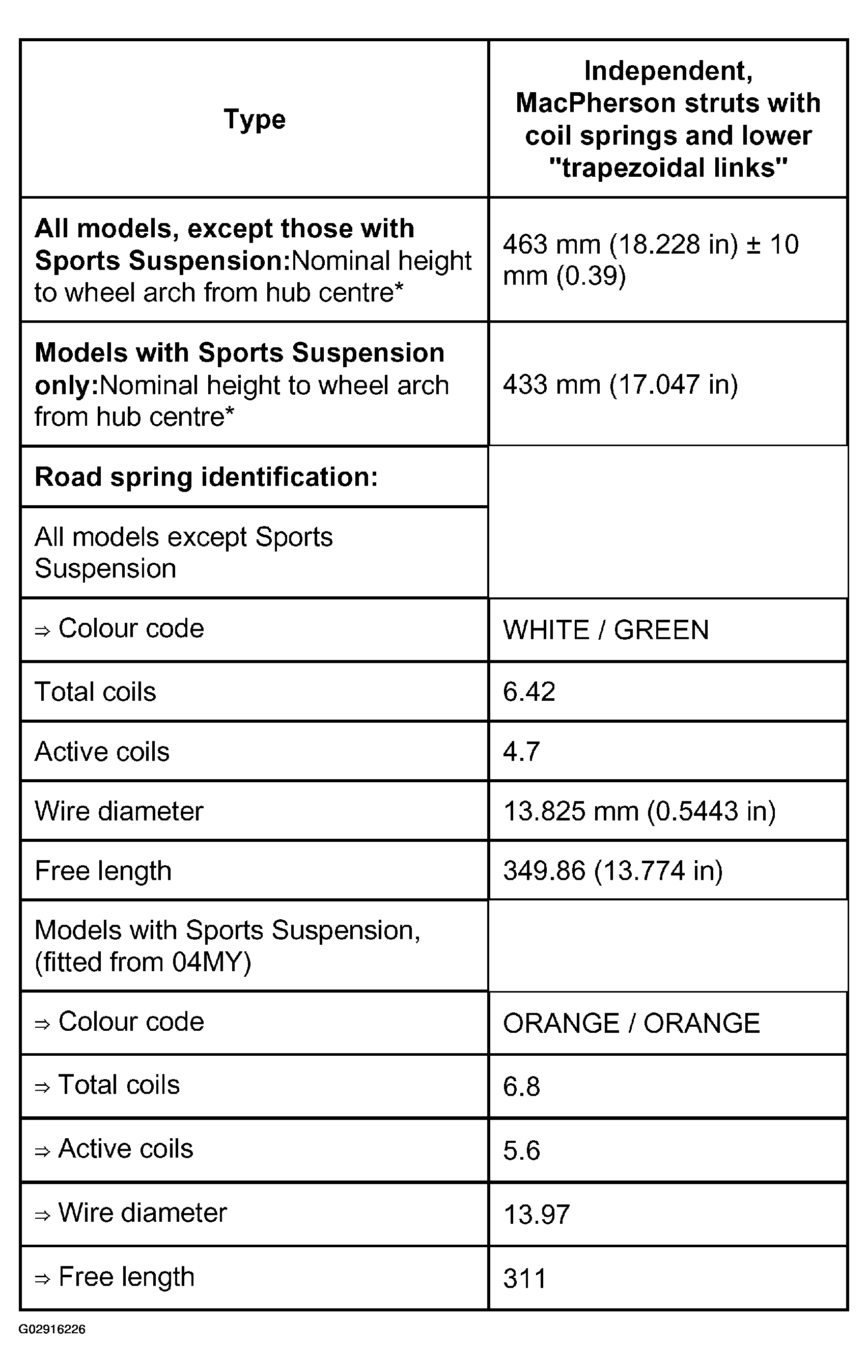

Fig 1: Rear Suspension Specification
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
