ECM Connector Identification

The ECM is located in the engine compartment, in the E-box. The ECM has 5 connectors. See Fig 1 . See ECM CONNECTOR IDENTIFICATION  table.

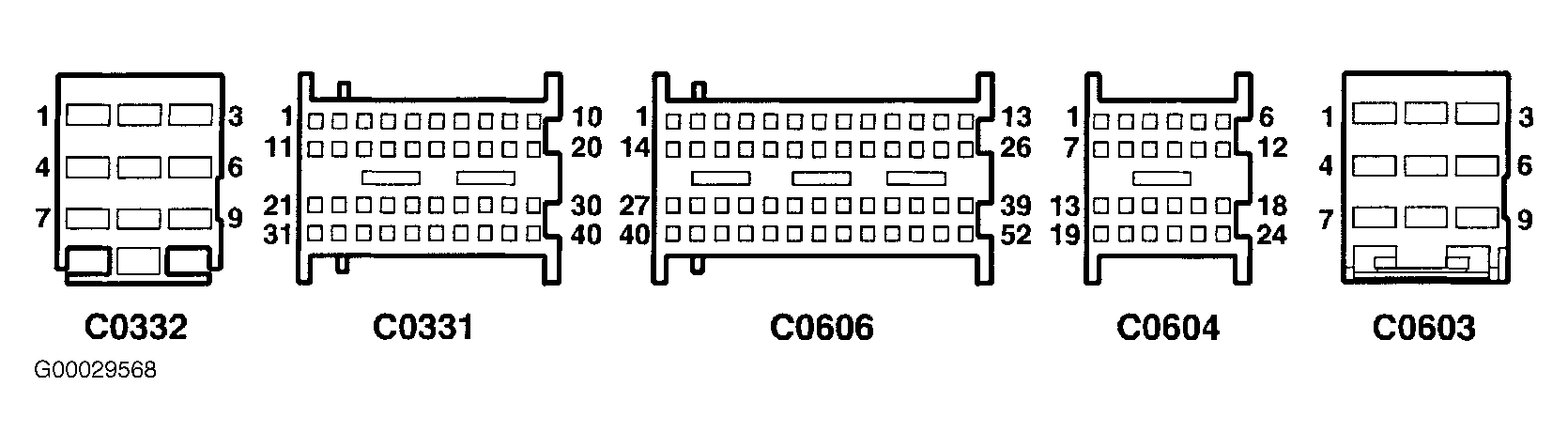

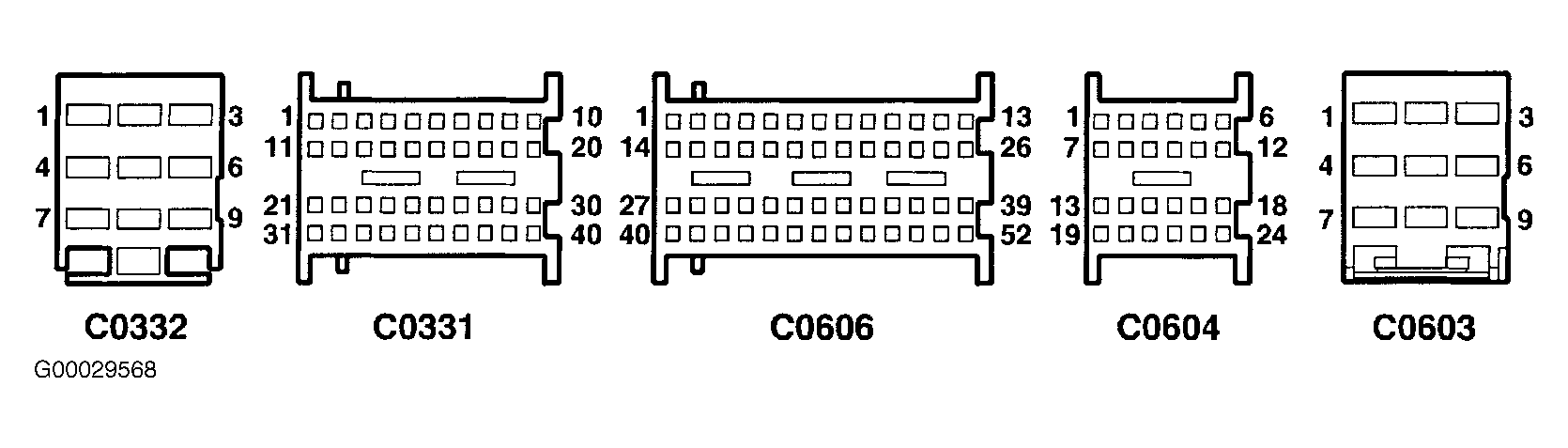

Fig 1: Identifying ECM Connector Terminals (Siemens MS43)
G00029568Courtesy of LAND ROVER NORTH AMERICA, INC.
ECM CONNECTOR IDENTIFICATION

Connector (1) Number
Freelander (2)
Gray 9-Pin C0332
Black 40-Pin C0331
Black 52-Pin C0606
Black 24-Pin C0604
Black 9-Pin C0603
(1) See WIRING DIAGRAMS article.
(2) Siemens MS43.
