Front Suspension

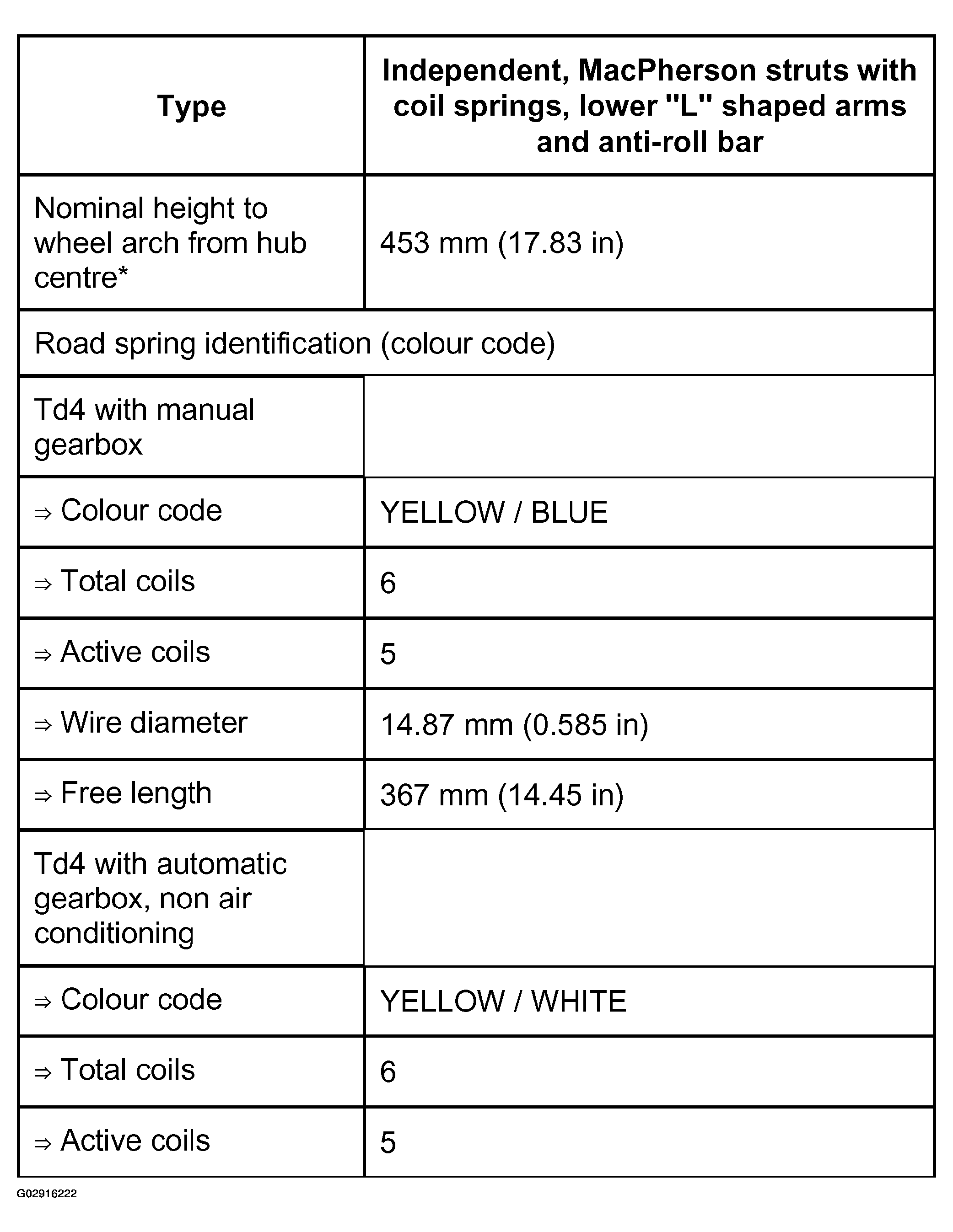

Fig 1: Front Suspension Specification (1 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

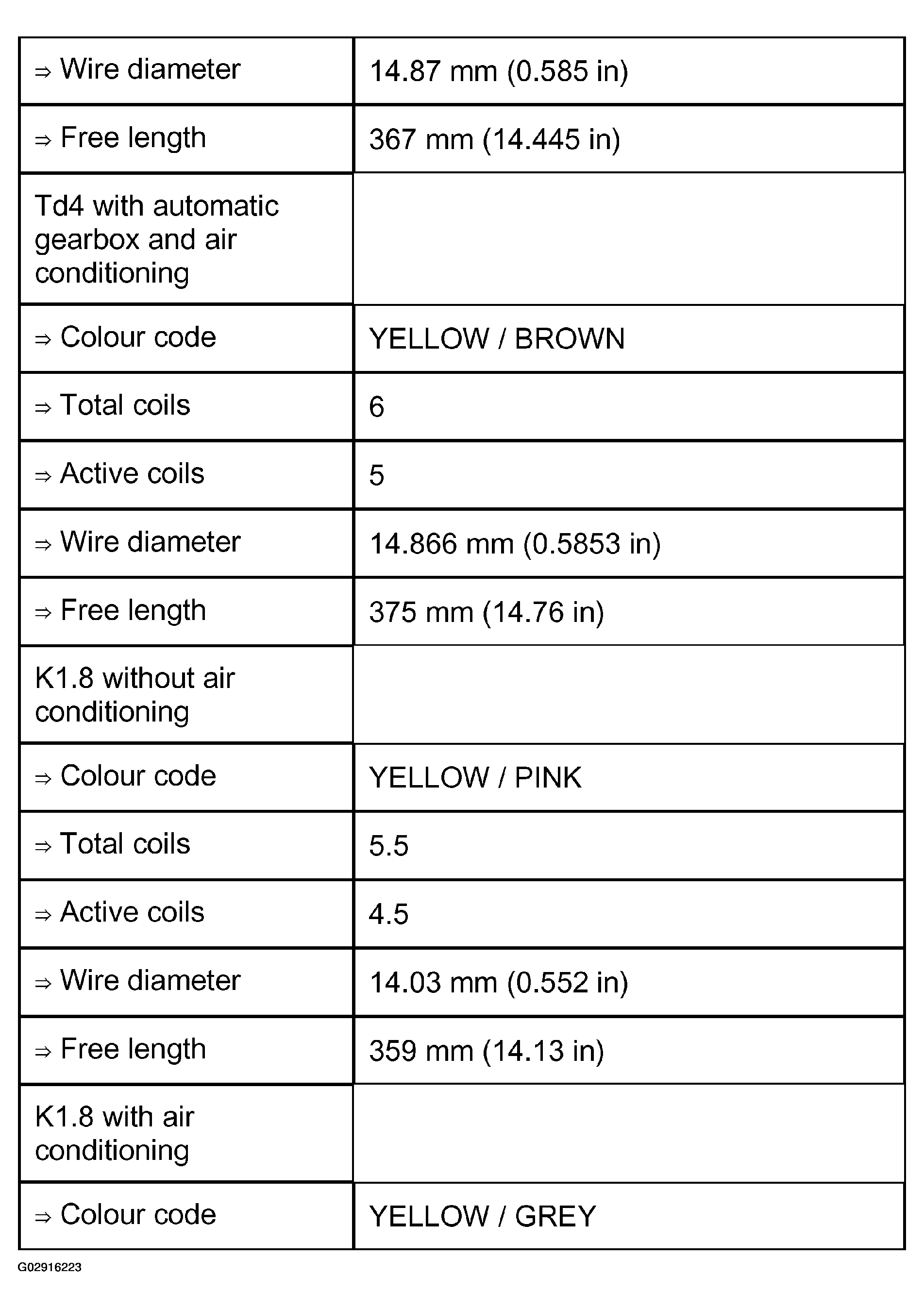

Fig 2: Front Suspension Specification (2 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

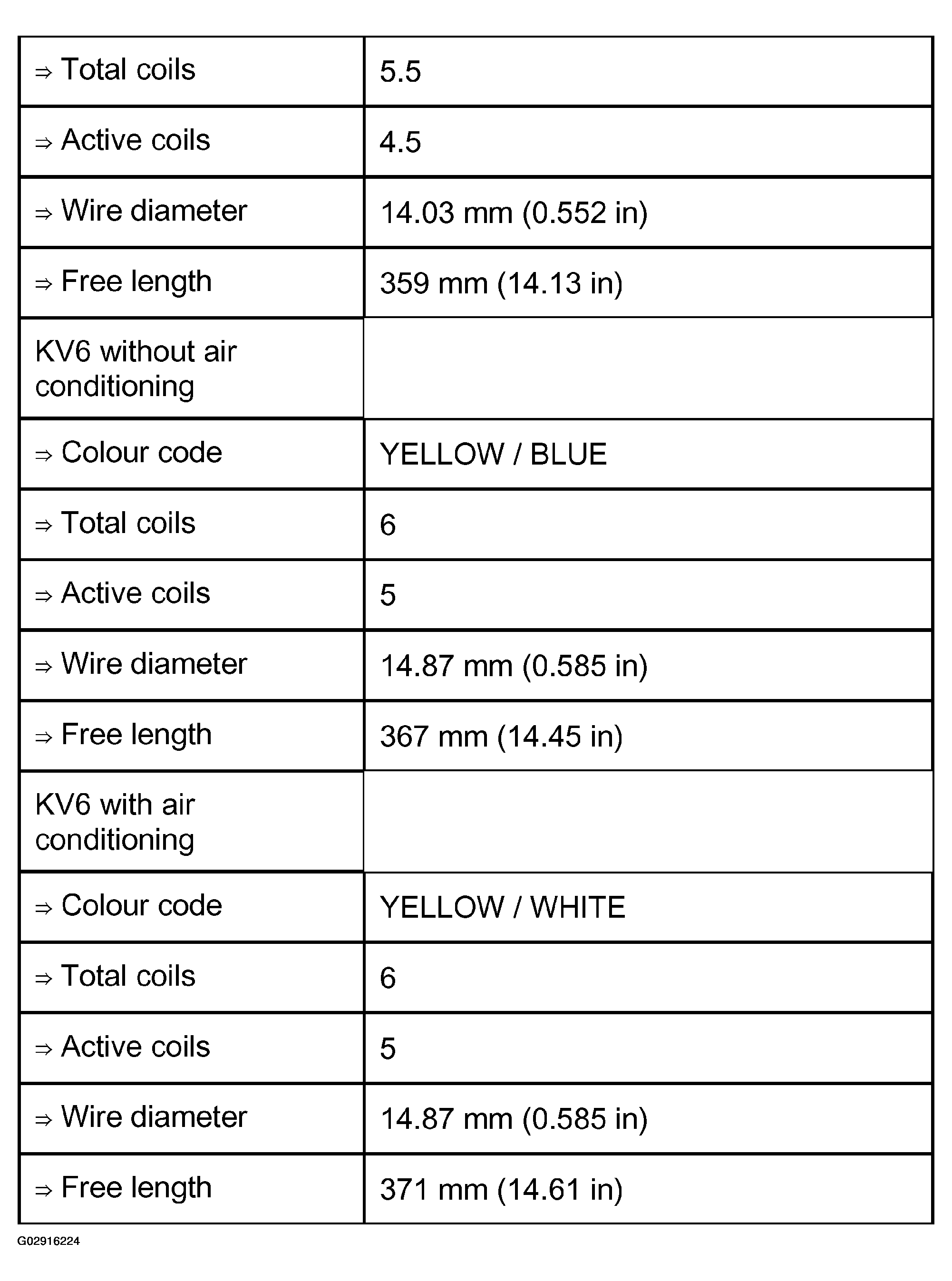

Fig 3: Front Suspension Specification (3 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

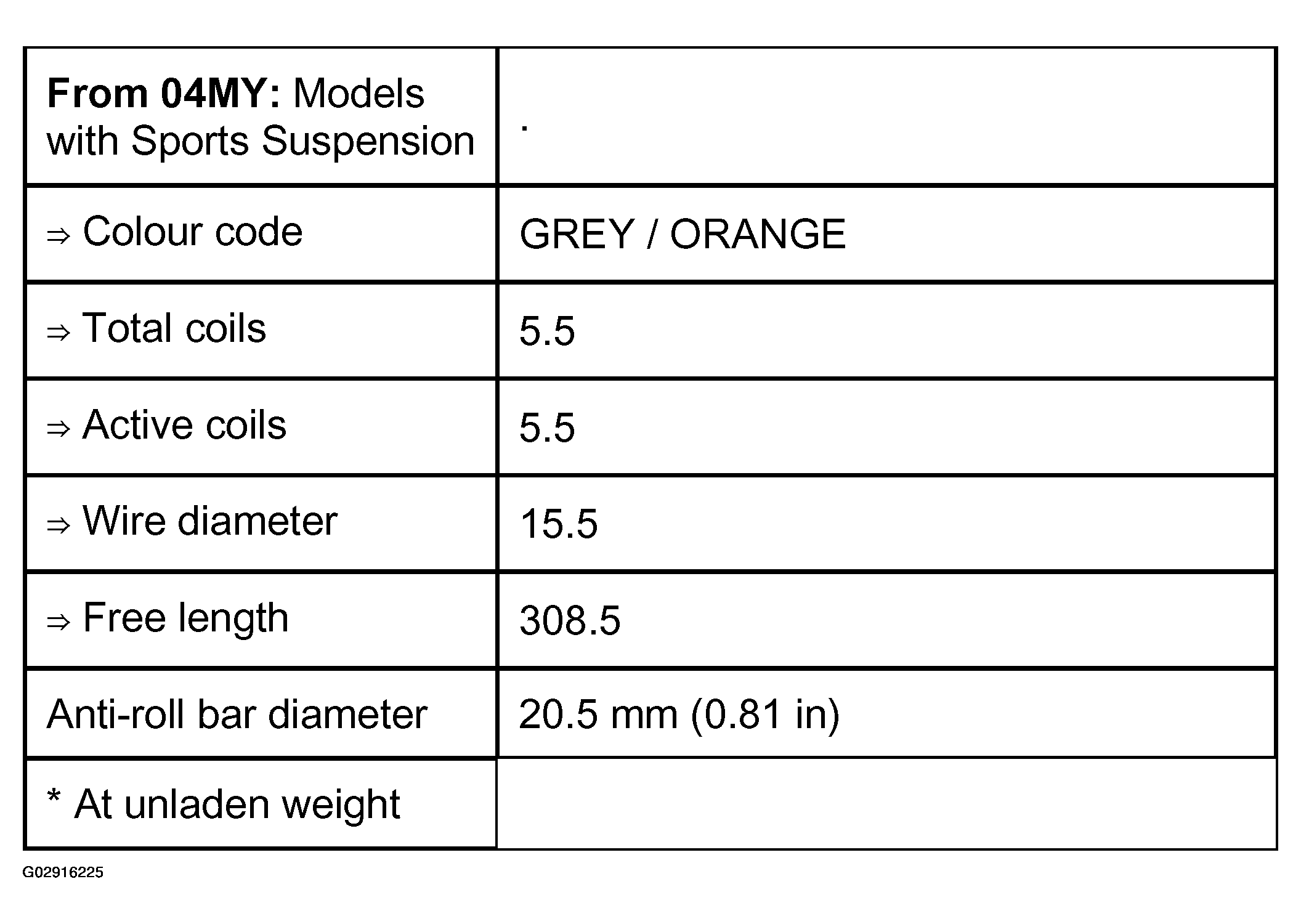

Fig 4: Front Suspension Specification (4 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
