Engine Sensors: Notes

NOTE: For component locations, see Fig 1-Fig 4

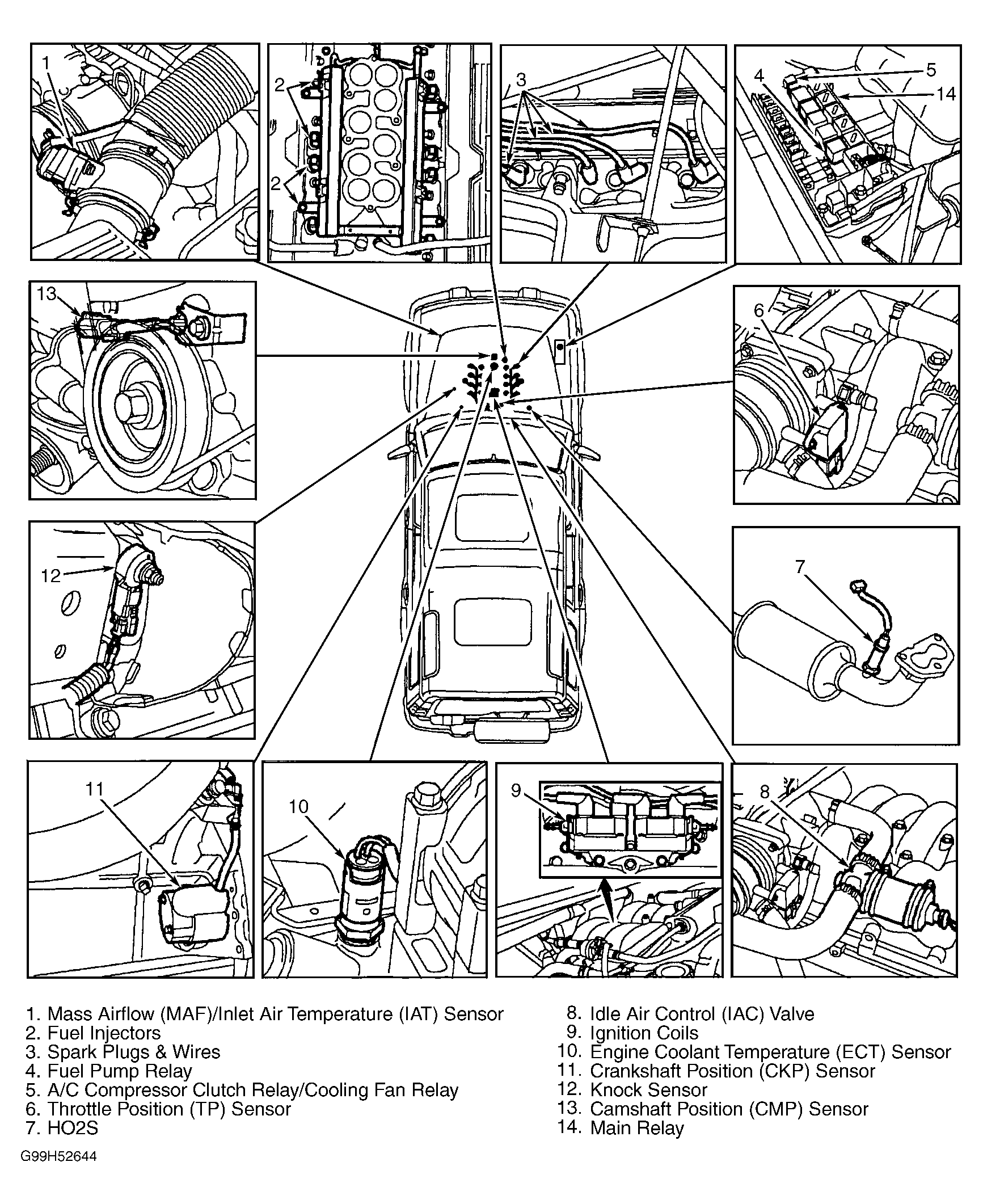

Fig 1: Locating Computerized Engine Control Components (Discovery Series II)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 2: Locating Computerized Engine Control Components (Freelander)

Courtesy of LAND ROVER NORTH AMERICA, INC.

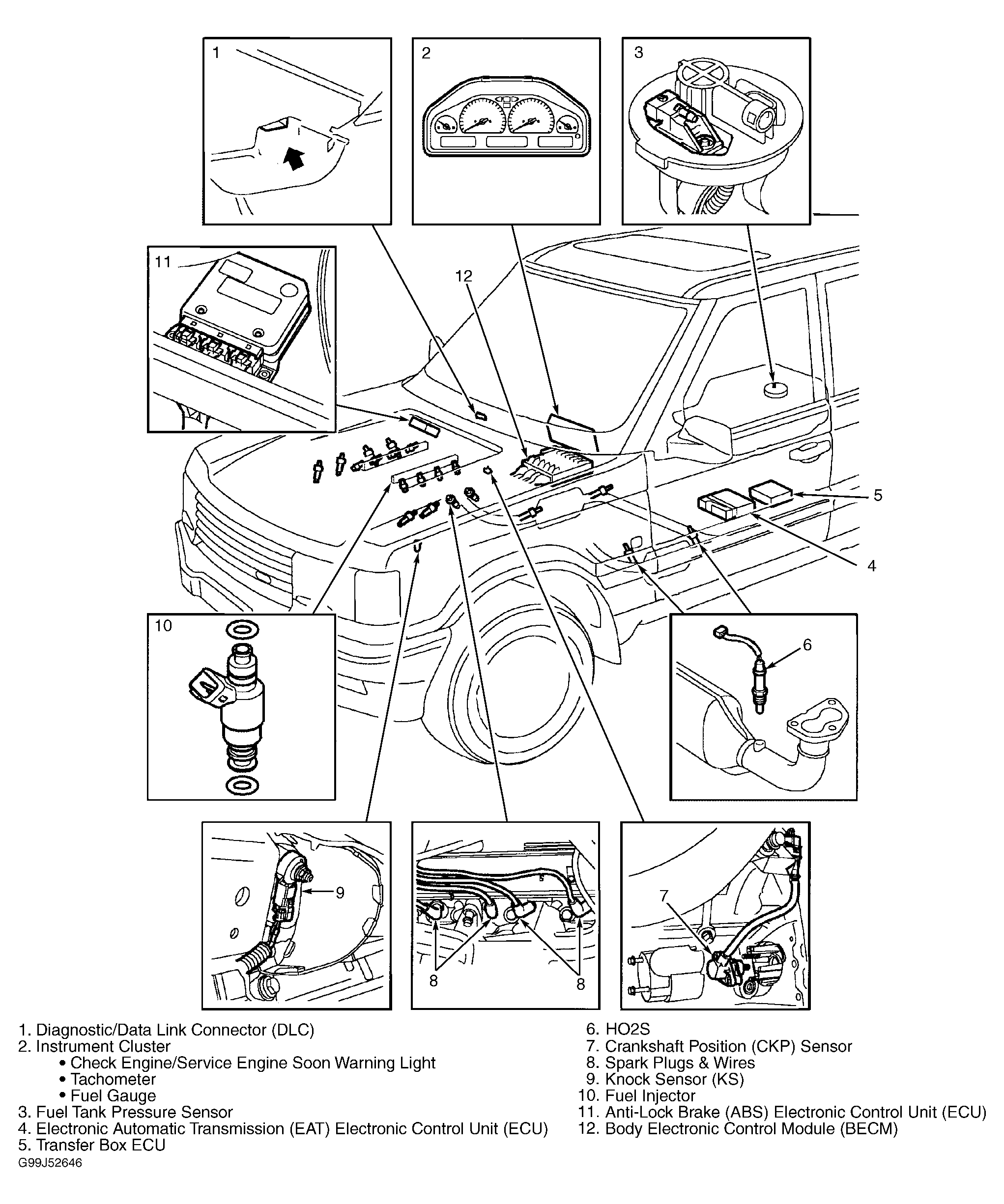

Fig 3: Locating Computerized Engine Control Components (Range Rover - 1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 4: Locating Computerized Engine Control Components (Range Rover - 2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
