Main Relay

Open engine compartment fuse box. Identify and remove main relay. See Fig 1 . Install main relay. Close engine compartment fuse box.

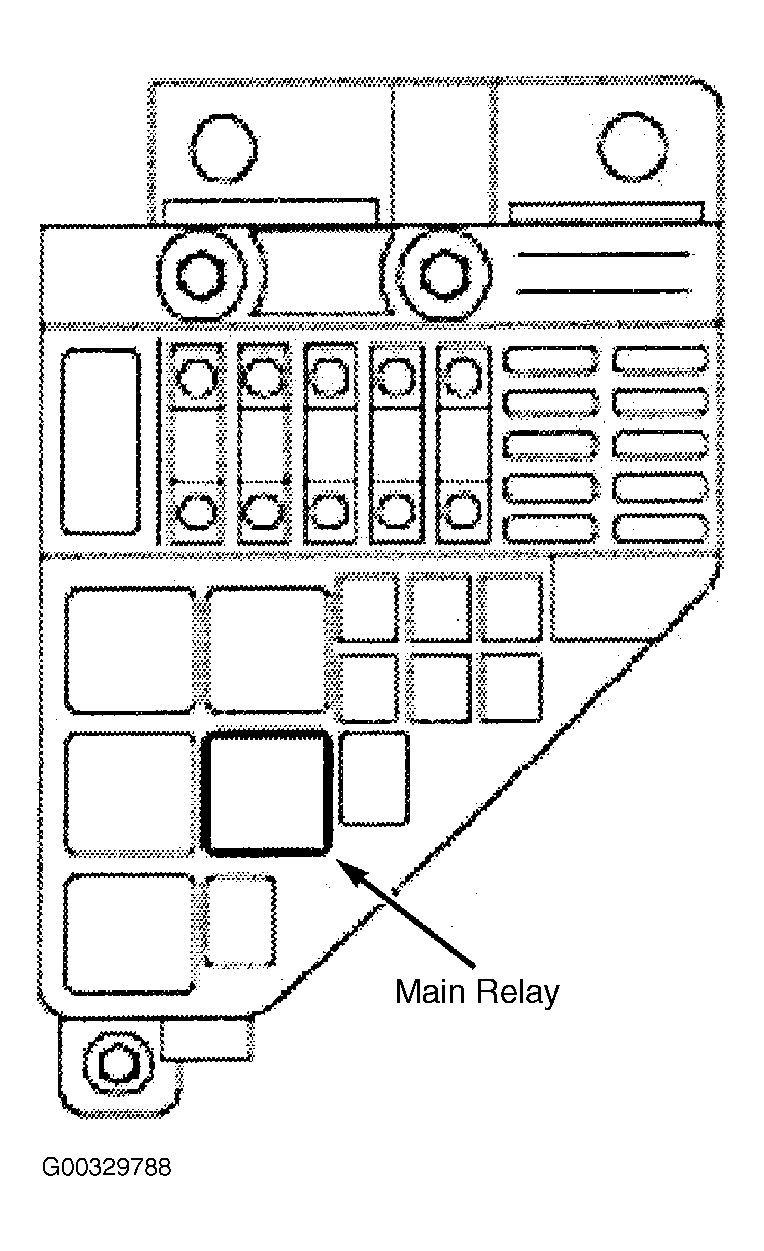

Fig 1: Identifying Main Relay
G00329788Courtesy of LAND ROVER NORTH AMERICA, INC.
