18.30.01 Engine control module (ECM) - Non NAS: Remove

Disconnect battery earth lead.

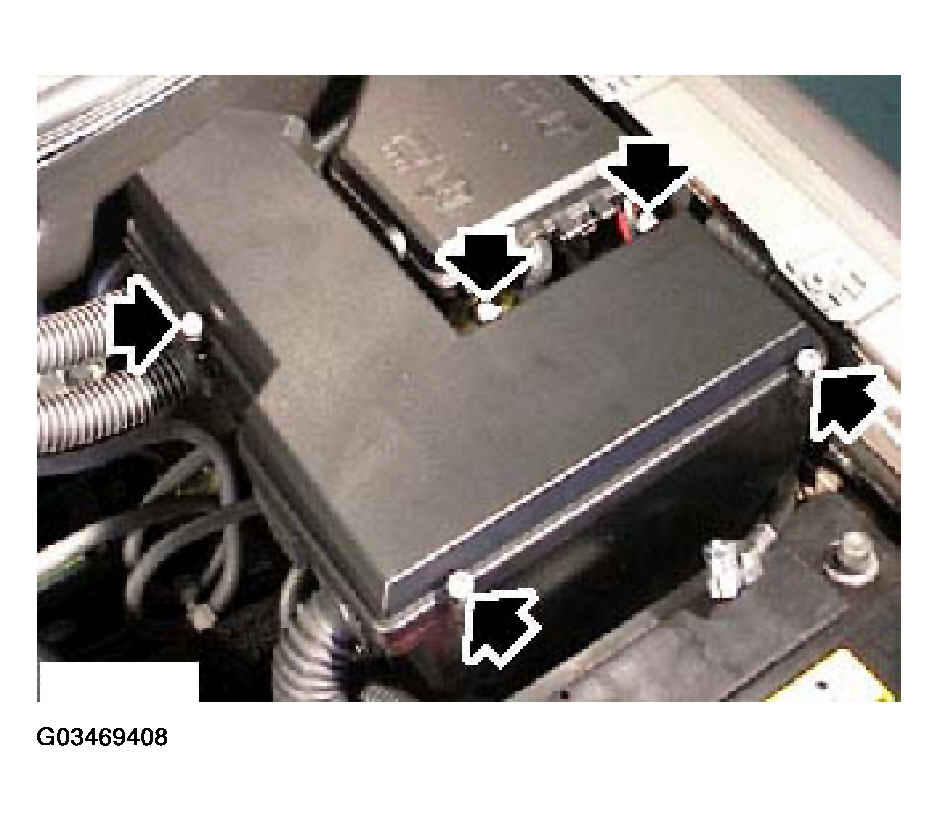

Fig 1: Removing 5 Allen Screws Securing Cover To 'E' Box
Courtesy of LAND ROVER NORTH AMERICA, INC.
Remove 5 Allen screws securing cover to 'E' box and remove cover.

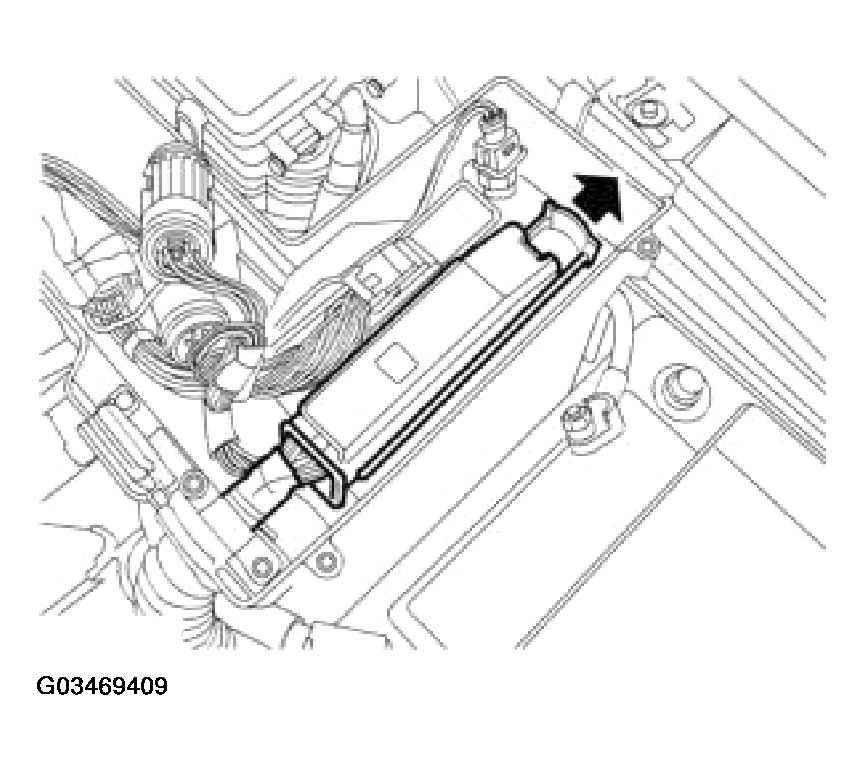

Fig 2: Disconnecting Multiplug From ECM
Courtesy of LAND ROVER NORTH AMERICA, INC.
Release latch and disconnect multiplug from ECM.

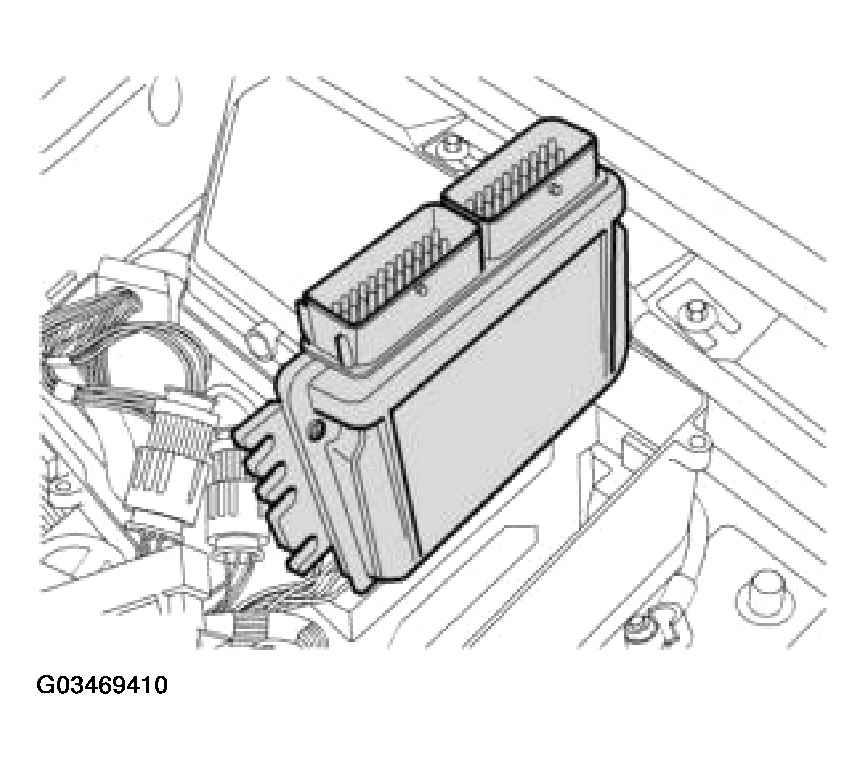

Fig 3: Removing ECM From 'E' Box
Courtesy of LAND ROVER NORTH AMERICA, INC.
Remove ECM from 'E' box.
