17.45.01 Valve - EGR - Td4: Remove

  1. Disconnect battery earth lead.
  2. Remove intake ducting assembly.

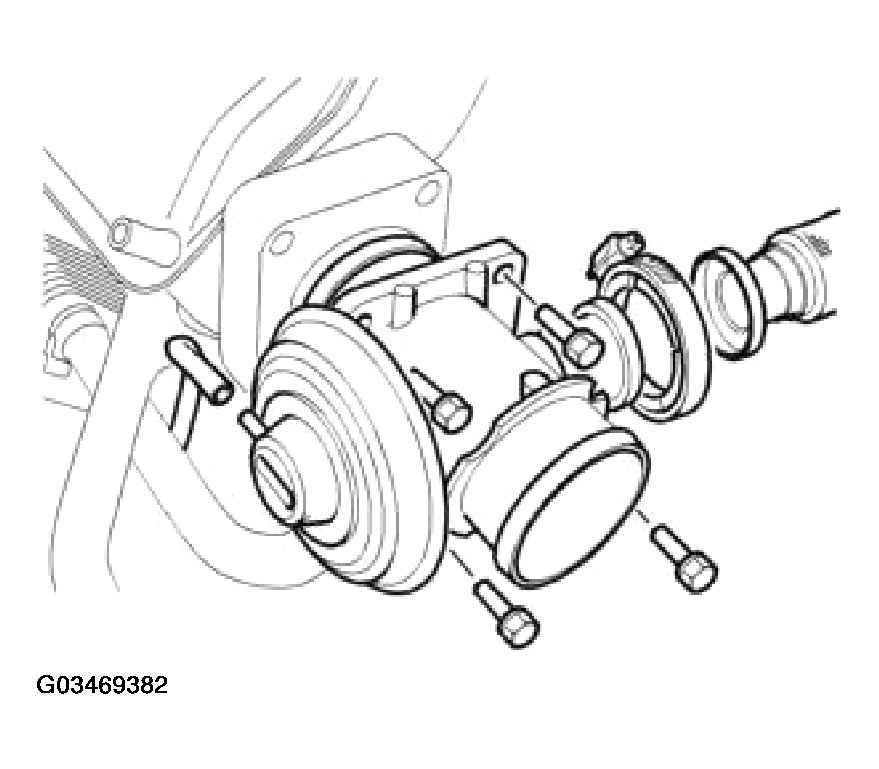

    Fig 1: Removing 4 Bolts And EGR Valve
    G03469382Courtesy of LAND ROVER NORTH AMERICA, INC.
  3. Disconnect vacuum hose from EGR valve.
  4. Loosen screw and remove clamp EGR pipe to valve.
  5. Remove 4 bolts and EGR valve. Discard seal.
