Component Locations
See
Fig 1
.

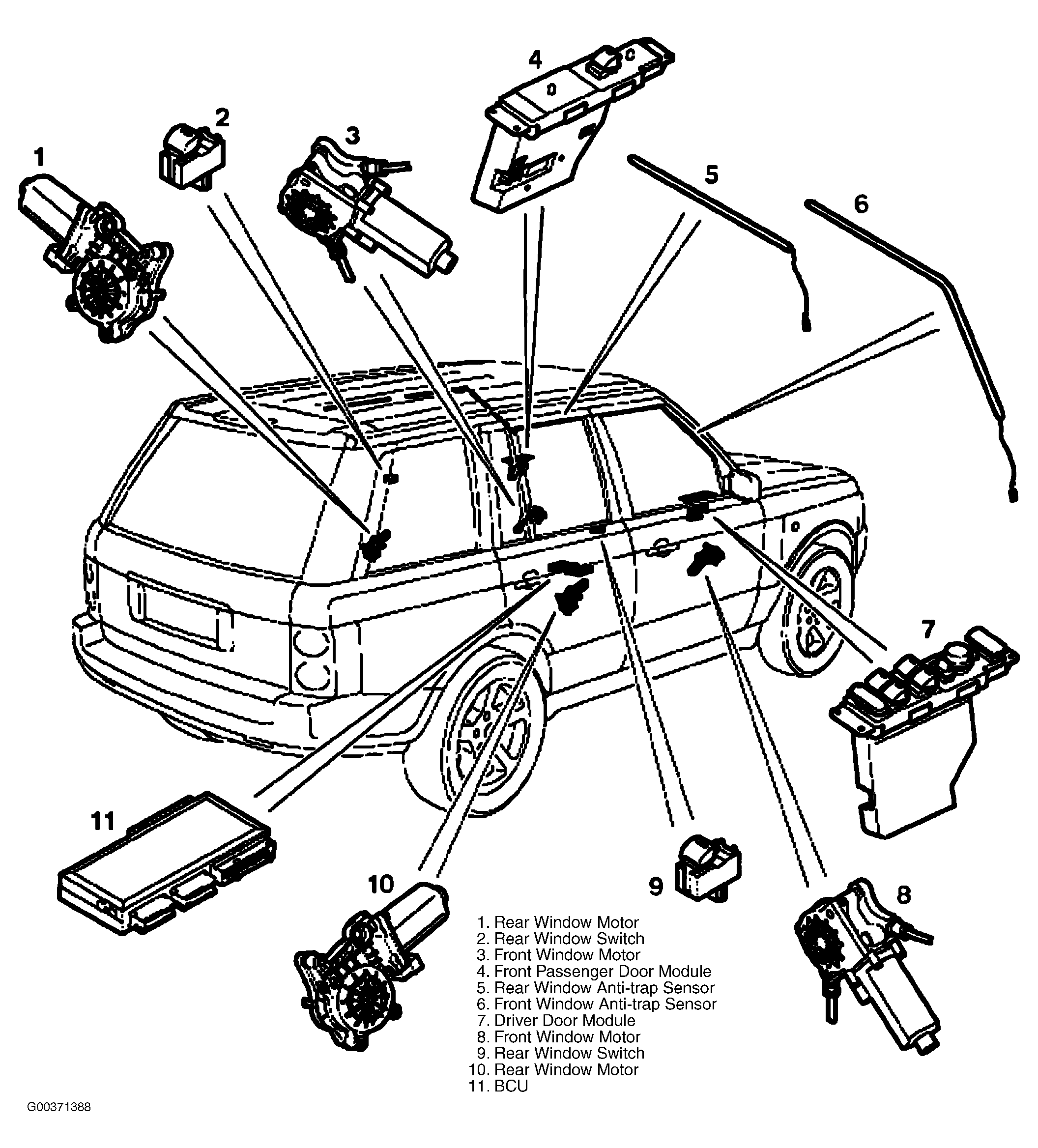

Fig 1: Identifying Windows Component Layout
Courtesy of LAND ROVER NORTH AMERICA, INC.
