Window Regulators

Cable operated window regulators powered by an electric motor are installed in each of the doors. See Fig 1 and Fig 2 .

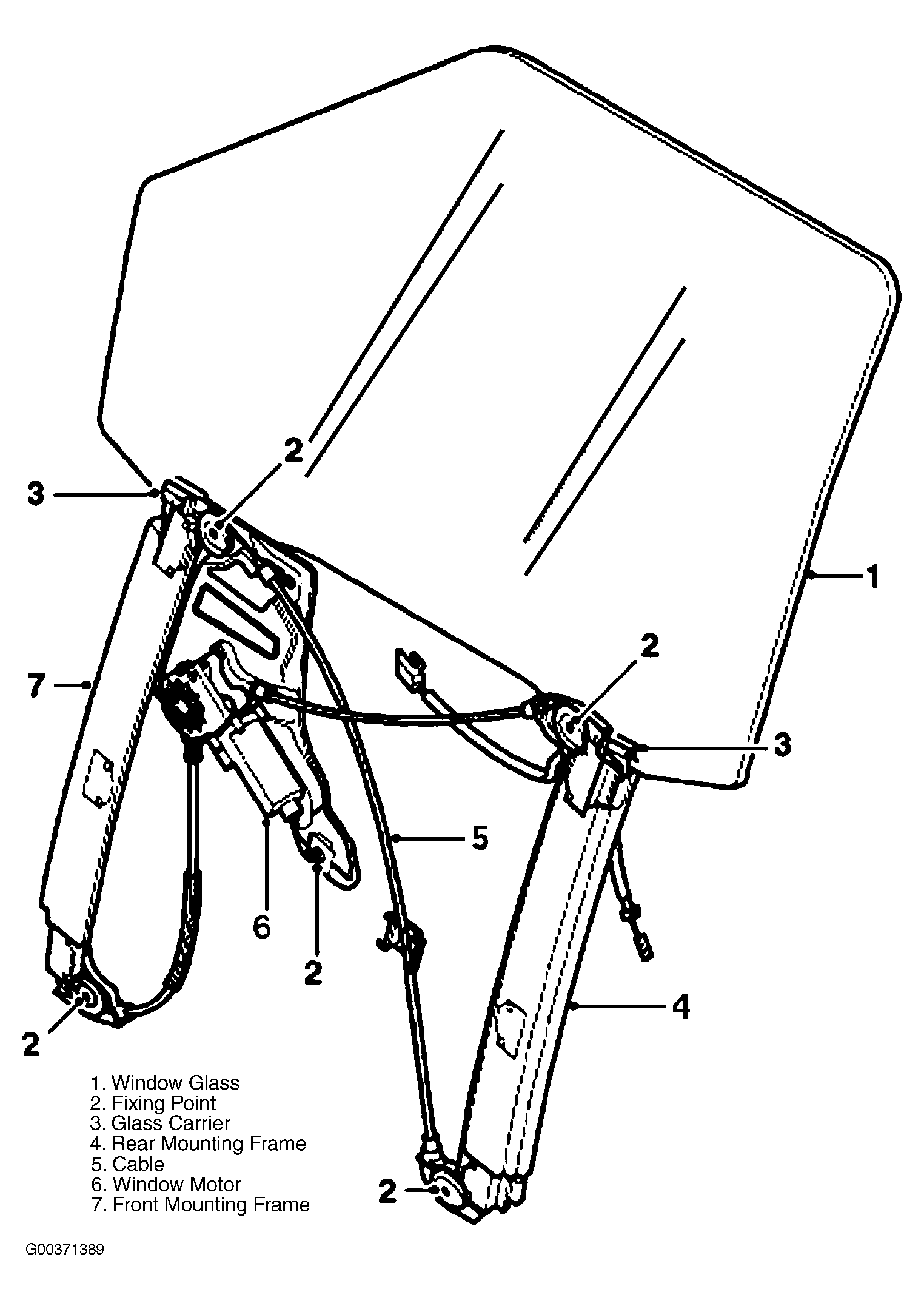

Fig 1: Identifying Front Door Window Regulator

Courtesy of LAND ROVER NORTH AMERICA, INC.

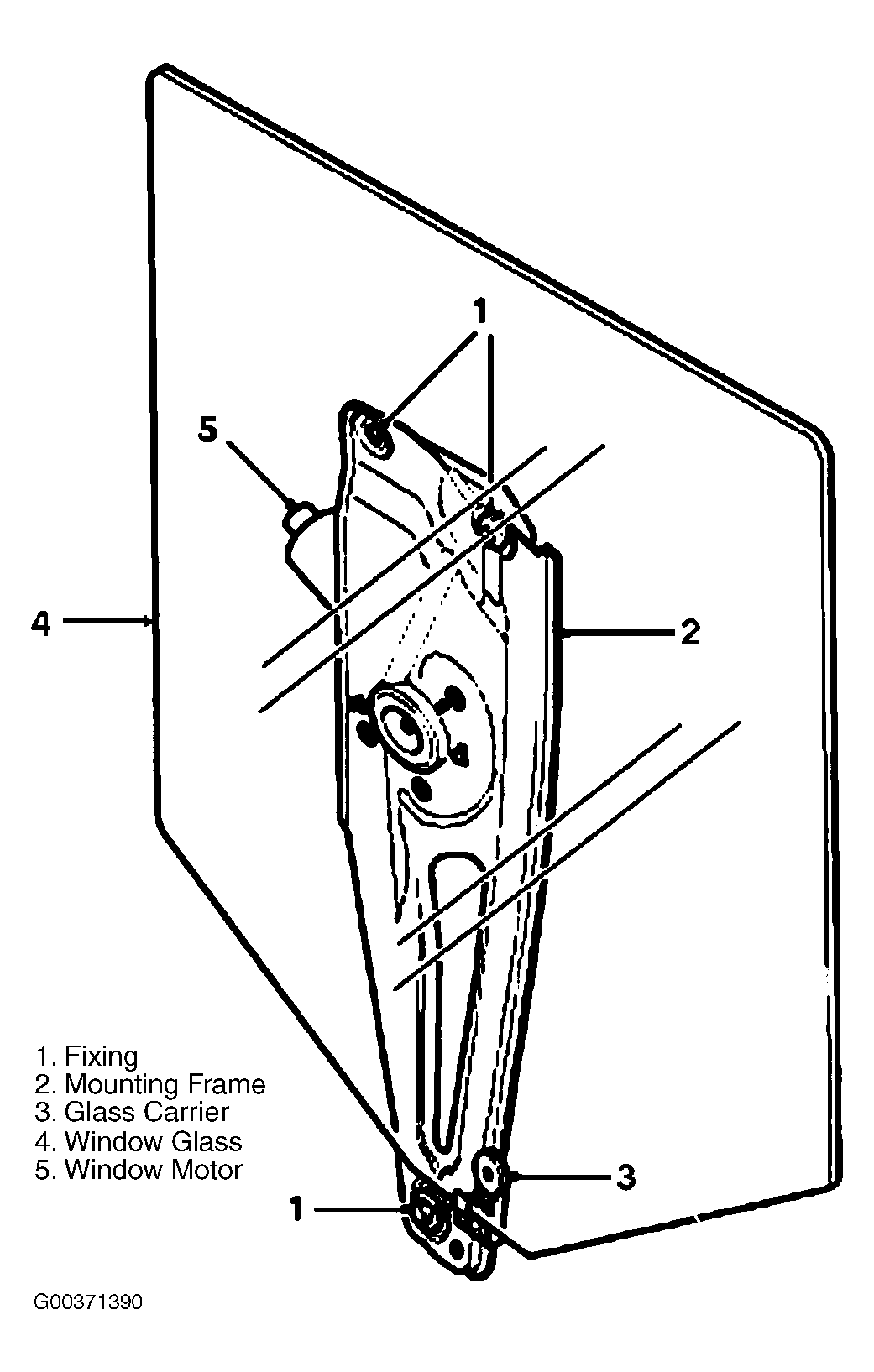

Fig 2: Identifying Rear Door Window Regulator

Courtesy of LAND ROVER NORTH AMERICA, INC.
