Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Component Location |
| E-Box |

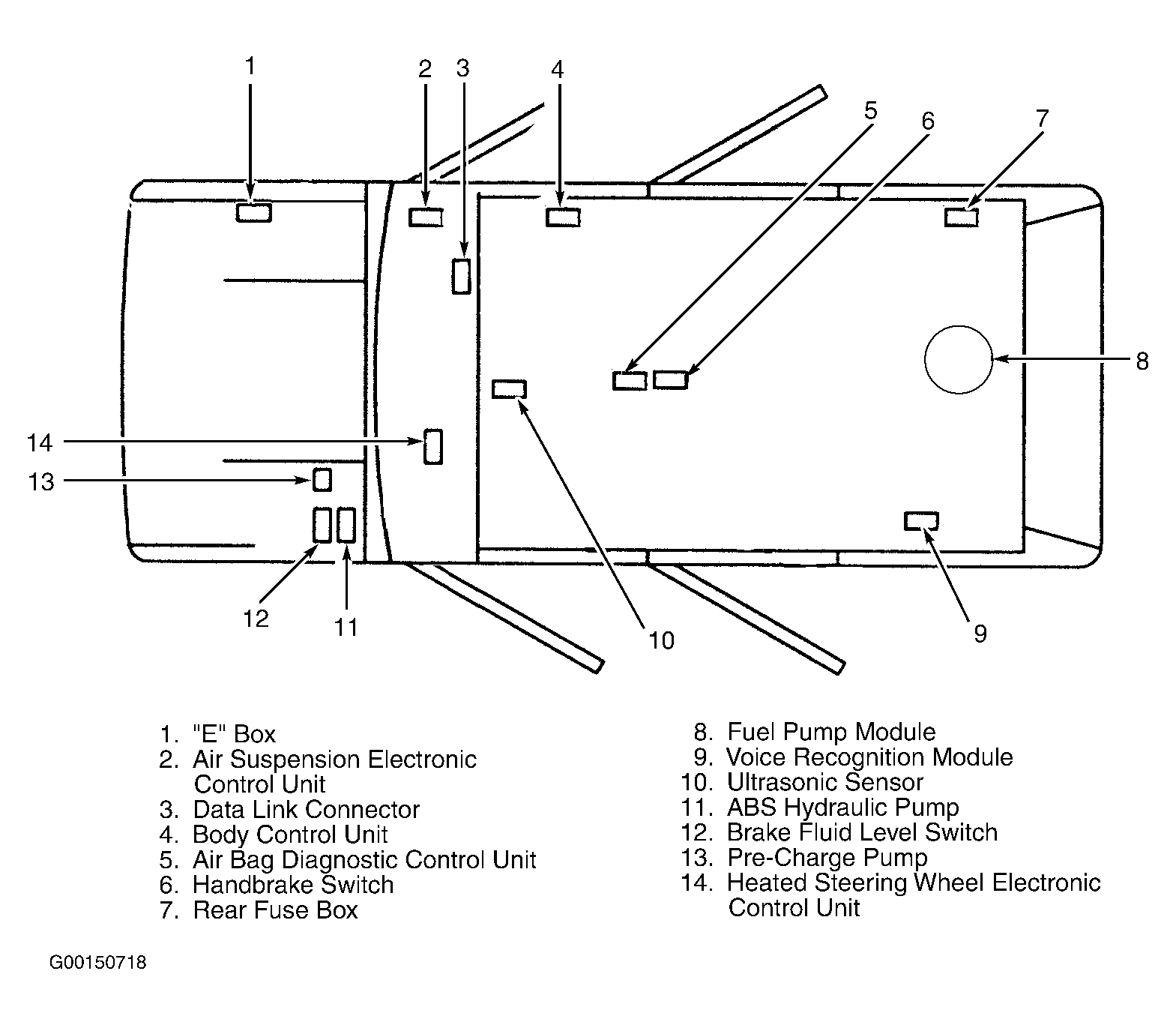

On right side of engine compartment. See Figure
. |
| Passenger Compartment Fuse Box |
Behind right side of dash. |
| Rear Fuse Box |
Behind right side of luggage compartment trim panel. See Figure
. |
