Mode $06 Data

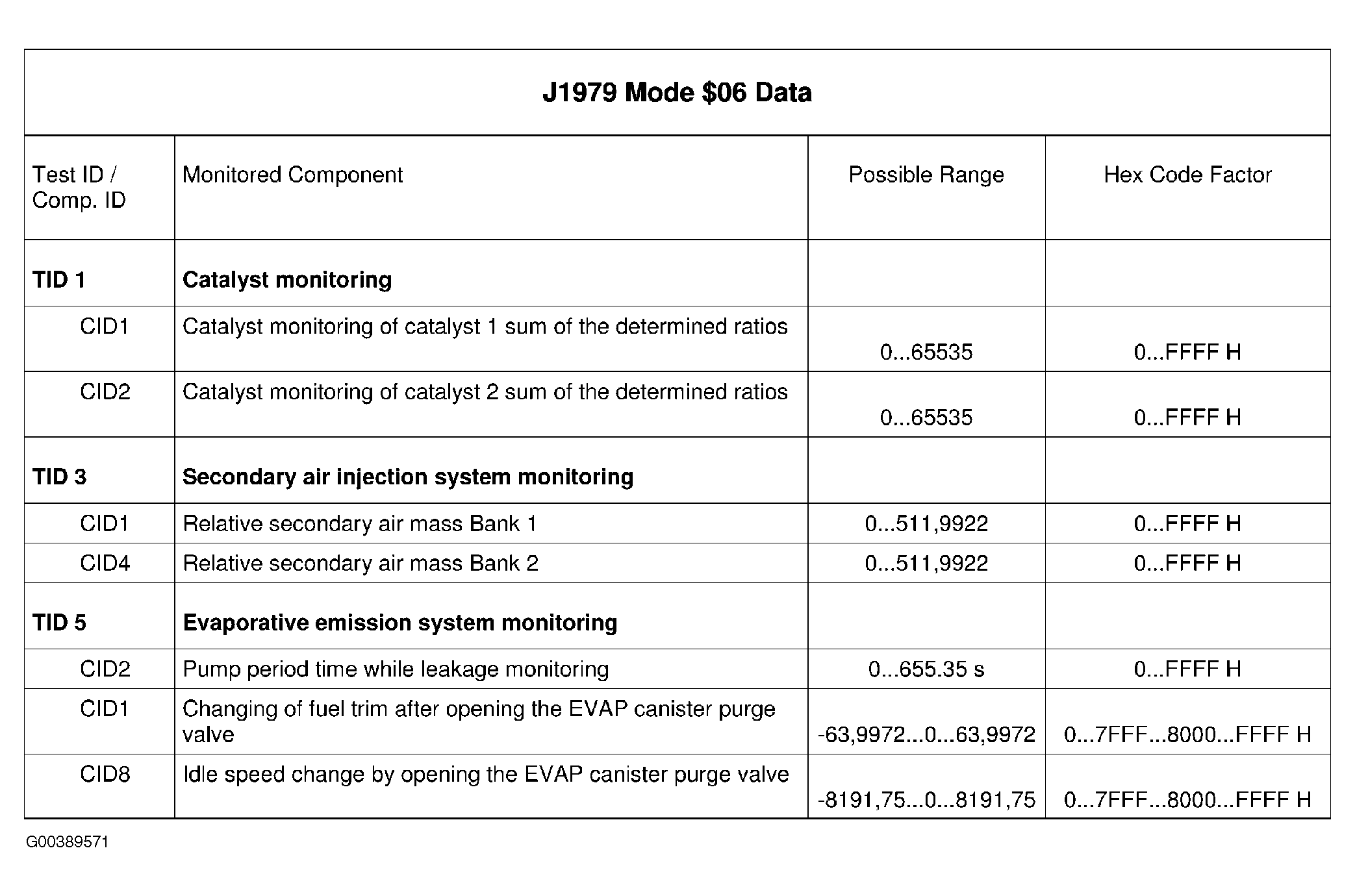

Mode $06 enables access to the most current diagnostic results and thresholds of non-continuous diagnostic routines. Each individual parameter is identified by a Component Identifier (CID). See Fig 1 .
Following a power failure or after a delete error memory (Mode $03) request all values will be set to $00. Values are stored in the battery backed RAM.
