Ambient Air Temperature Interface Description

The ECM receives Ambient Temperature via CAN. The DTC is be logged by the ECM if the Instrument Pack sends a fault condition signal. See Fig 1 .

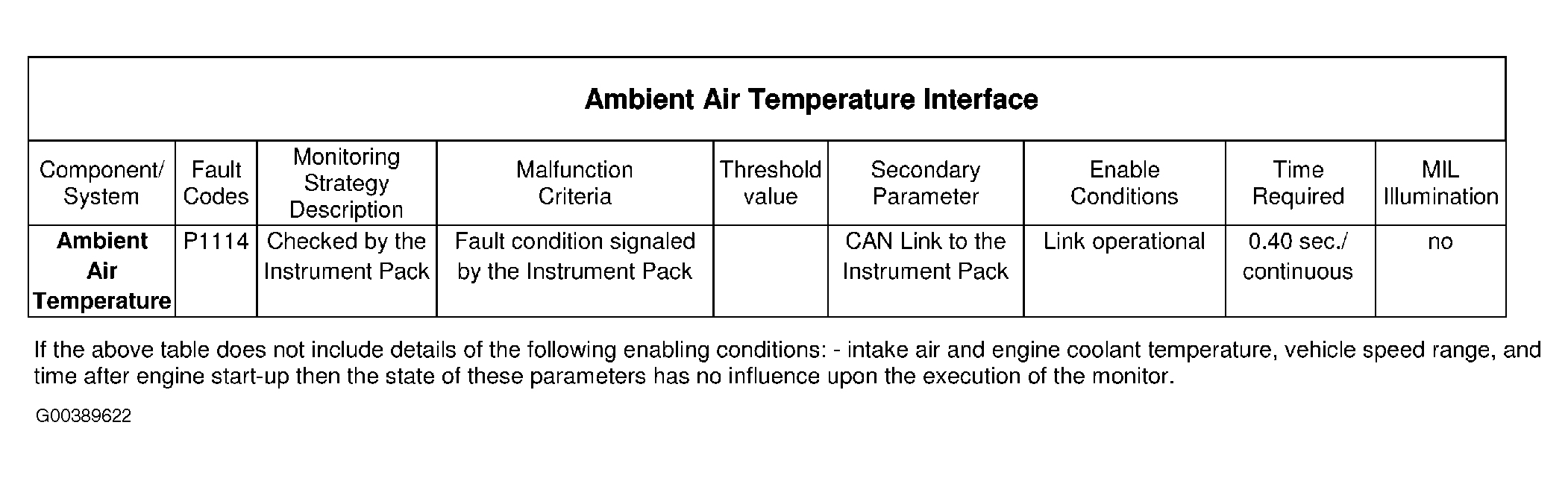

Fig 1: Ambient Air Temperature Interface Monitoring & Enabling Conditions

Courtesy of LAND ROVER NORTH AMERICA, INC.
