Camshaft Position Control Interface Drive Cycle Information

Camshaft Position Control Interface monitoring drive cycle information for each DTC:

  1. P0340

    Drive Cycle A

  2. P0345

    Drive Cycle A

  3. P1523

    Drive Cycle A

  4. P1524

    Drive Cycle A

  5. P1525

    Drive Cycle A

  6. P1526

    Drive Cycle A

  7. P1527

    Drive Cycle A

  8. P1528

    Drive Cycle A

  9. P0010

    Drive Cycle C

  10. P0011

    Drive Cycle C

  11. P0012

    Drive Cycle C

  12. P0020

    Drive Cycle C

  13. P0021

    Drive Cycle C

  14. P0022

    Drive Cycle C

NOTE: To provide compatibility with later 2005 model year DTCs, from disc 14 of the Range Rover TestBook/T4 diagnostic software, the DTCs in the following table will be displayed with new DTC numbers and descriptions. See Fig 1 .

If a standard scan tool is used then the original codes detailed above will be displayed.

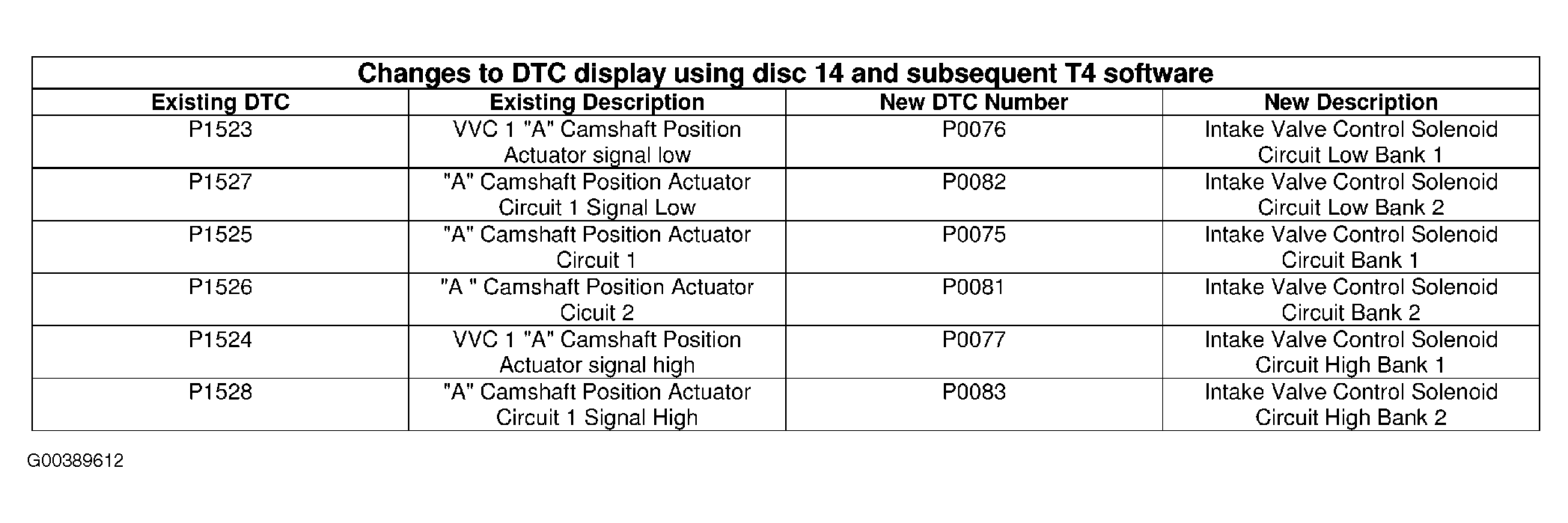

Fig 1: Changes To Camshaft Position Control Interface DTC Display Using Disc 14 & Subsequent TestBook/T4 Software
G00389612Courtesy of LAND ROVER NORTH AMERICA, INC.
