Catalyst Monitoring Operation

For catalyst monitoring operation and enabling conditions, see Fig 1 .

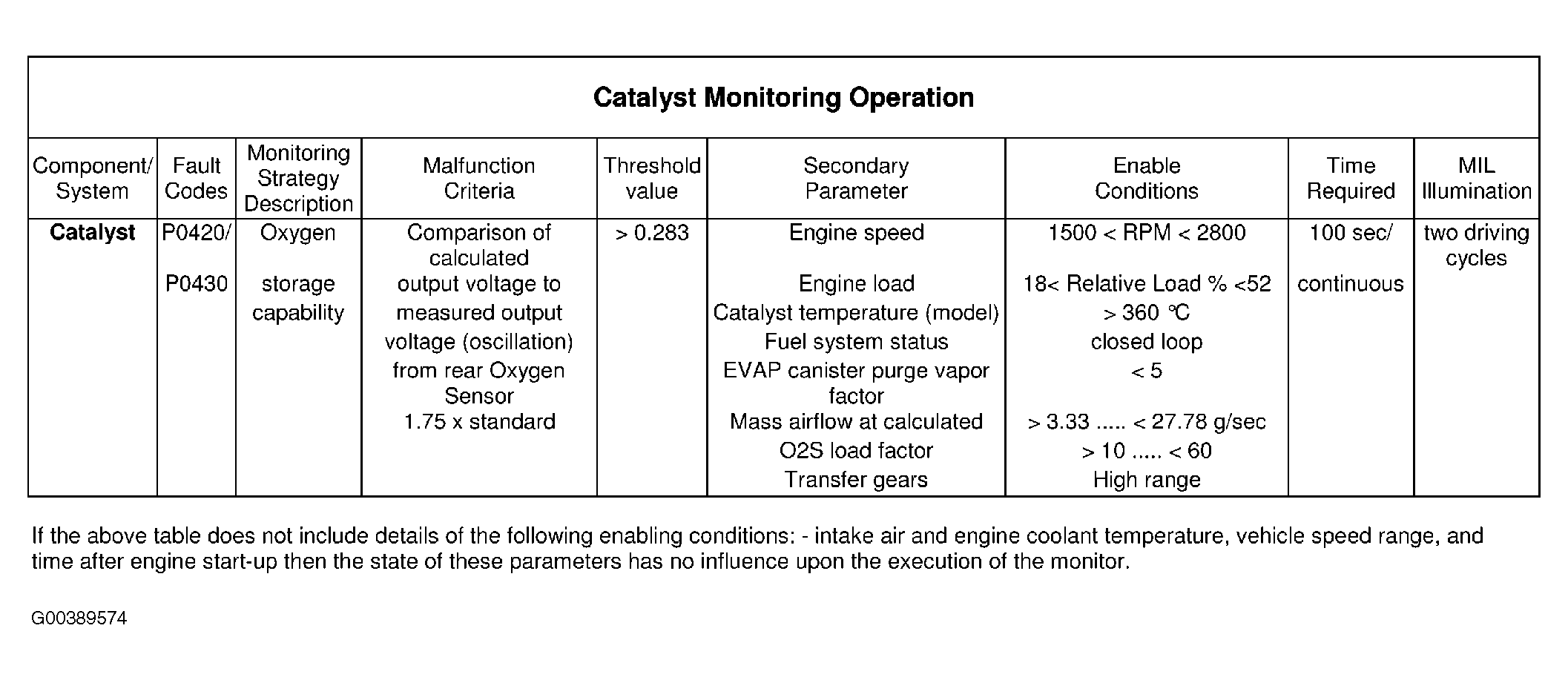

Fig 1: Catalyst Monitoring Operation & Enabling Conditions

Courtesy of LAND ROVER NORTH AMERICA, INC.
