Catalyst Monitoring Structure

For monitoring structure flow chart, see Fig 1 .

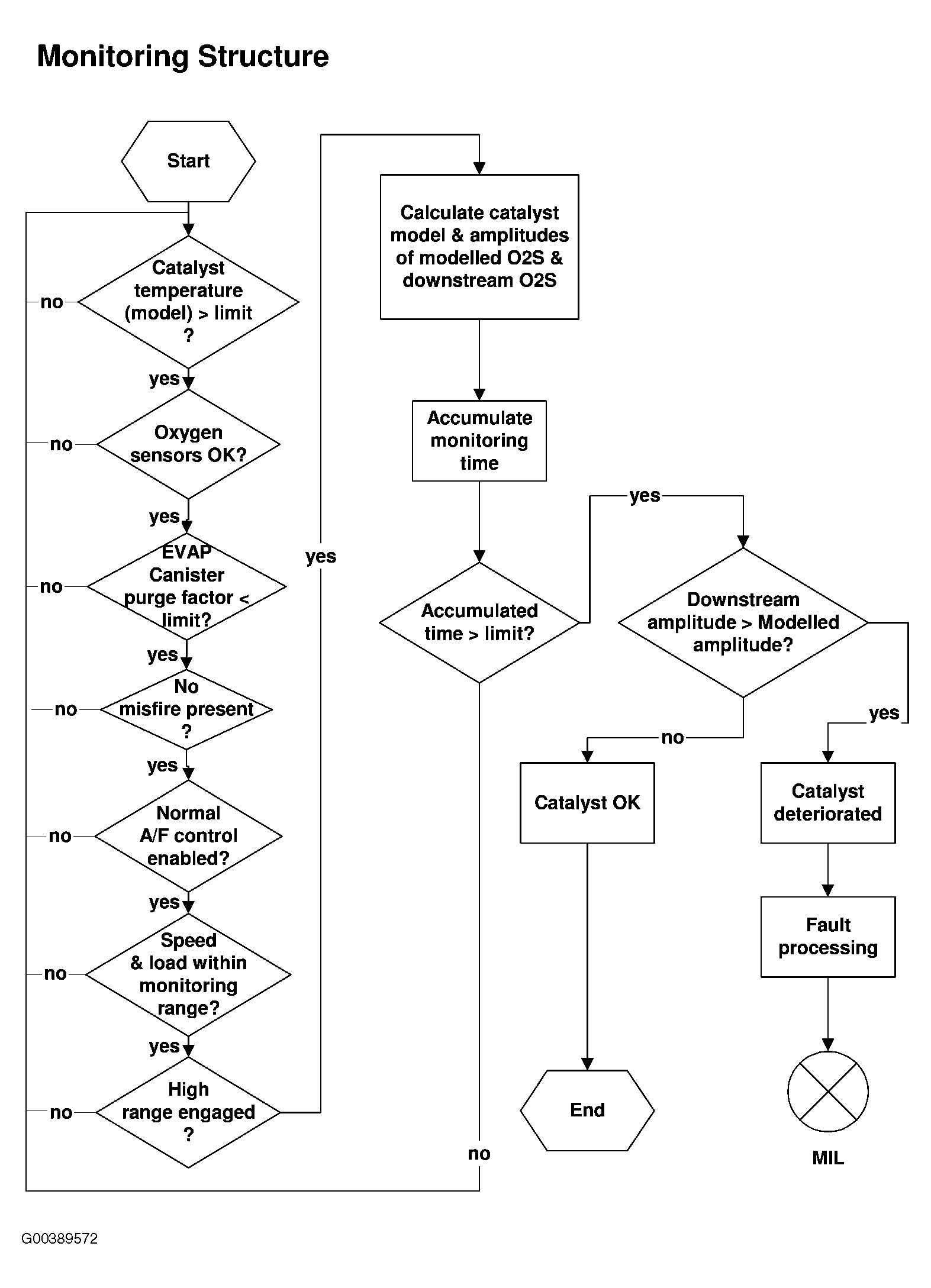

Fig 1: Catalyst Monitoring Structure Flow Chart
G00389572Courtesy of LAND ROVER NORTH AMERICA, INC.
