Electronic Throttle Interface Description

The Electronic Throttle Interface consists of 2 PWM output drives to control the throttle blade position, with 2 analogue signals for throttle position feedback. The 2 position signals have inverted characteristics. See Fig 1 .

There are three Electronic Throttle diagnostic checks, a fault is detected if:

1. The battery voltage is greater than 7 volts and the difference between the actual and target throttle position is greater than 4%.
2. Throttle Control

   Unable to learn the lower mechanical stop position.
3. Throttle Control

   Return spring problem.

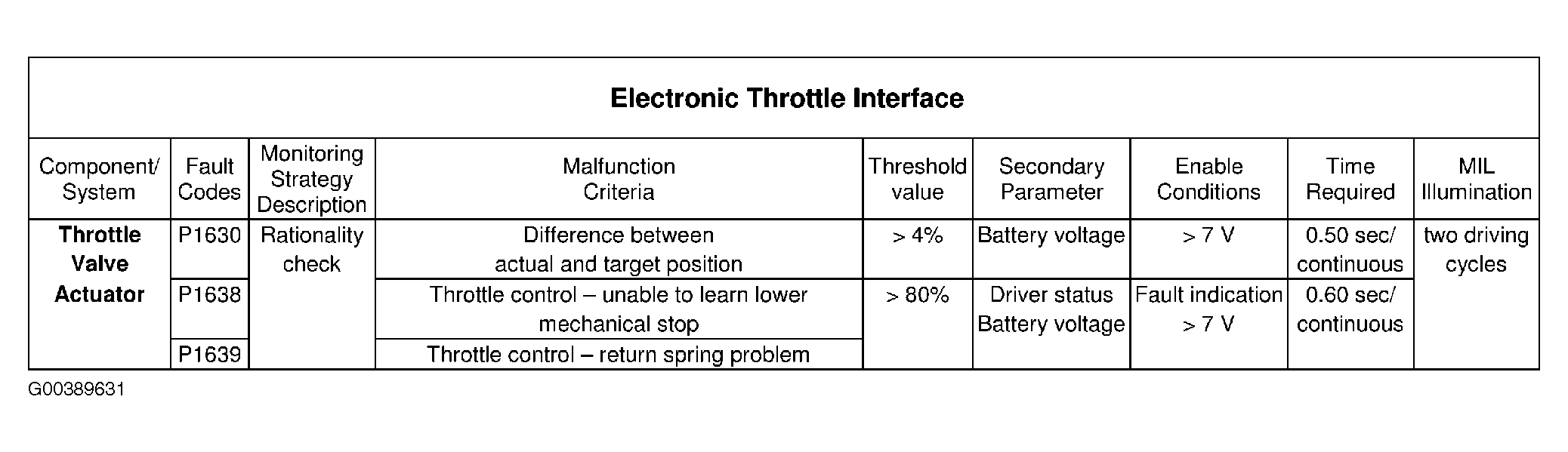

Fig 1: Electronic Throttle Interface Monitoring & Enabling Conditions

Courtesy of LAND ROVER NORTH AMERICA, INC.
