Fuel System Drive Cycle Information

Drive cycle information for each DTC:

  1. P0171

    Drive Cycle C

  2. P0172

    Drive Cycle C

  3. P0174

    Drive Cycle C

  4. P0175

    Drive Cycle C

  5. P1171

    Drive Cycle C

  6. P1172

    Drive Cycle C

  7. P1174

    Drive Cycle C

  8. P1175

    Drive Cycle C

NOTE: To provide compatibility with later 2005 model year DTCs, from disc 14 of the Range Rover TestBook/T4 diagnostic software, the DTCs in the following table will be displayed with new DTC numbers and descriptions. See Fig 1 .

If a standard scan tool is used then the original codes detailed previously will be displayed.

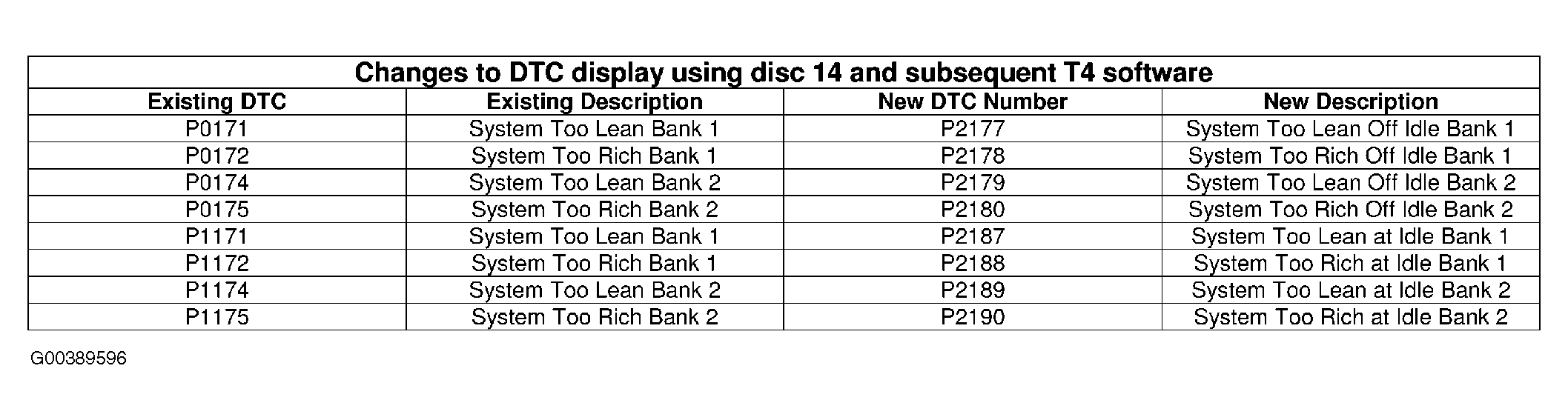

Fig 1: Changes To Fuel System Monitoring DTC Display Using Disc 14 & Subsequent TestBook/T4 Software
G00389596Courtesy of LAND ROVER NORTH AMERICA, INC.
