Fuel System Monitoring Structure
For fuel system monitoring structure and flow chart, see
Fig 1
.

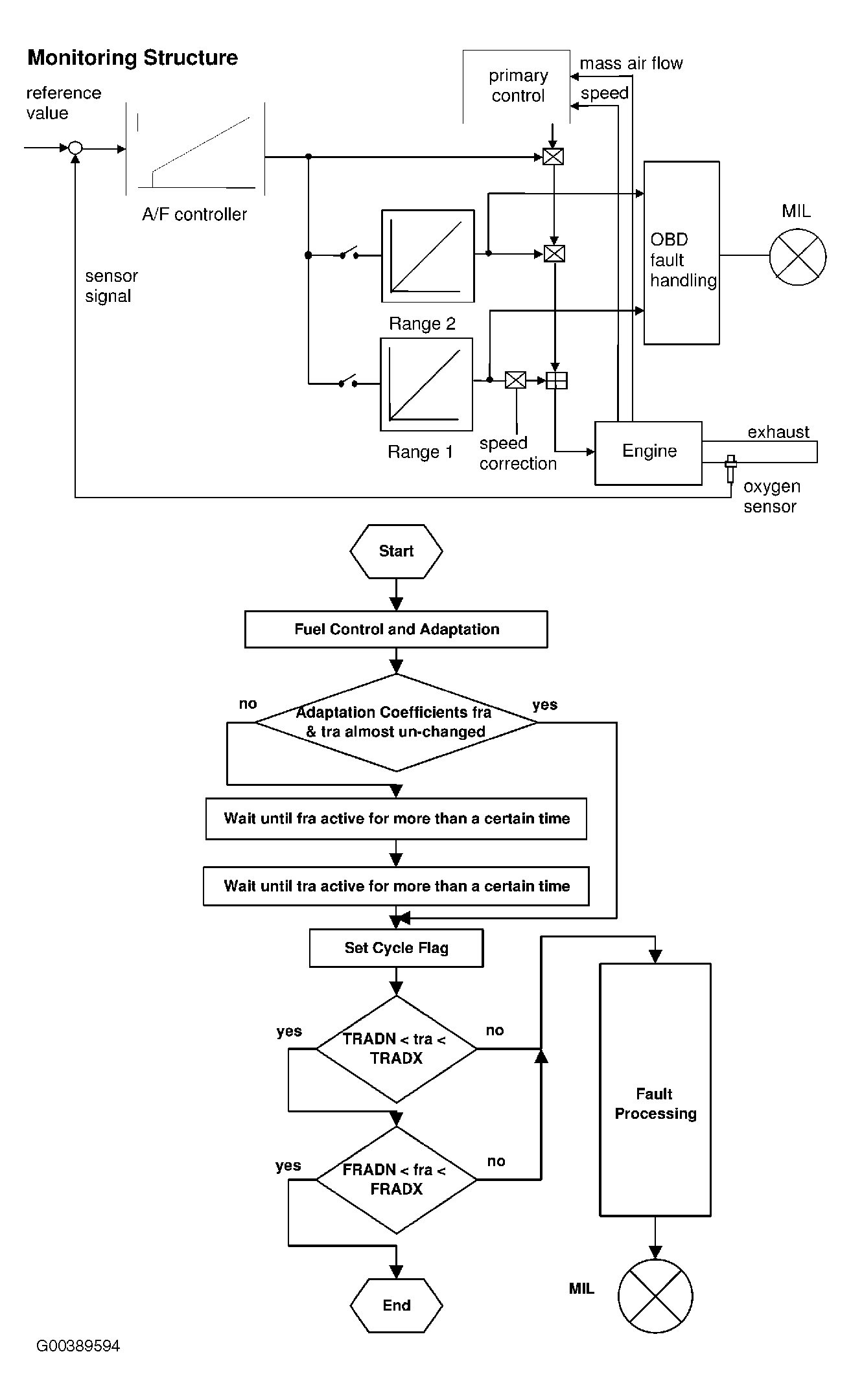

Fig 1: Fuel System Monitoring Structure & Flow Chart
Courtesy of LAND ROVER NORTH AMERICA, INC.
