Intake Air Temperature Interface Description

The intake air temperature interface consists of 1 analogue voltage input signal for Intake Air Temperature. See Fig 1 .

There is one Intake Air Temperature Sensor diagnostic, a fault is detected if:

1. The resistance of the sensor exceeds a minimum or maximum threshold.

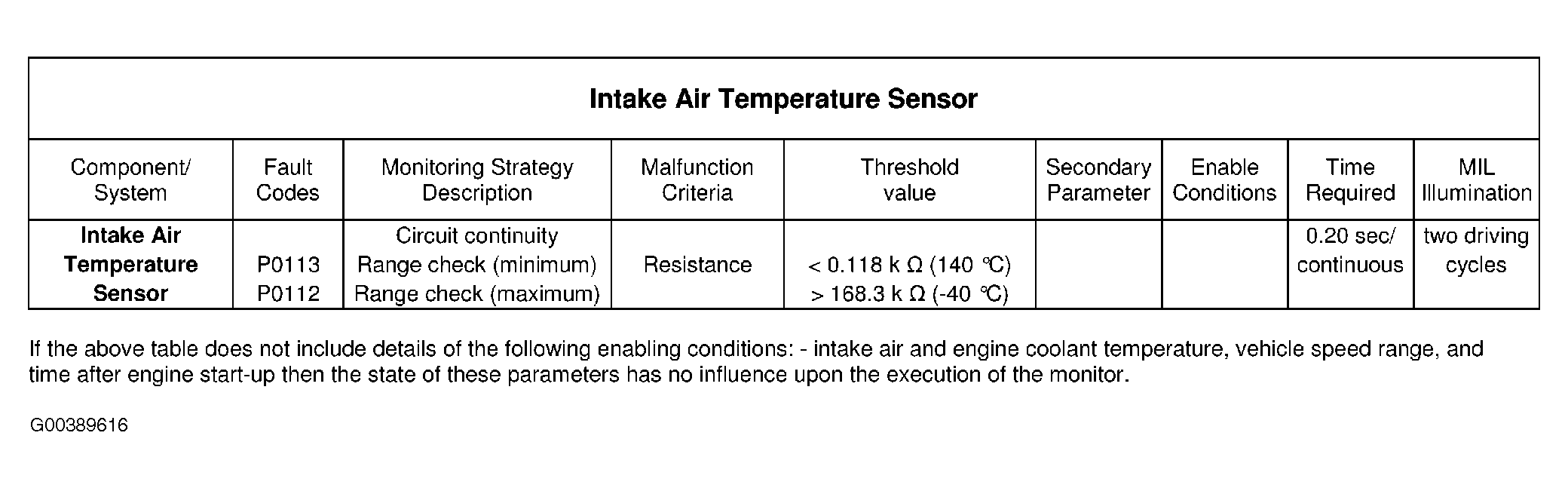

Fig 1: Intake Air Temperature Sensor Monitoring & Enabling Conditions

Courtesy of LAND ROVER NORTH AMERICA, INC.
