Misfire Monitoring Operation

For misfire monitoring operation and enabling conditions see Fig 1 .

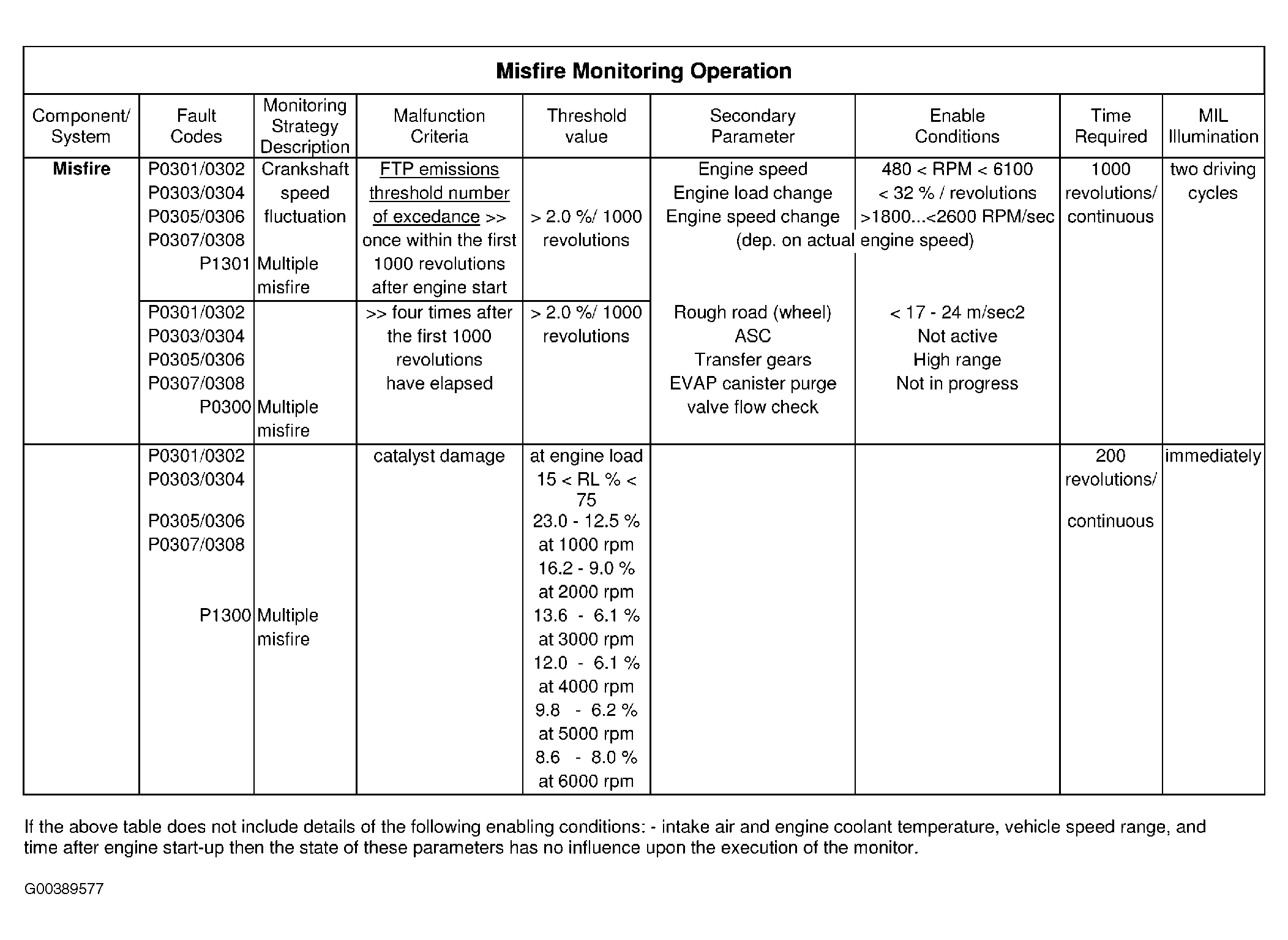

Fig 1: Misfire Monitoring Operation & Enabling Conditions

Courtesy of LAND ROVER NORTH AMERICA, INC.
