Transfer Box Control Module Interface Description

The ECM communicates with the Transfer Box Control Module via CAN. The data within the CAN message is checked for robustness and CAN generated fault information. See Fig 1 .

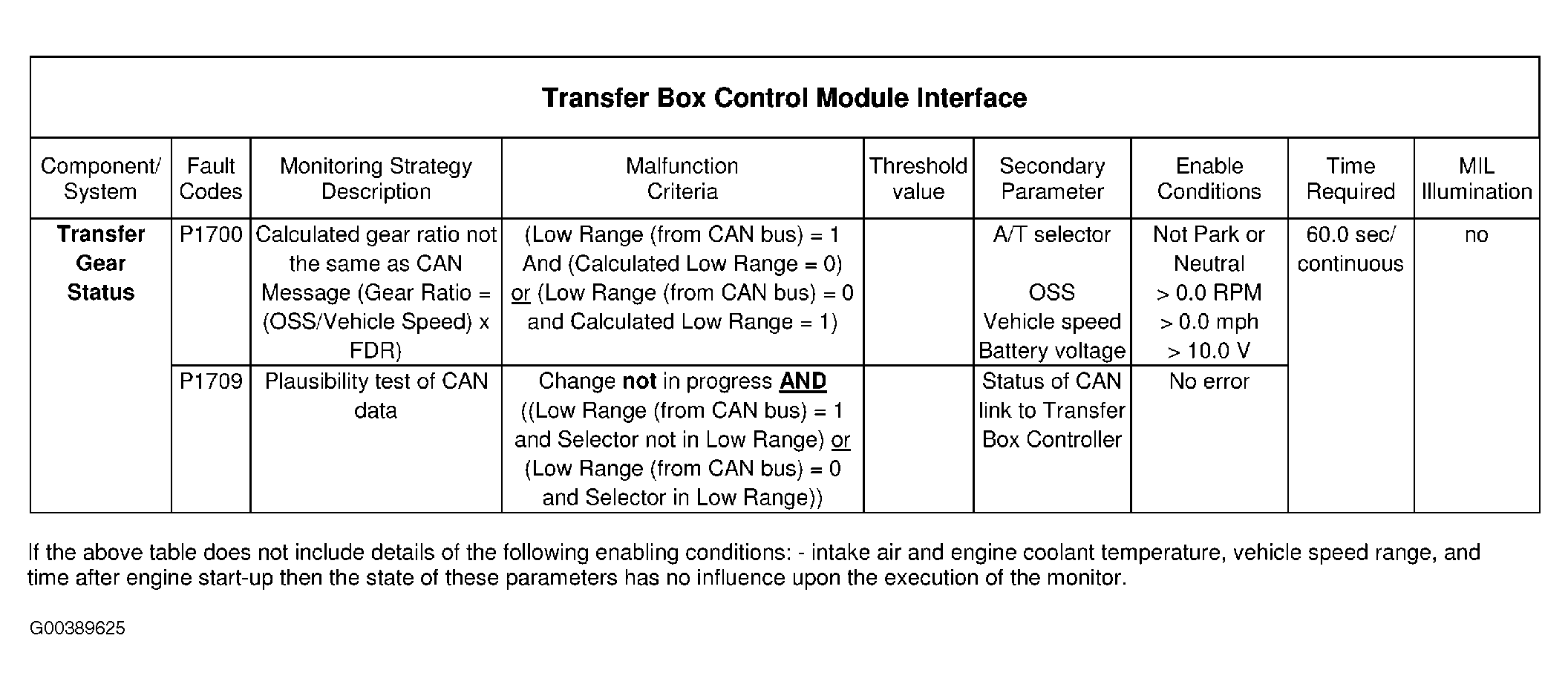

Fig 1: Transfer Box Control Module Interface Monitoring & Enabling Conditions

Courtesy of LAND ROVER NORTH AMERICA, INC.
