Component Locations

NOTE: For transfer box component layout, control schematic and component identification, see Fig 1, Fig 2, Fig 3 and Fig 4 .

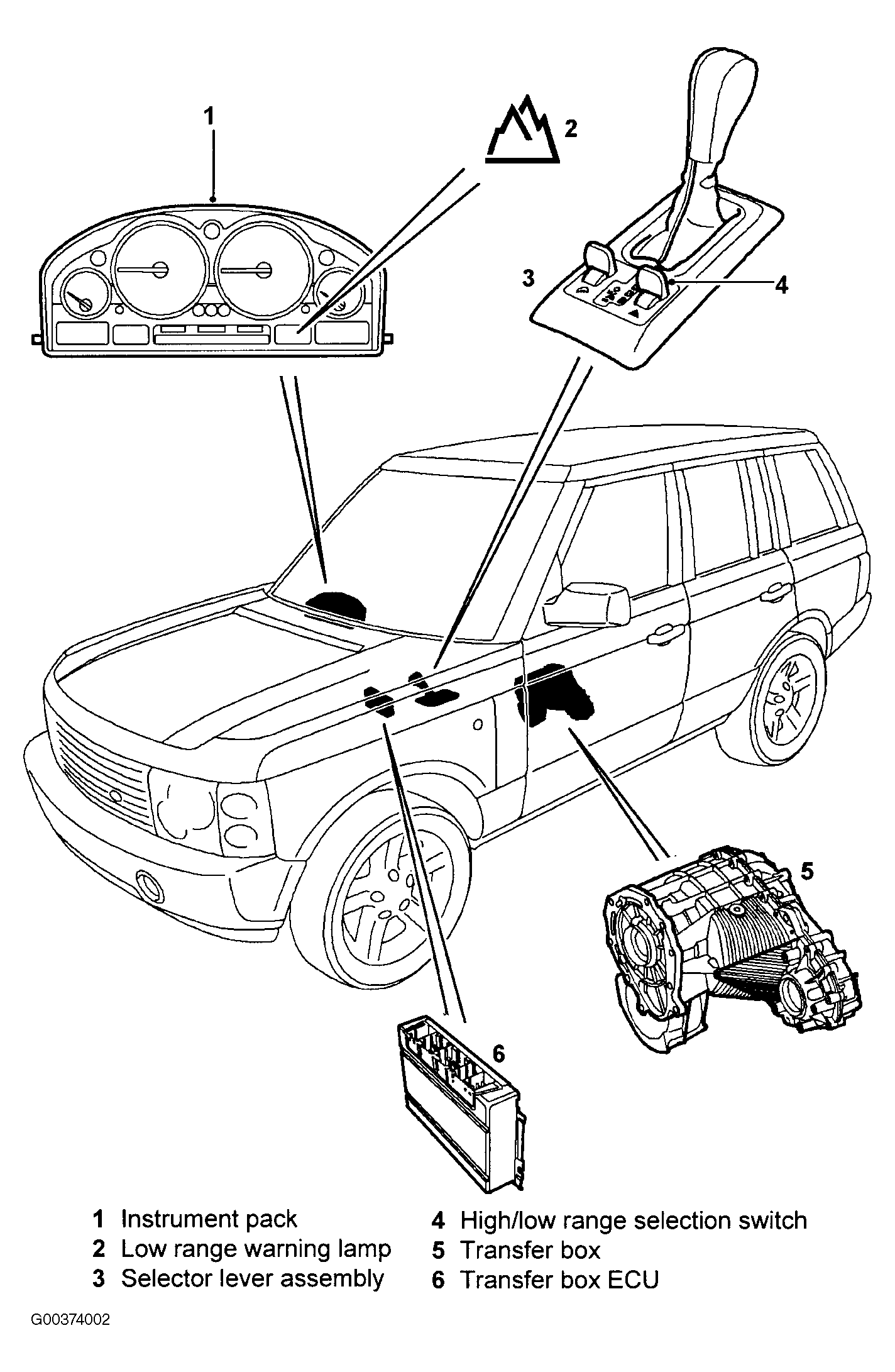

Fig 1: NV225 Transfer Box Component Locations

Courtesy of LAND ROVER NORTH AMERICA, INC.

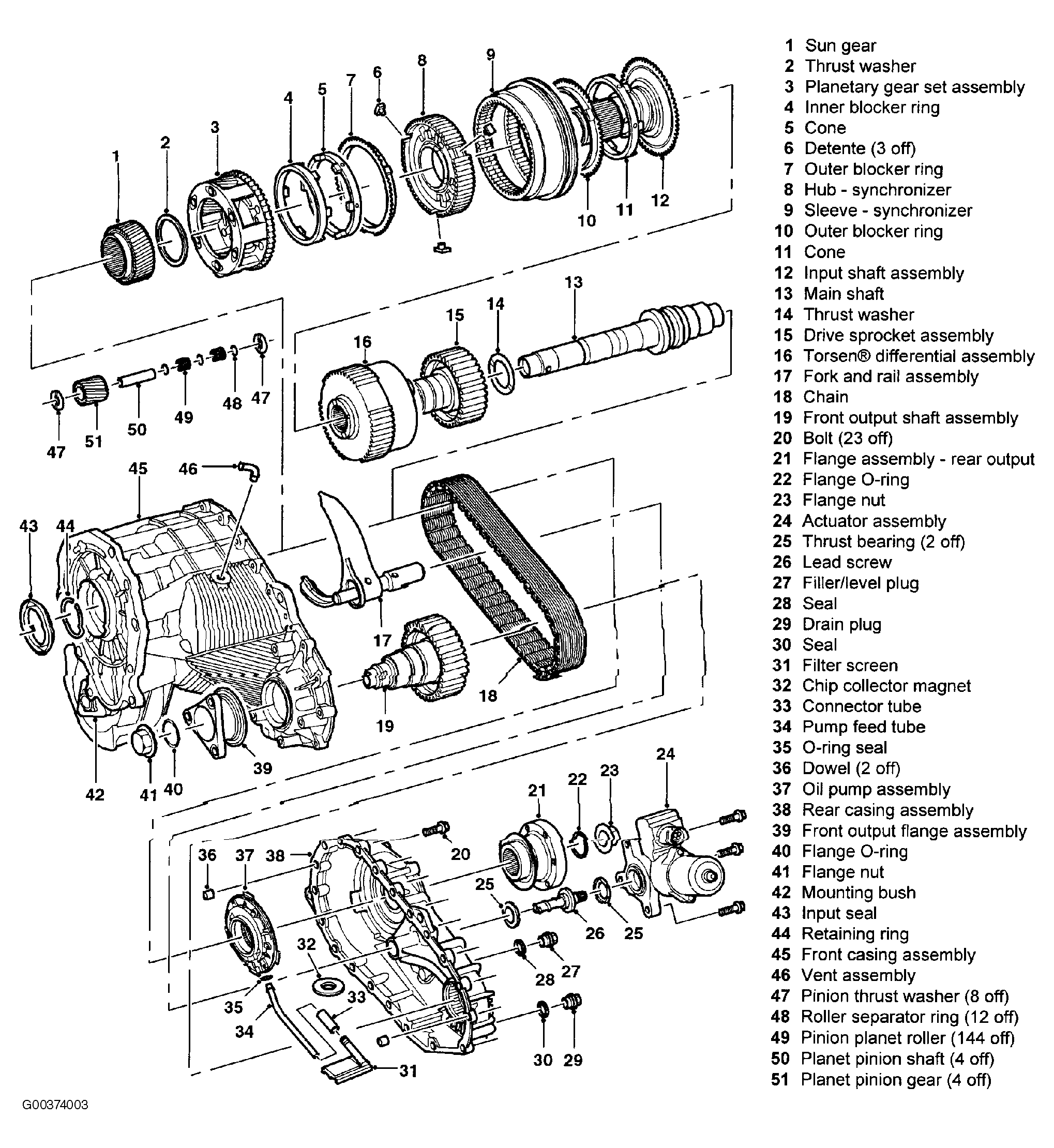

Fig 2: NV225 Transfer Box Exploded View

Courtesy of LAND ROVER NORTH AMERICA, INC.

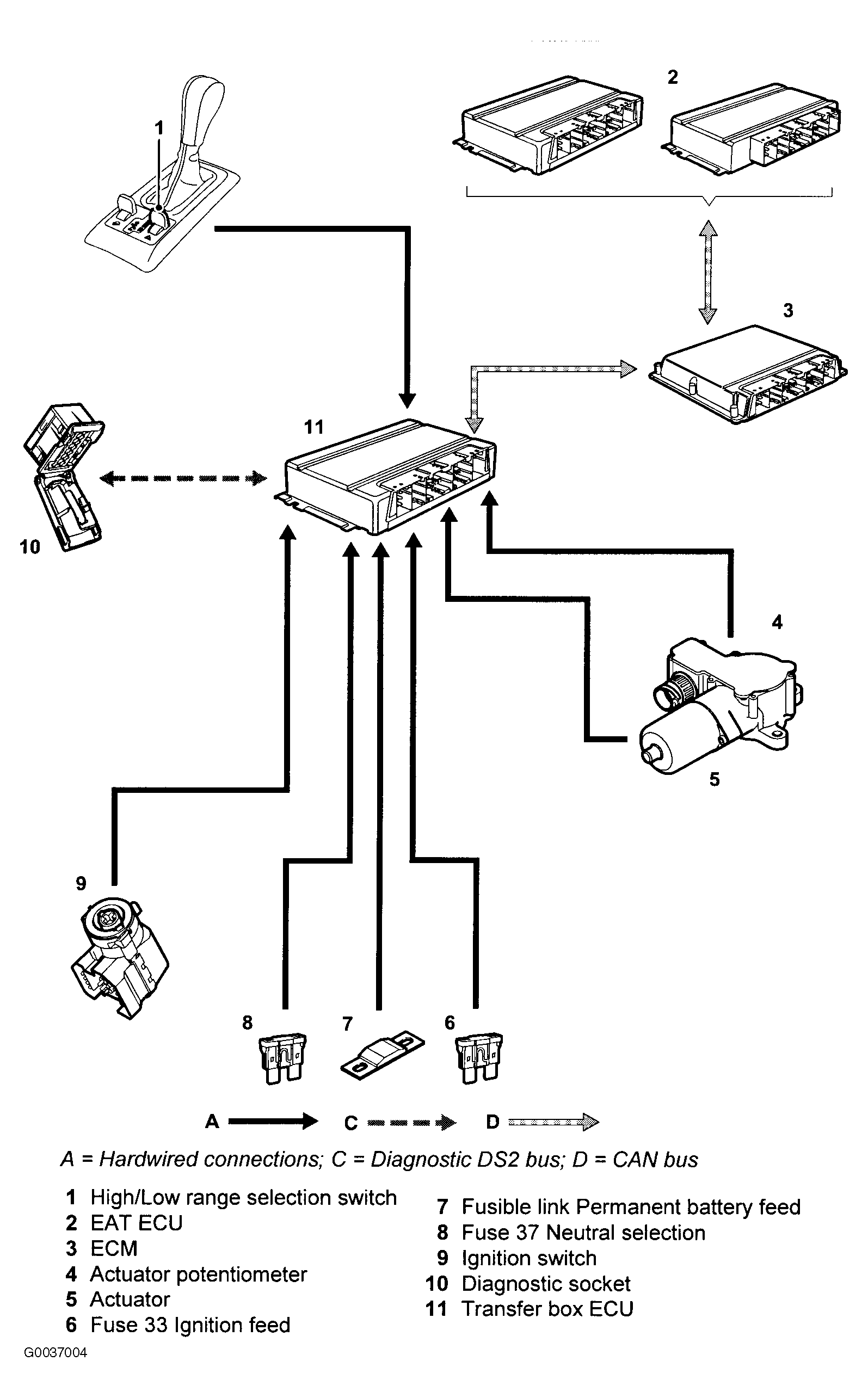

Fig 3: NV225 Transfer Box Control Diagram

Courtesy of LAND ROVER NORTH AMERICA, INC.

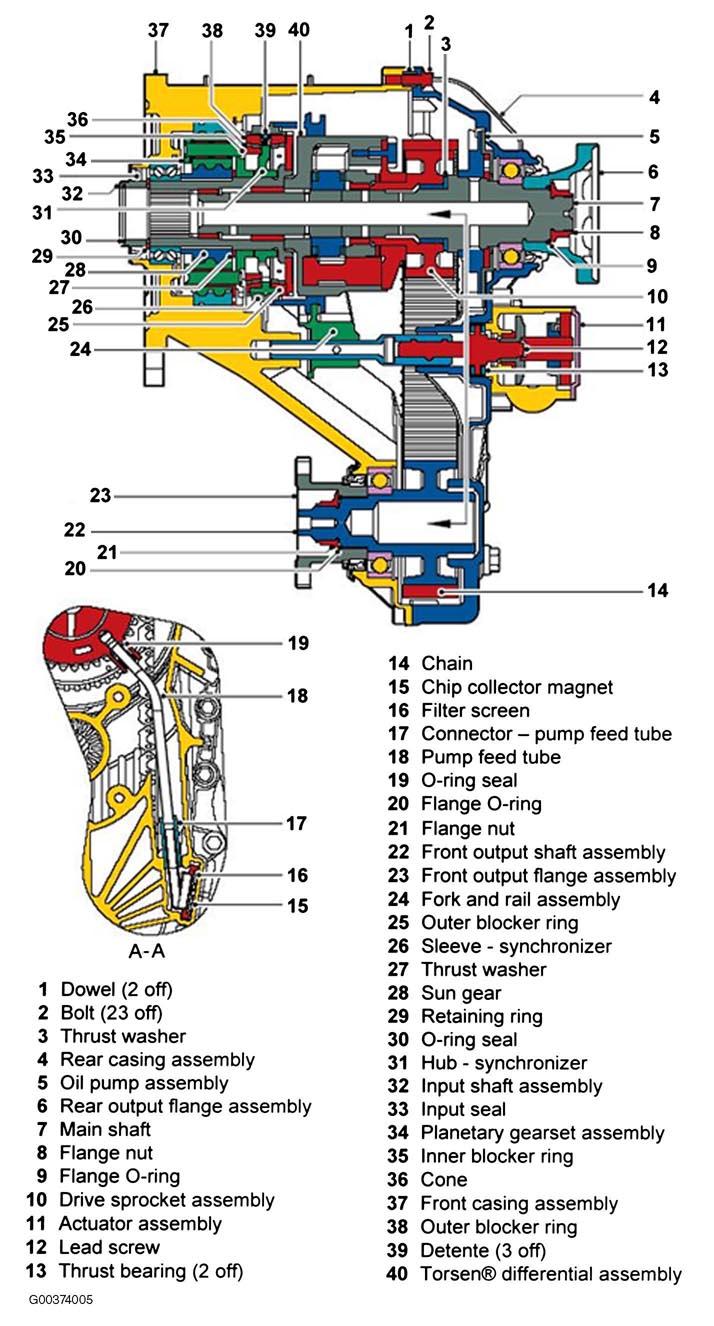

Fig 4: NV225 Transfer Box Sectional View

Courtesy of LAND ROVER NORTH AMERICA, INC.
