Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

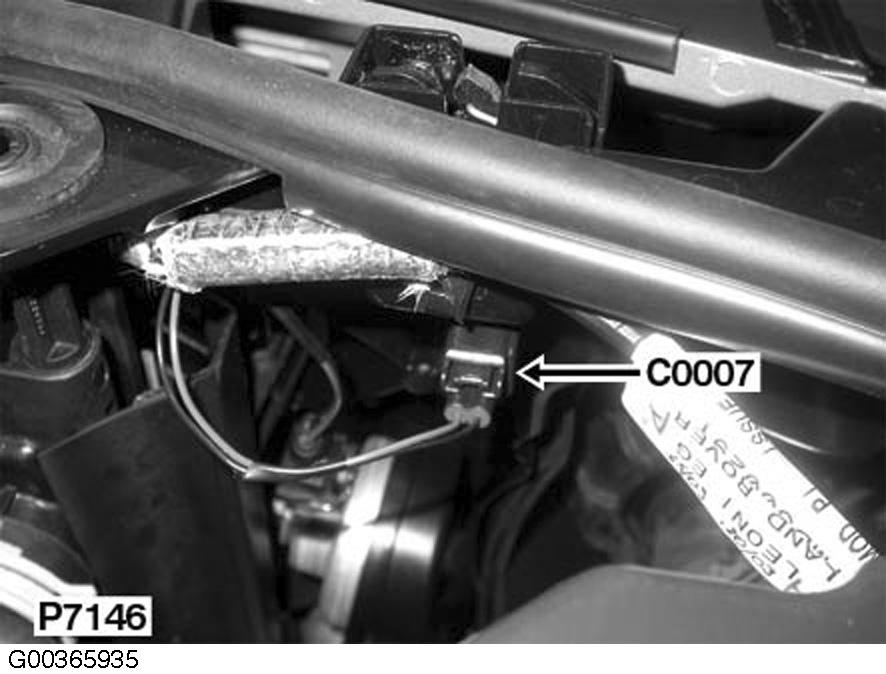

Fig 1: Right Front Of Engine Compartment
G00365935Courtesy of LAND ROVER NORTH AMERICA, INC.

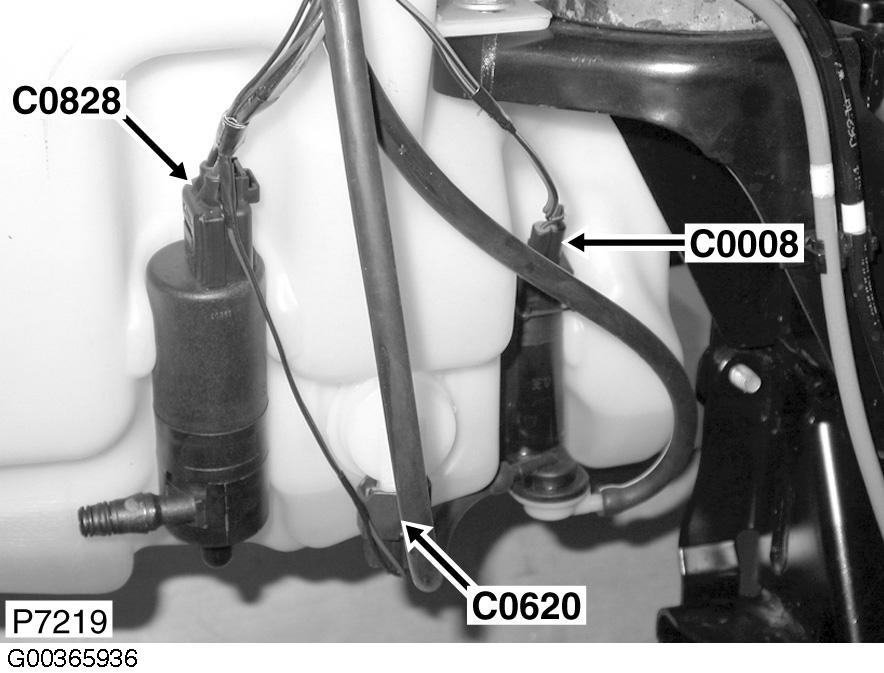

Fig 2: Left Side Of Engine Compartment
G00365936Courtesy of LAND ROVER NORTH AMERICA, INC.

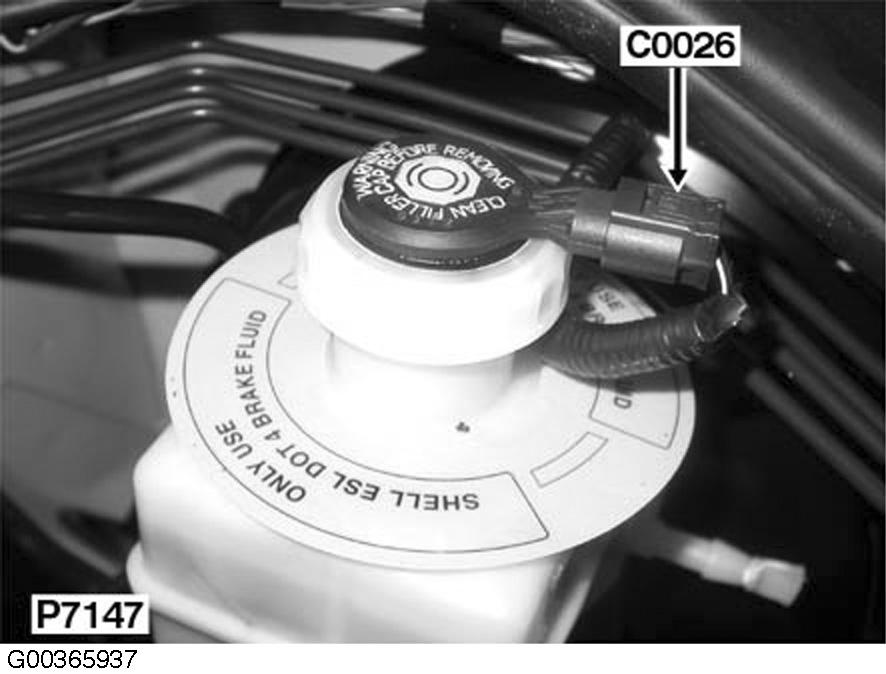

Fig 3: Left Rear Of Engine Compartment
G00365937Courtesy of LAND ROVER NORTH AMERICA, INC.

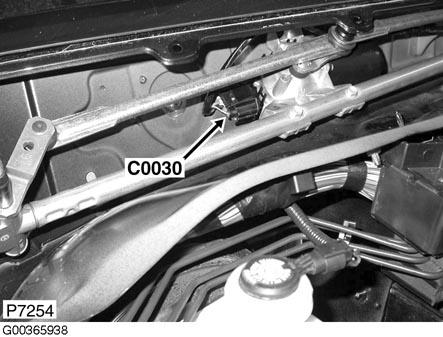

Fig 4: Rear Of Engine Compartment
G00365938Courtesy of LAND ROVER NORTH AMERICA, INC.

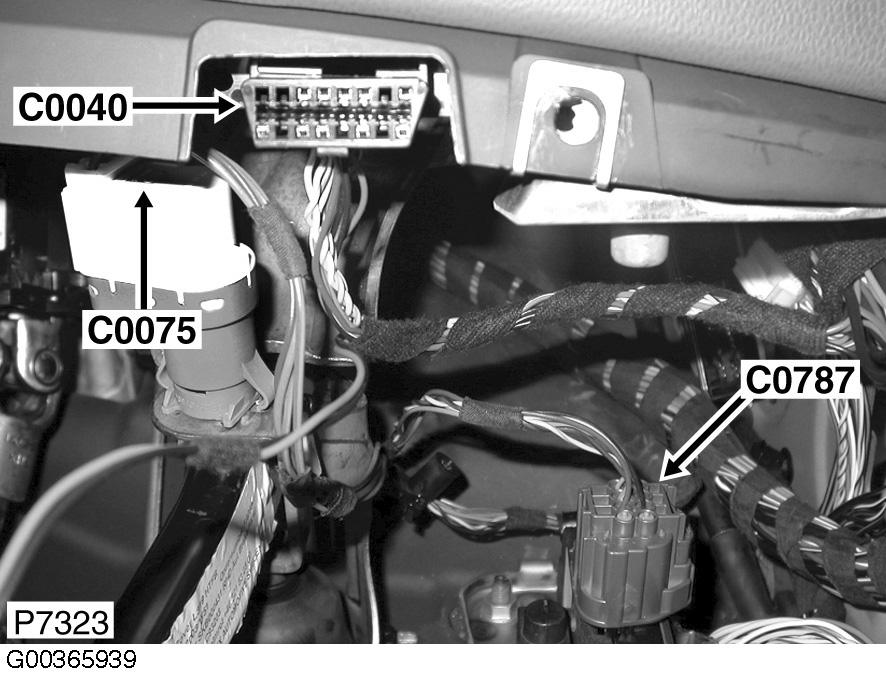

Fig 5: Left Side Of Dash
G00365939Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 6: Left "A" Pillar
G00365940Courtesy of LAND ROVER NORTH AMERICA, INC.

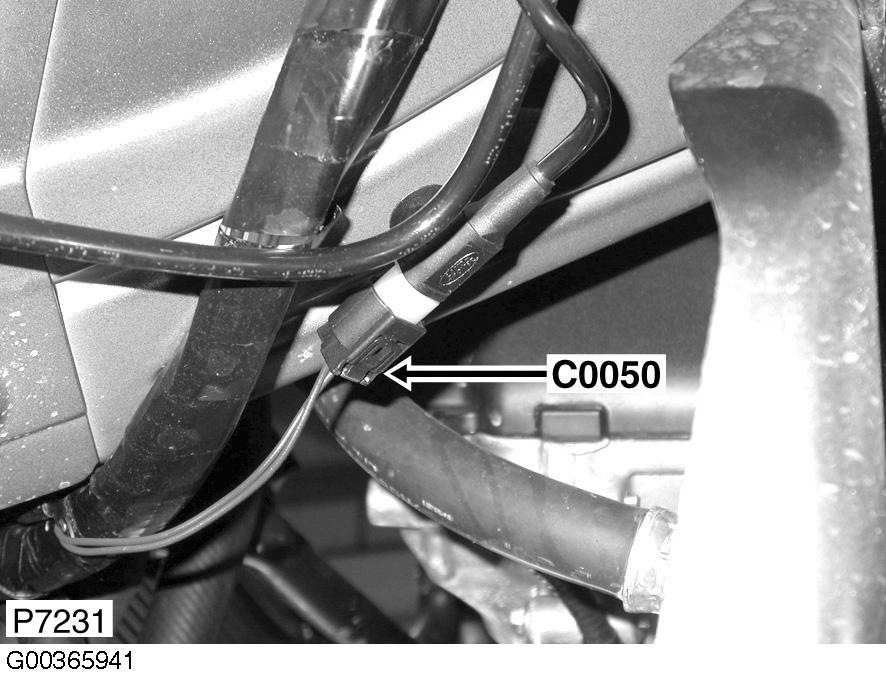

Fig 7: Left Front Wheel Arch Liner
G00365941Courtesy of LAND ROVER NORTH AMERICA, INC.

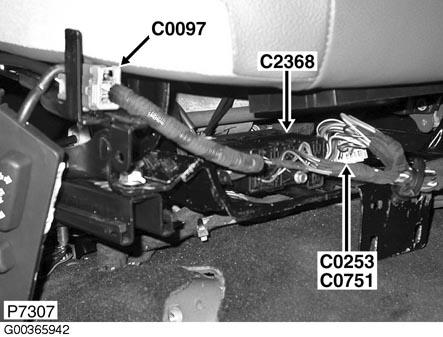

Fig 8: Under Driver's Seat
G00365942Courtesy of LAND ROVER NORTH AMERICA, INC.

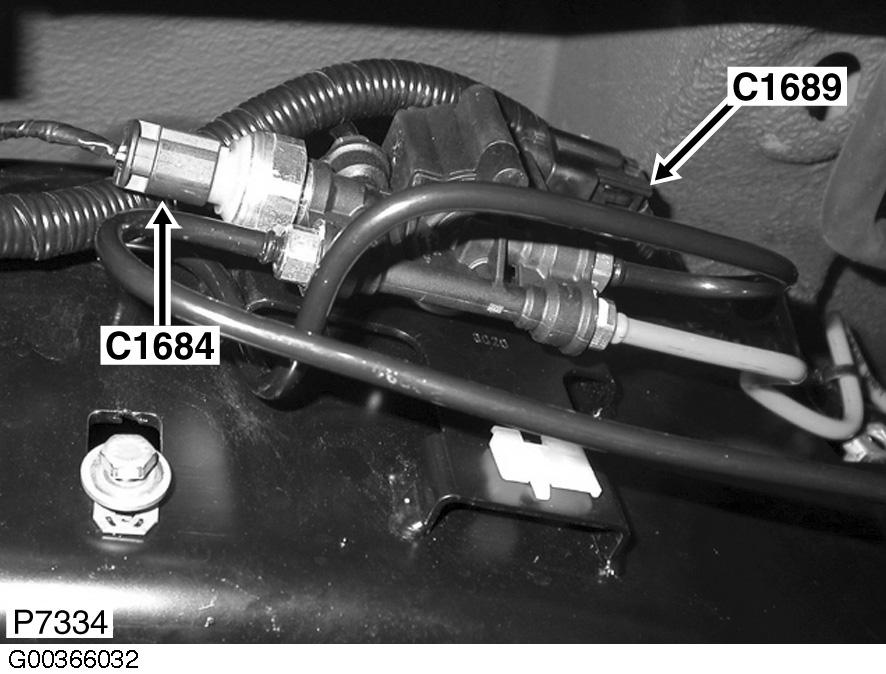

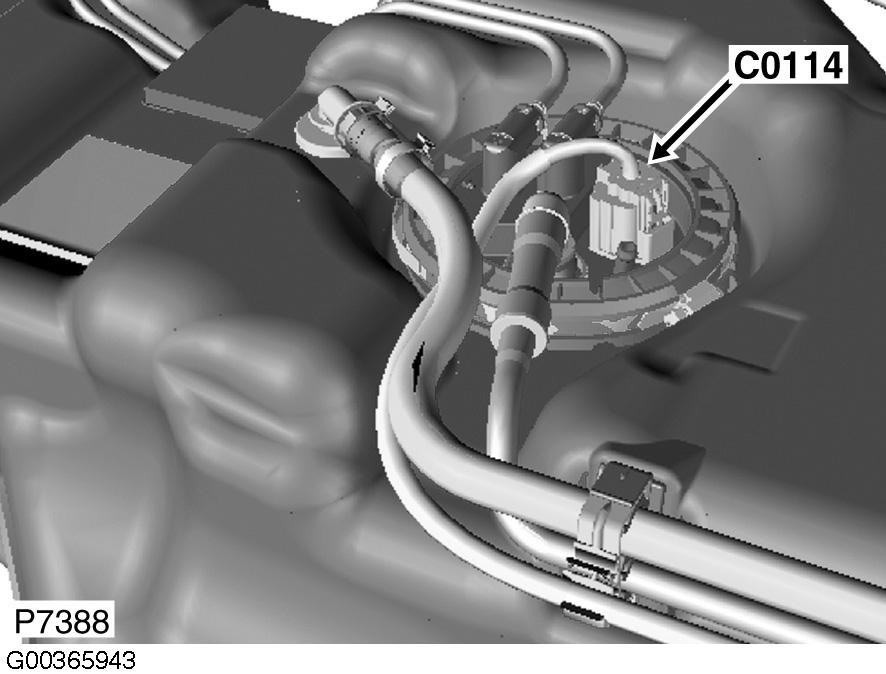

Fig 9: Above Fuel Tank
G00365943Courtesy of LAND ROVER NORTH AMERICA, INC.

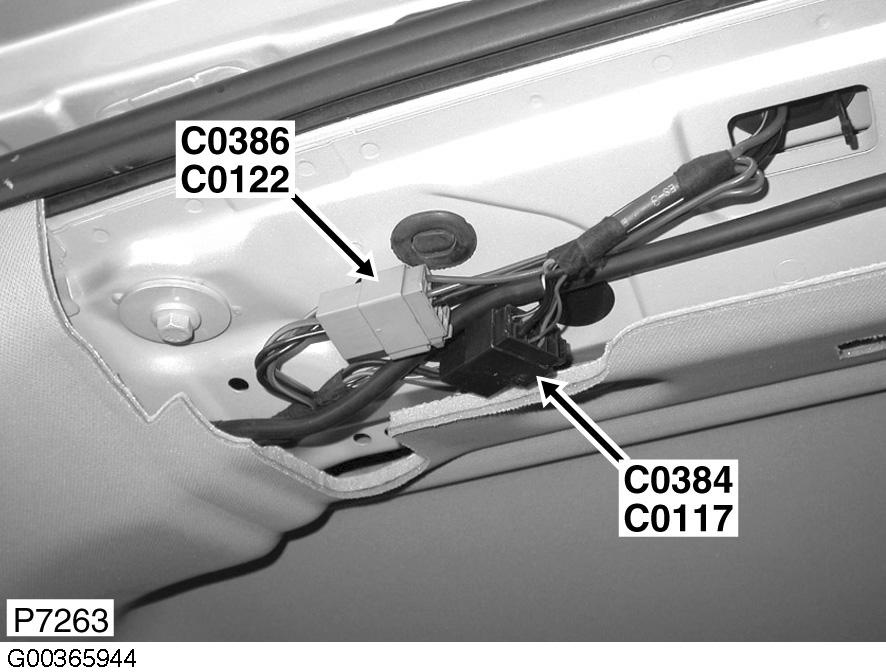

Fig 10: Rear Of Headliner
G00365944Courtesy of LAND ROVER NORTH AMERICA, INC.

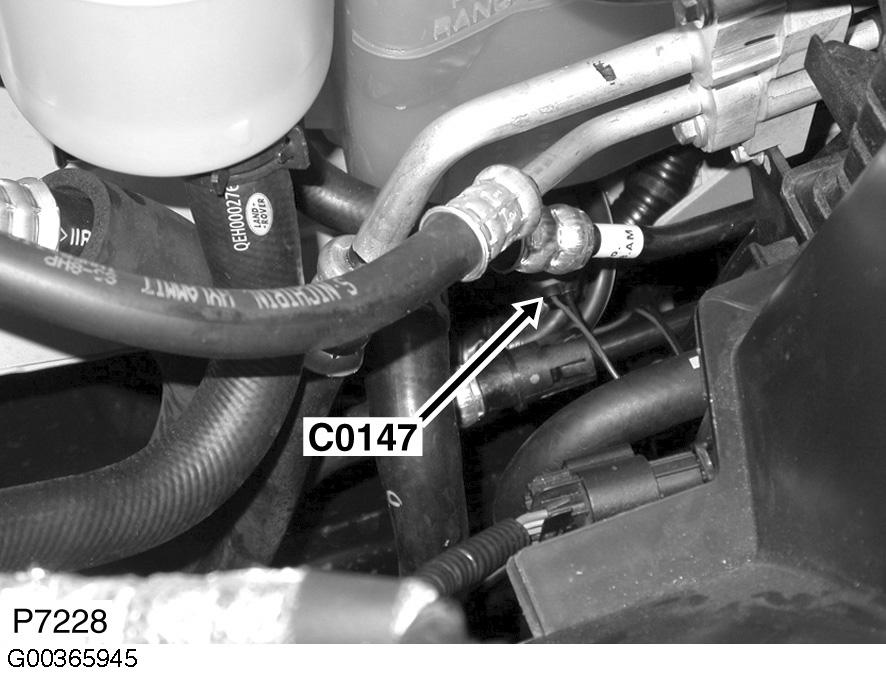

Fig 11: Left Front Of Engine Compartment
G00365945Courtesy of LAND ROVER NORTH AMERICA, INC.

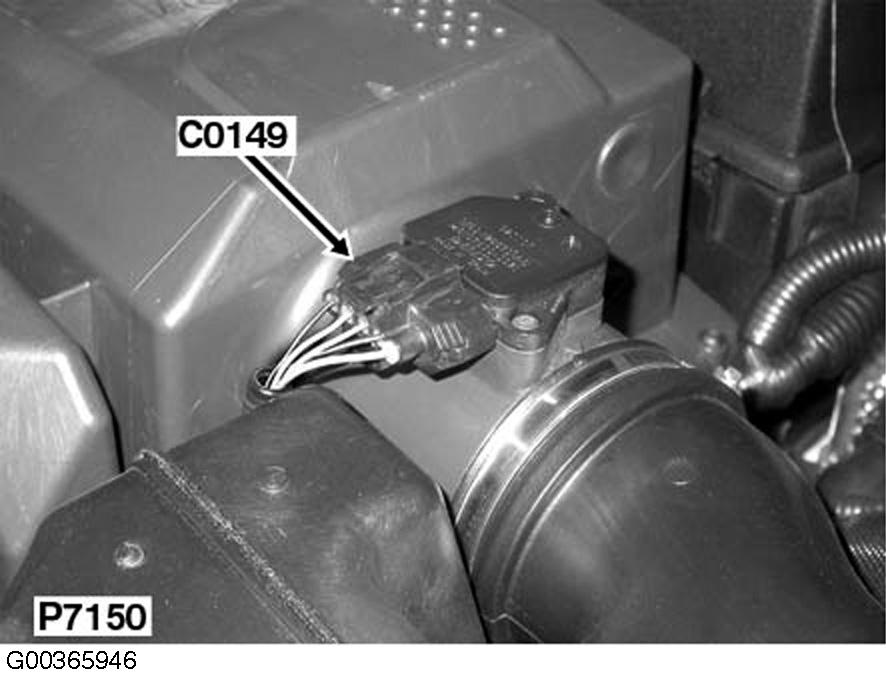

Fig 12: Right Front Of Engine Compartment
G00365946Courtesy of LAND ROVER NORTH AMERICA, INC.

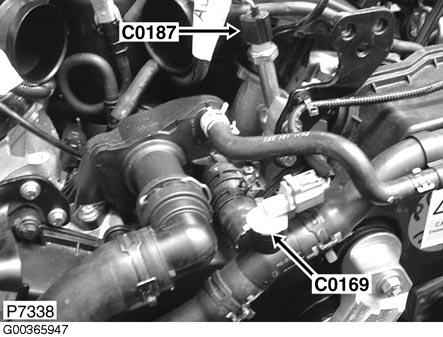

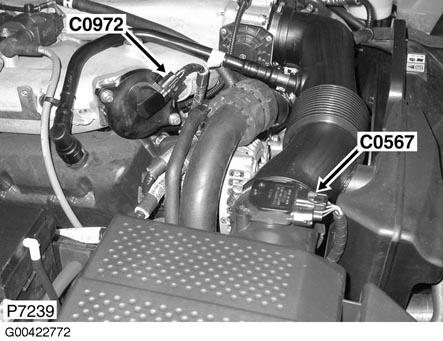

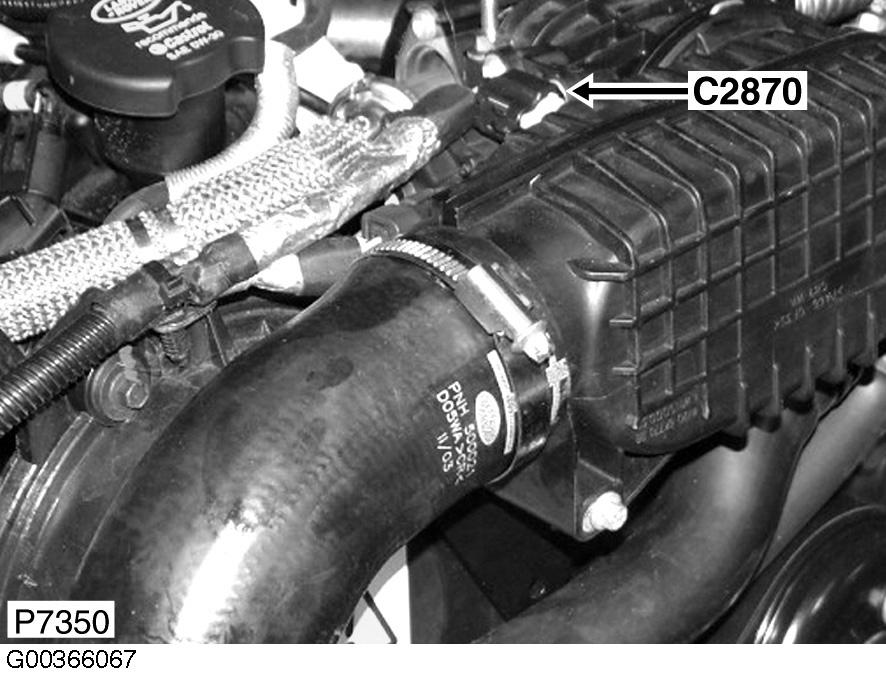

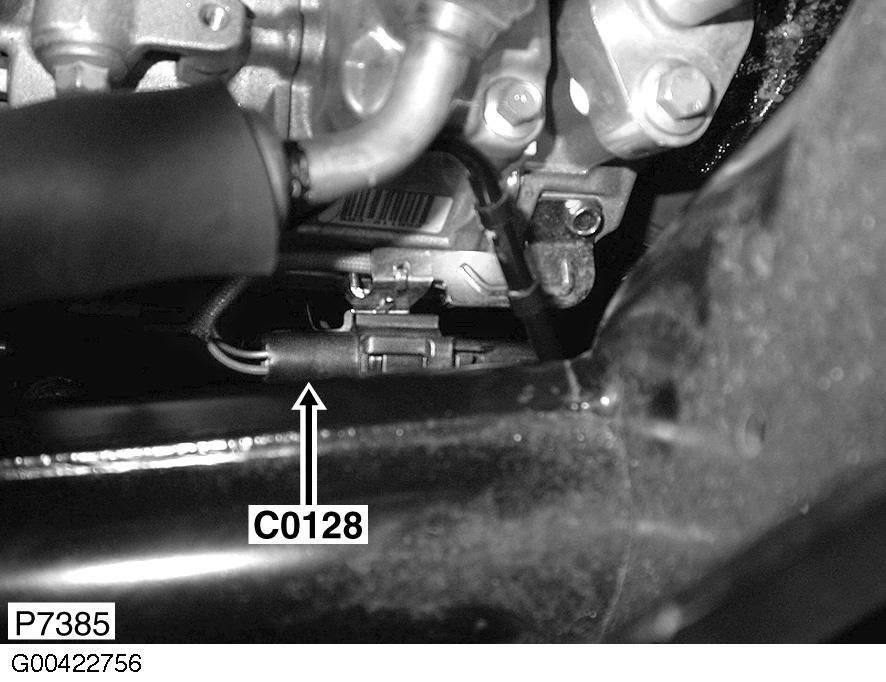

Fig 13: Top Of Engine
G00365947Courtesy of LAND ROVER NORTH AMERICA, INC.

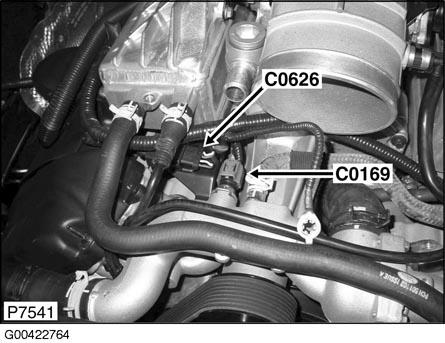

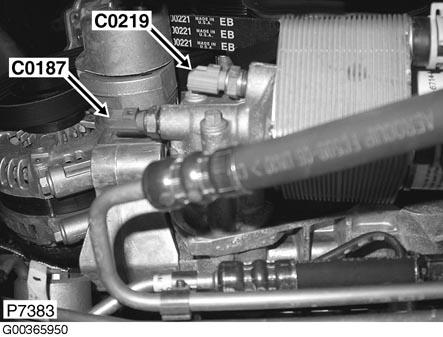

Fig 14: Front Center Of Engine
G00365950Courtesy of LAND ROVER NORTH AMERICA, INC.

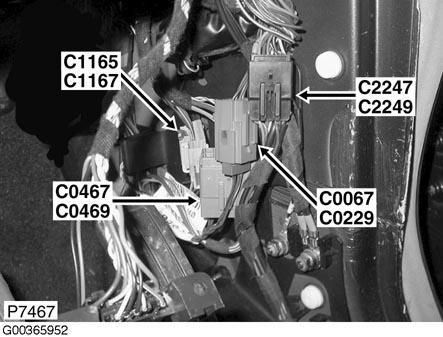

Fig 15: Right "A" Pillar
G00365952Courtesy of LAND ROVER NORTH AMERICA, INC.

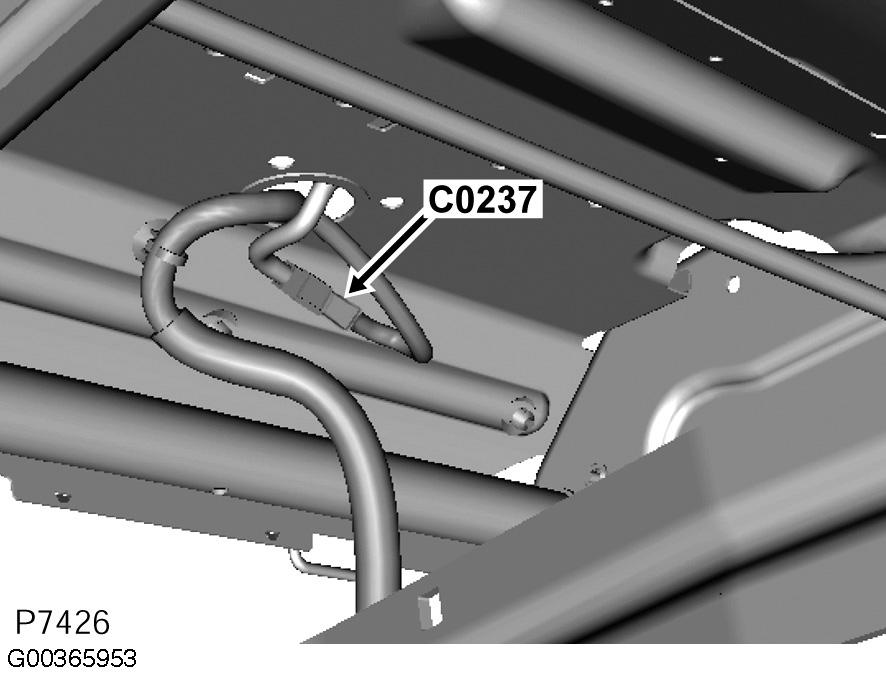

Fig 16: Under Rear Seat
G00365953Courtesy of LAND ROVER NORTH AMERICA, INC.

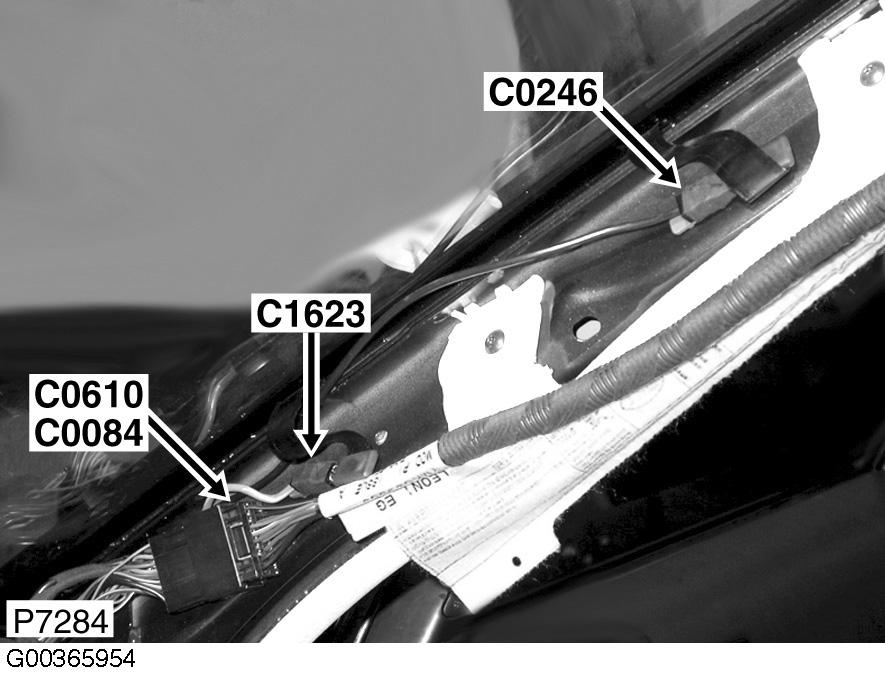

Fig 17: Right "A" Pillar
G00365954Courtesy of LAND ROVER NORTH AMERICA, INC.

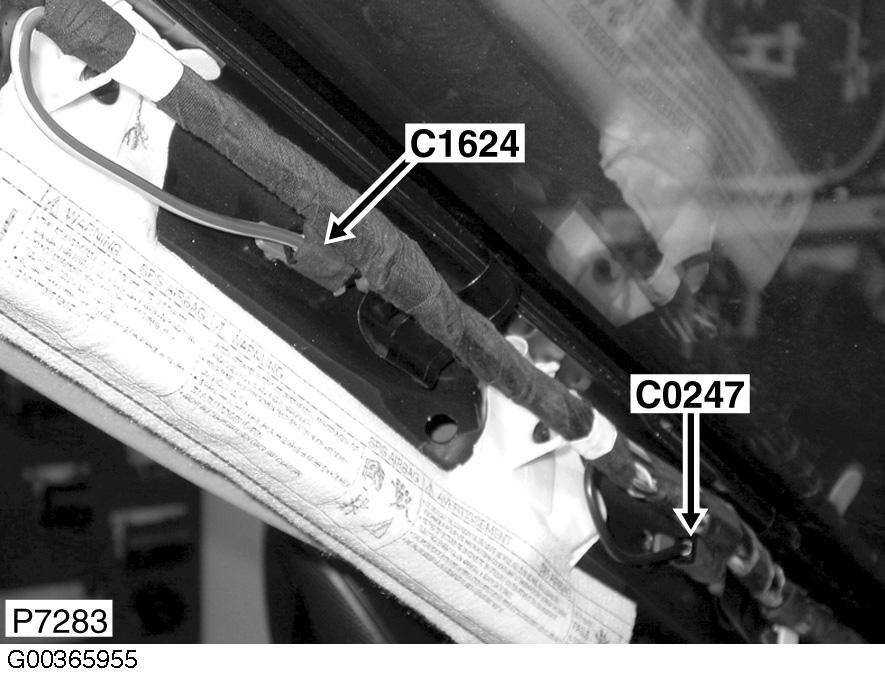

Fig 18: Left "A" Pillar
G00365955Courtesy of LAND ROVER NORTH AMERICA, INC.

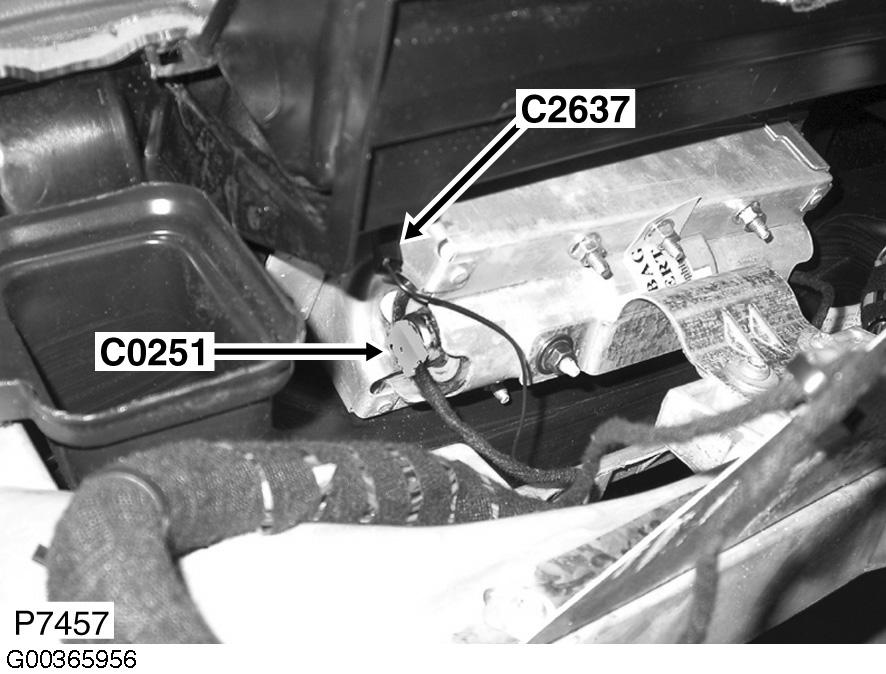

Fig 19: Right Side Of Dash
G00365956Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 20: Under Driver's Seat
G00365957Courtesy of LAND ROVER NORTH AMERICA, INC.

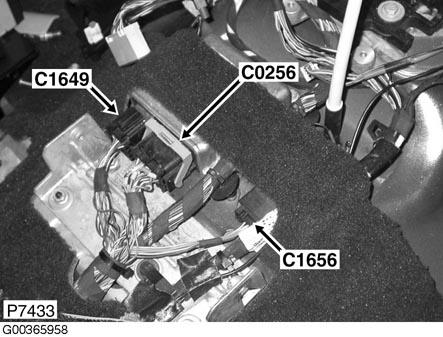

Fig 21: Center Console
G00365958Courtesy of LAND ROVER NORTH AMERICA, INC.

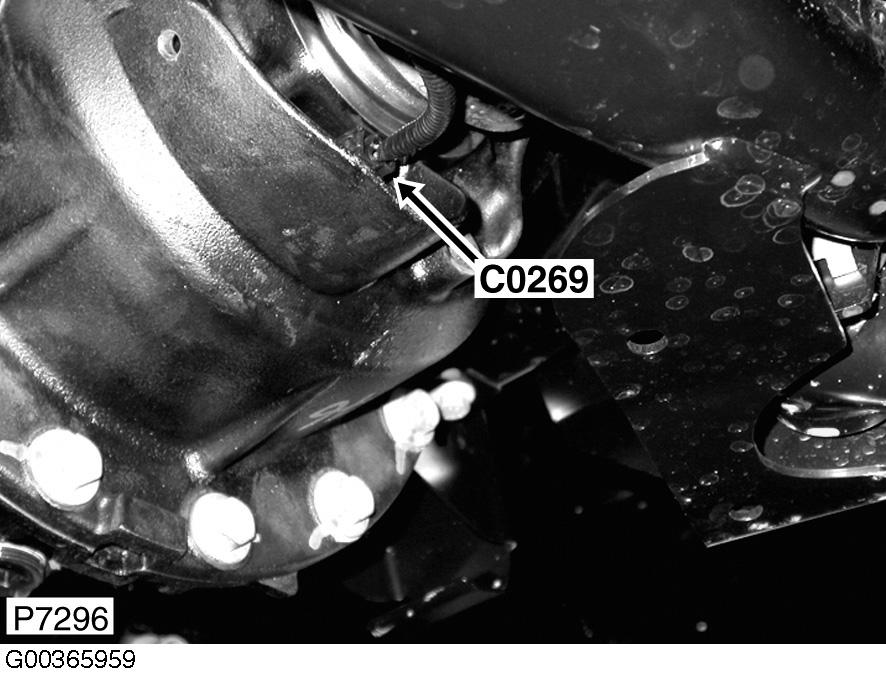

Fig 22: Under Right Rear Of Vehicle
G00365959Courtesy of LAND ROVER NORTH AMERICA, INC.

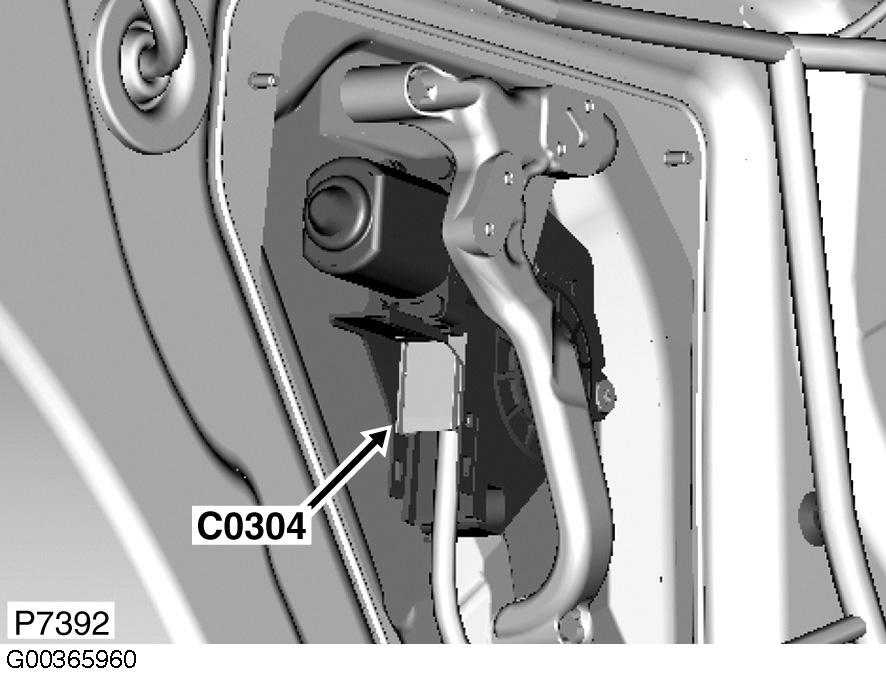

Fig 23: Rear Door Trim Panel
G00365960Courtesy of LAND ROVER NORTH AMERICA, INC.

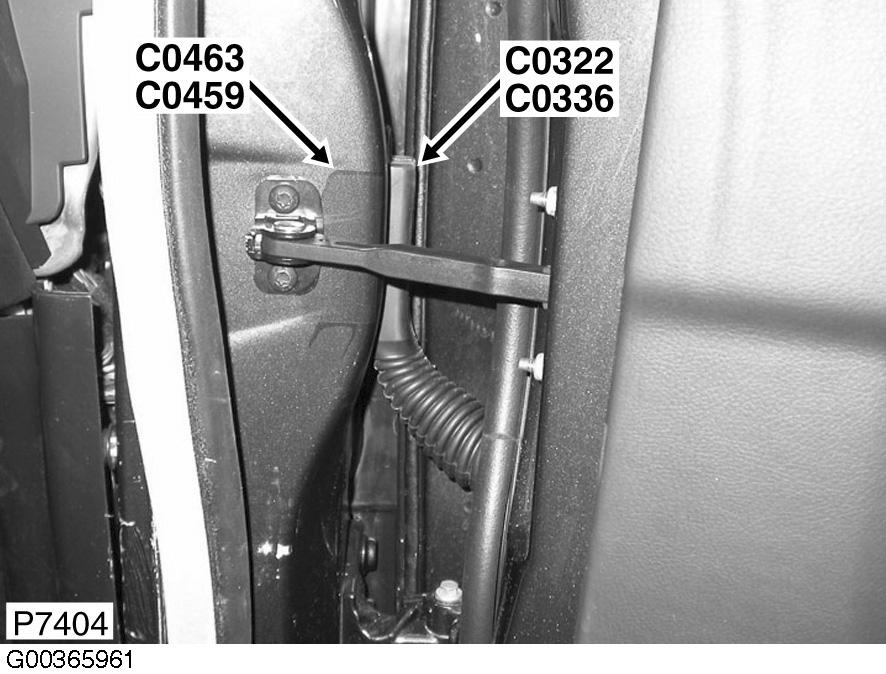

Fig 24: Right "A" Pillar
G00365961Courtesy of LAND ROVER NORTH AMERICA, INC.

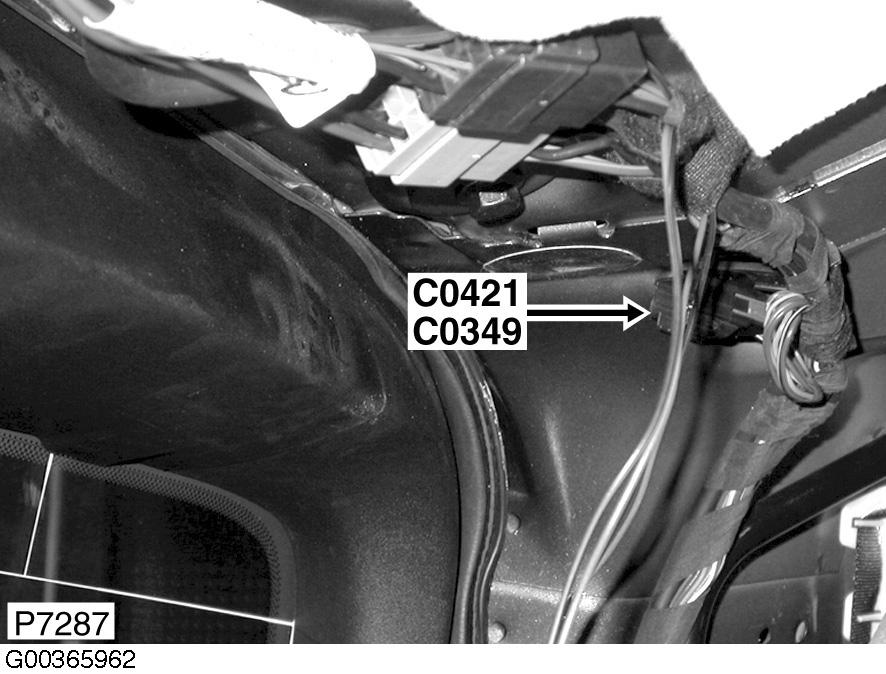

Fig 25: Rear Of Headliner
G00365962Courtesy of LAND ROVER NORTH AMERICA, INC.

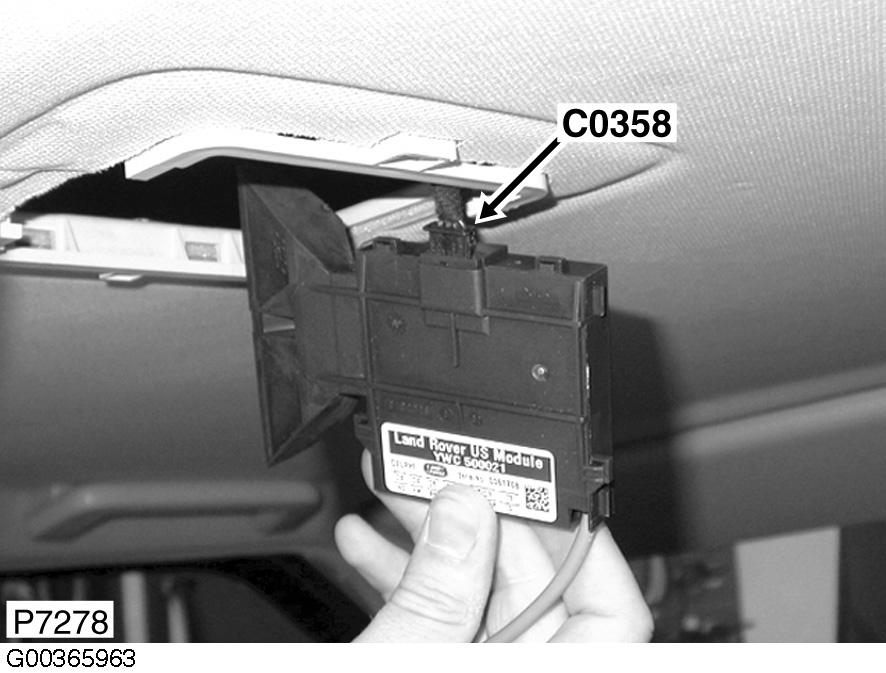

Fig 26: Center Of Headliner
G00365963Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 27: Right Front Wheel Arch Liner
G00365964Courtesy of LAND ROVER NORTH AMERICA, INC.

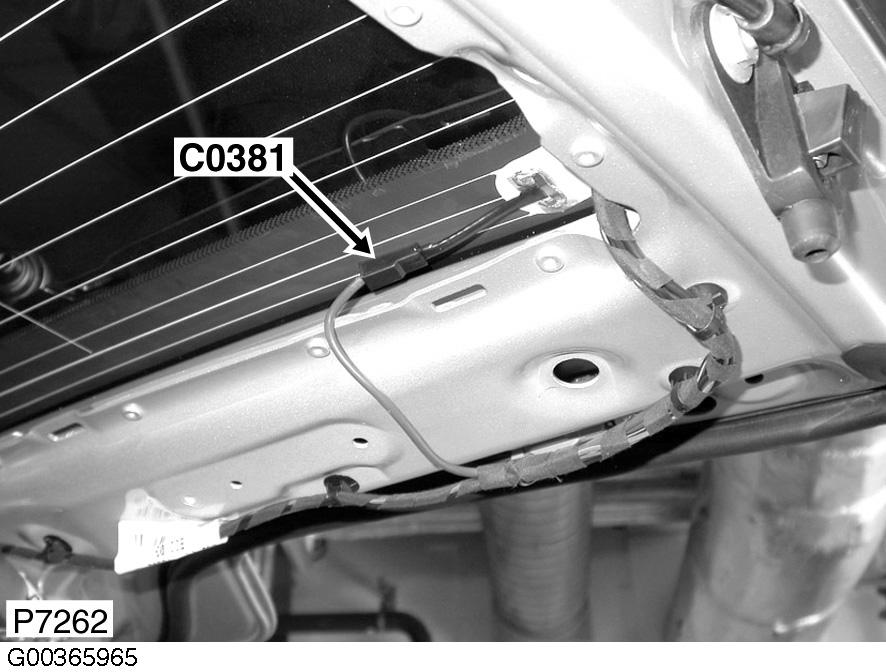

Fig 28: Center Of Rear Door
G00365965Courtesy of LAND ROVER NORTH AMERICA, INC.

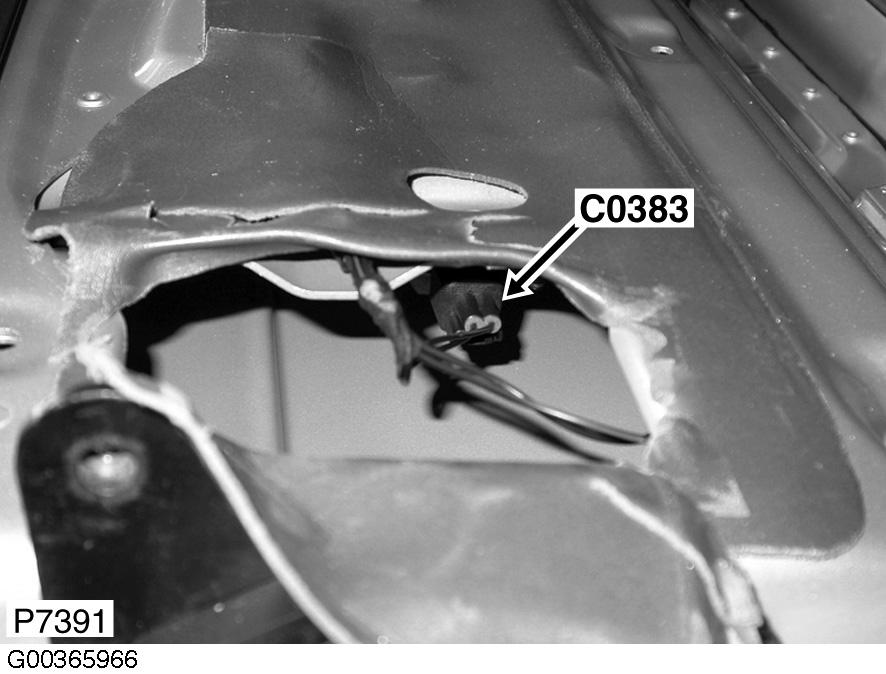

Fig 29: Center Of Rear Door
G00365966Courtesy of LAND ROVER NORTH AMERICA, INC.

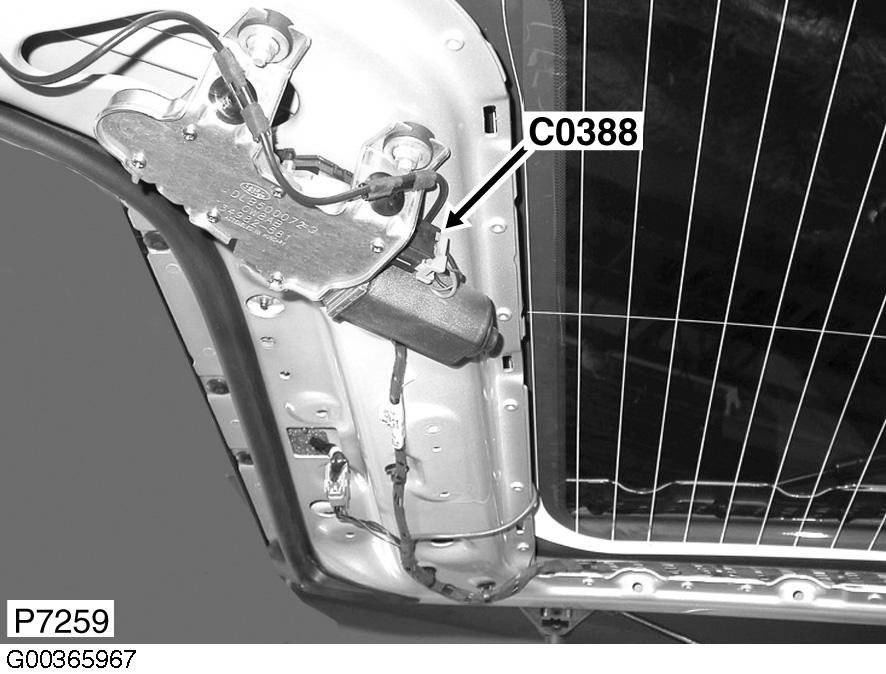

Fig 30: Center Of Rear Door
G00365967Courtesy of LAND ROVER NORTH AMERICA, INC.

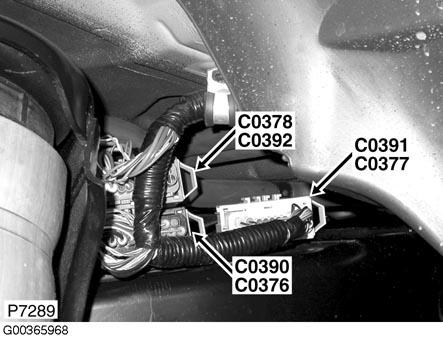

Fig 31: Right Front Wheel Arch Liner
G00365968Courtesy of LAND ROVER NORTH AMERICA, INC.

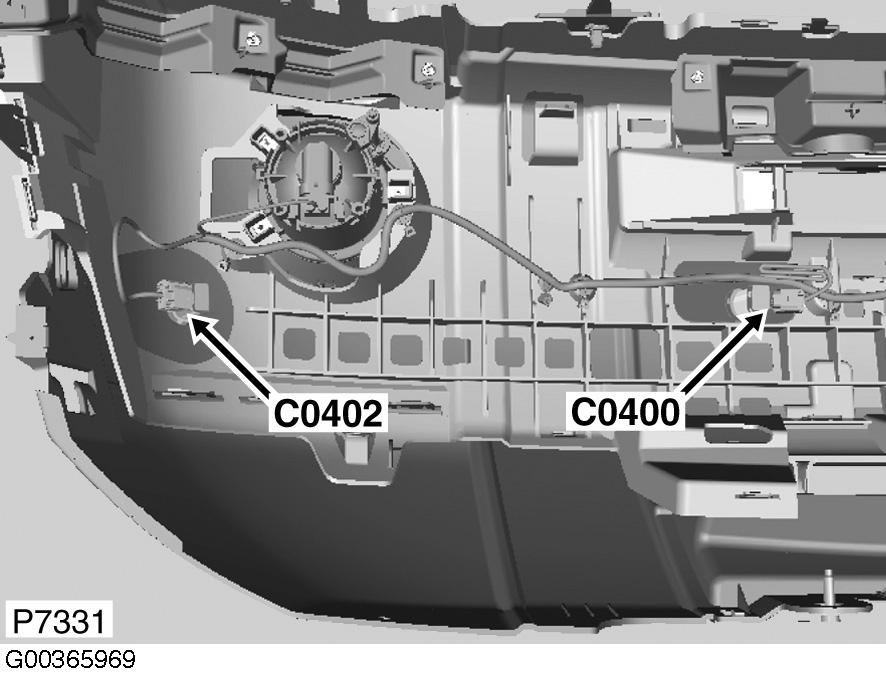

Fig 32: Left Side Of Front Bumper
G00365969Courtesy of LAND ROVER NORTH AMERICA, INC.

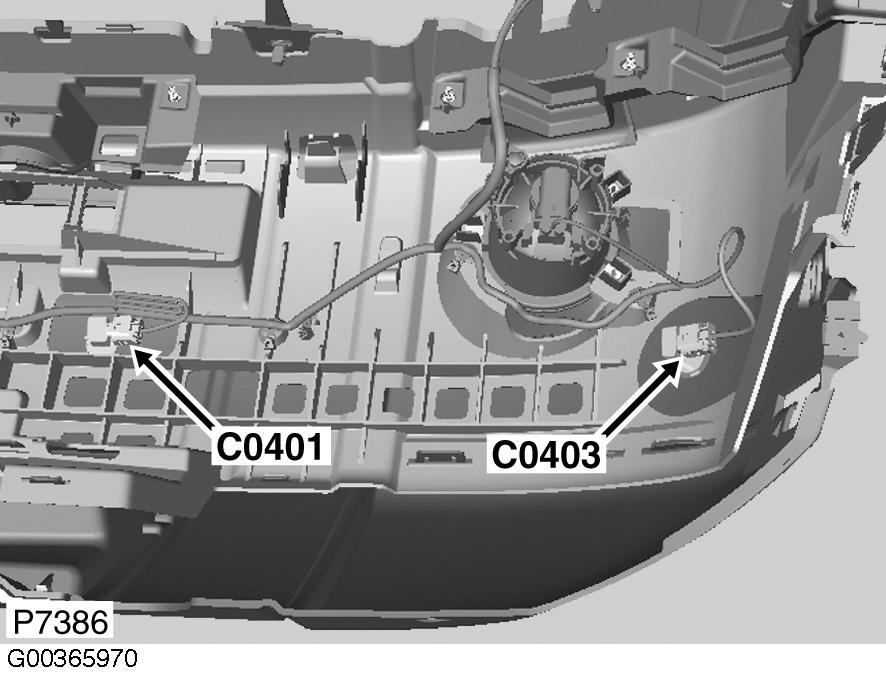

Fig 33: Right Side Of Front Bumper
G00365970Courtesy of LAND ROVER NORTH AMERICA, INC.

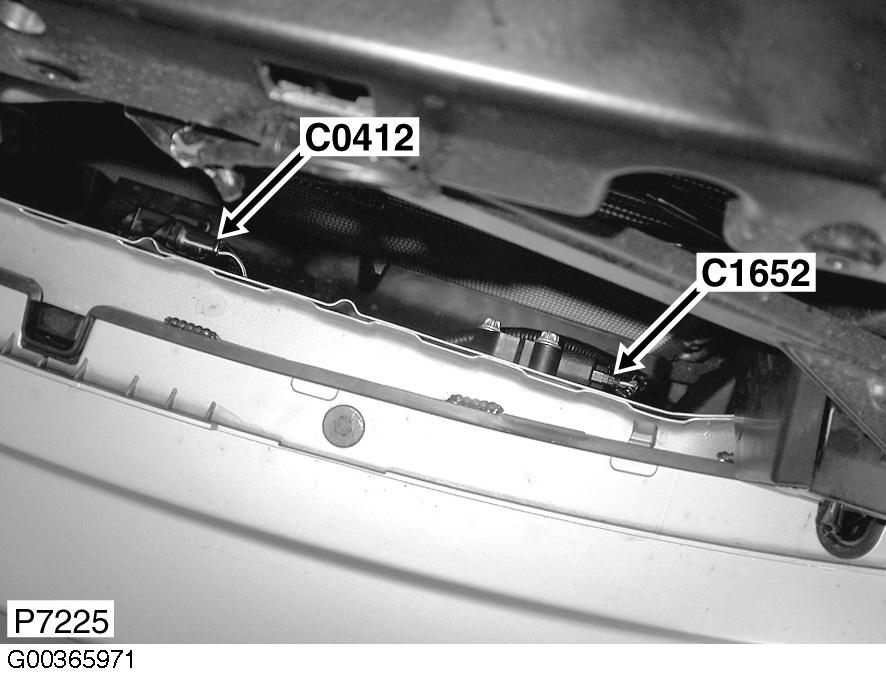

Fig 34: Front Of Engine Compartment
G00365971Courtesy of LAND ROVER NORTH AMERICA, INC.

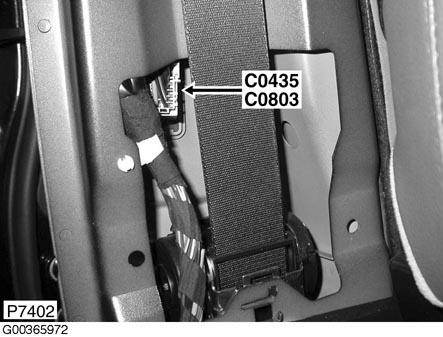

Fig 35: Left "B" Pillar
G00365972Courtesy of LAND ROVER NORTH AMERICA, INC.

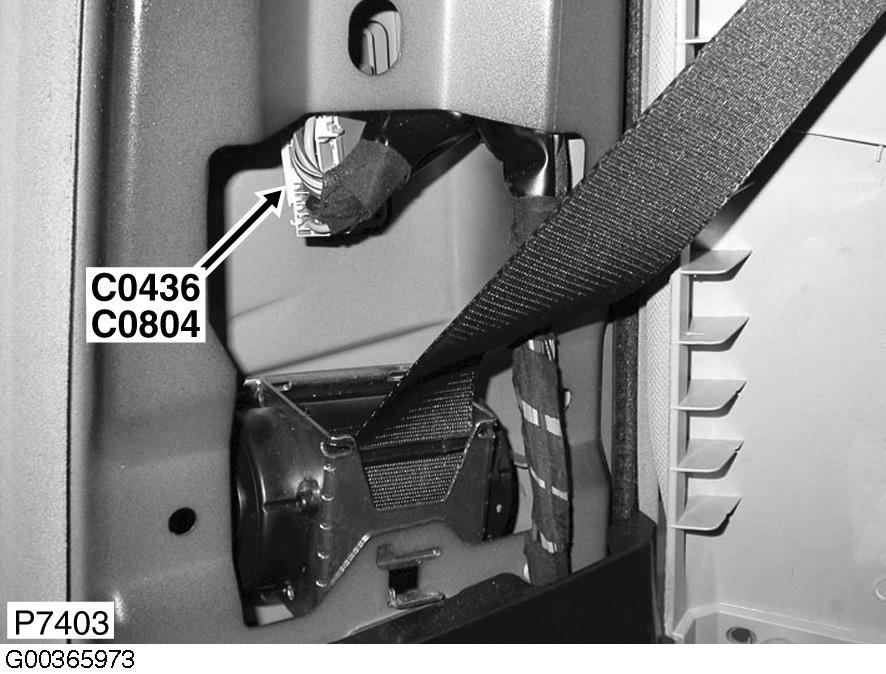

Fig 36: Right "B" Pillar
G00365973Courtesy of LAND ROVER NORTH AMERICA, INC.

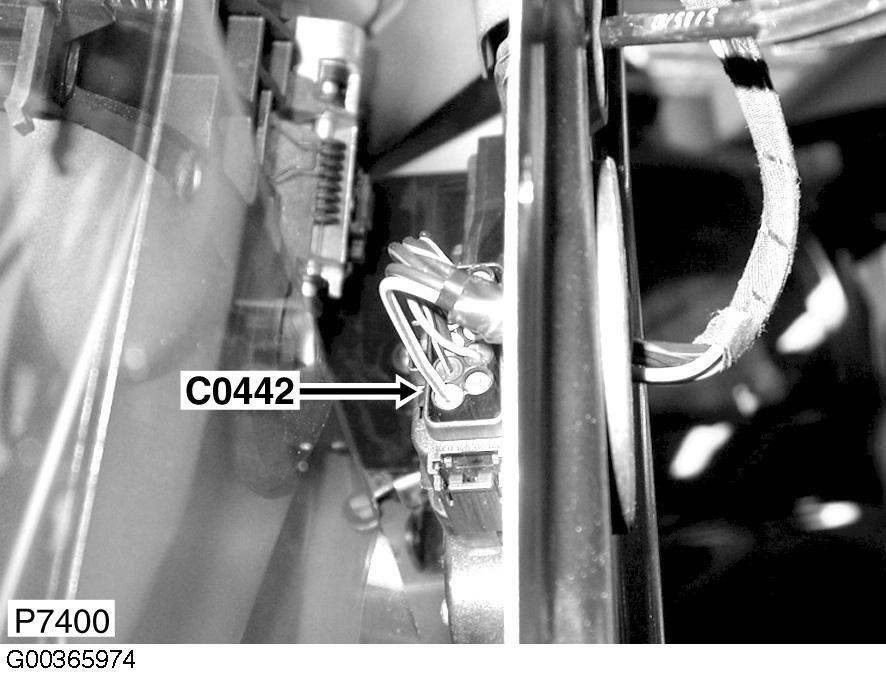

Fig 37: Rear Door Trim Panel
G00365974Courtesy of LAND ROVER NORTH AMERICA, INC.

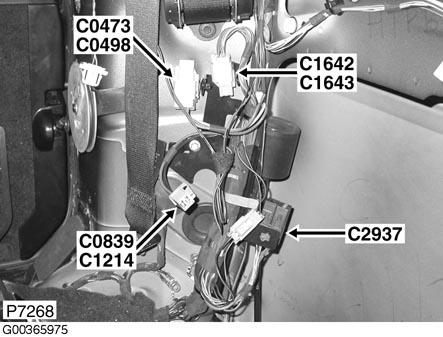

Fig 38: Left "D" Pillar
G00365975Courtesy of LAND ROVER NORTH AMERICA, INC.

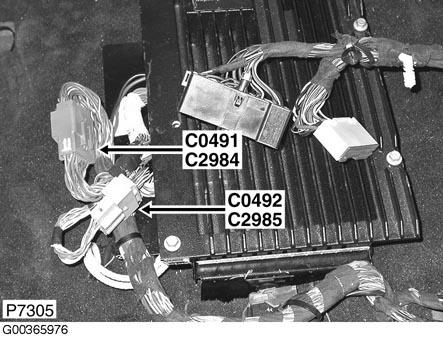

Fig 39: Under Driver's Seat
G00365976Courtesy of LAND ROVER NORTH AMERICA, INC.

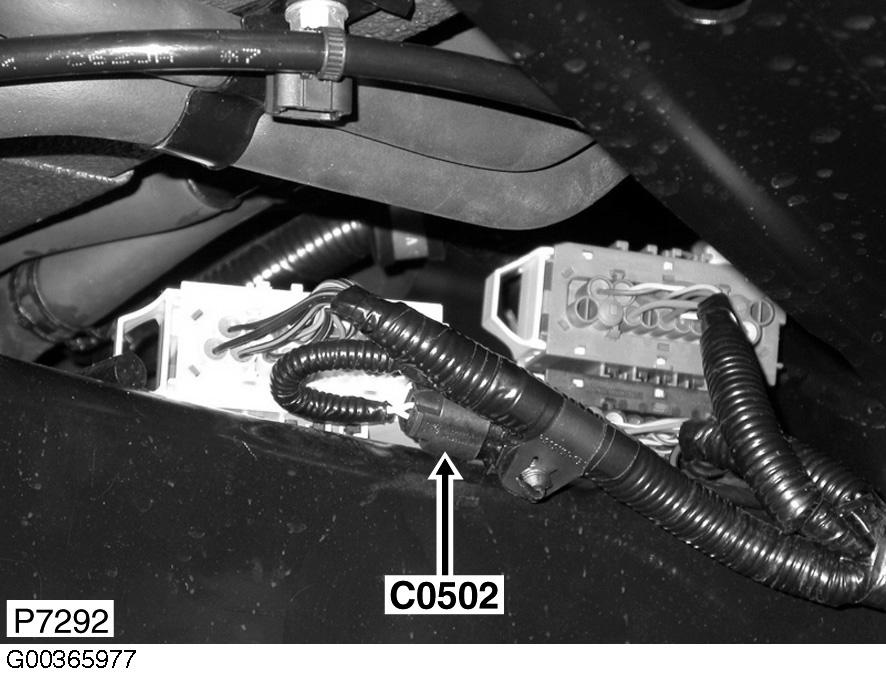

Fig 40: Left Rear Wheel Arch
G00365977Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 41: Right Rear Wheel Arch
G00365978Courtesy of LAND ROVER NORTH AMERICA, INC.

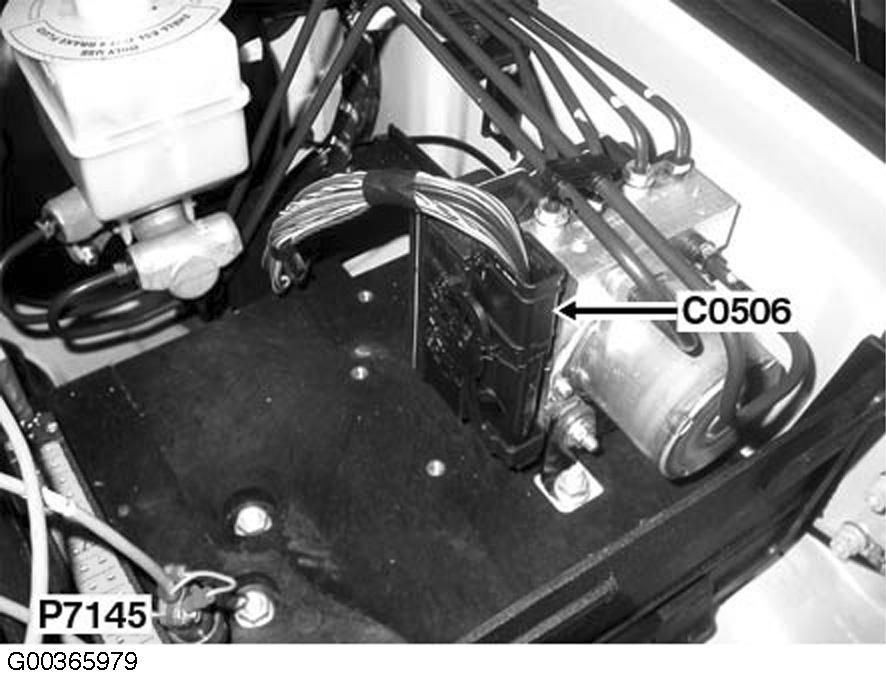

Fig 42: Left Rear Of Engine Compartment
G00365979Courtesy of LAND ROVER NORTH AMERICA, INC.

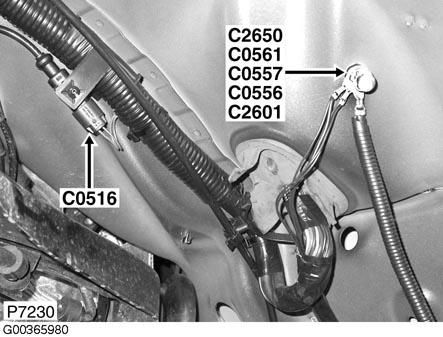

Fig 43: Left Front Wheel Arch Liner
G00365980Courtesy of LAND ROVER NORTH AMERICA, INC.

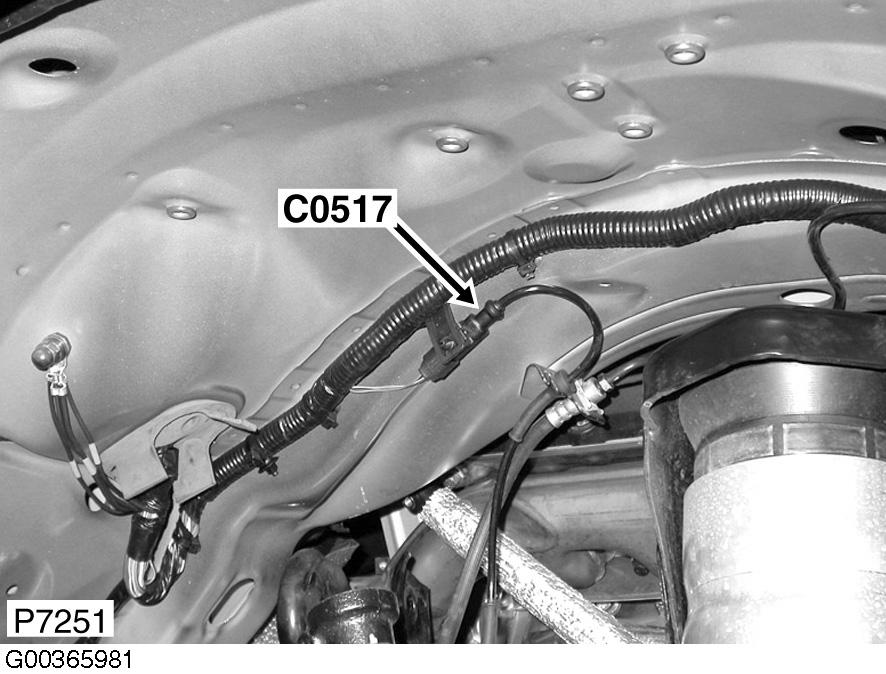

Fig 44: Right Front Wheel Arch Liner
G00365981Courtesy of LAND ROVER NORTH AMERICA, INC.

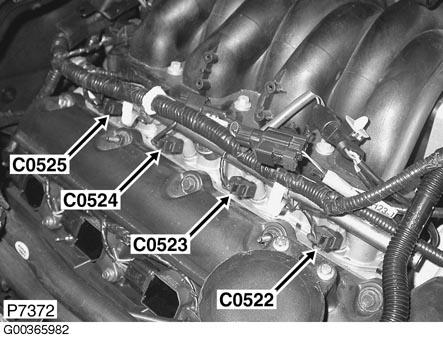

Fig 45: Right Side Of Engine
G00365982Courtesy of LAND ROVER NORTH AMERICA, INC.

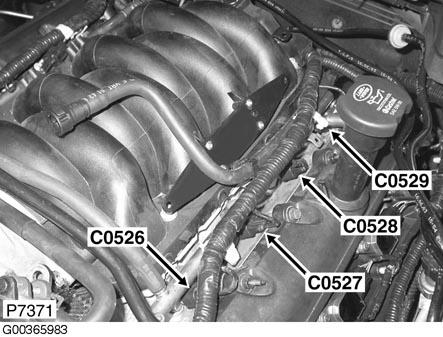

Fig 46: Left Side Of Engine
G00365983Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 47: Right Front Wheel Arch Liner
G00365984Courtesy of LAND ROVER NORTH AMERICA, INC.

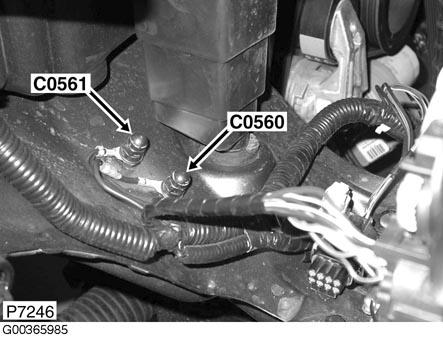

Fig 48: Right Headlight
G00365985Courtesy of LAND ROVER NORTH AMERICA, INC.

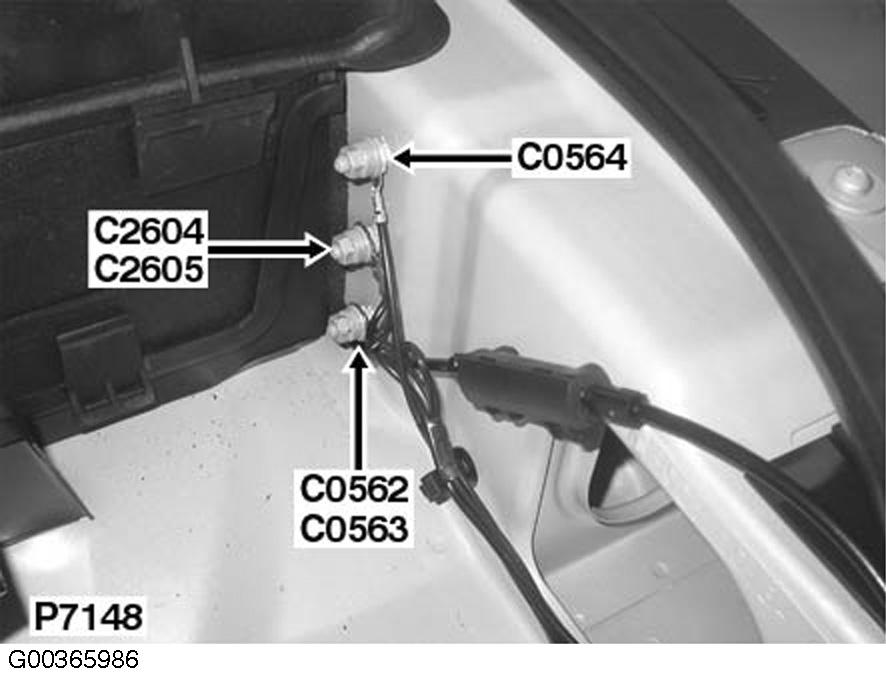

Fig 49: Left Front Of Engine Compartment
G00365986Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 50: Right Front Of Engine Compartment
G00365987Courtesy of LAND ROVER NORTH AMERICA, INC.

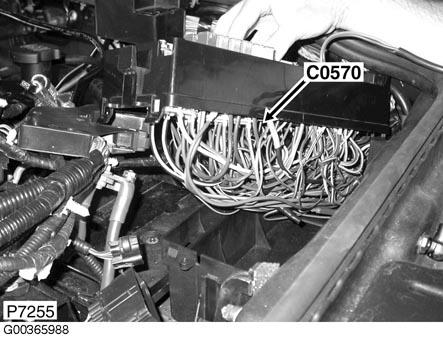

Fig 51: Under Engine Compartment Fuse Box
G00365988Courtesy of LAND ROVER NORTH AMERICA, INC.

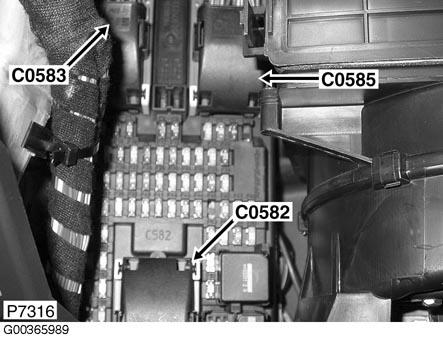

Fig 52: Right Side Of Dash
G00365989Courtesy of LAND ROVER NORTH AMERICA, INC.

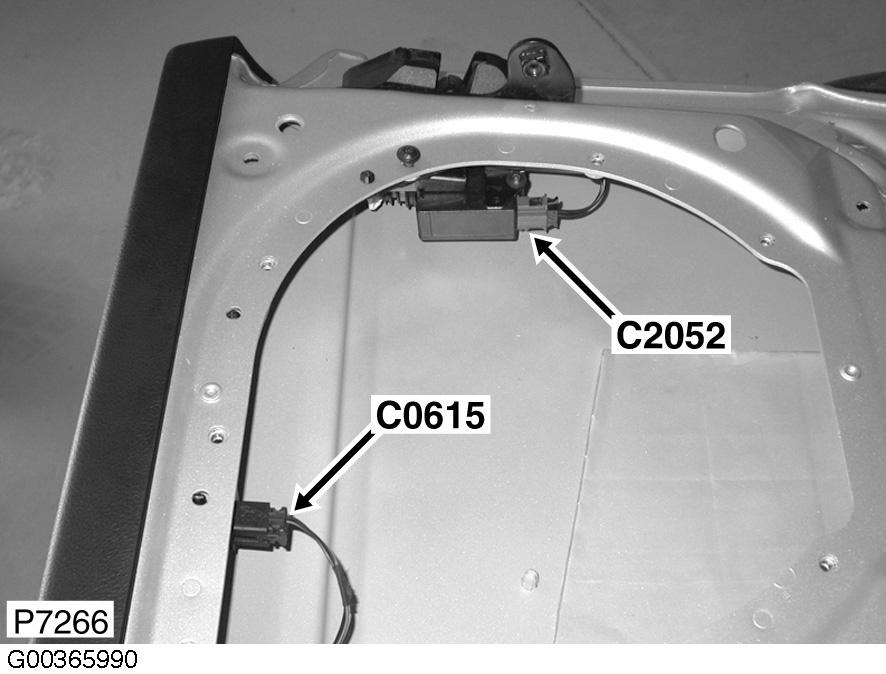

Fig 53: Center Of Rear Door
G00365990Courtesy of LAND ROVER NORTH AMERICA, INC.

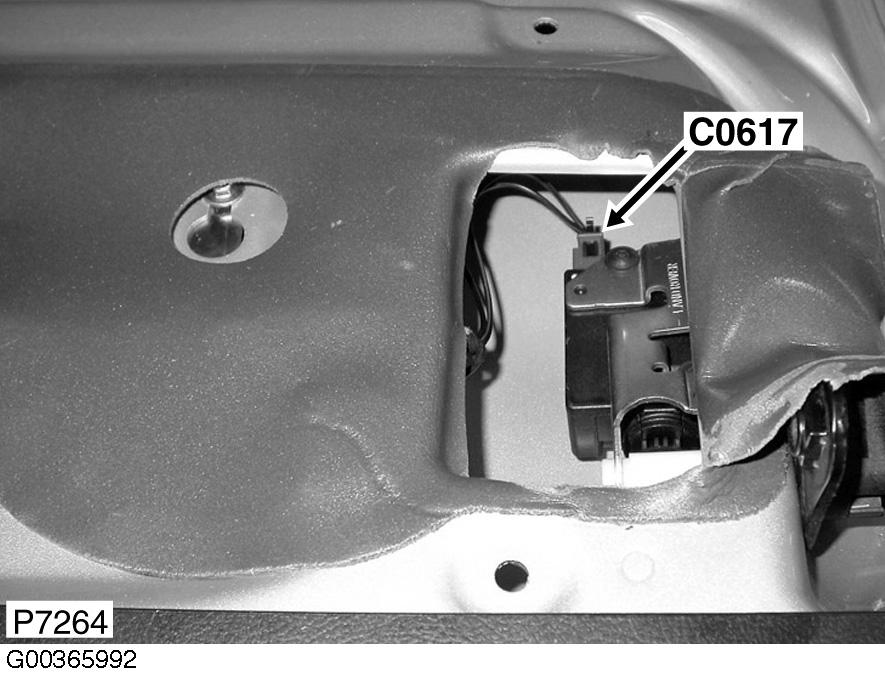

Fig 54: Right Side Of Rear Door
G00365992Courtesy of LAND ROVER NORTH AMERICA, INC.

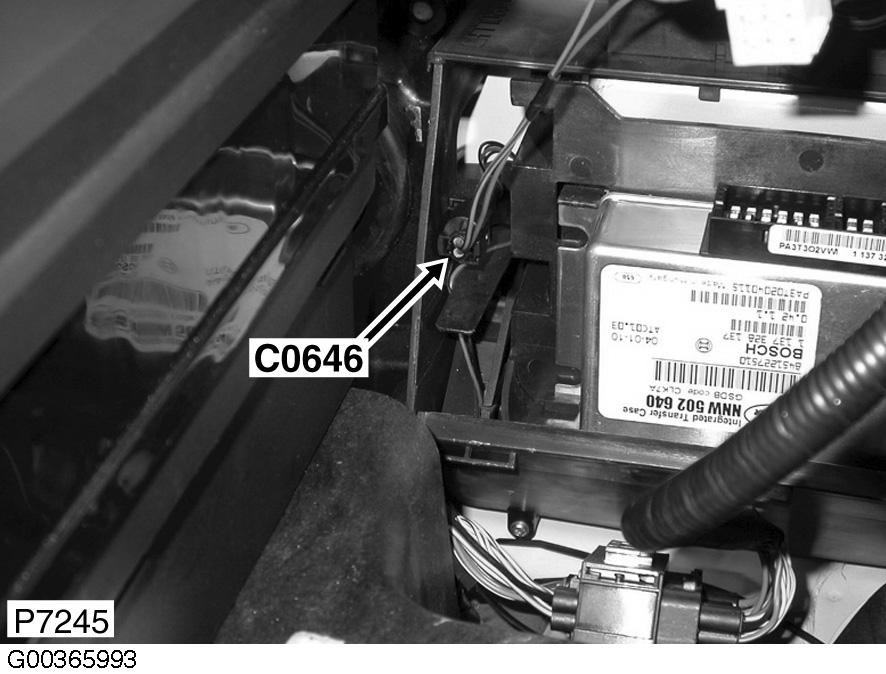

Fig 55: Right Side Of Engine Compartment
G00365993Courtesy of LAND ROVER NORTH AMERICA, INC.

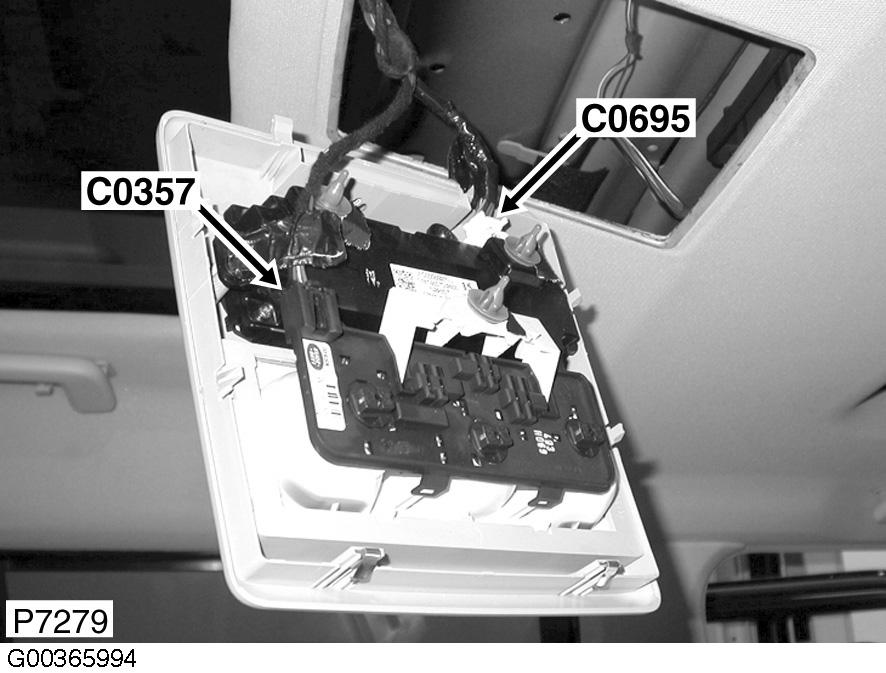

Fig 56: Center Of Headliner
G00365994Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 57: Under Driver's Seat
G00365995Courtesy of LAND ROVER NORTH AMERICA, INC.

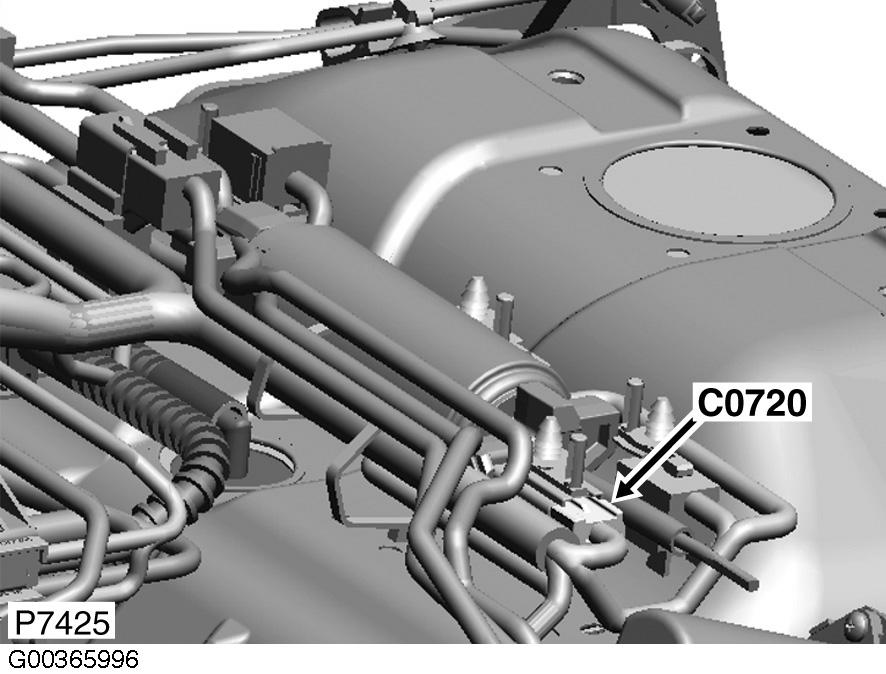

Fig 58: Under Front Passenger's Seat
G00365996Courtesy of LAND ROVER NORTH AMERICA, INC.

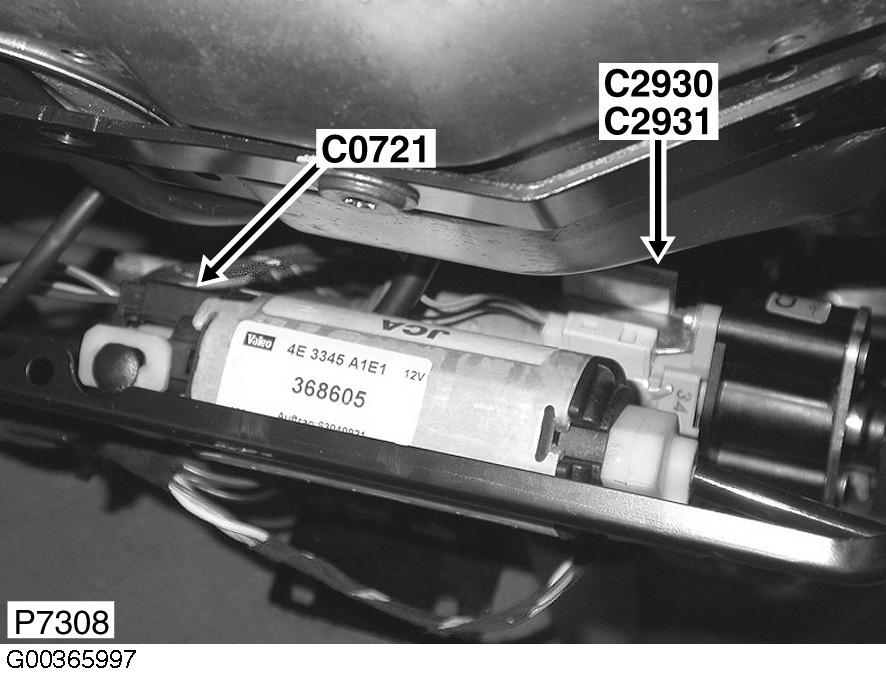

Fig 59: Under Driver's Seat
G00365997Courtesy of LAND ROVER NORTH AMERICA, INC.

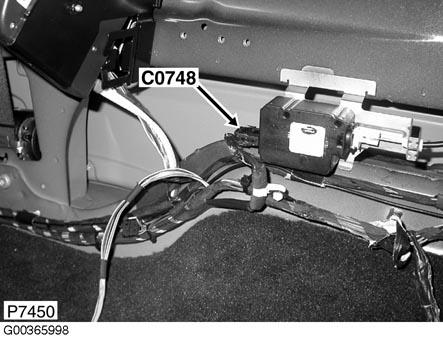

Fig 60: Right Rear Of Cargo Area
G00365998Courtesy of LAND ROVER NORTH AMERICA, INC.

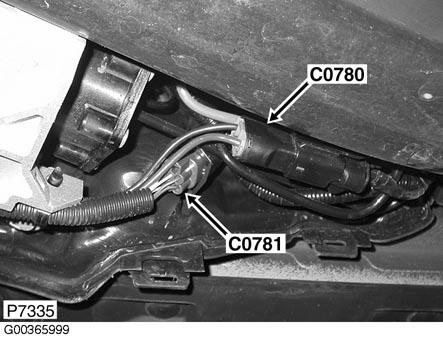

Fig 61: Under Left Rear Of Vehicle
G00365999Courtesy of LAND ROVER NORTH AMERICA, INC.

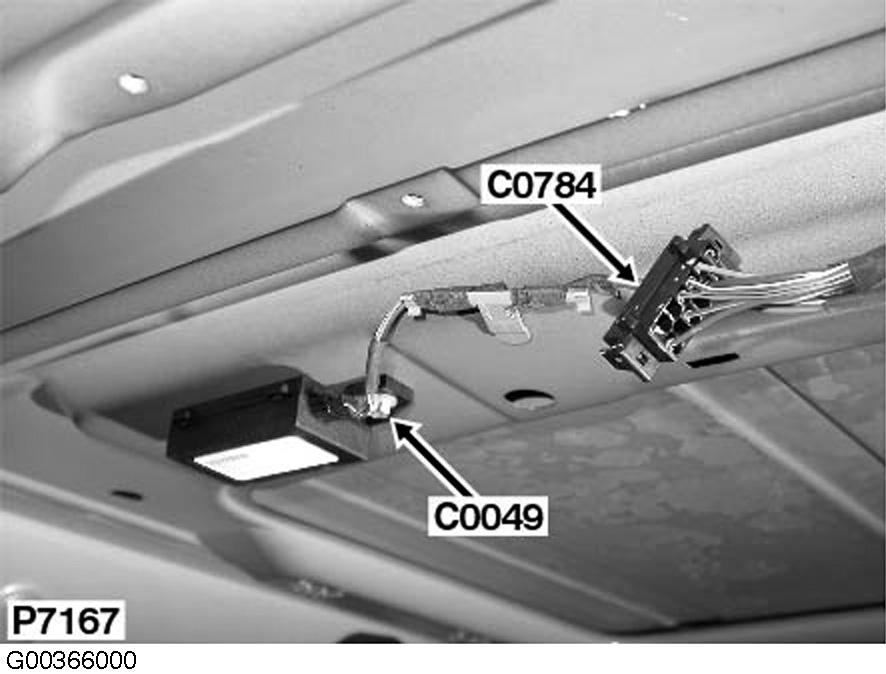

Fig 62: Center Of Headliner
G00366000Courtesy of LAND ROVER NORTH AMERICA, INC.

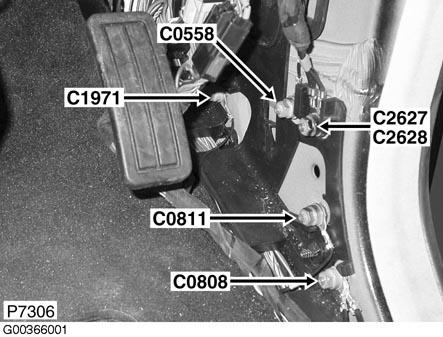

Fig 63: Right "A" Pillar
G00366001Courtesy of LAND ROVER NORTH AMERICA, INC.

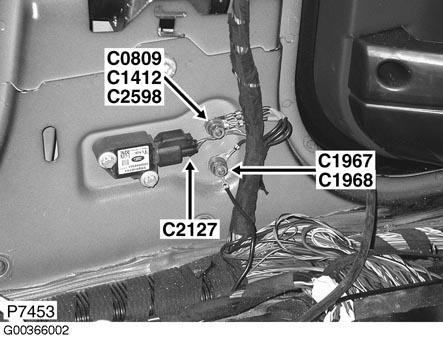

Fig 64: Right "B" Pillar
G00366002Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 65: Left "D" Pillar
G00366003Courtesy of LAND ROVER NORTH AMERICA, INC.

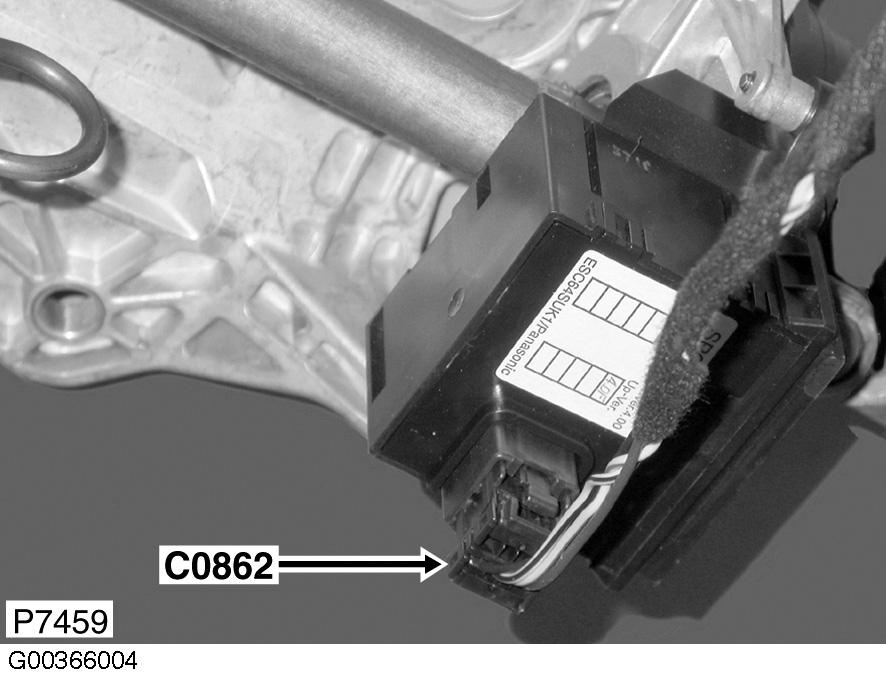

Fig 66: Under Steering Column
G00366004Courtesy of LAND ROVER NORTH AMERICA, INC.

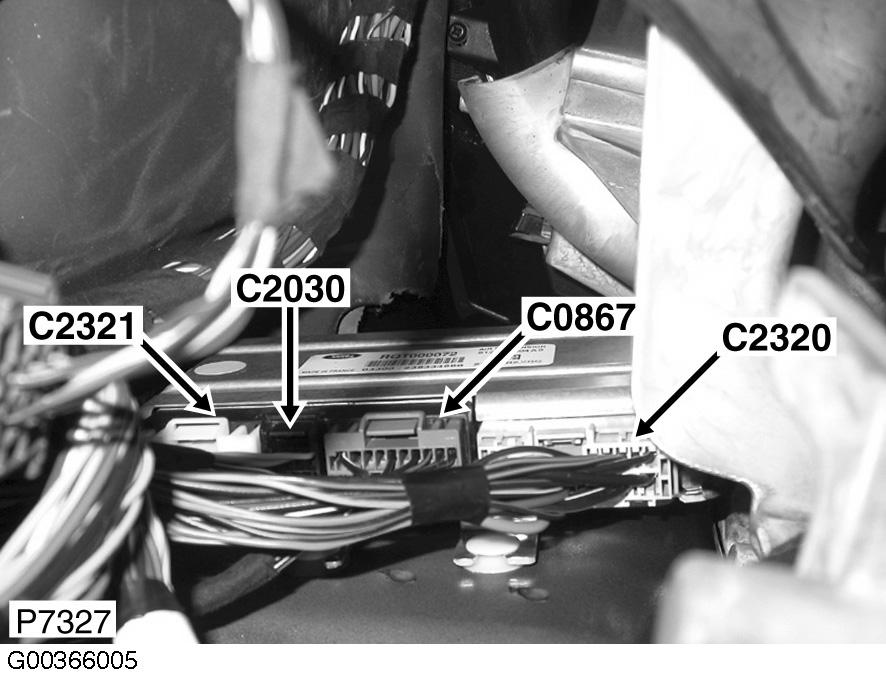

Fig 67: Left "A" Pillar
G00366005Courtesy of LAND ROVER NORTH AMERICA, INC.

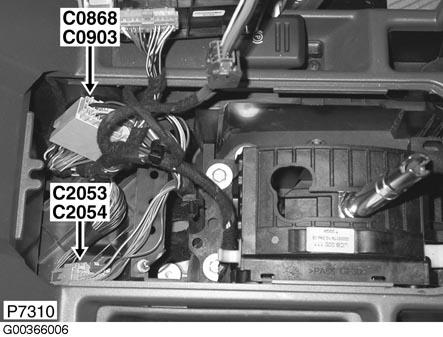

Fig 68: Under Center Console
G00366006Courtesy of LAND ROVER NORTH AMERICA, INC.

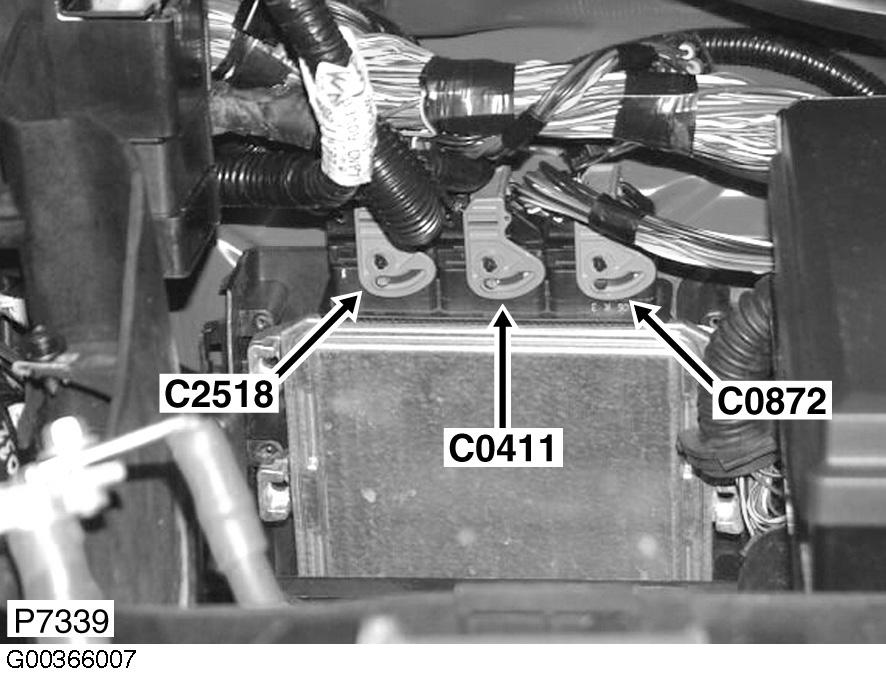

Fig 69: Left Side Of Engine Compartment
G00366007Courtesy of LAND ROVER NORTH AMERICA, INC.

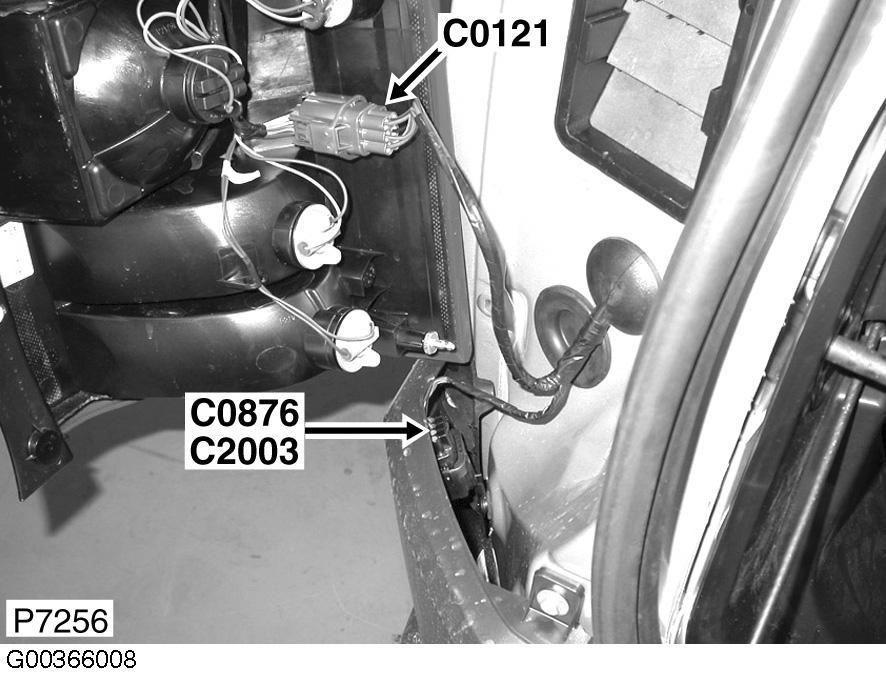

Fig 70: Left Rear Of Vehicle
G00366008Courtesy of LAND ROVER NORTH AMERICA, INC.

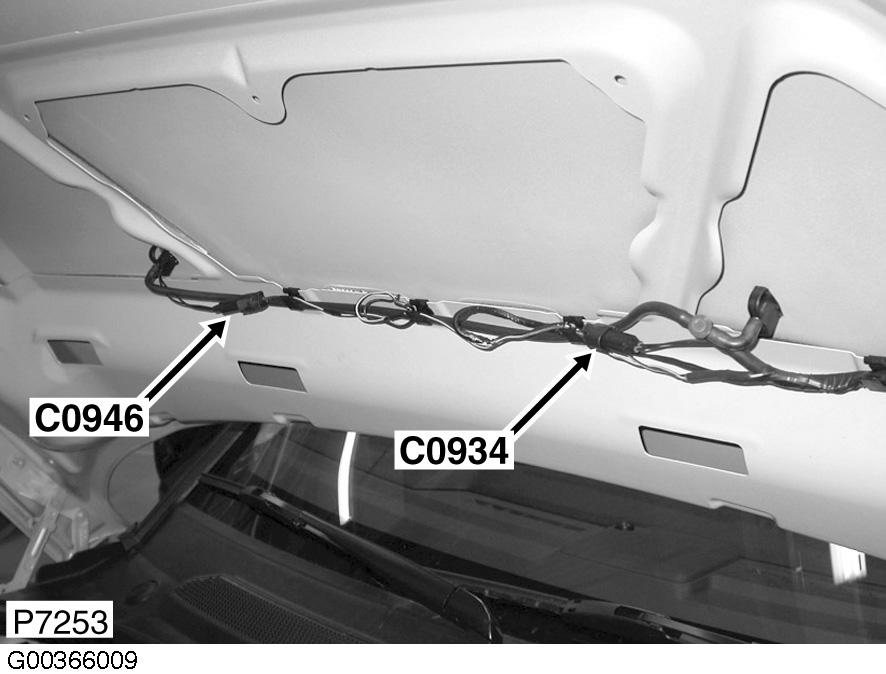

Fig 71: Underside Of Hood
G00366009Courtesy of LAND ROVER NORTH AMERICA, INC.

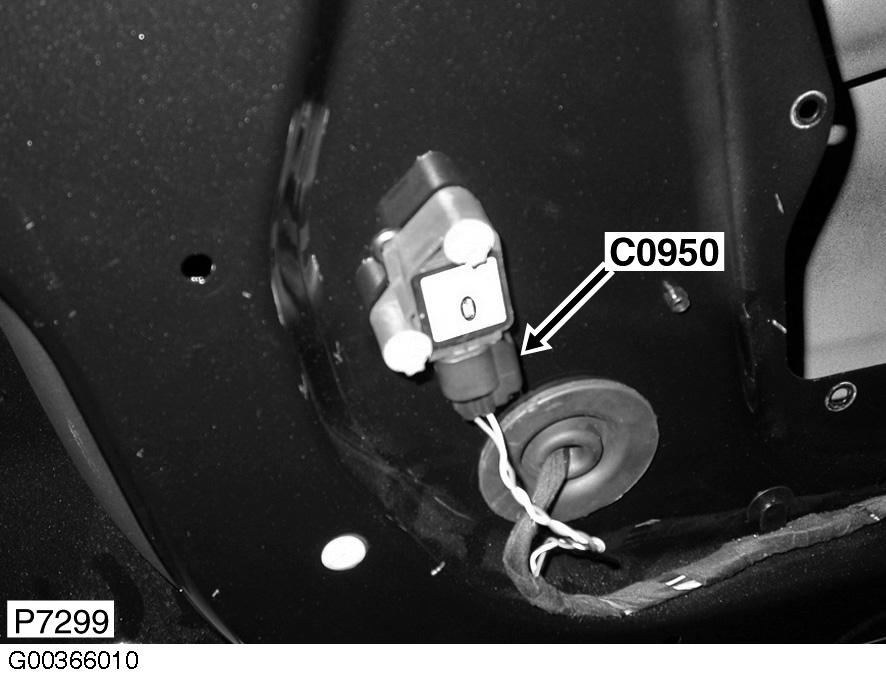

Fig 72: Driver's Door Trim Panel
G00366010Courtesy of LAND ROVER NORTH AMERICA, INC.

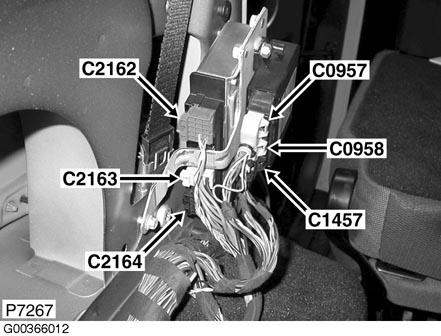

Fig 73: Left "C" Pillar
G00366012Courtesy of LAND ROVER NORTH AMERICA, INC.

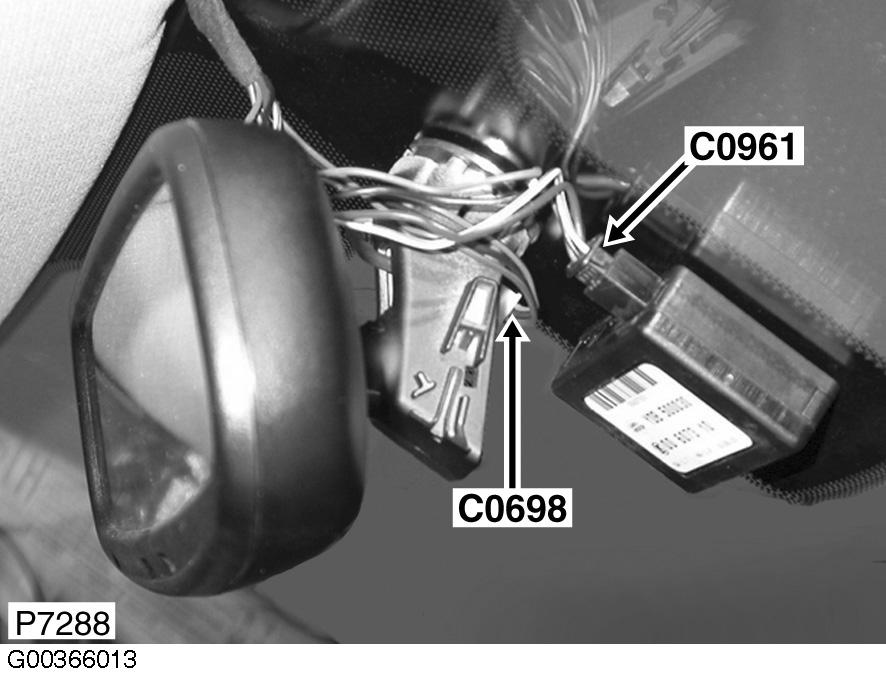

Fig 74: Top Of Windshield
G00366013Courtesy of LAND ROVER NORTH AMERICA, INC.

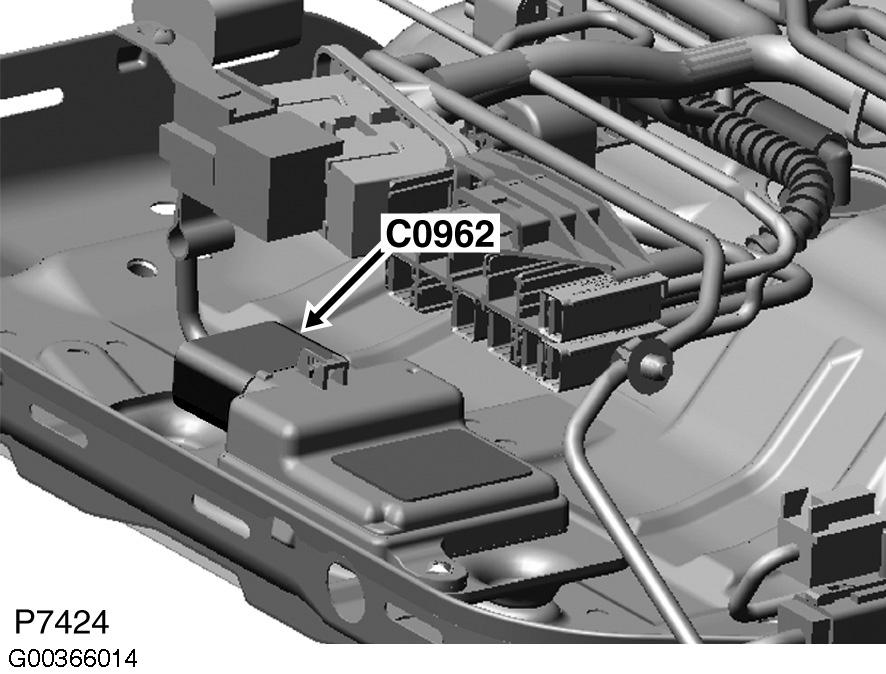

Fig 75: Under Front Passenger's Seat
G00366014Courtesy of LAND ROVER NORTH AMERICA, INC.

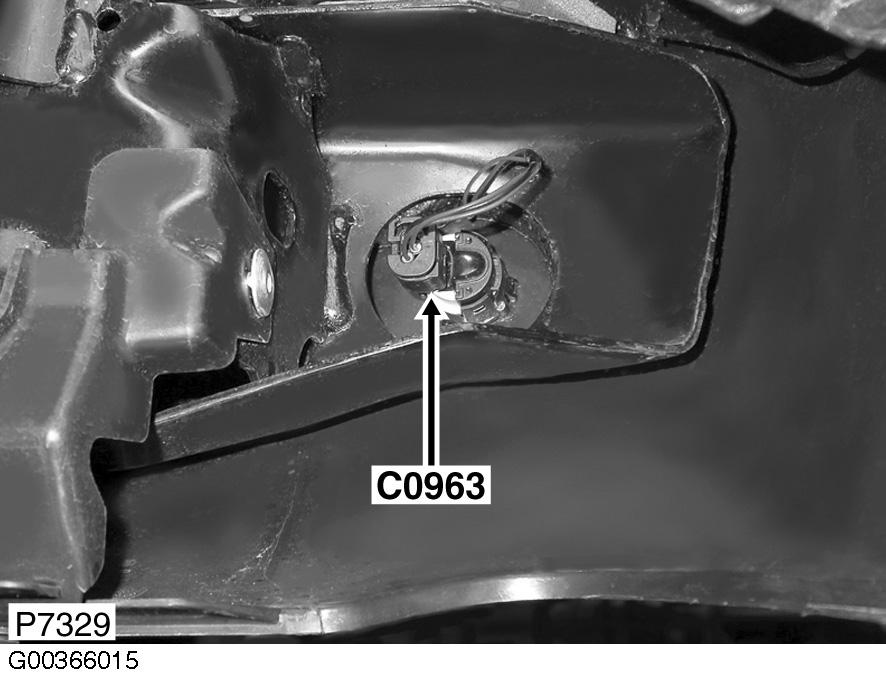

Fig 76: Left Side Of Rear Bumper
G00366015Courtesy of LAND ROVER NORTH AMERICA, INC.

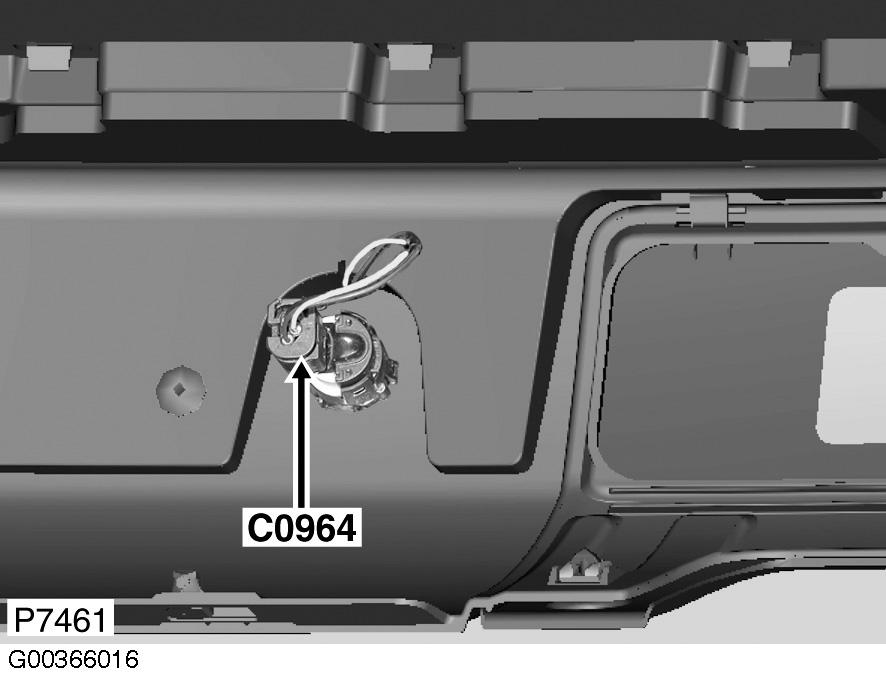

Fig 77: Left Side Of Rear Bumper
G00366016Courtesy of LAND ROVER NORTH AMERICA, INC.

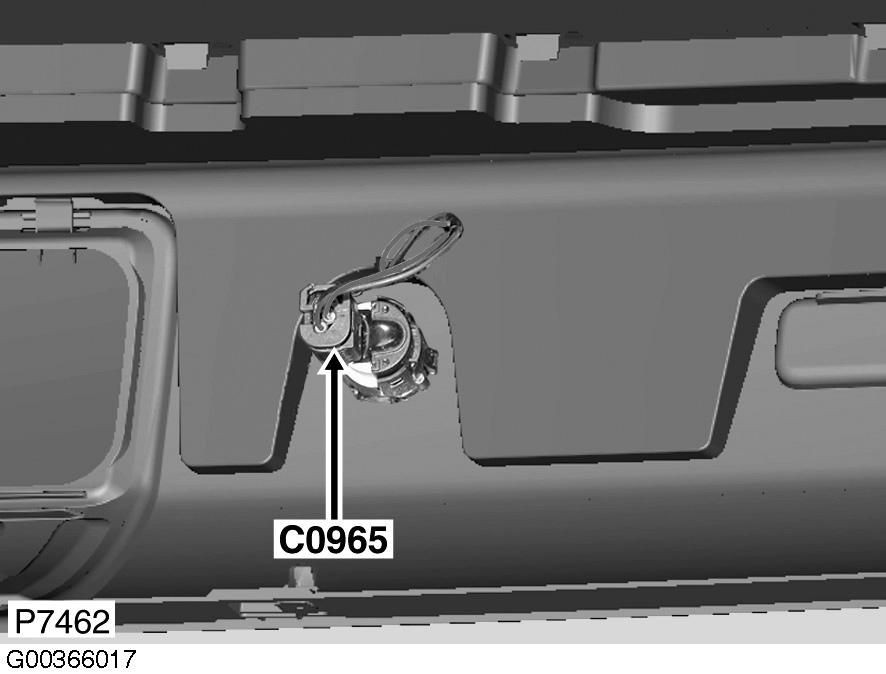

Fig 78: Right Side Of Rear Bumper
G00366017Courtesy of LAND ROVER NORTH AMERICA, INC.

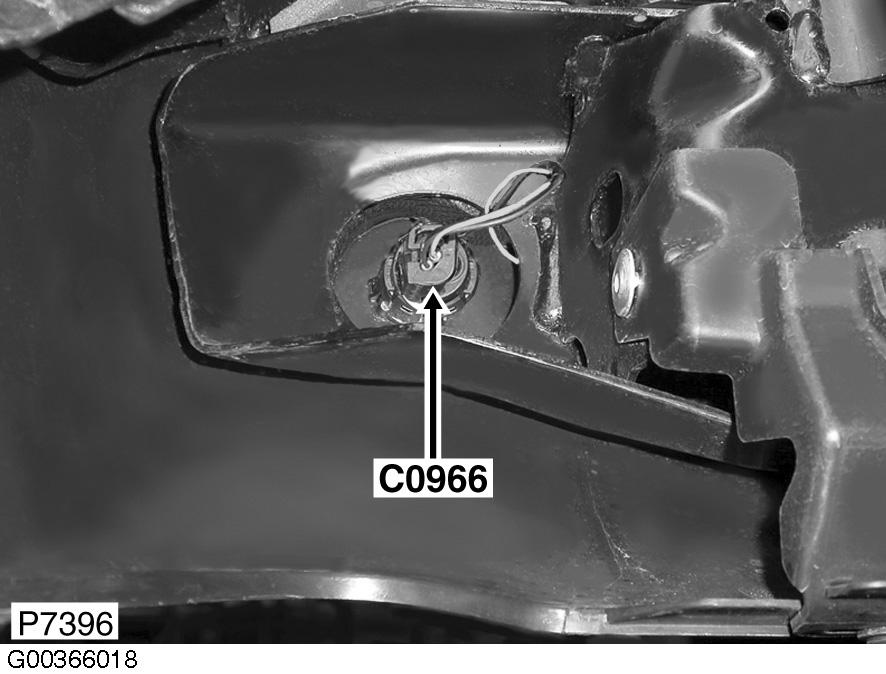

Fig 79: Right Side Of Rear Bumper
G00366018Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 80: Left "A" Pillar
G00366019Courtesy of LAND ROVER NORTH AMERICA, INC.

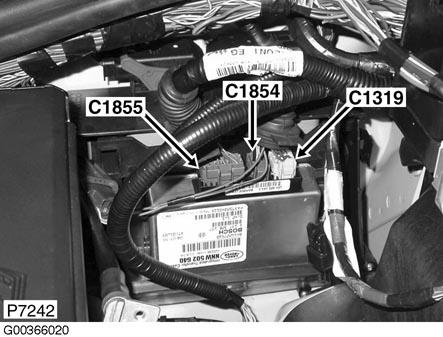

Fig 81: Rear Of Engine Compartment
G00366020Courtesy of LAND ROVER NORTH AMERICA, INC.

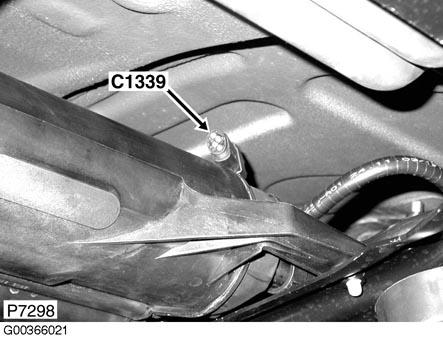

Fig 82: Under Center Of Vehicle
G00366021Courtesy of LAND ROVER NORTH AMERICA, INC.

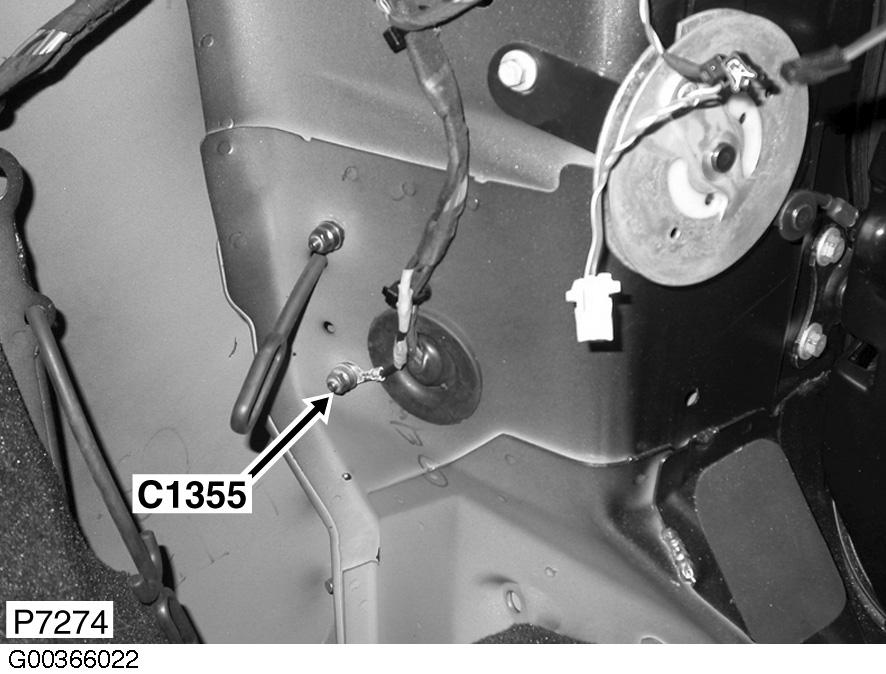

Fig 83: Right "D" Pillar
G00366022Courtesy of LAND ROVER NORTH AMERICA, INC.

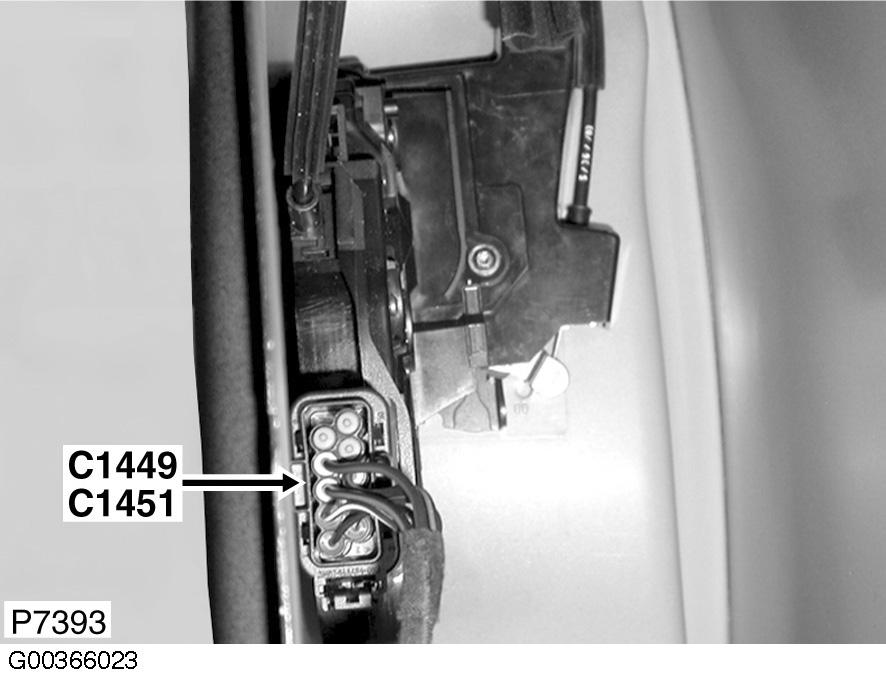

Fig 84: Front Door Trim Panel
G00366023Courtesy of LAND ROVER NORTH AMERICA, INC.

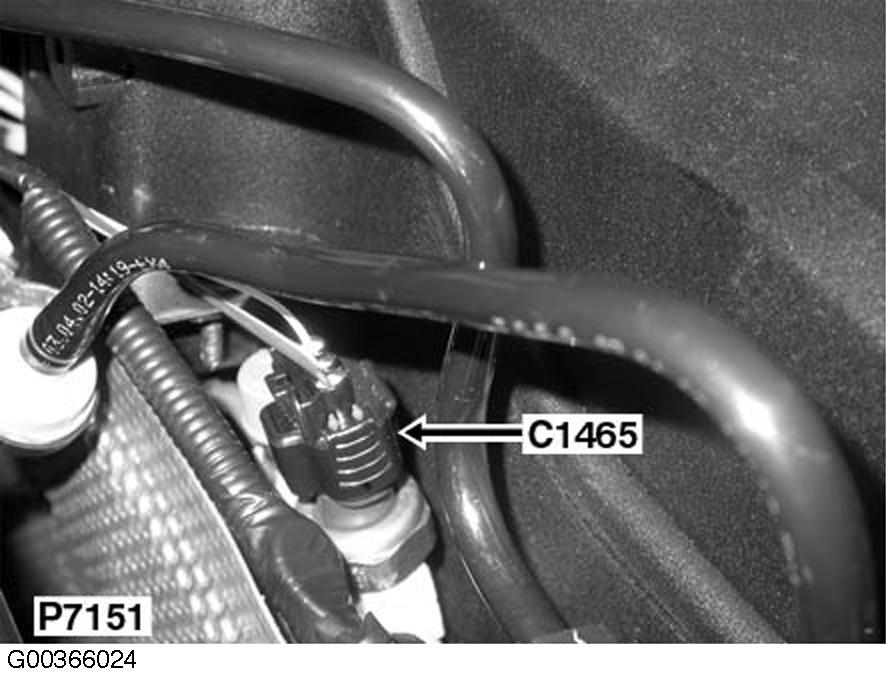

Fig 85: Left Side Of Engine Compartment
G00366024Courtesy of LAND ROVER NORTH AMERICA, INC.

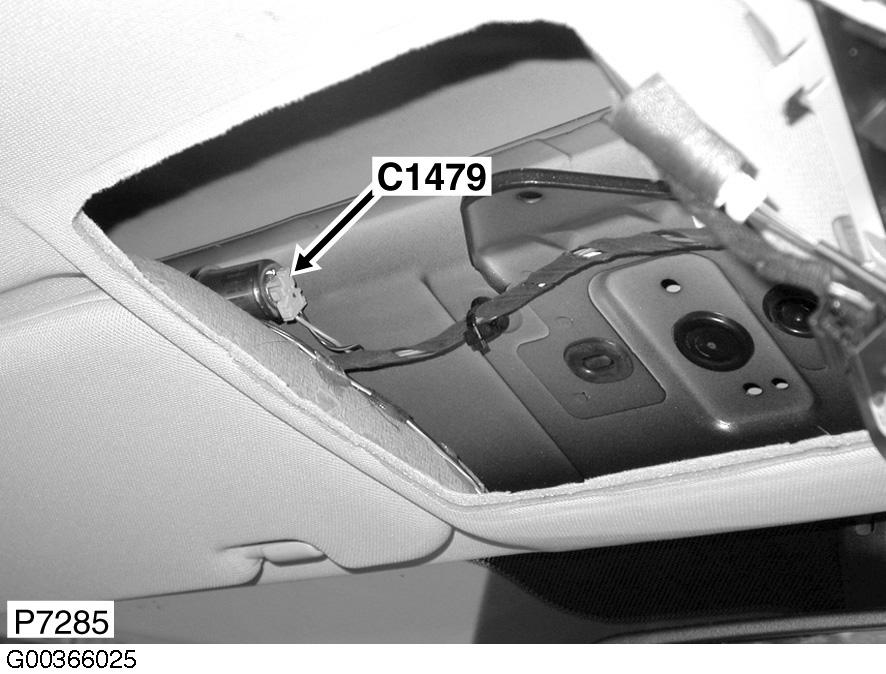

Fig 86: Left Front Of Headliner
G00366025Courtesy of LAND ROVER NORTH AMERICA, INC.

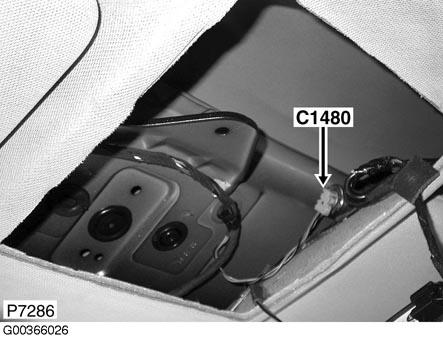

Fig 87: Right Front Of Headliner
G00366026Courtesy of LAND ROVER NORTH AMERICA, INC.

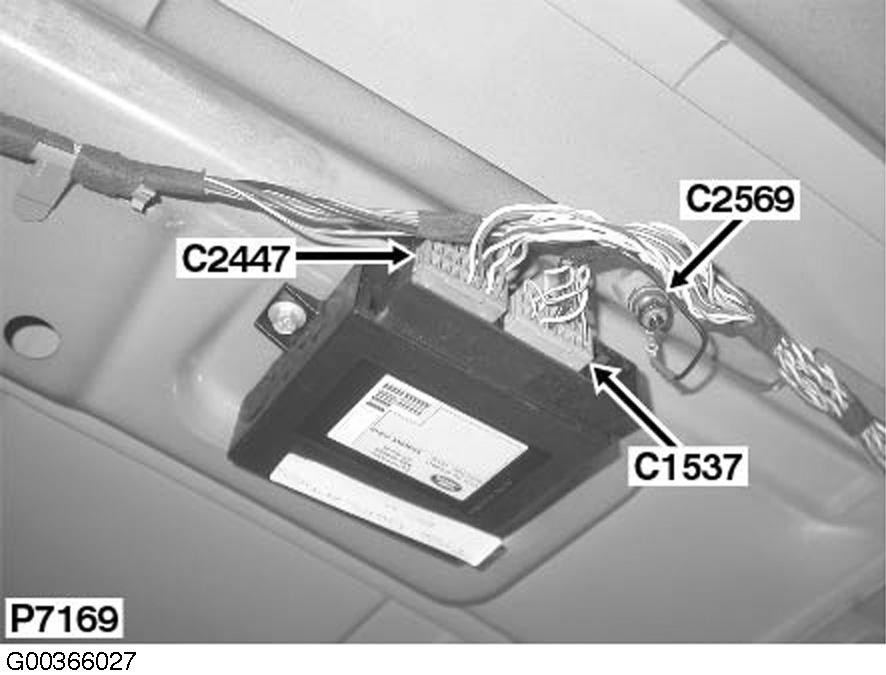

Fig 88: Center Of Headliner
G00366027Courtesy of LAND ROVER NORTH AMERICA, INC.

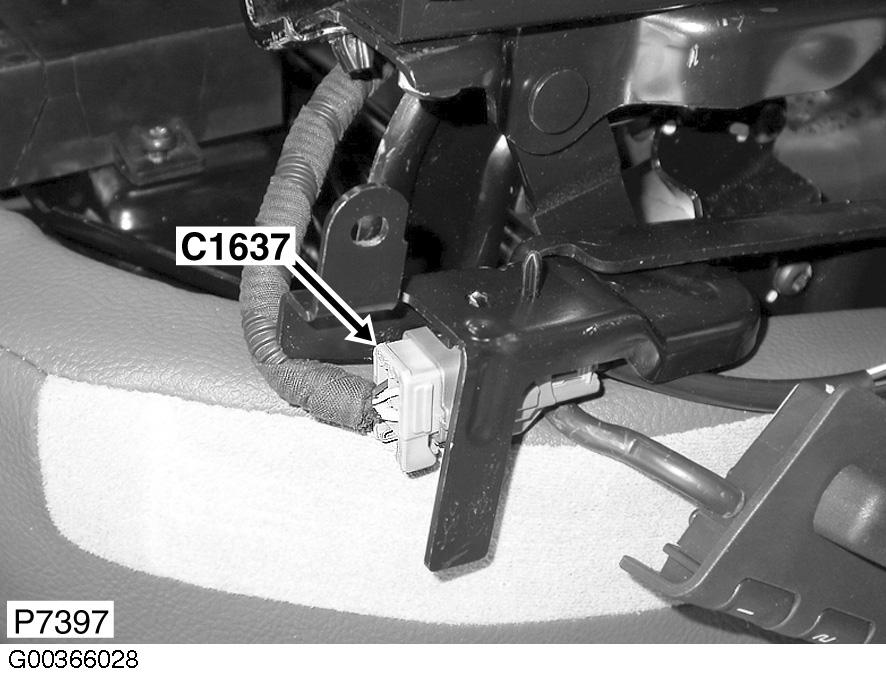

Fig 89: Under Front Passenger's Seat
G00366028Courtesy of LAND ROVER NORTH AMERICA, INC.

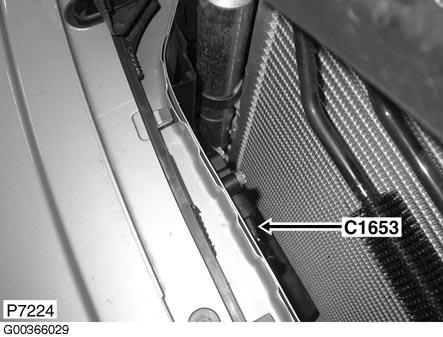

Fig 90: Right Side Of Front Bumper
G00366029Courtesy of LAND ROVER NORTH AMERICA, INC.

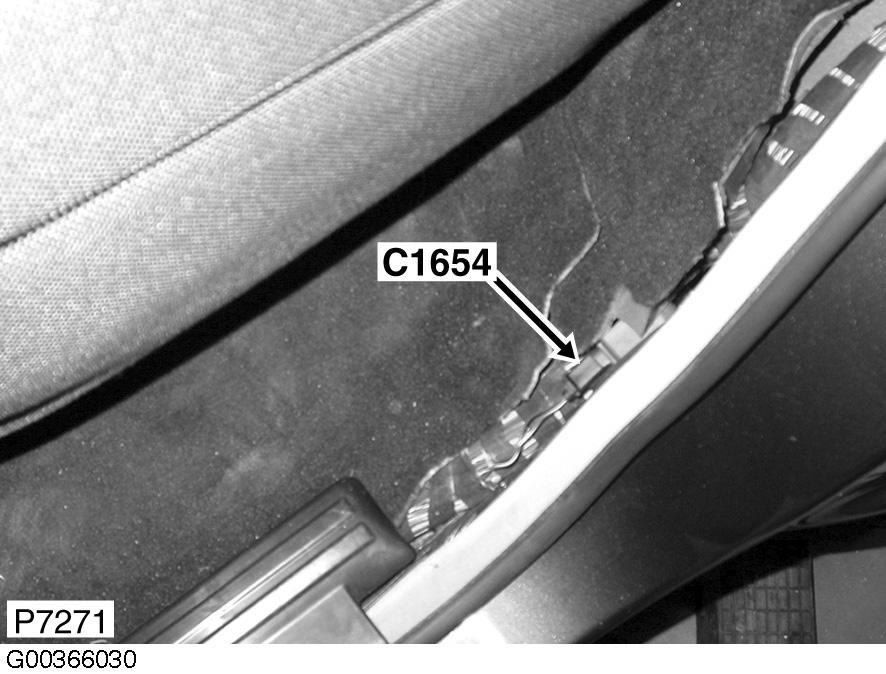

Fig 91: Left "B" Pillar
G00366030Courtesy of LAND ROVER NORTH AMERICA, INC.

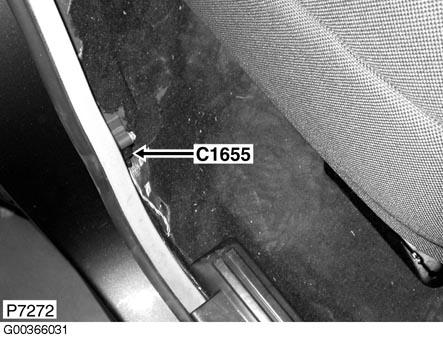

Fig 92: Right "B" Pillar
G00366031Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 93: Under Left Side Of Vehicle
G00366032Courtesy of LAND ROVER NORTH AMERICA, INC.

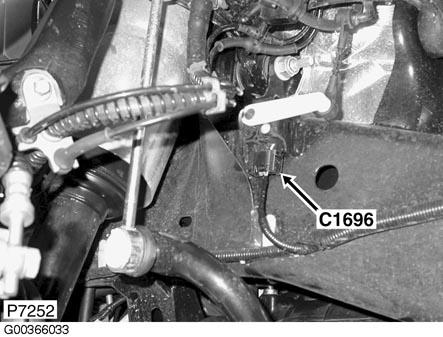

Fig 94: Left Front Wheel Arch Liner
G00366033Courtesy of LAND ROVER NORTH AMERICA, INC.

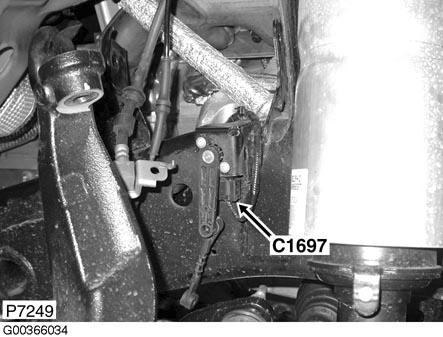

Fig 95: Right Front Wheel Arch Liner
G00366034Courtesy of LAND ROVER NORTH AMERICA, INC.

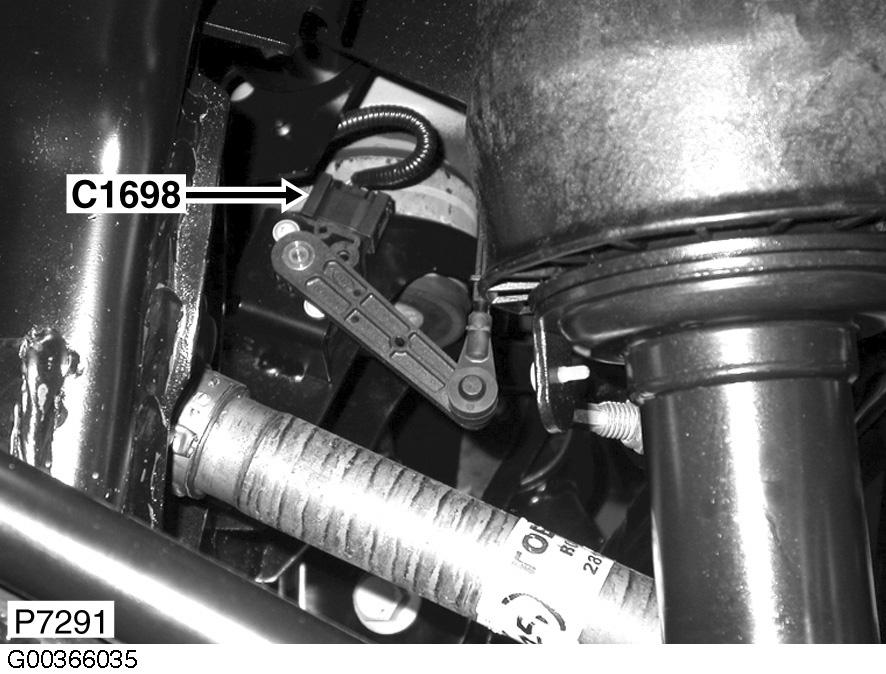

Fig 96: Right Rear Wheel Arch
G00366035Courtesy of LAND ROVER NORTH AMERICA, INC.

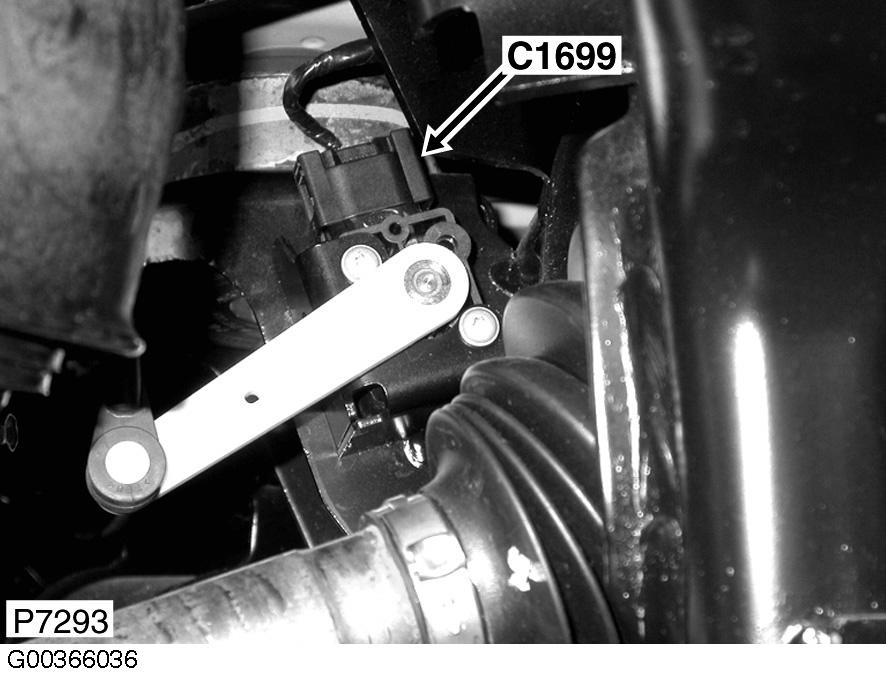

Fig 97: Left Rear Wheel Arch
G00366036Courtesy of LAND ROVER NORTH AMERICA, INC.

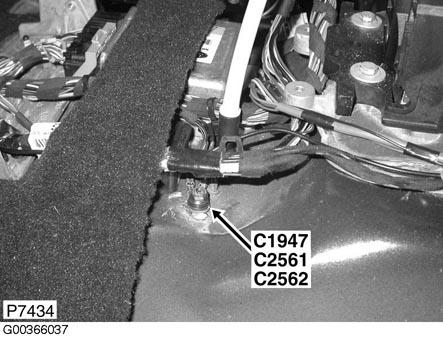

Fig 98: Under Center Console
G00366037Courtesy of LAND ROVER NORTH AMERICA, INC.

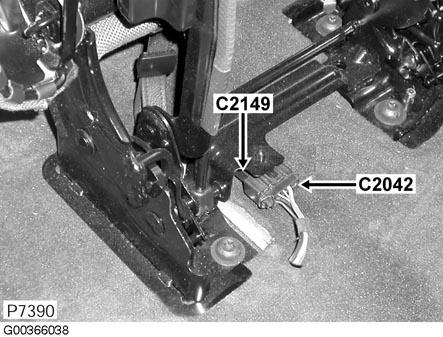

Fig 99: Under Rear Seat
G00366038Courtesy of LAND ROVER NORTH AMERICA, INC.

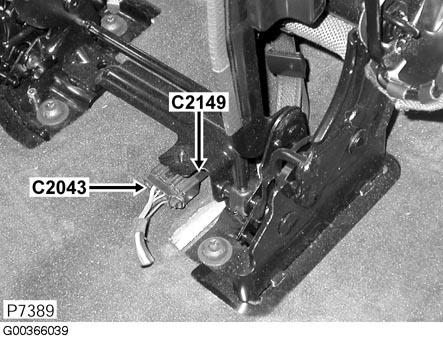

Fig 100: Under Rear Seat
G00366039Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 101: Right Front Wheel Arch Liner
G00366041Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 102: Left Rear Wheel Arch
G00366042Courtesy of LAND ROVER NORTH AMERICA, INC.

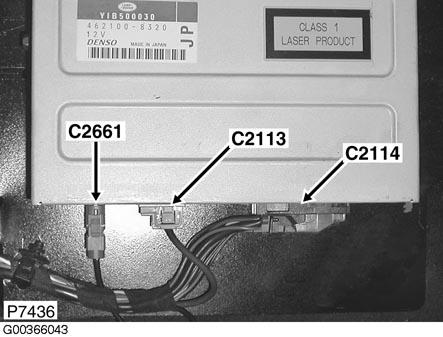

Fig 103: Under Front Passenger's Seat
G00366043Courtesy of LAND ROVER NORTH AMERICA, INC.

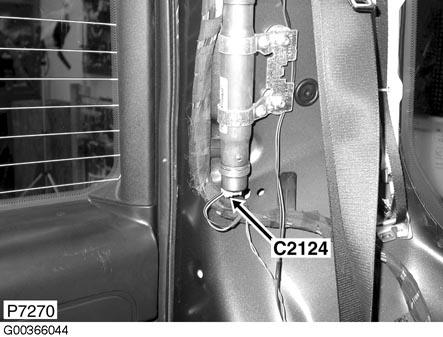

Fig 104: Left "D" Pillar
G00366044Courtesy of LAND ROVER NORTH AMERICA, INC.

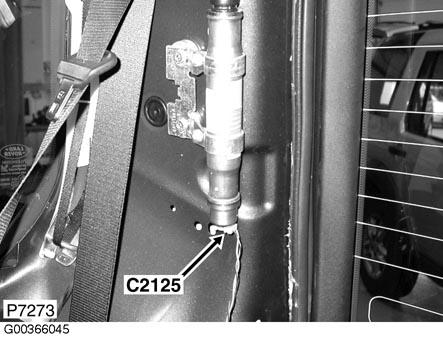

Fig 105: Right "D" Pillar
G00366045Courtesy of LAND ROVER NORTH AMERICA, INC.

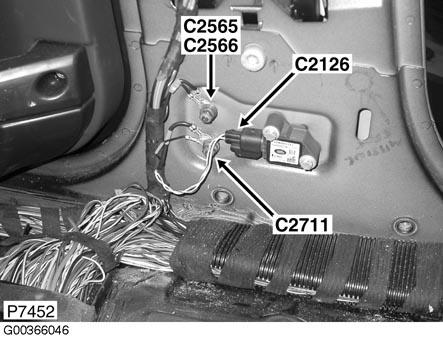

Fig 106: Left "C" Pillar
G00366046Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 107: Rear Of Engine Compartment
G00366047Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 108: Under Center Of Vehicle
G00366048Courtesy of LAND ROVER NORTH AMERICA, INC.

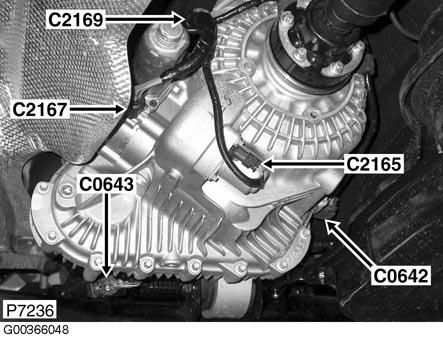

Fig 109: Under Center Of Vehicle
G00366049Courtesy of LAND ROVER NORTH AMERICA, INC.

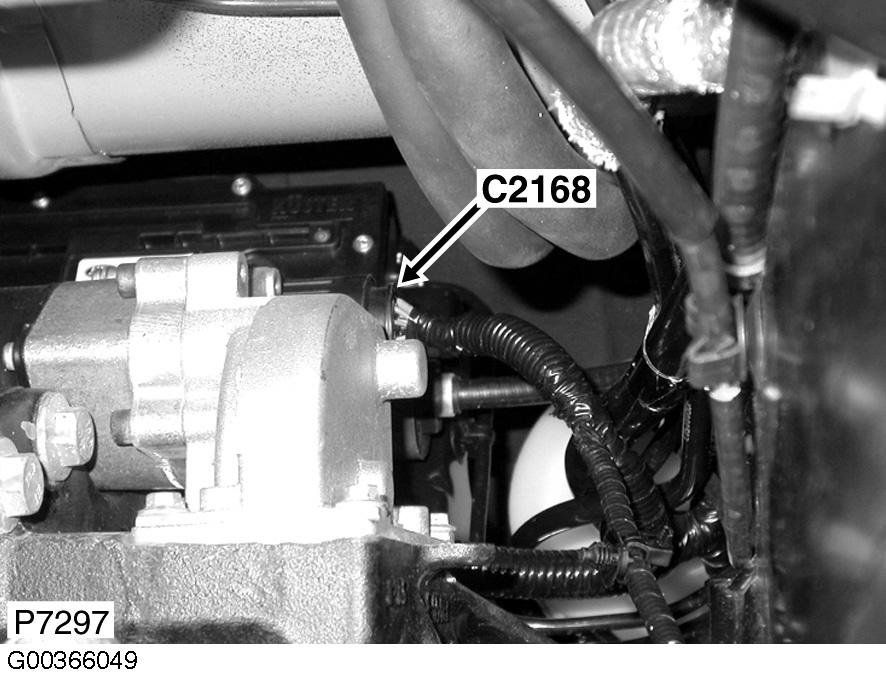

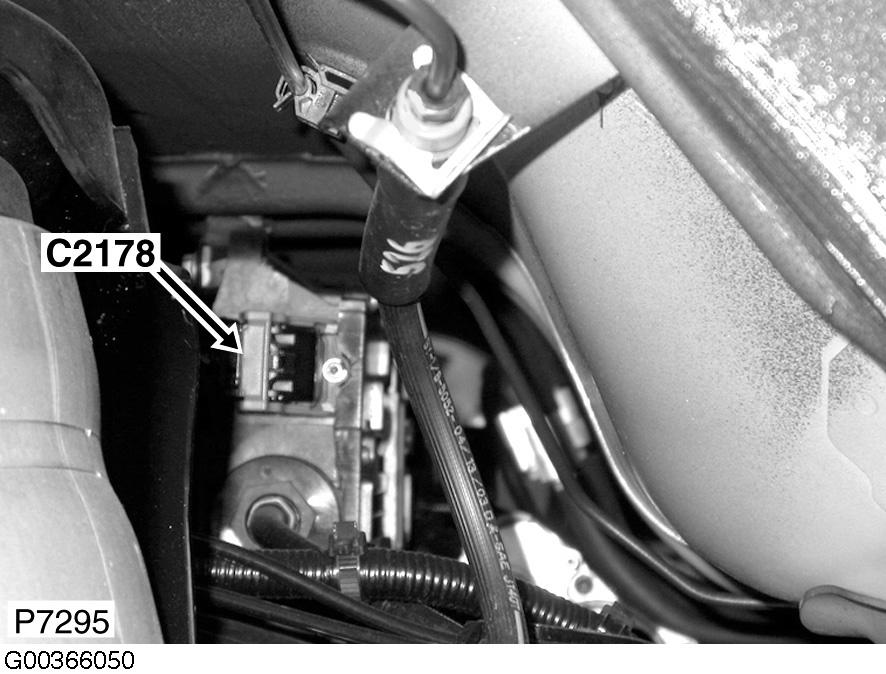

Fig 110: Under Center Of Vehicle
G00366050Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 111: Under Center Console
G00366051Courtesy of LAND ROVER NORTH AMERICA, INC.

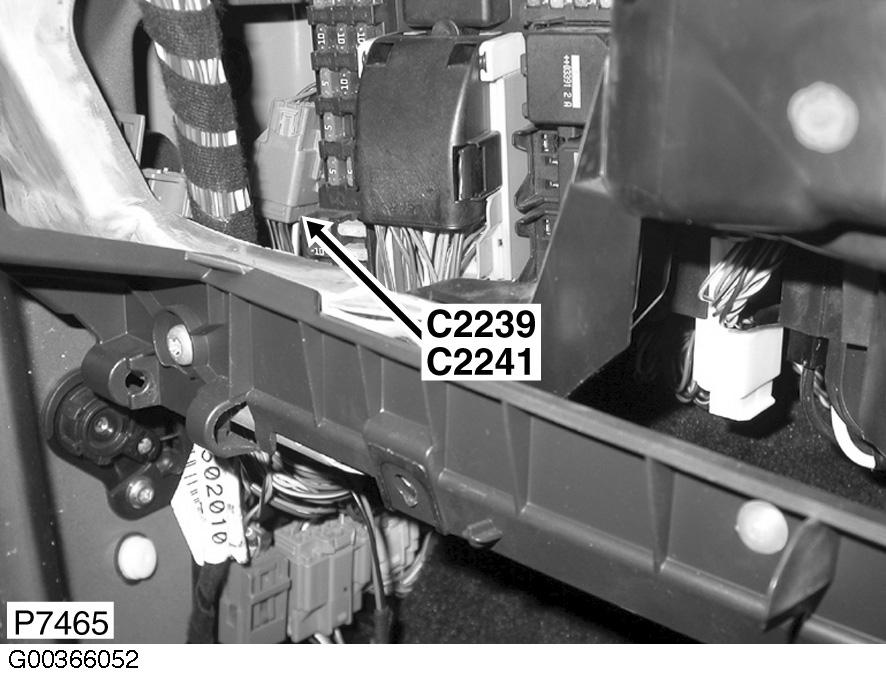

Fig 112: Dash Trim Panel
G00366052Courtesy of LAND ROVER NORTH AMERICA, INC.

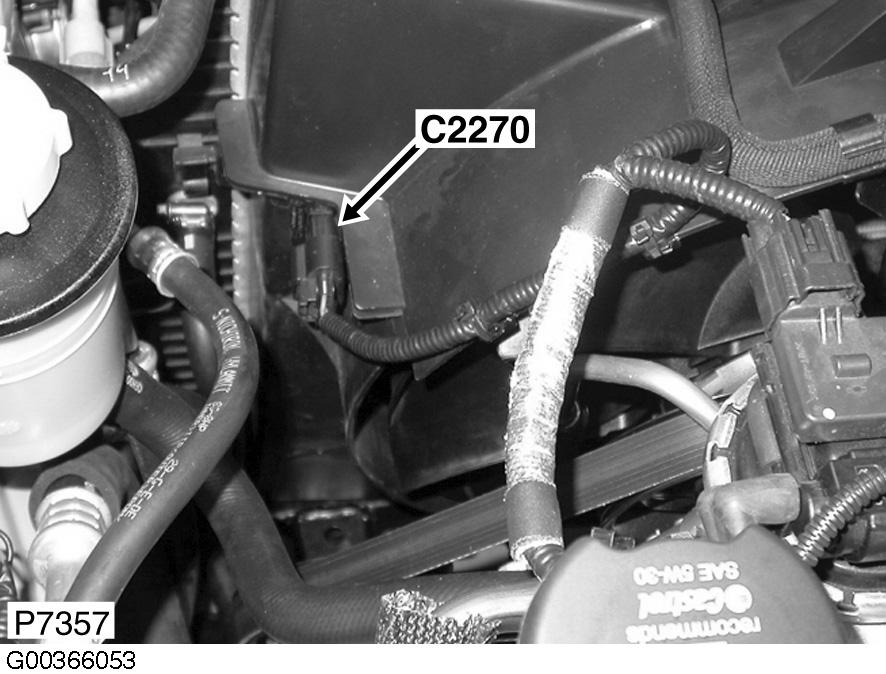

Fig 113: Center Front Of Engine Compartment
G00366053Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 114: Right Headlight
G00366054Courtesy of LAND ROVER NORTH AMERICA, INC.

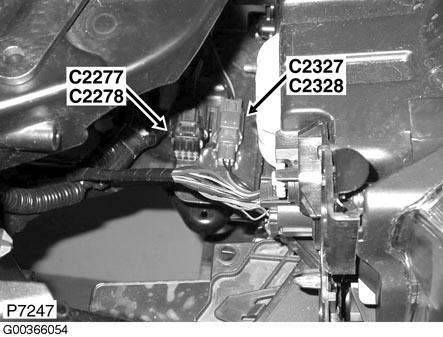

Fig 115: Right Front Wheel Arch Liner
G00366055Courtesy of LAND ROVER NORTH AMERICA, INC.

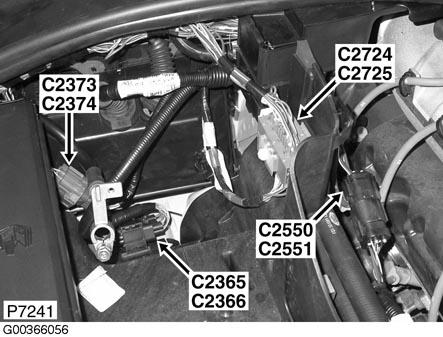

Fig 116: Right Rear Of Engine Compartment
G00366056Courtesy of LAND ROVER NORTH AMERICA, INC.

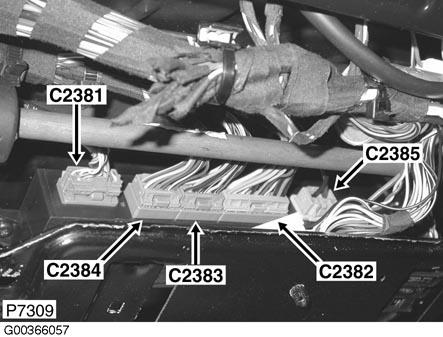

Fig 117: Under Driver's Seat
G00366057Courtesy of LAND ROVER NORTH AMERICA, INC.

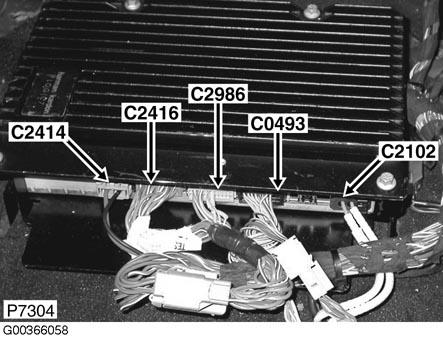

Fig 118: Under Driver's Seat
G00366058Courtesy of LAND ROVER NORTH AMERICA, INC.

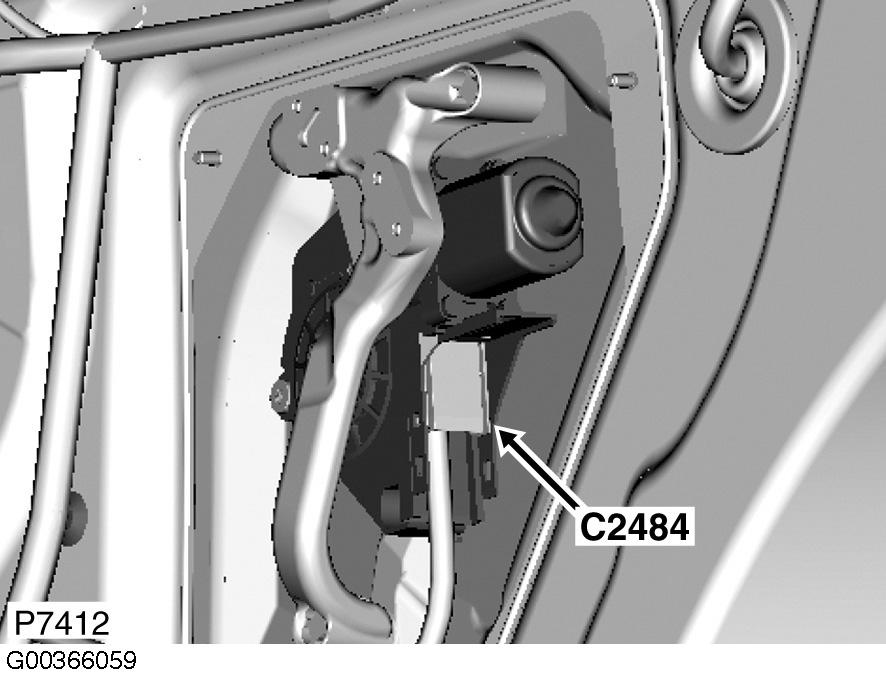

Fig 119: Rear Door Trim Panel
G00366059Courtesy of LAND ROVER NORTH AMERICA, INC.

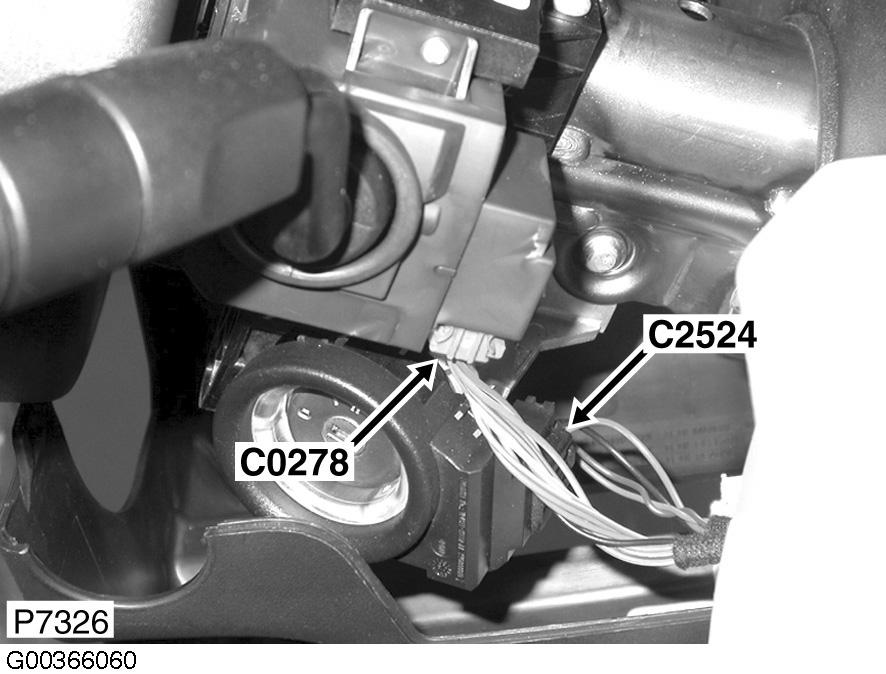

Fig 120: Under Center Console
G00366060Courtesy of LAND ROVER NORTH AMERICA, INC.

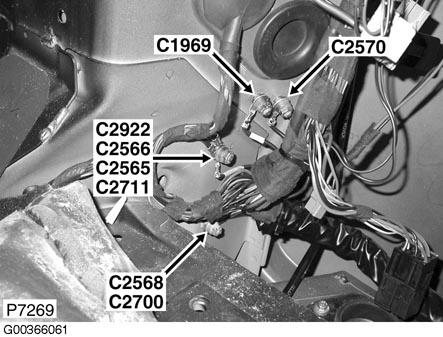

Fig 121: Left "D" Pillar
G00366061Courtesy of LAND ROVER NORTH AMERICA, INC.

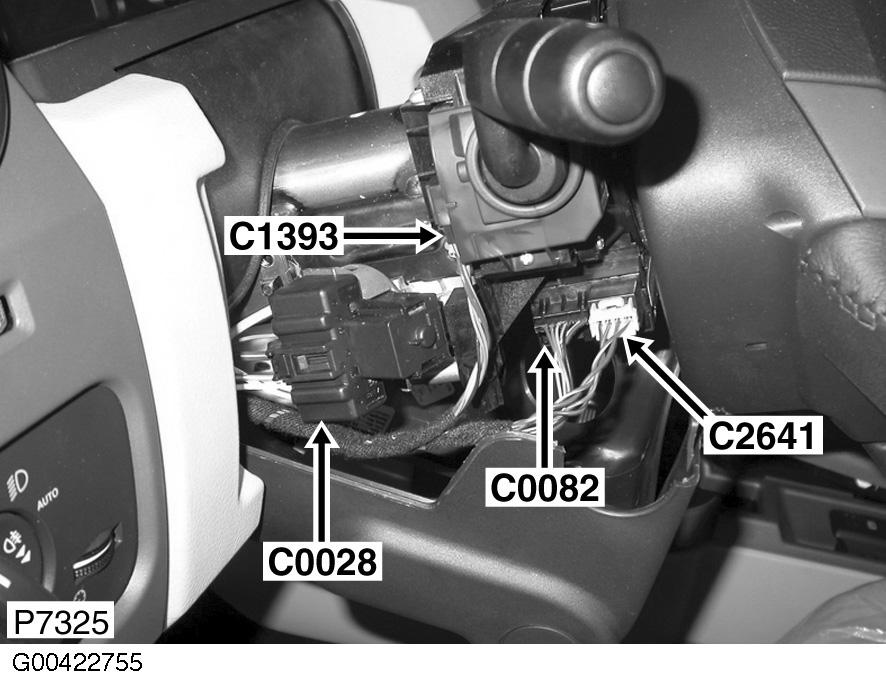

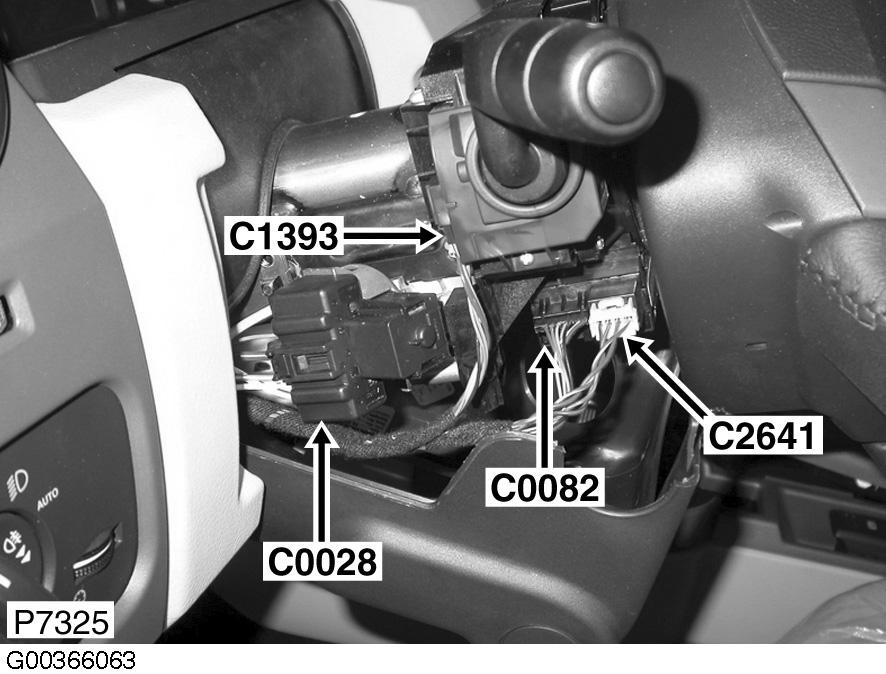

Fig 122: On Steering Column
G00366063Courtesy of LAND ROVER NORTH AMERICA, INC.

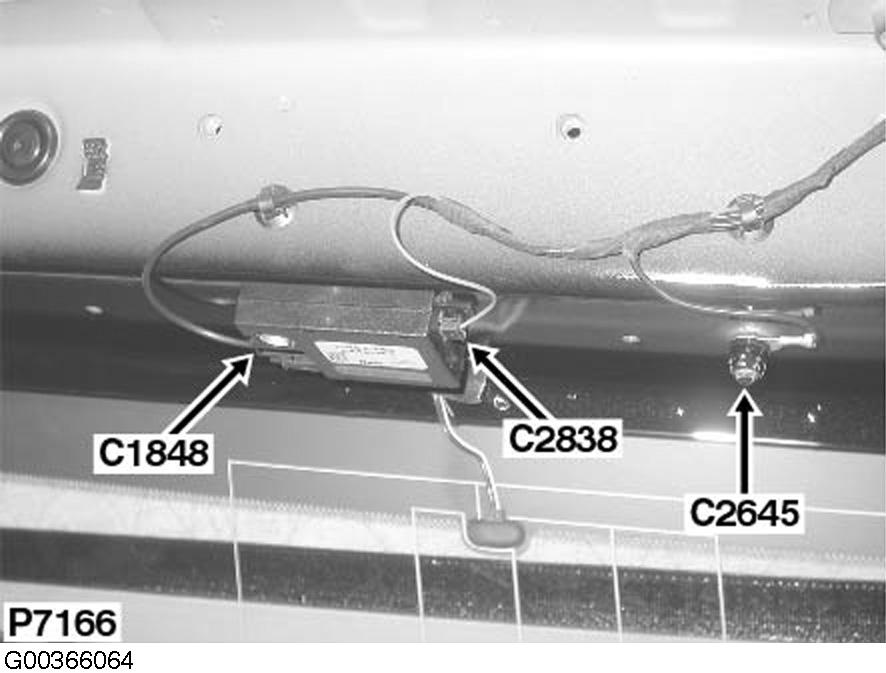

Fig 123: Under Right Side Of Headliner
G00366064Courtesy of LAND ROVER NORTH AMERICA, INC.

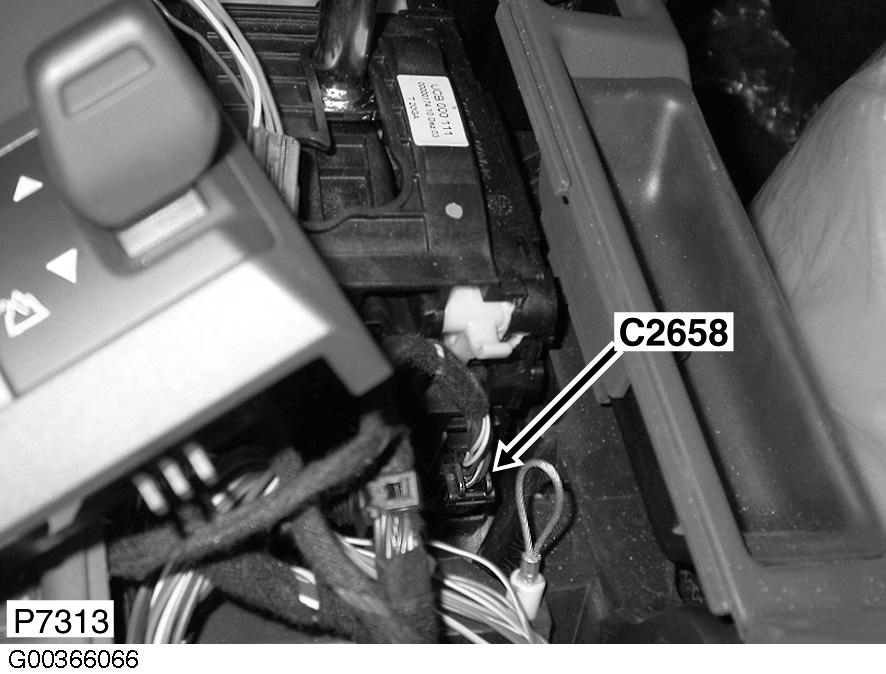

Fig 124: Under Center Console
G00366066Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 125: Top Of Engine
G00366067Courtesy of LAND ROVER NORTH AMERICA, INC.

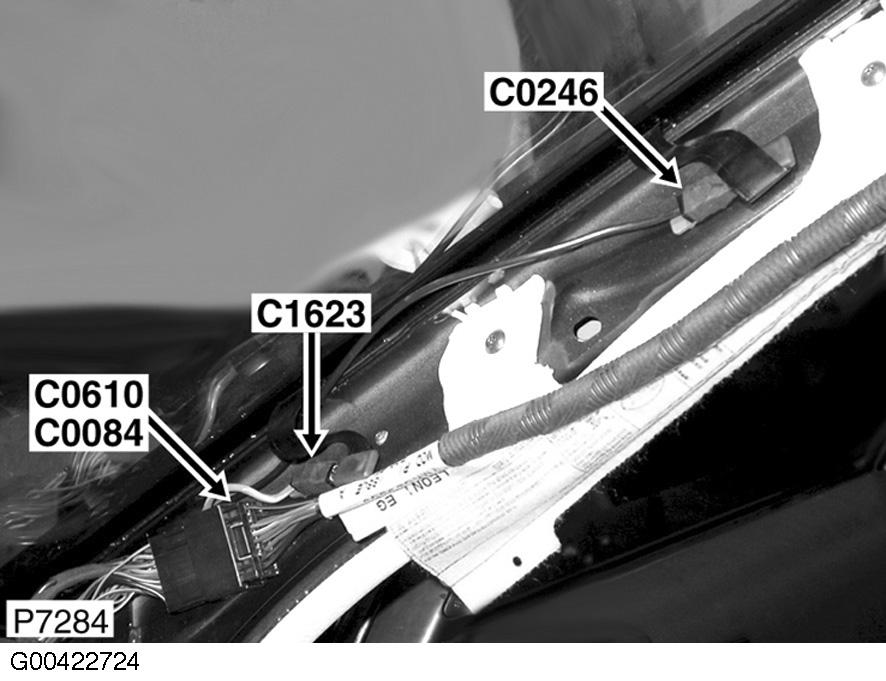

Fig 126: Right "A" Pillar
G00422724Courtesy of LAND ROVER NORTH AMERICA, INC.

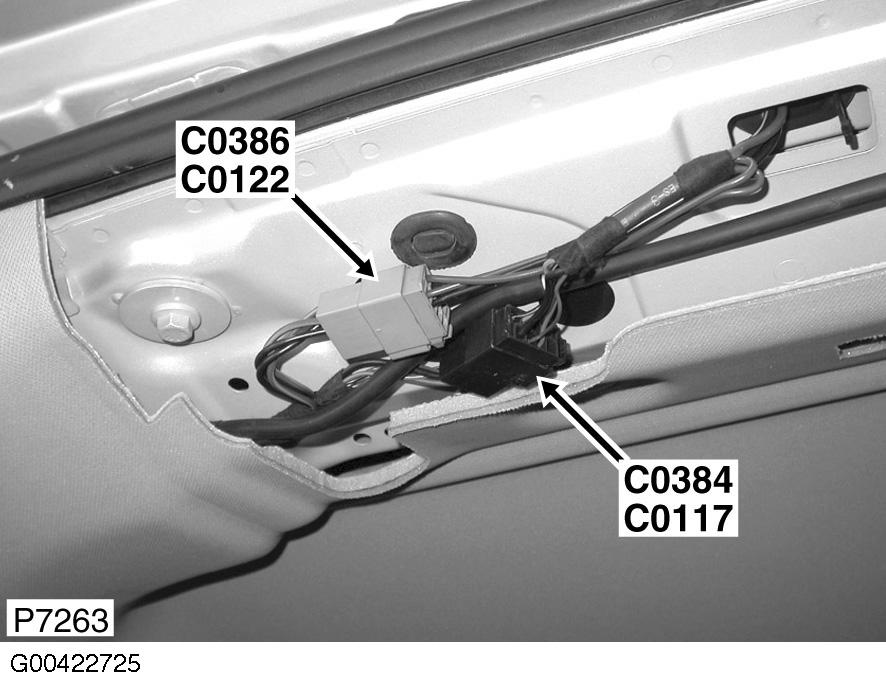

Fig 127: Rear Of Roof
G00422725Courtesy of LAND ROVER NORTH AMERICA, INC.

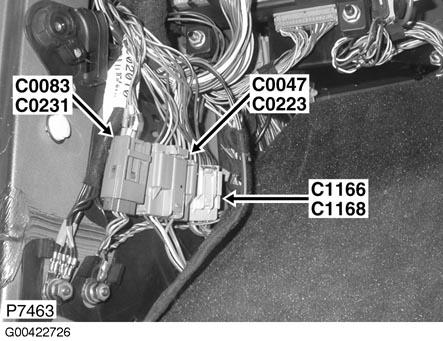

Fig 128: Left Kick Panel
G00422726Courtesy of LAND ROVER NORTH AMERICA, INC.

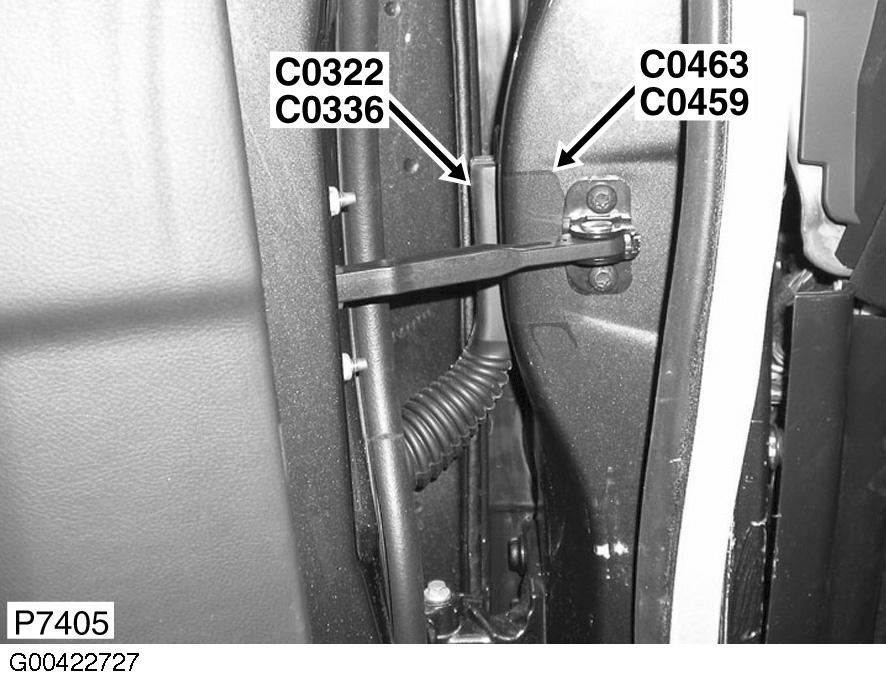

Fig 129: Left "A" Pillar
G00422727Courtesy of LAND ROVER NORTH AMERICA, INC.

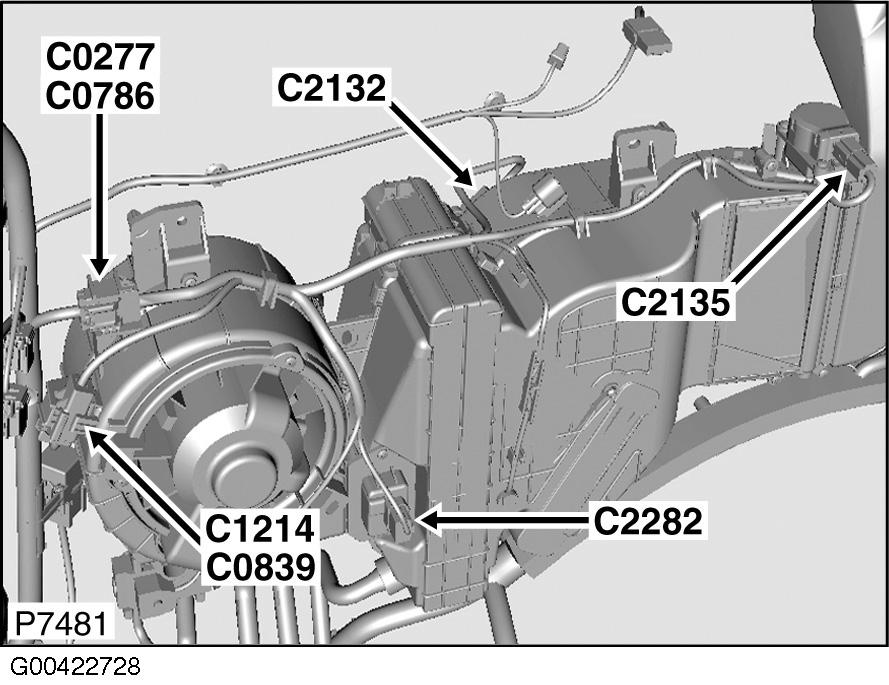

Fig 130: Left Rear Of Cargo Area
G00422728Courtesy of LAND ROVER NORTH AMERICA, INC.

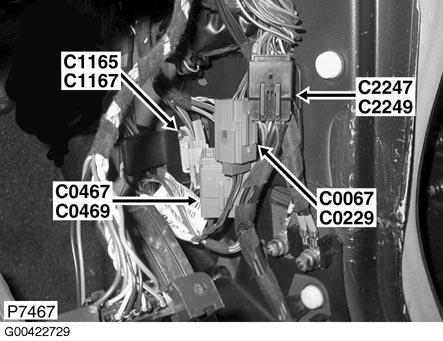

Fig 131: Right Kick Panel
G00422729Courtesy of LAND ROVER NORTH AMERICA, INC.

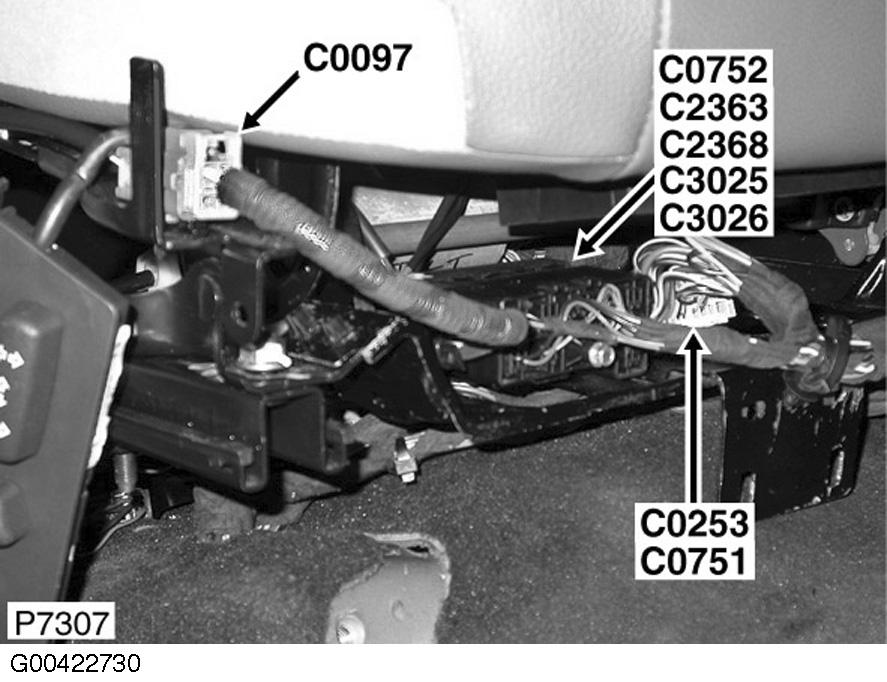

Fig 132: Under Driver's Seat
G00422730Courtesy of LAND ROVER NORTH AMERICA, INC.

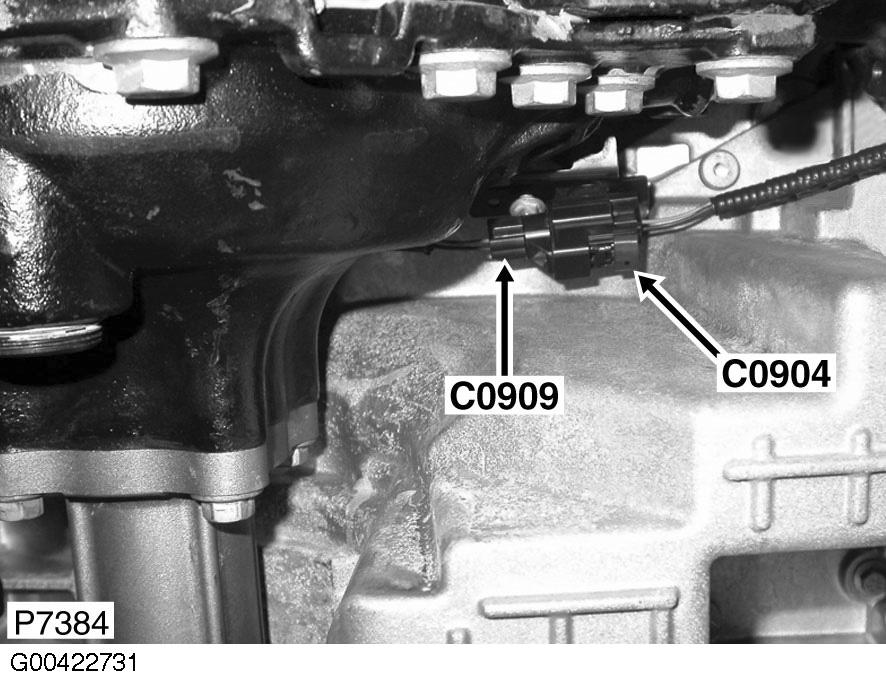

Fig 133: Rear Of Engine
G00422731Courtesy of LAND ROVER NORTH AMERICA, INC.

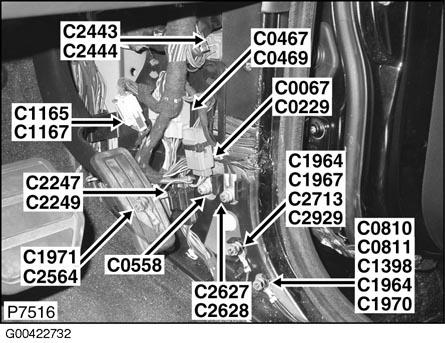

Fig 134: Right Kick Panel
G00422732Courtesy of LAND ROVER NORTH AMERICA, INC.

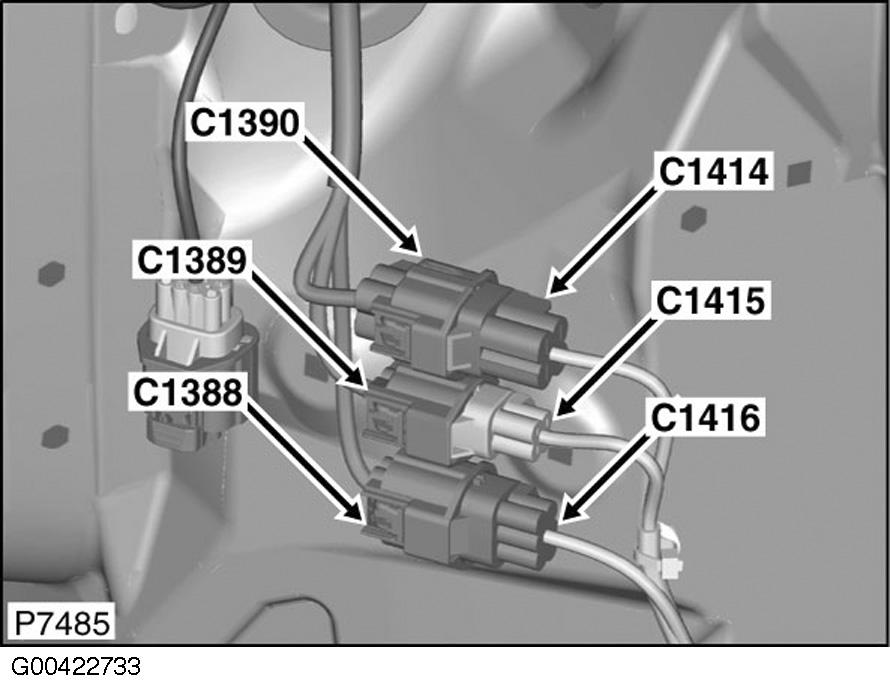

Fig 135: Right Rear Of Vehicle
G00422733Courtesy of LAND ROVER NORTH AMERICA, INC.

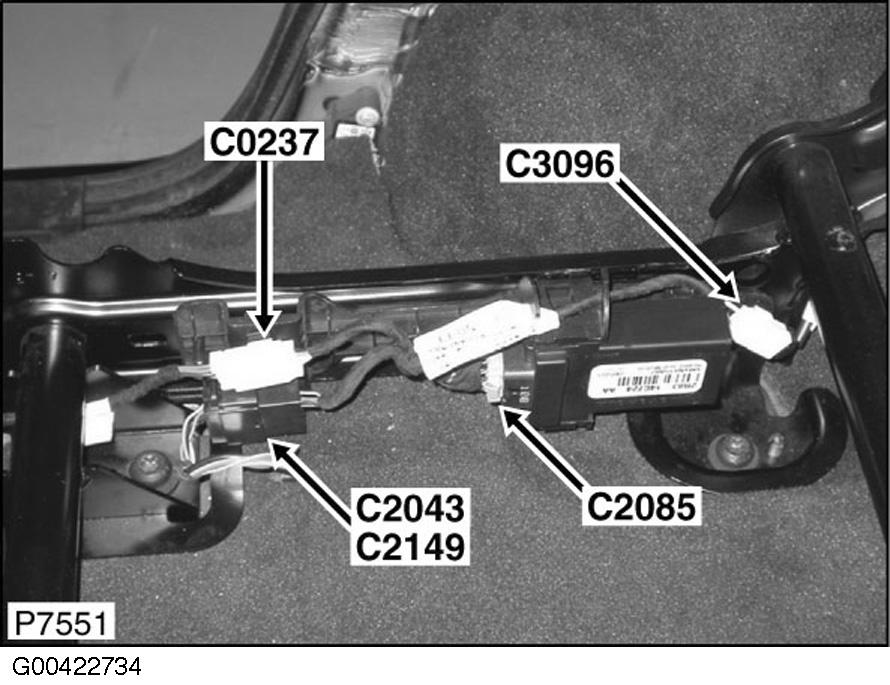

Fig 136: Under Rear Seat
G00422734Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 137: Left "A" Pillar

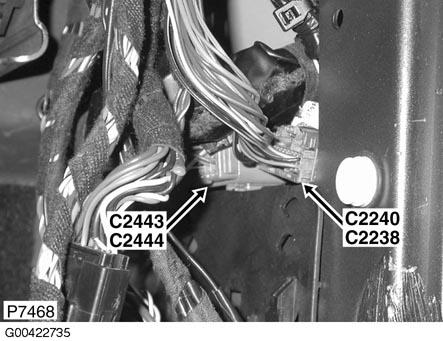

G00422735Courtesy of LAND ROVER NORTH AMERICA, INC.

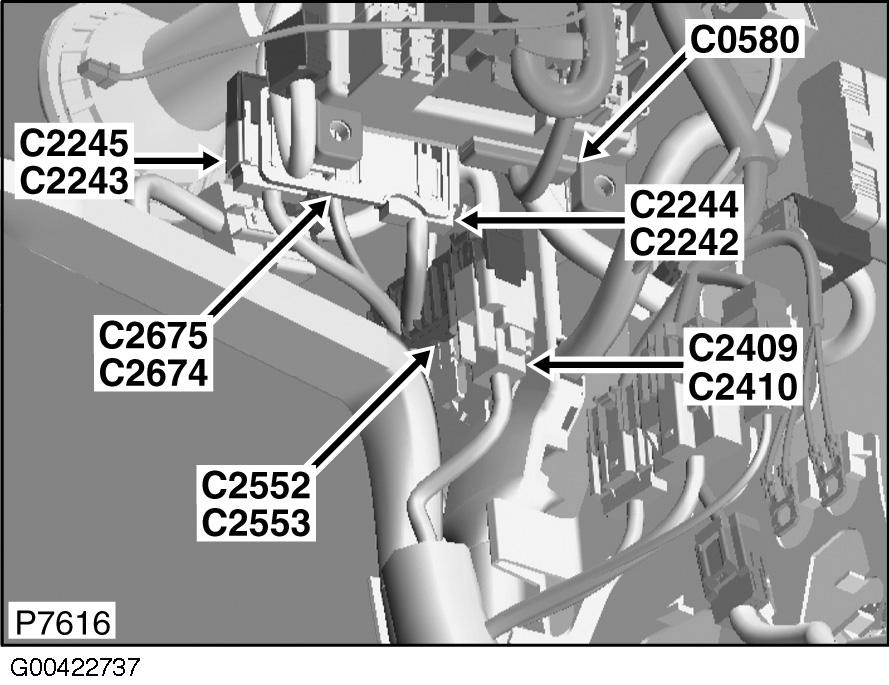

Fig 138: Right "A" Pillar
G00422737Courtesy of LAND ROVER NORTH AMERICA, INC.

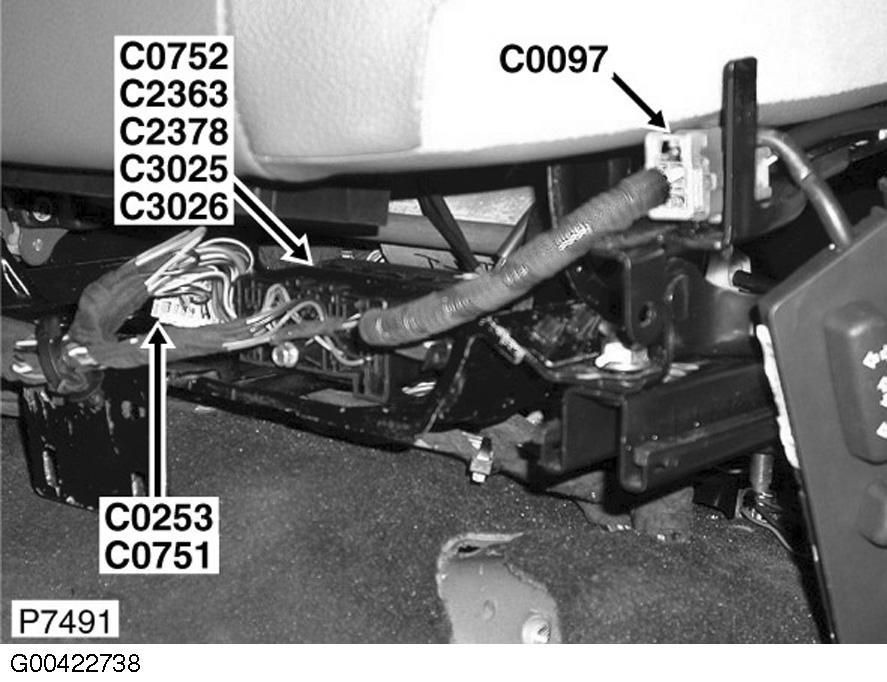

Fig 139: Under Driver's Seat
G00422738Courtesy of LAND ROVER NORTH AMERICA, INC.

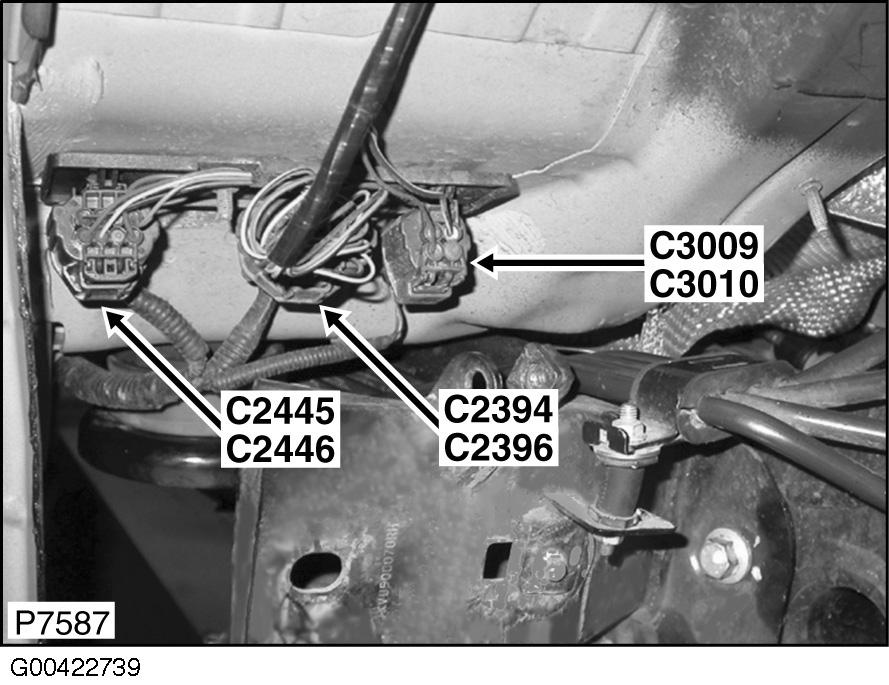

Fig 140: Right Front Wheel Arch Liner
G00422739Courtesy of LAND ROVER NORTH AMERICA, INC.

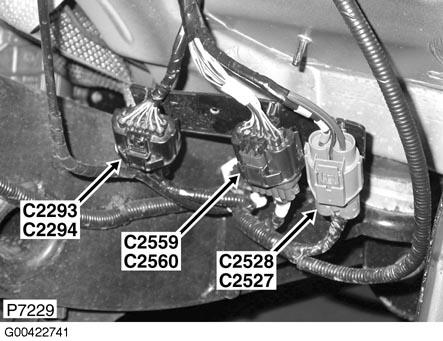

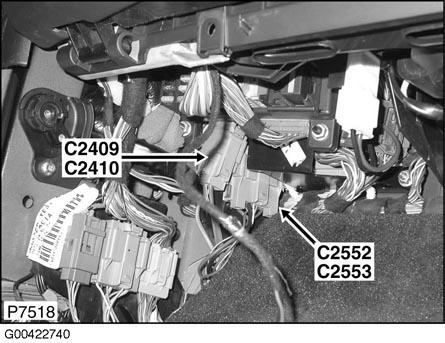

Fig 141: Left "A" Pillar
G00422740Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 142: Left Front Wheel Arch Liner
G00422741Courtesy of LAND ROVER NORTH AMERICA, INC.

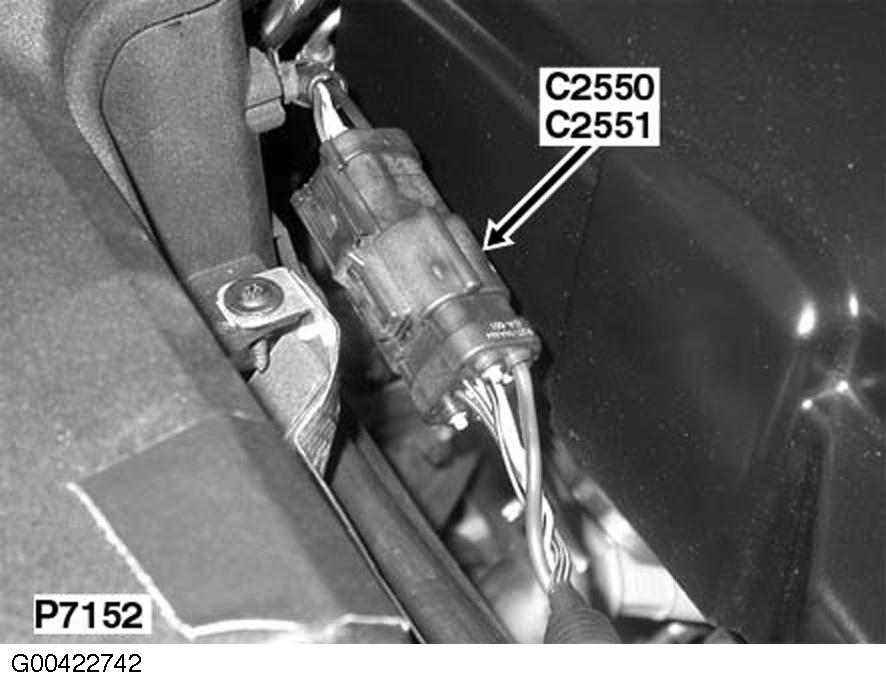

Fig 143: Right Side Of Engine Compartment
G00422742Courtesy of LAND ROVER NORTH AMERICA, INC.

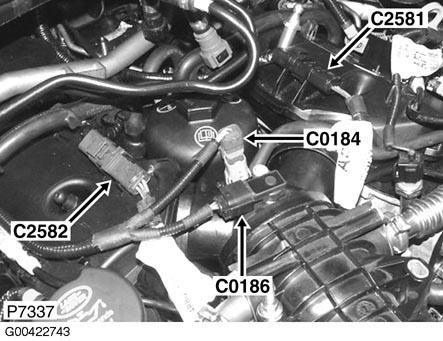

Fig 144: Top Of Engine
G00422743Courtesy of LAND ROVER NORTH AMERICA, INC.

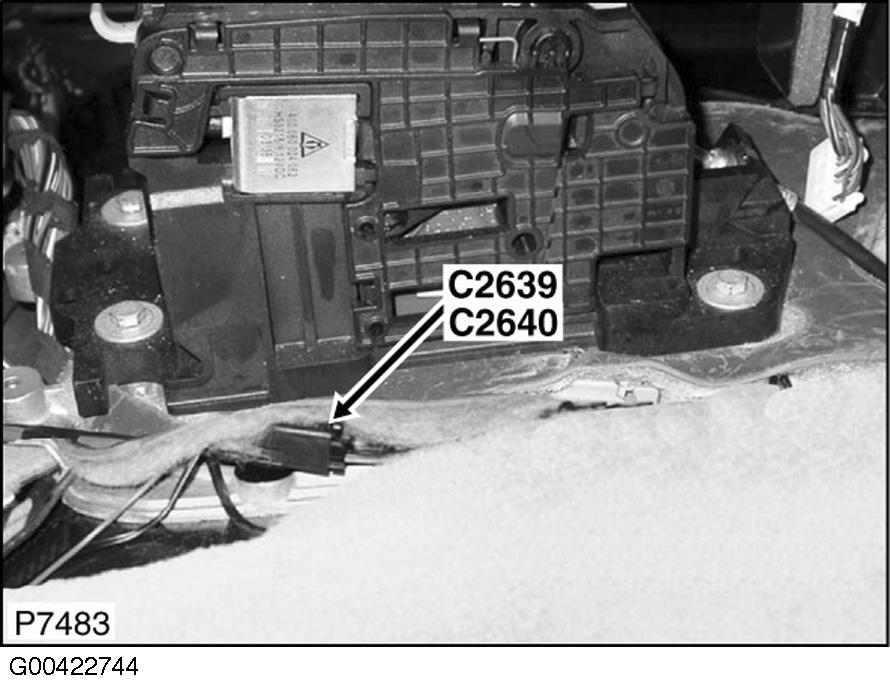

Fig 145: Under Center Console
G00422744Courtesy of LAND ROVER NORTH AMERICA, INC.

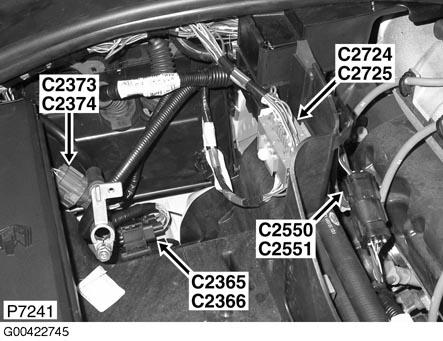

Fig 146: Right Side Of Engine Compartment

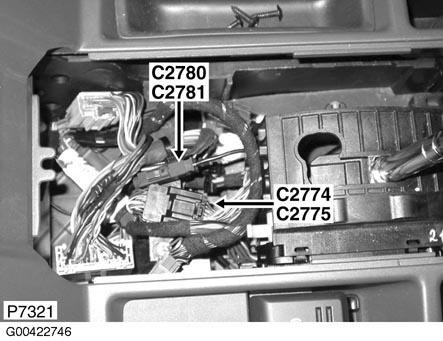

G00422745Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 147: Under Center Console
G00422746Courtesy of LAND ROVER NORTH AMERICA, INC.

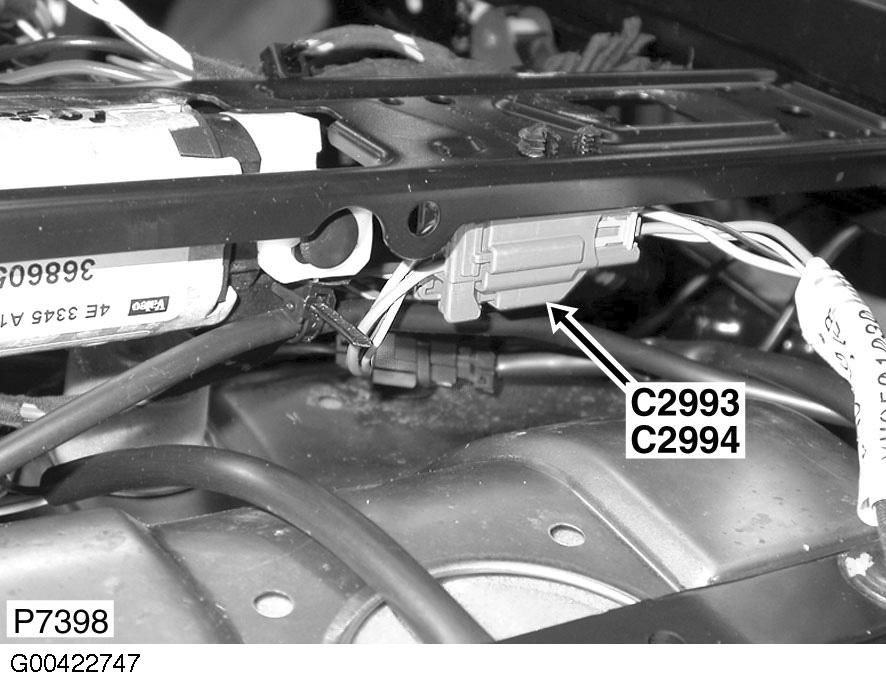

Fig 148: Under Front Seat
G00422747Courtesy of LAND ROVER NORTH AMERICA, INC.

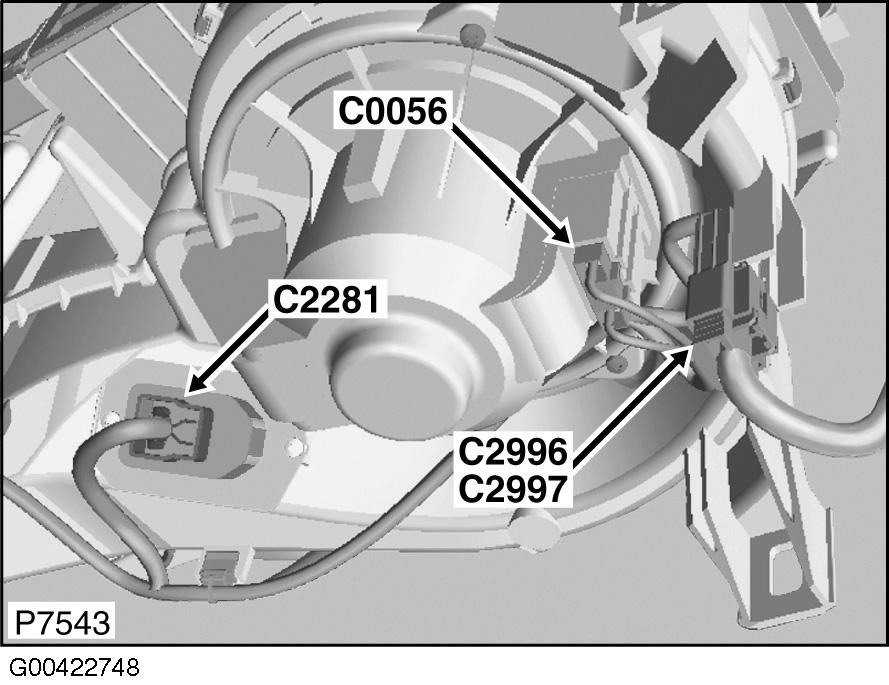

Fig 149: Behind Center Of Dash
G00422748Courtesy of LAND ROVER NORTH AMERICA, INC.

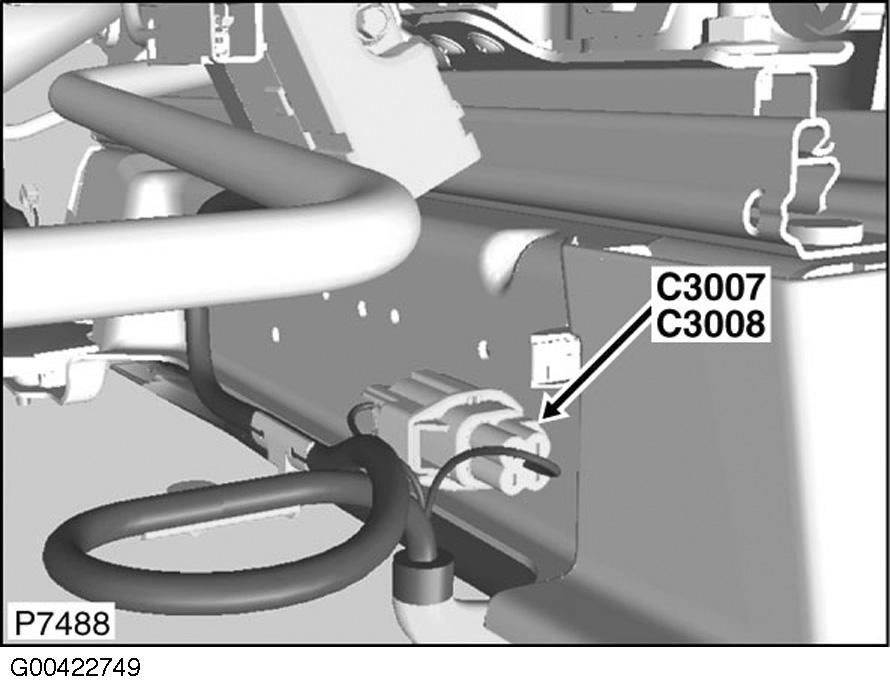

Fig 150: Under Driver's Seat
G00422749Courtesy of LAND ROVER NORTH AMERICA, INC.

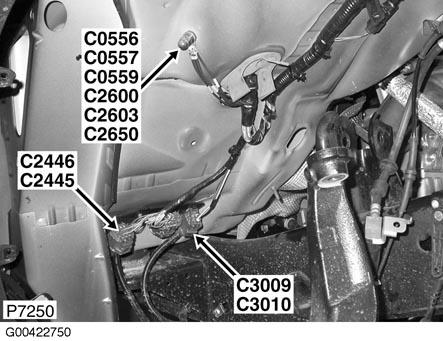

Fig 151: Right Front Wheel Arch Liner
G00422750Courtesy of LAND ROVER NORTH AMERICA, INC.

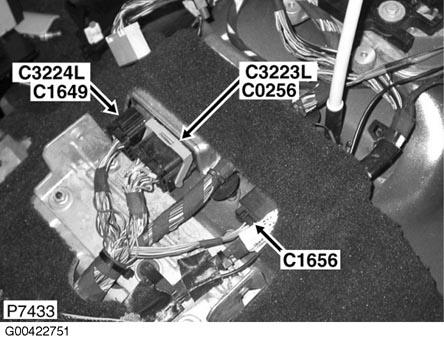

Fig 152: Under Center Console
G00422751Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 153: Left Kick Panel

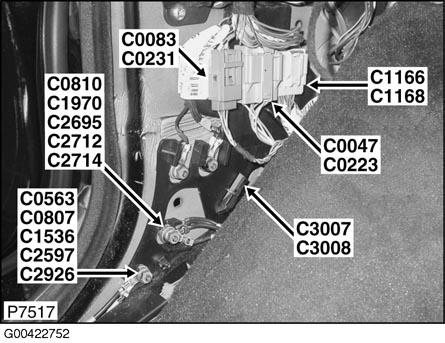

G00422752Courtesy of LAND ROVER NORTH AMERICA, INC.

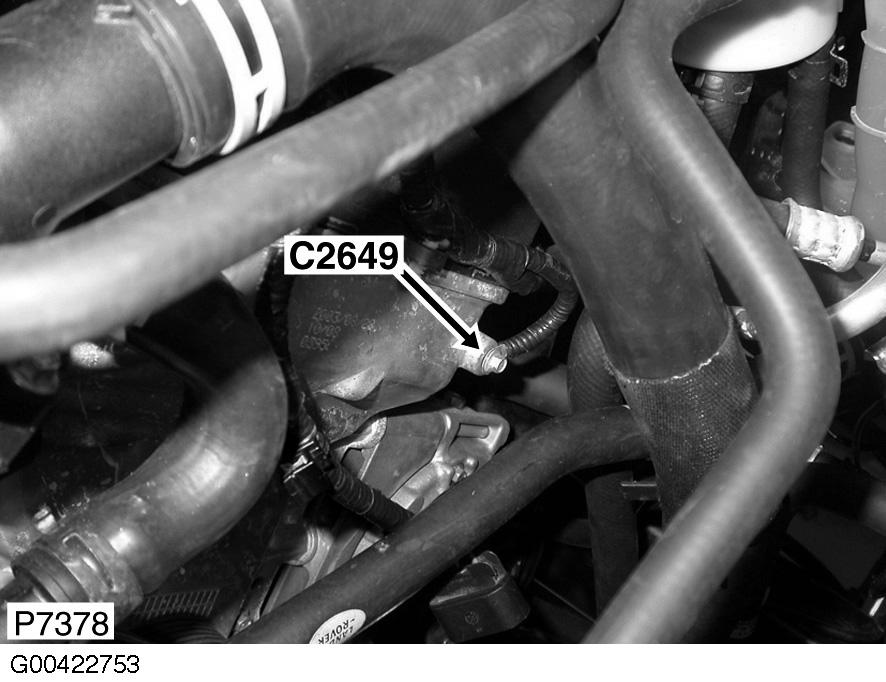

Fig 154: Front Of Engine
G00422753Courtesy of LAND ROVER NORTH AMERICA, INC.

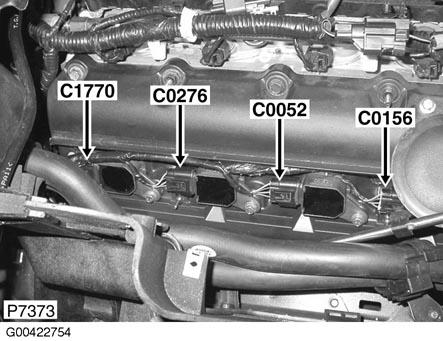

Fig 155: Right Side Of Engine
G00422754Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 156: Steering Column
G00422755Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 157: Left Side Of Engine
G00422756Courtesy of LAND ROVER NORTH AMERICA, INC.

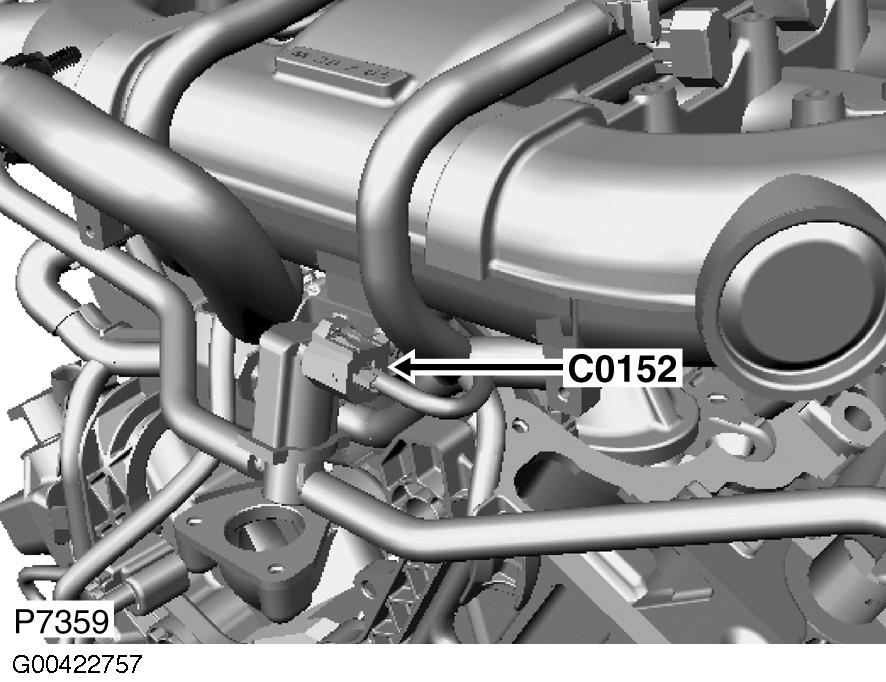

Fig 158: Rear Of Engine
G00422757Courtesy of LAND ROVER NORTH AMERICA, INC.

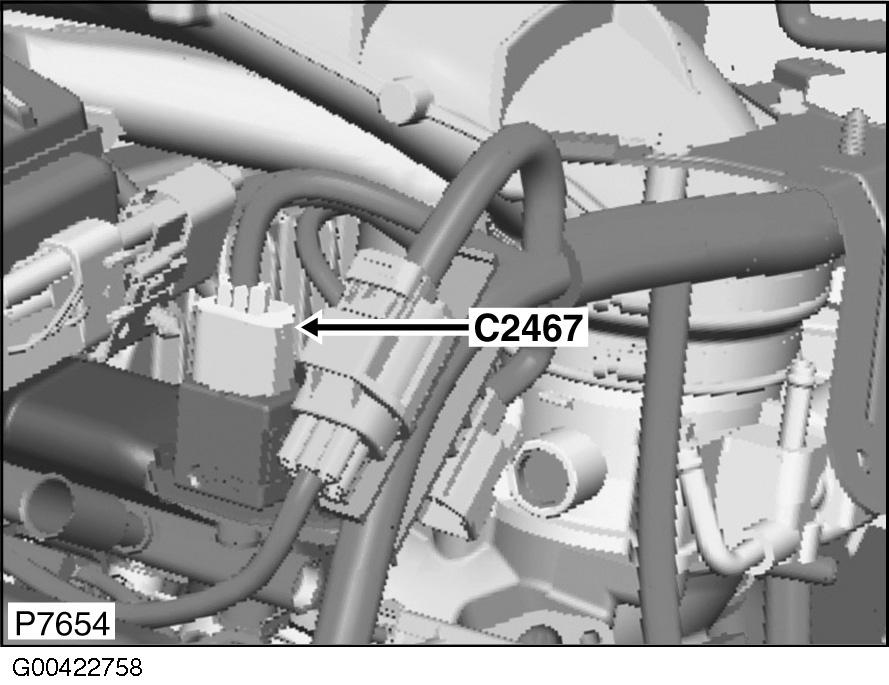

Fig 159: Rear Of Engine
G00422758Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 160: Top Of Engine

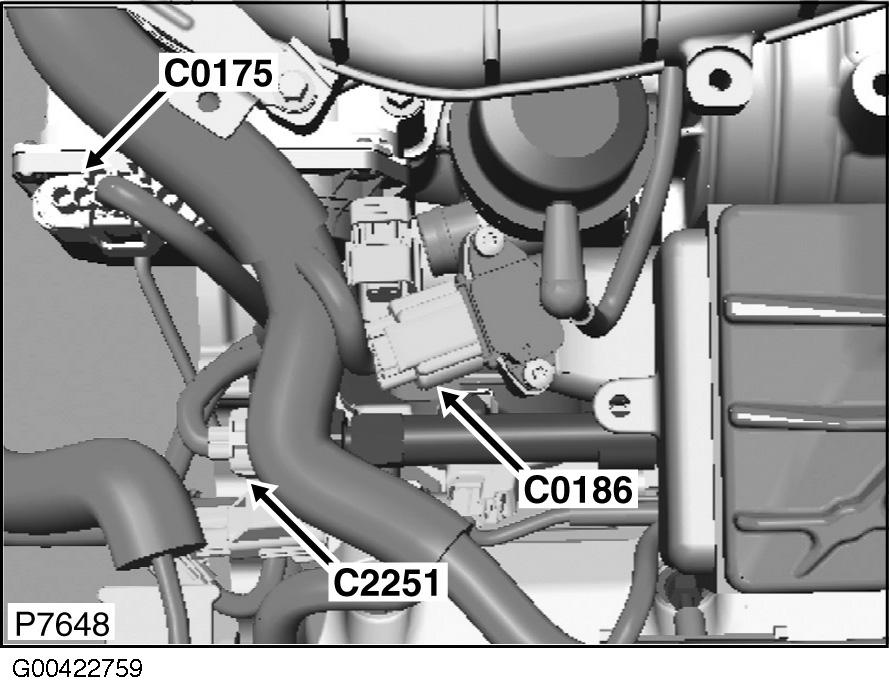

G00422759Courtesy of LAND ROVER NORTH AMERICA, INC.

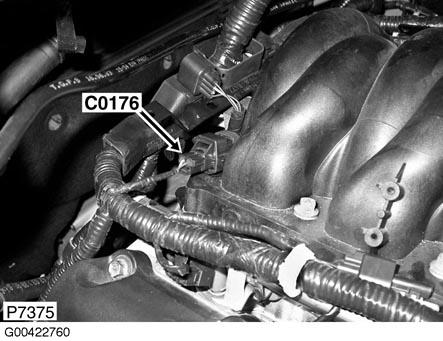

Fig 161: Right Rear Of Engine
G00422760Courtesy of LAND ROVER NORTH AMERICA, INC.

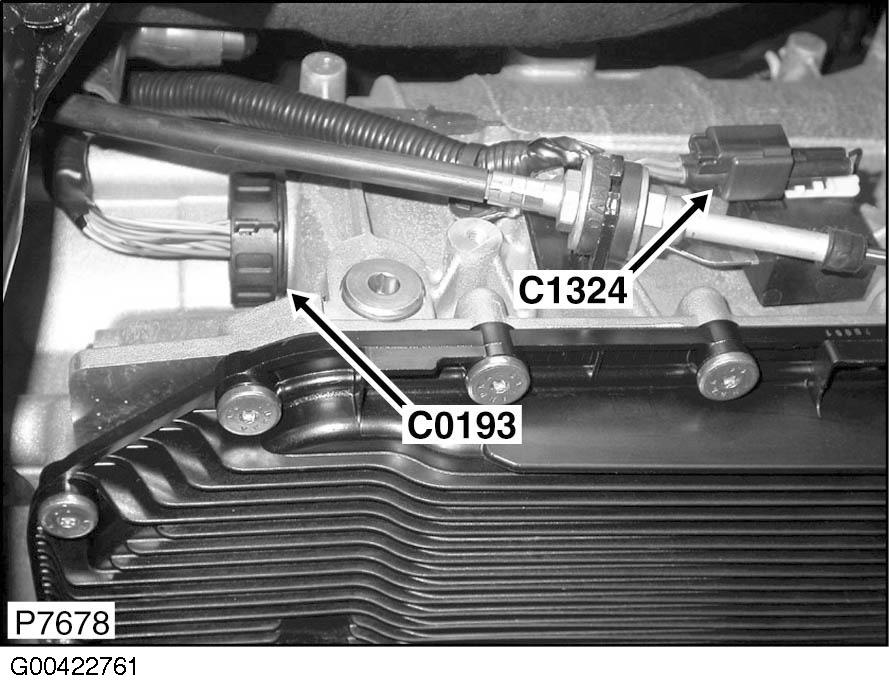

Fig 162: Under Center Of Vehicle
G00422761Courtesy of LAND ROVER NORTH AMERICA, INC.

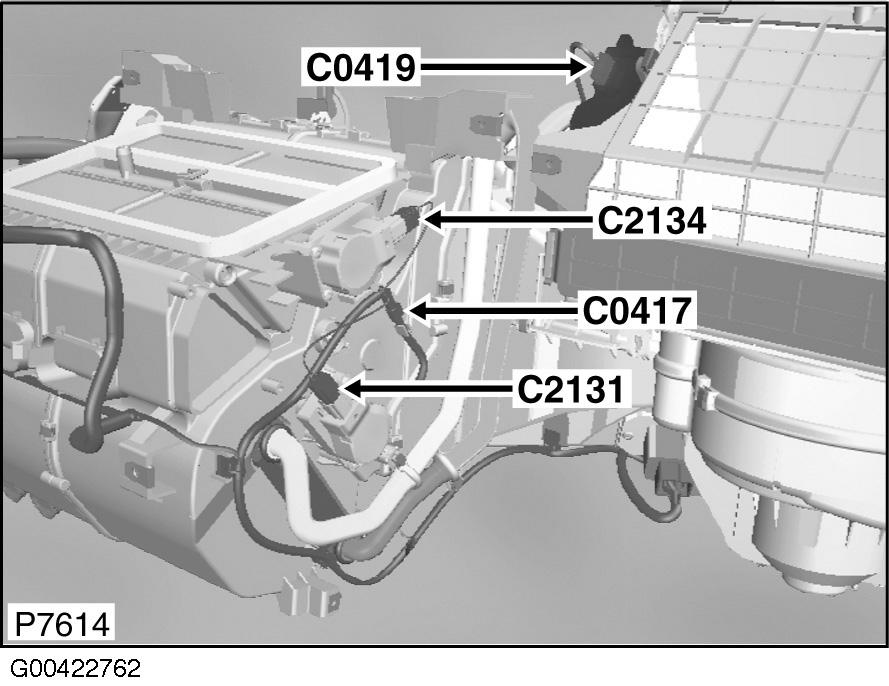

Fig 163: Under Center Of Dash
G00422762Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 164: Left Rear Of Engine Compartment

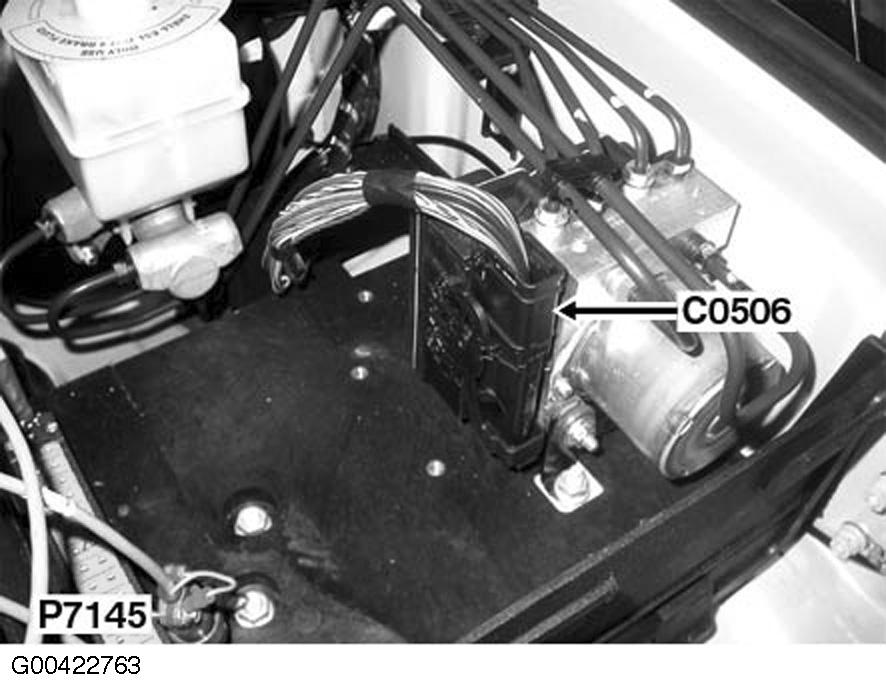

G00422763Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 165: Right Side Of Engine
G00422764Courtesy of LAND ROVER NORTH AMERICA, INC.

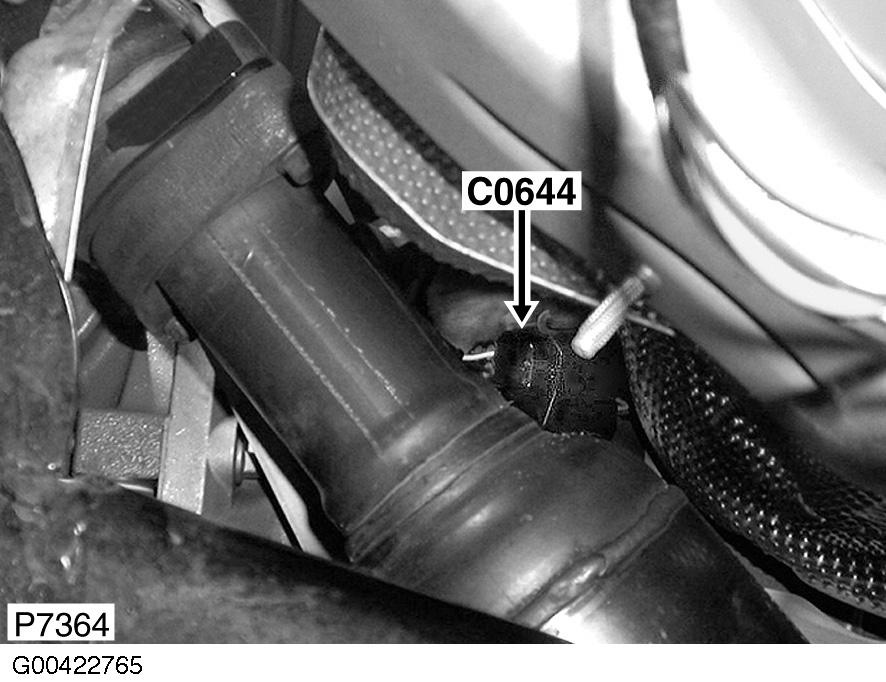

Fig 166: Right Side Of Engine
G00422765Courtesy of LAND ROVER NORTH AMERICA, INC.

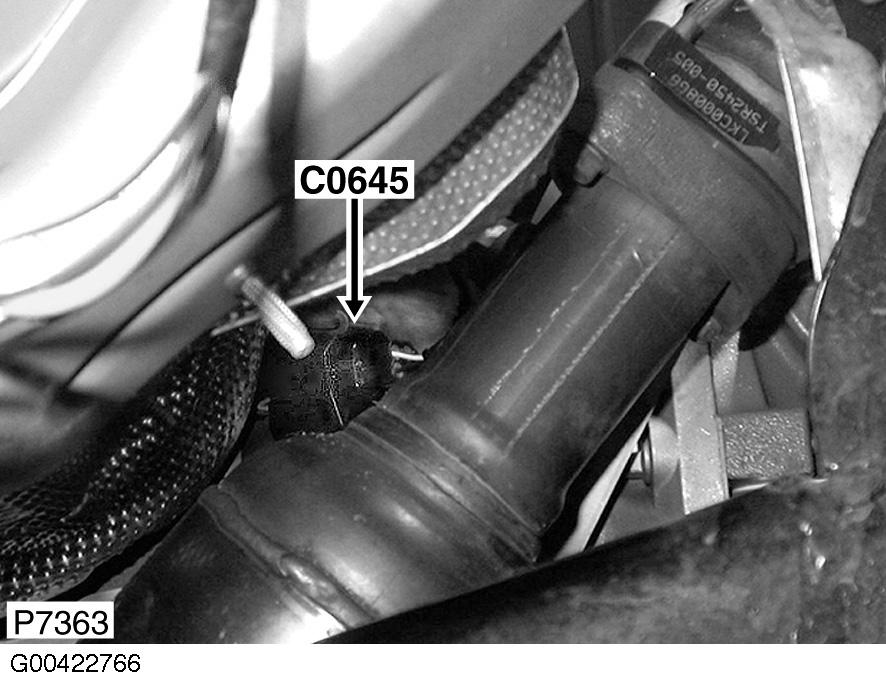

Fig 167: Right Side Of Gearbox
G00422766Courtesy of LAND ROVER NORTH AMERICA, INC.

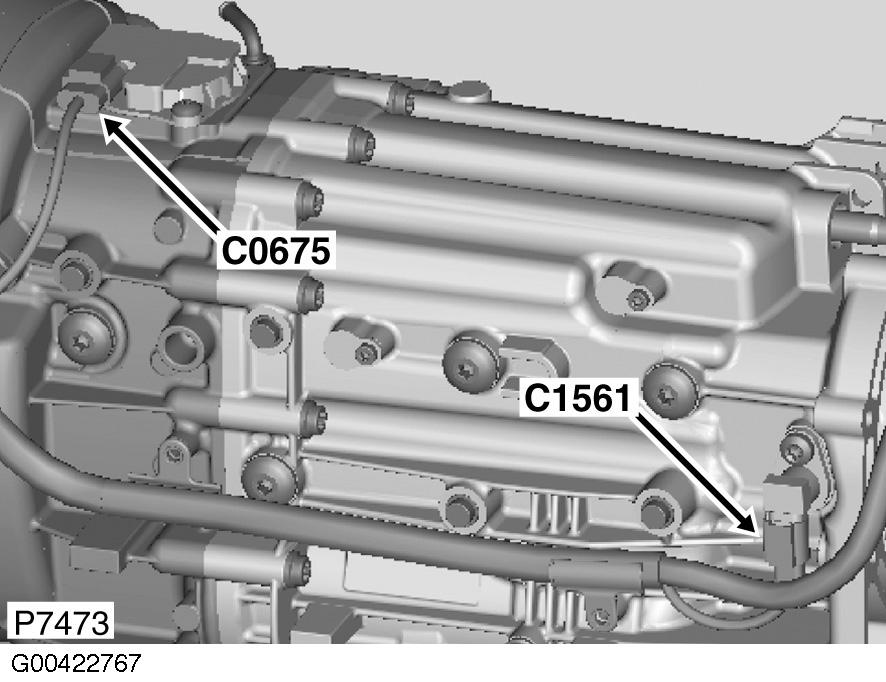

Fig 168: Left Side Of Gearbox
G00422767Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 169: Top Center Of Dash

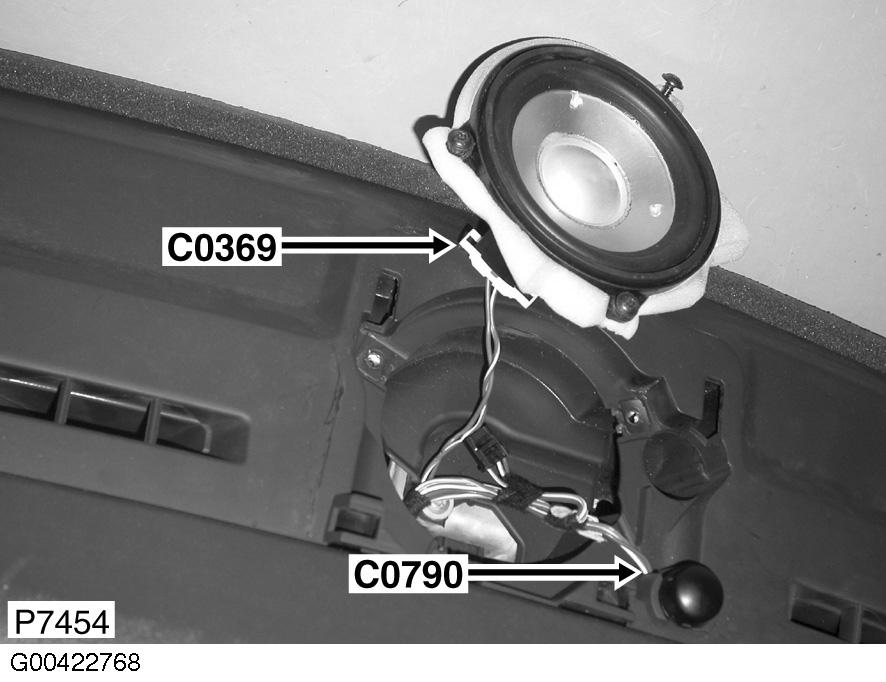

G00422768Courtesy of LAND ROVER NORTH AMERICA, INC.

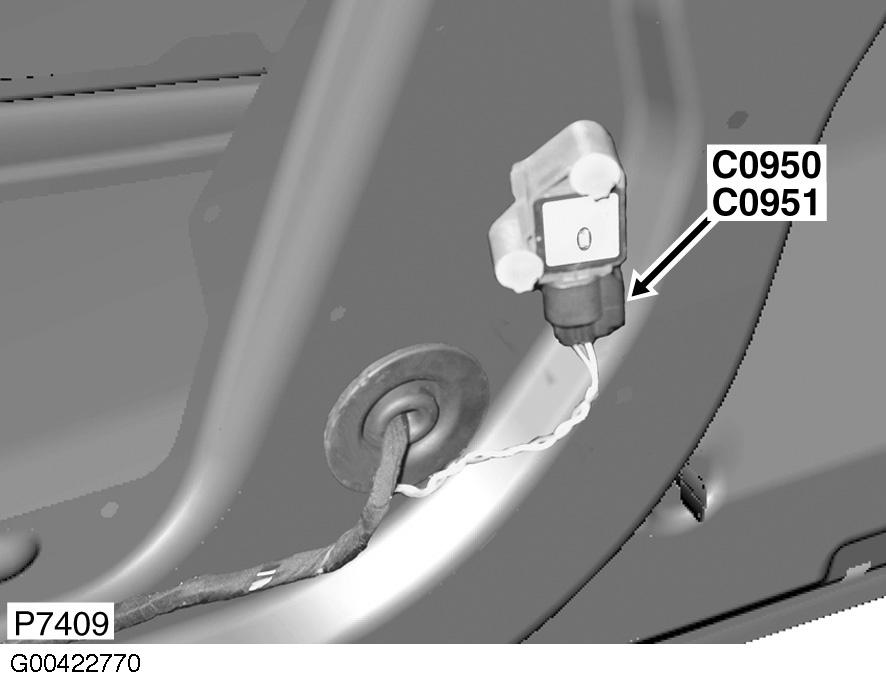

Fig 170: Front Doors (Right Shown)
G00422770Courtesy of LAND ROVER NORTH AMERICA, INC.

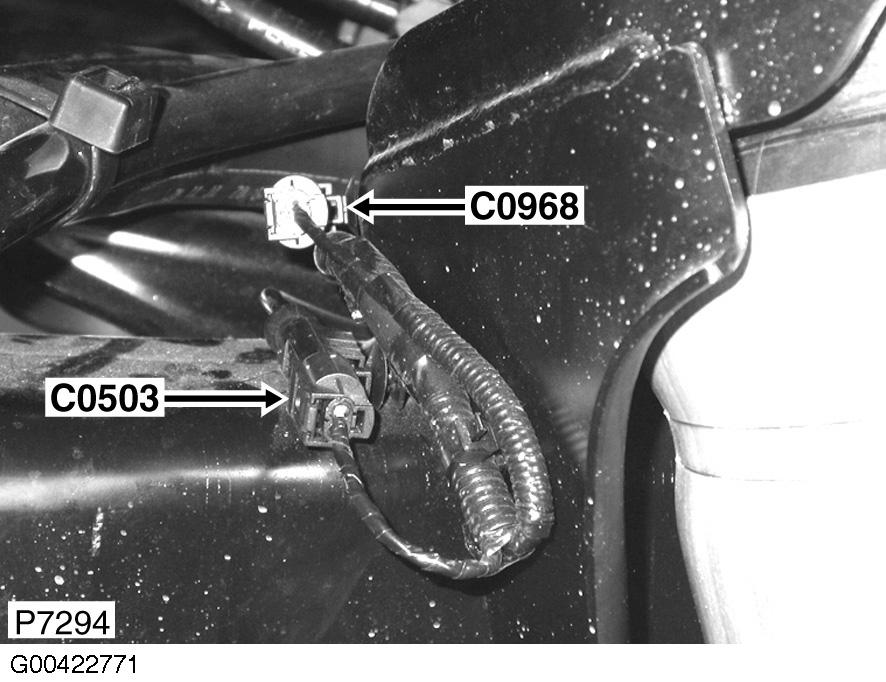

Fig 171: Right Rear Wheel Arch
G00422771Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 172: Front Of Engine
G00422772Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 173: Under Driver's Seat
G00422773Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 174: Left Front Of Engine Compartment
G00422776Courtesy of LAND ROVER NORTH AMERICA, INC.

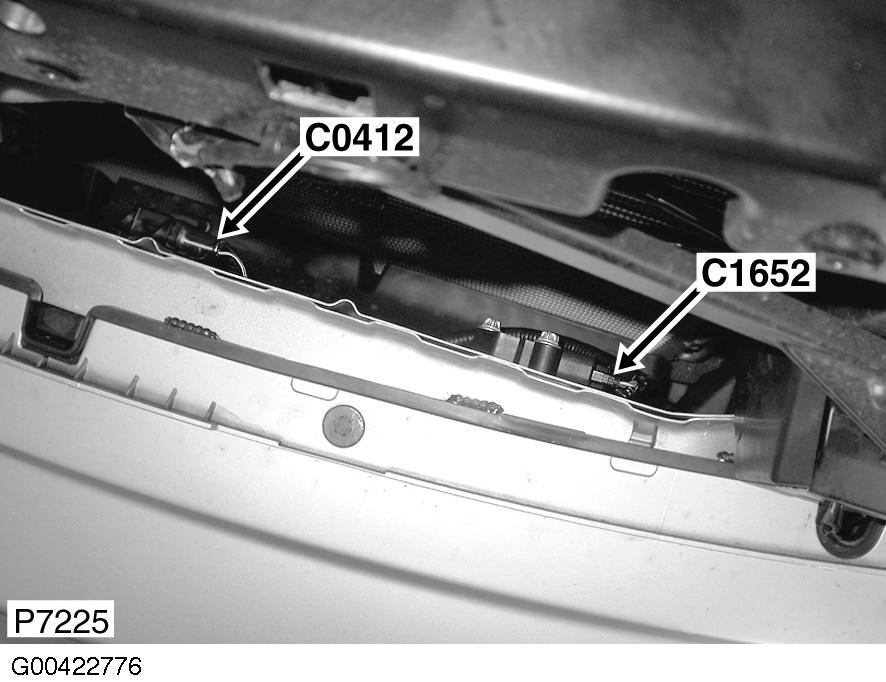

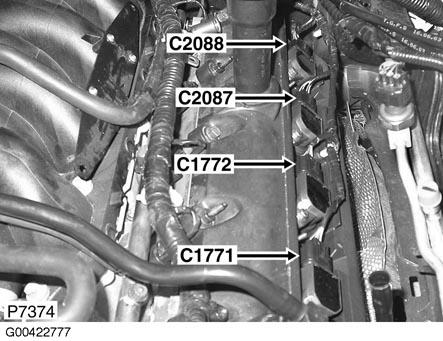

Fig 175: Top Left Side Of Engine
G00422777Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 176: Rear Of Headliner
G00422779Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 177: Behind Front Grille

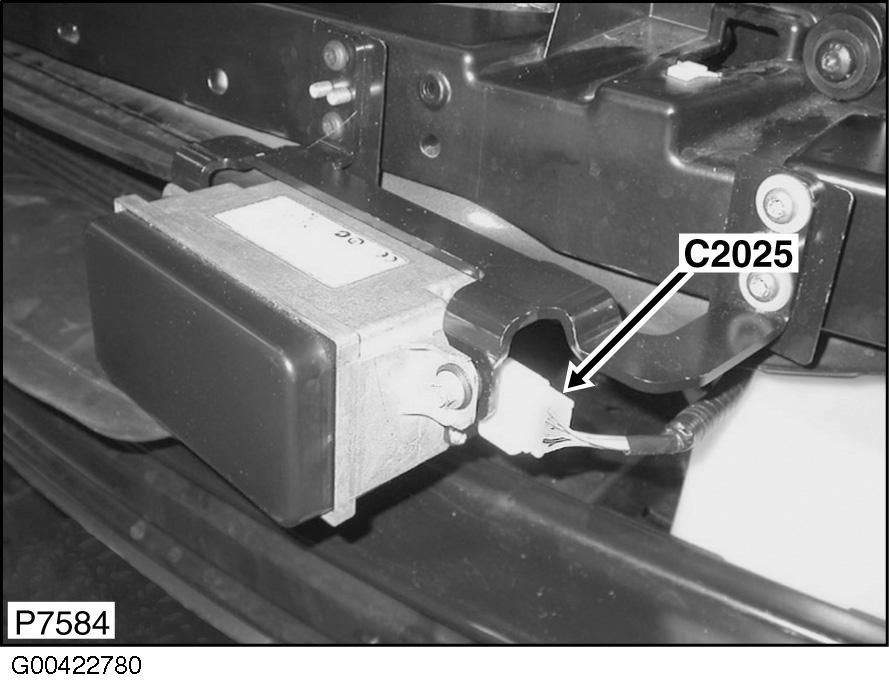

G00422780Courtesy of LAND ROVER NORTH AMERICA, INC.

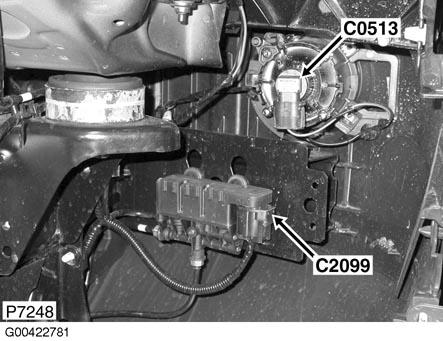

Fig 178: Behind Right Front Wheel Arch Liner
G00422781Courtesy of LAND ROVER NORTH AMERICA, INC.

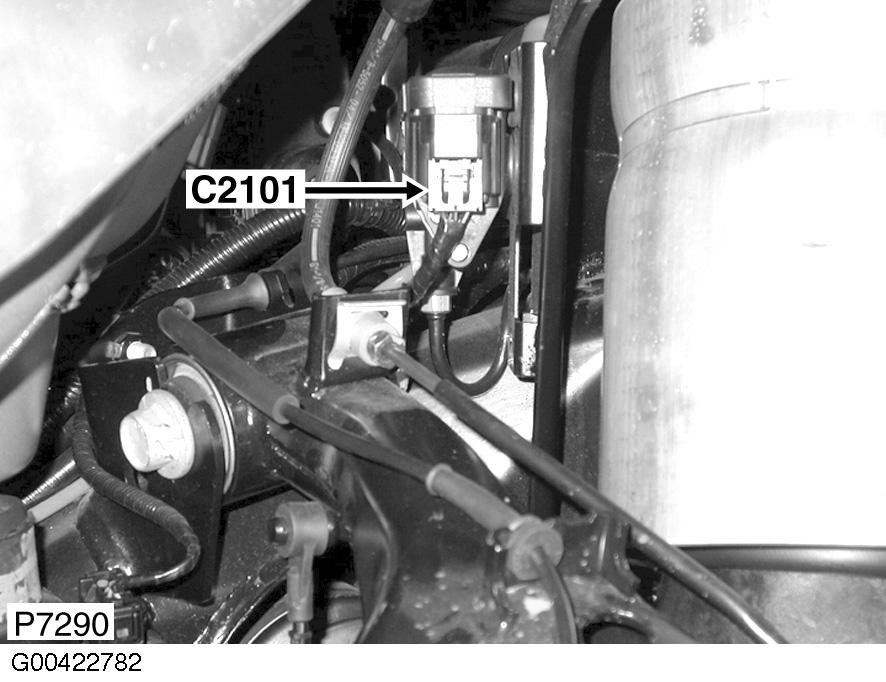

Fig 179: Left Rear Wheel Arch
G00422782Courtesy of LAND ROVER NORTH AMERICA, INC.

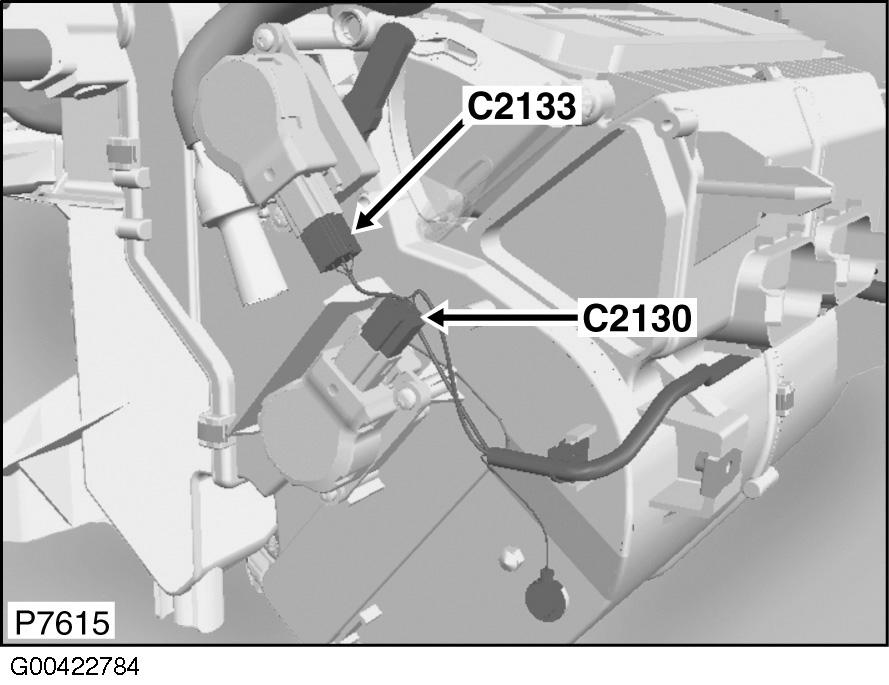

Fig 180: Behind Center Of Dash
G00422784Courtesy of LAND ROVER NORTH AMERICA, INC.

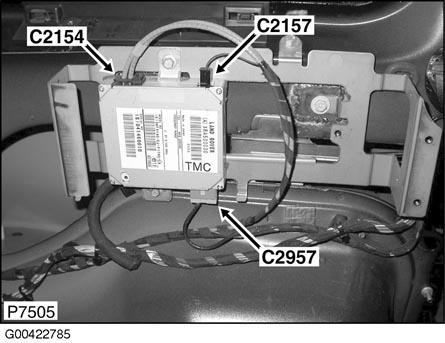

Fig 181: Right Rear Quarterpanel
G00422785Courtesy of LAND ROVER NORTH AMERICA, INC.

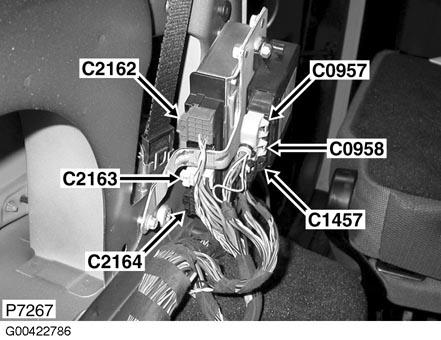

Fig 182: Left "C" Pillar
G00422786Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 183: Left Side Of Engine Compartment

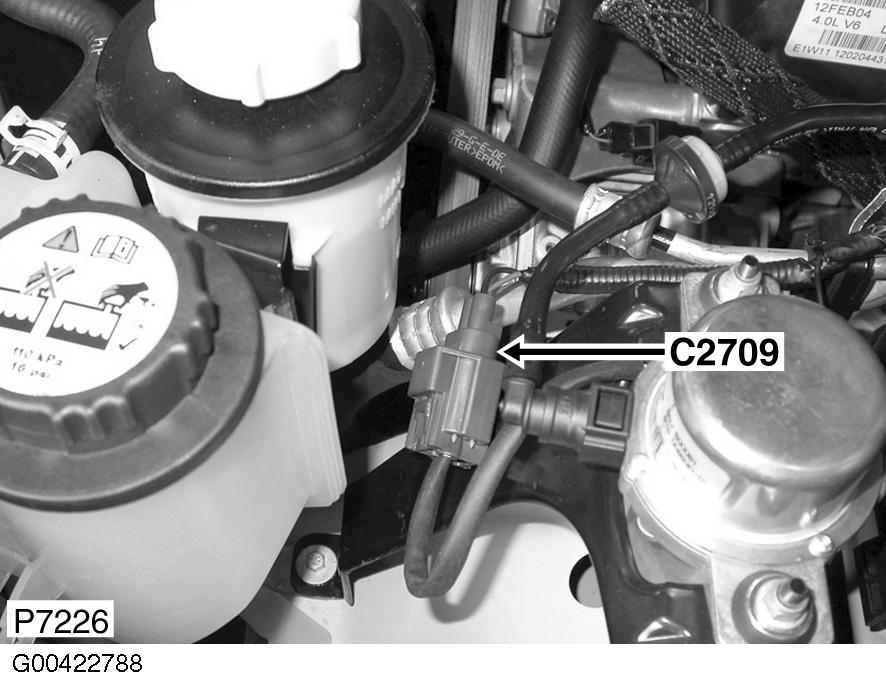

G00422788Courtesy of LAND ROVER NORTH AMERICA, INC.

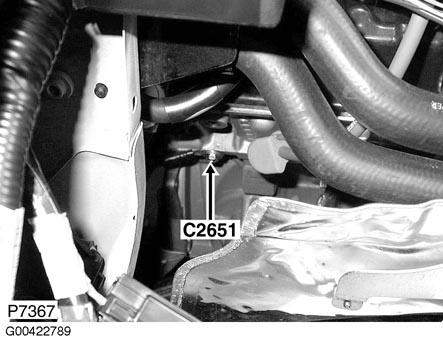

Fig 184: Right Side Of Engine
G00422789Courtesy of LAND ROVER NORTH AMERICA, INC.

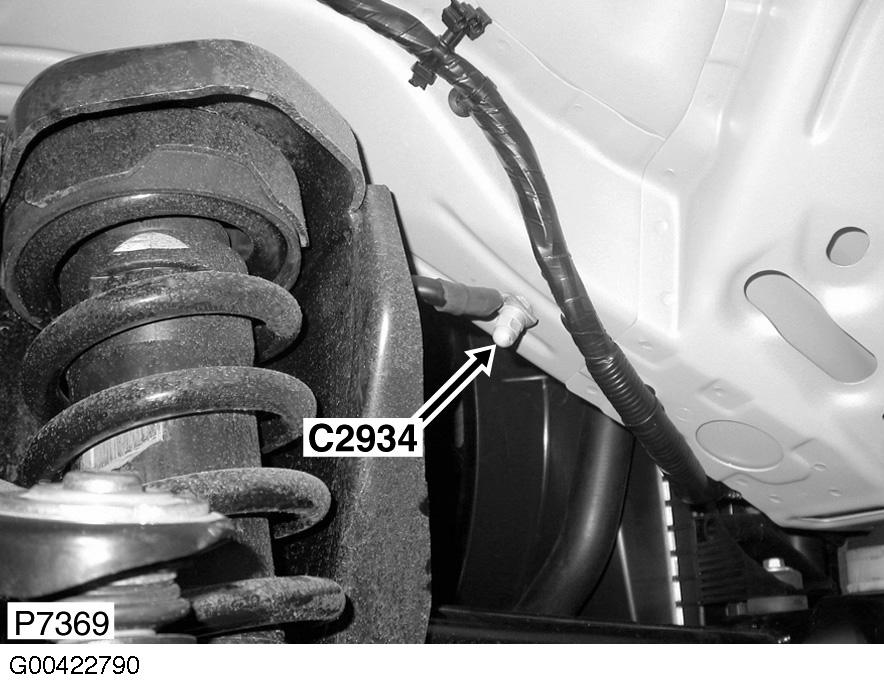

Fig 185: Right Rear Wheel Arch
G00422790Courtesy of LAND ROVER NORTH AMERICA, INC.
scientia non olet · About LEMON Manuals
