Mode 6 Data

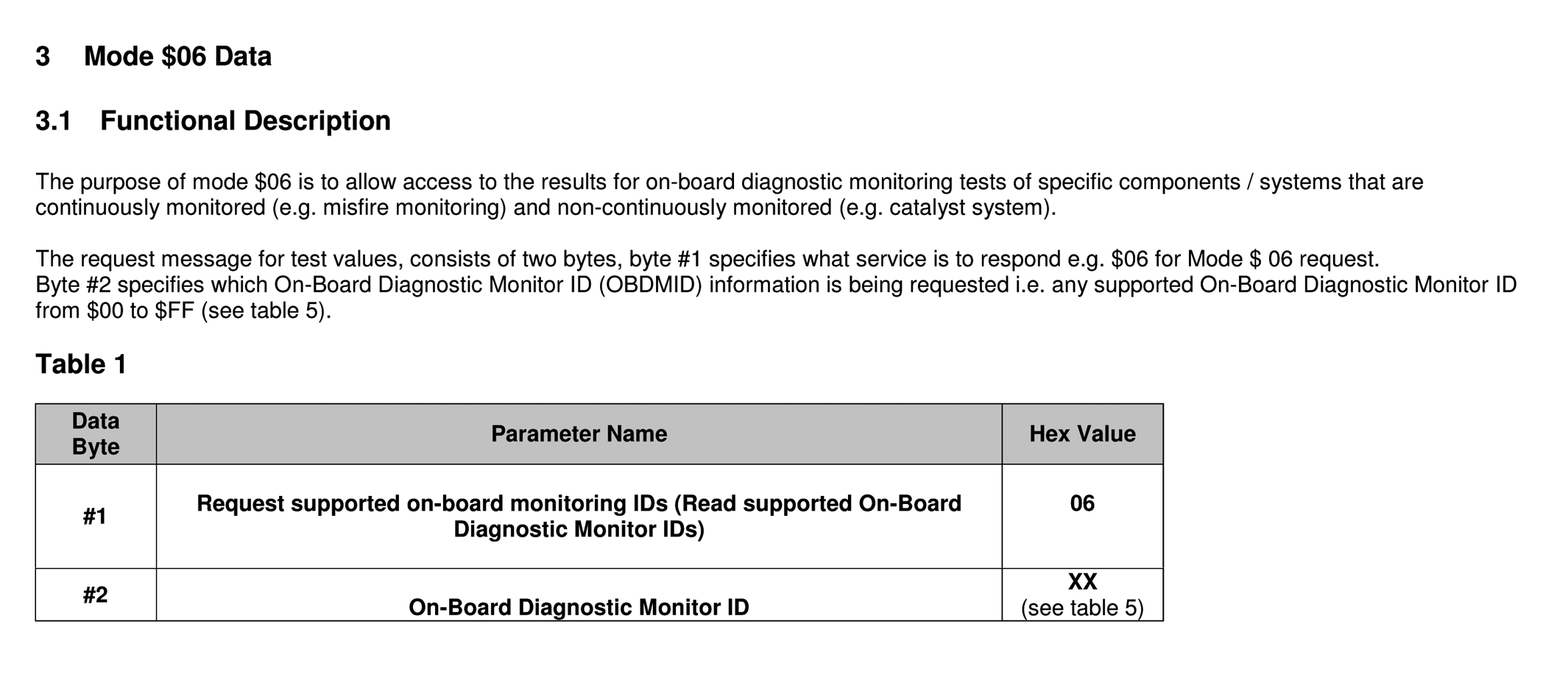

Fig 1: Mode 6 Data Functional Description With Table 1
G00105171Courtesy of LAND ROVER NORTH AMERICA, INC.

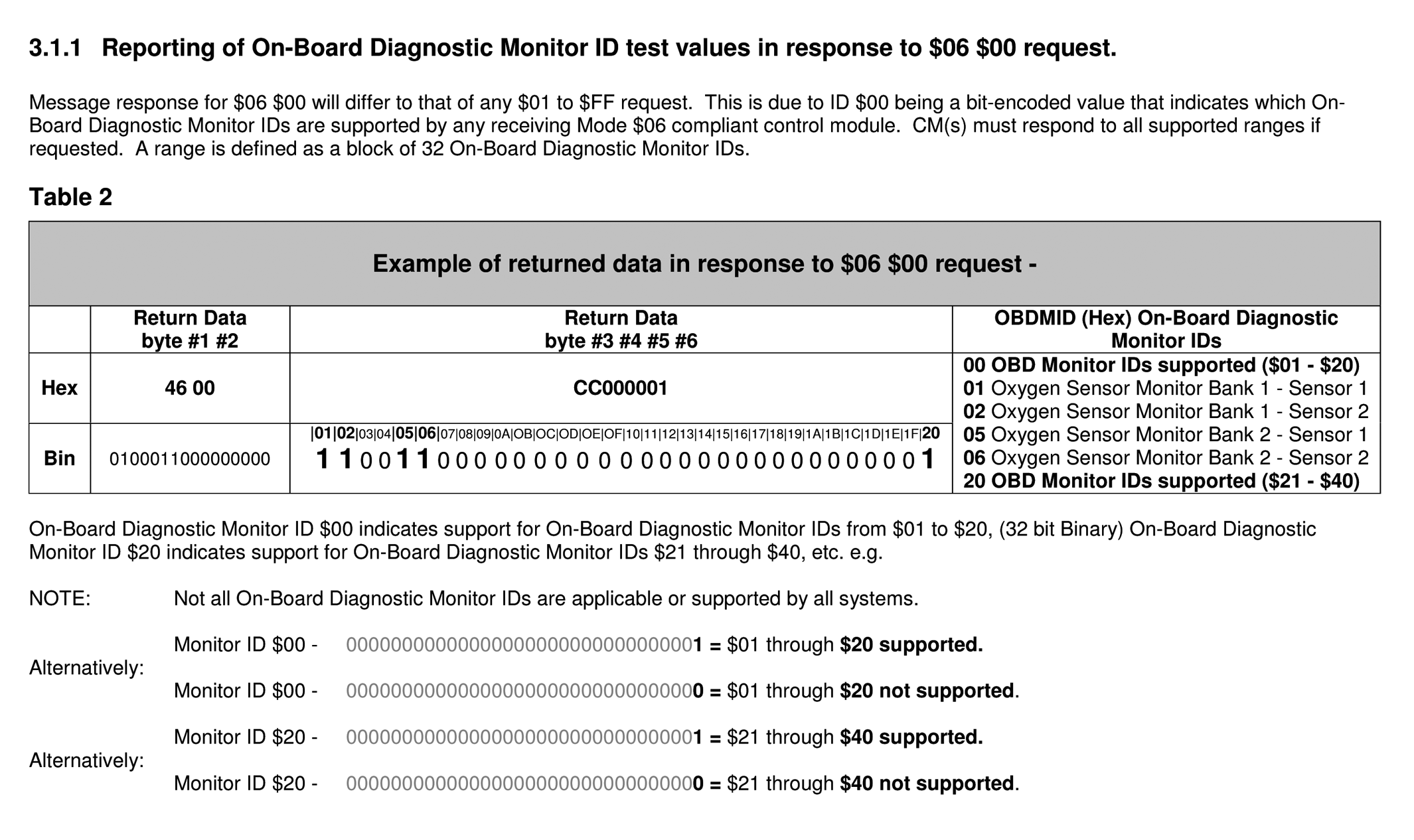

Fig 2: Reporting Of On-Board Diagnostic Monitor ID Test Values In Response To $06 $00 Request
G00105172Courtesy of LAND ROVER NORTH AMERICA, INC.

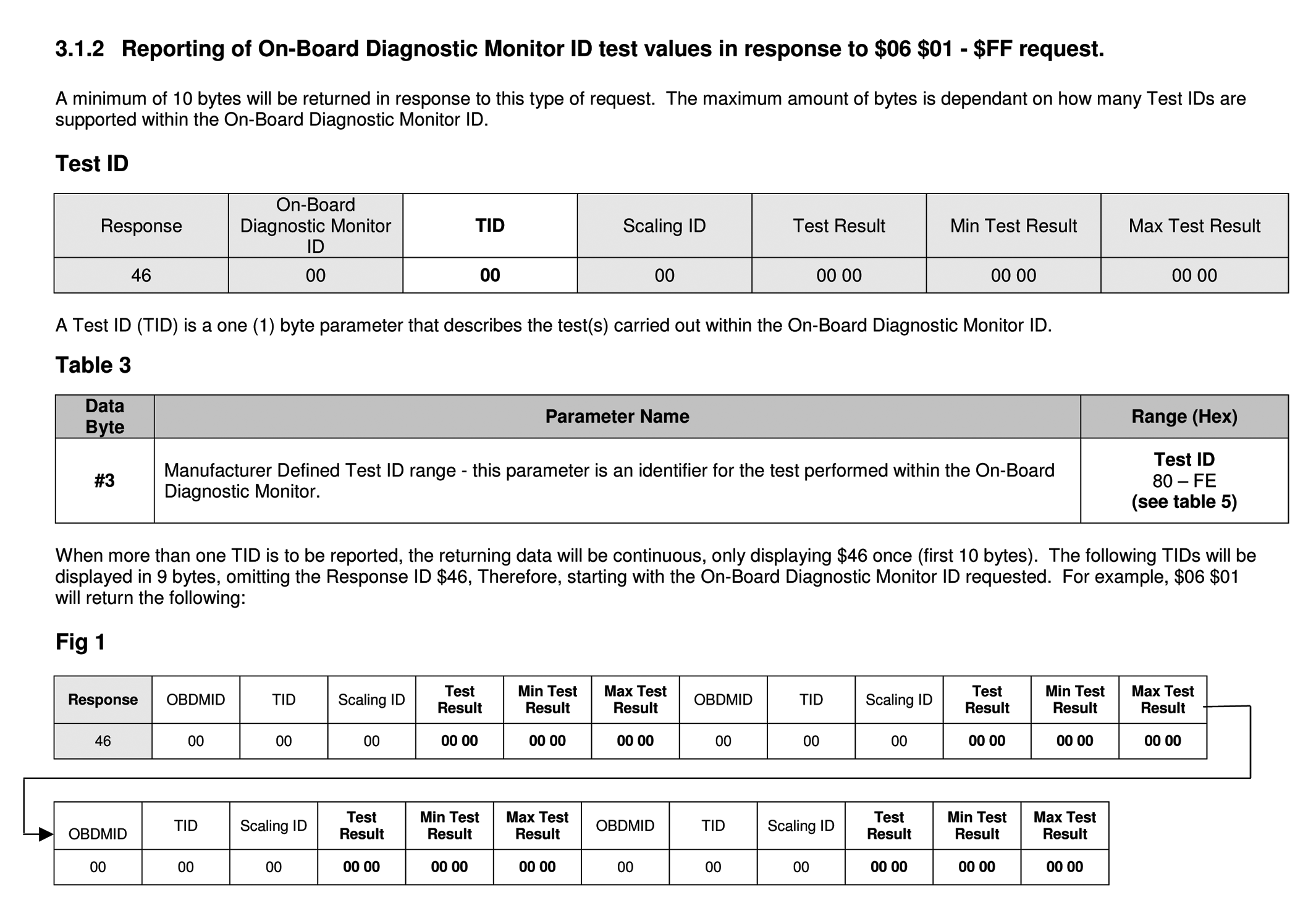

Fig 3: Reporting Of On-Board Diagnostic Monitor ID Test Values In Response To $06 $10 - $FF Request & Table 3
G00105173Courtesy of LAND ROVER NORTH AMERICA, INC.

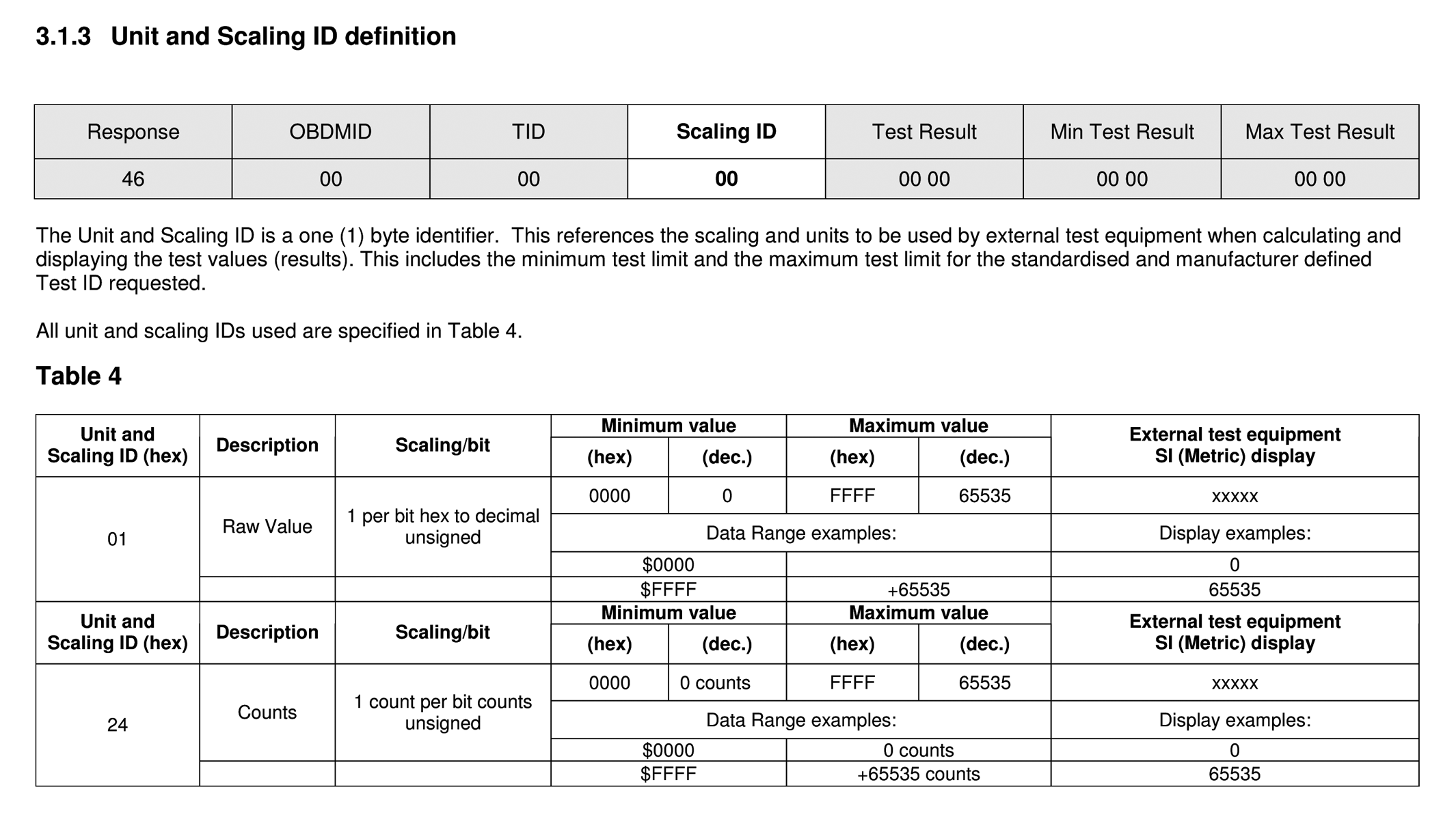

Fig 4: Unit & Scaling ID Definition & Table 4
G00105174Courtesy of LAND ROVER NORTH AMERICA, INC.

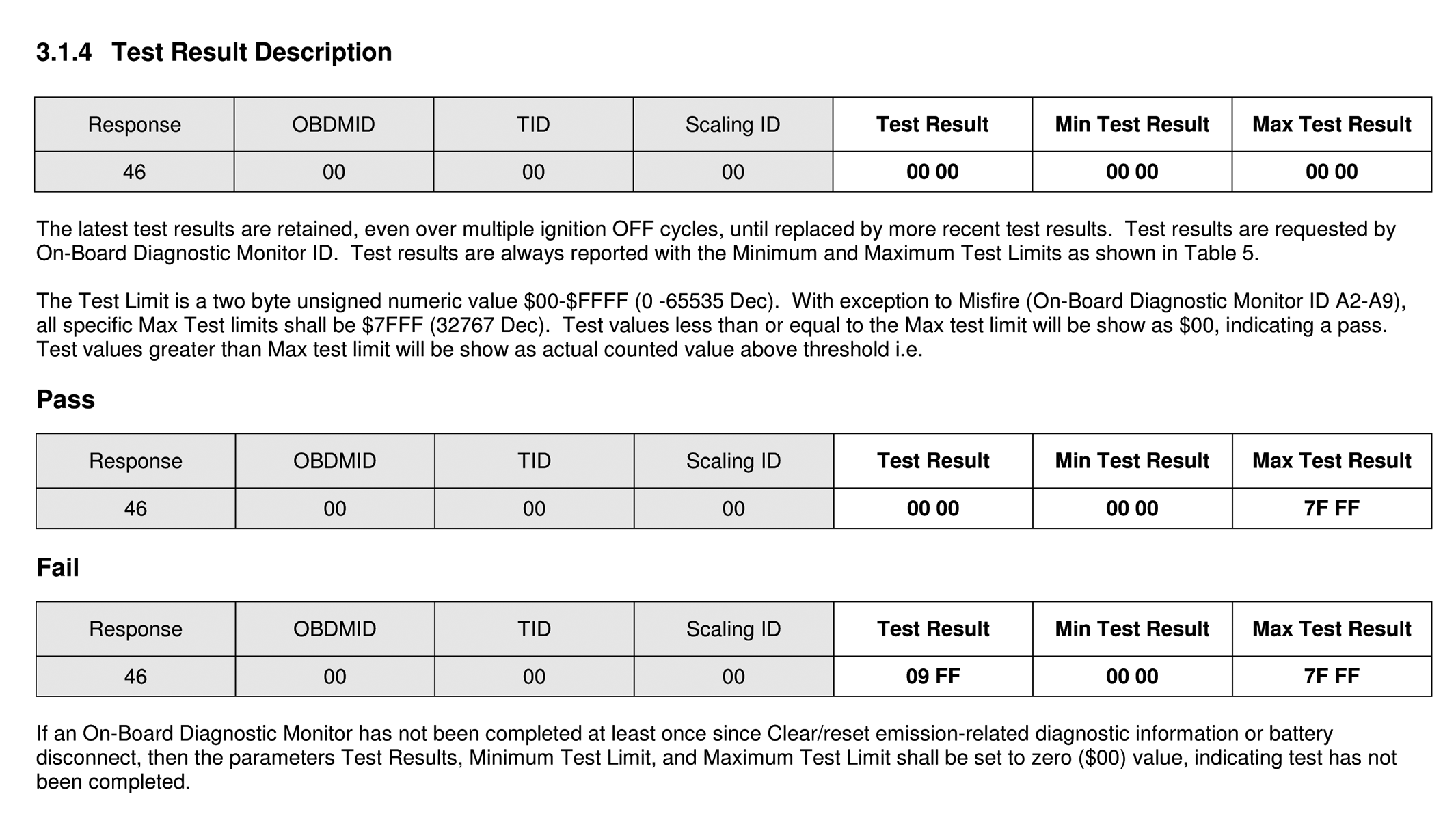

Fig 5: Test Result Description
G00105175Courtesy of LAND ROVER NORTH AMERICA, INC.

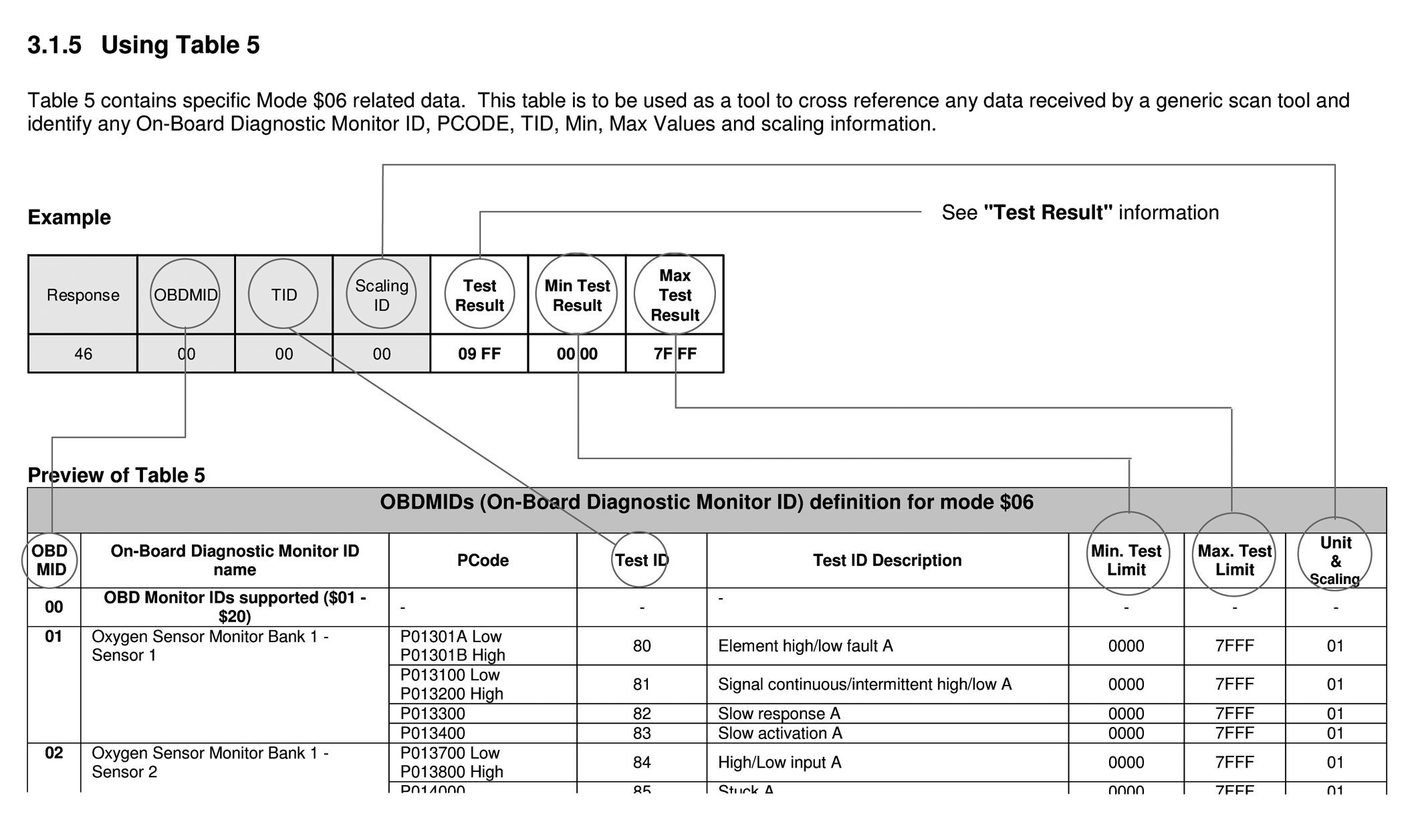

Fig 6: Using Table 5
G00105176Courtesy of LAND ROVER NORTH AMERICA, INC.

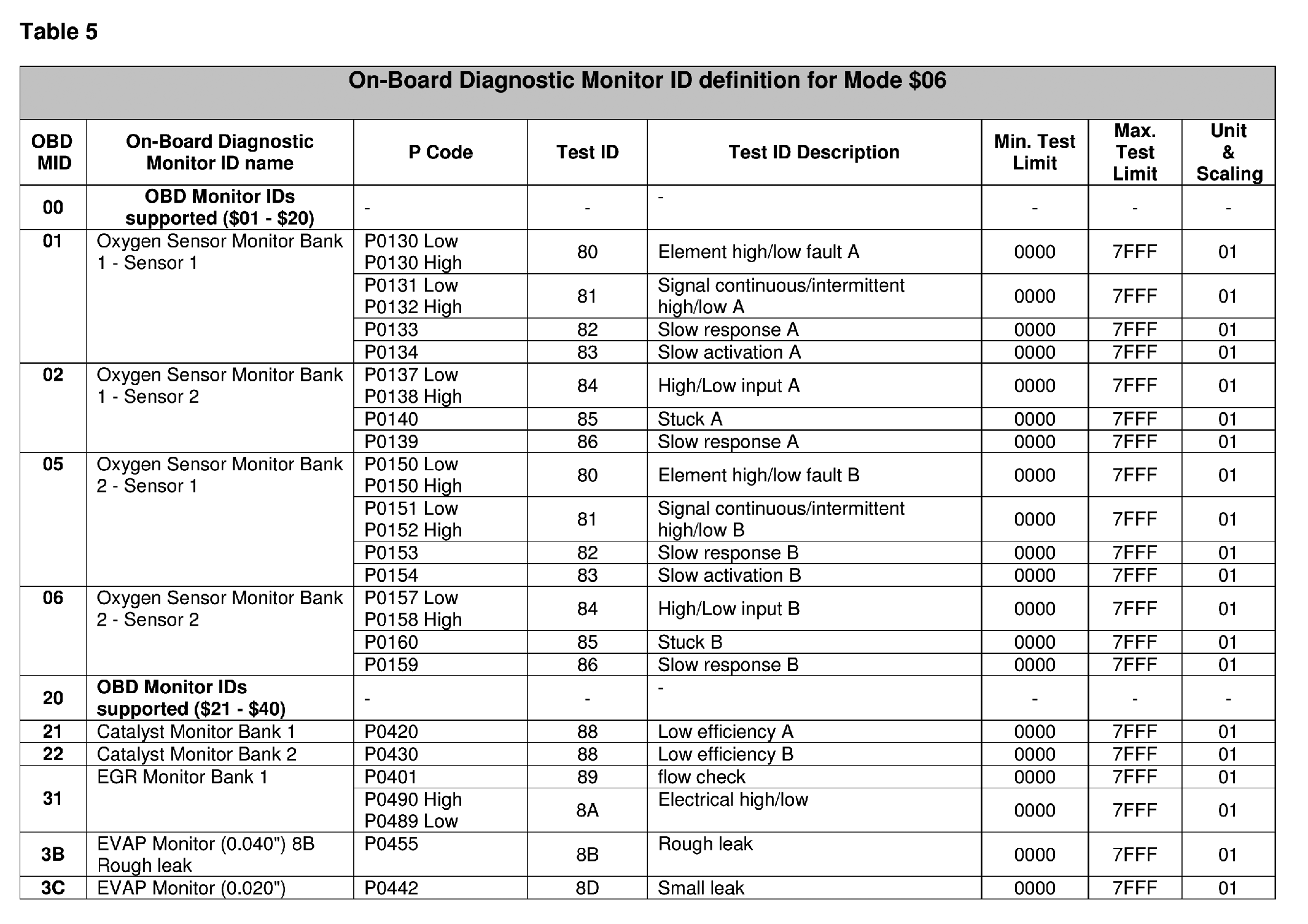

Fig 7: Table 5
G00105177Courtesy of LAND ROVER NORTH AMERICA, INC.

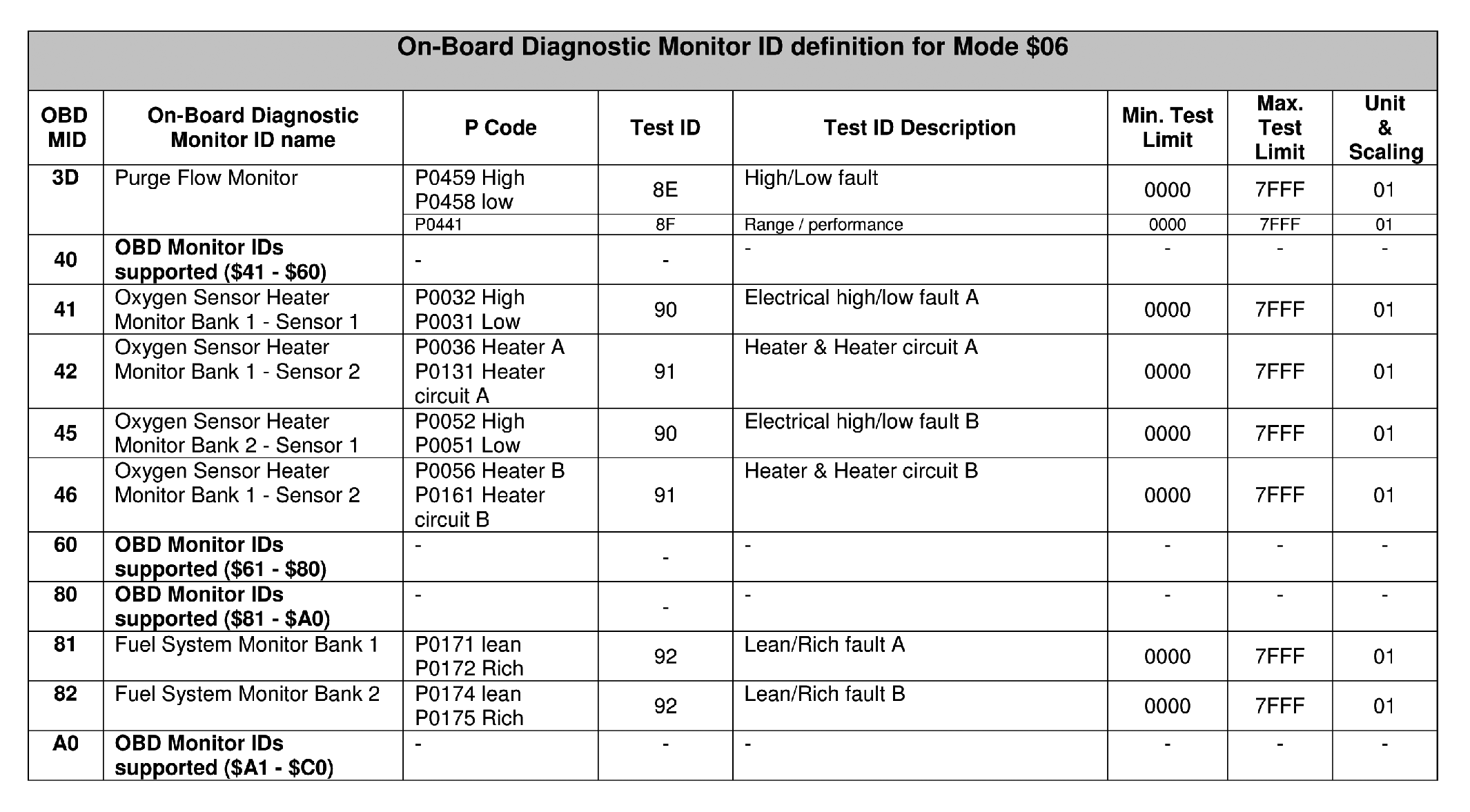

Fig 8: Table 5 (Cont.)
G00105178Courtesy of LAND ROVER NORTH AMERICA, INC.

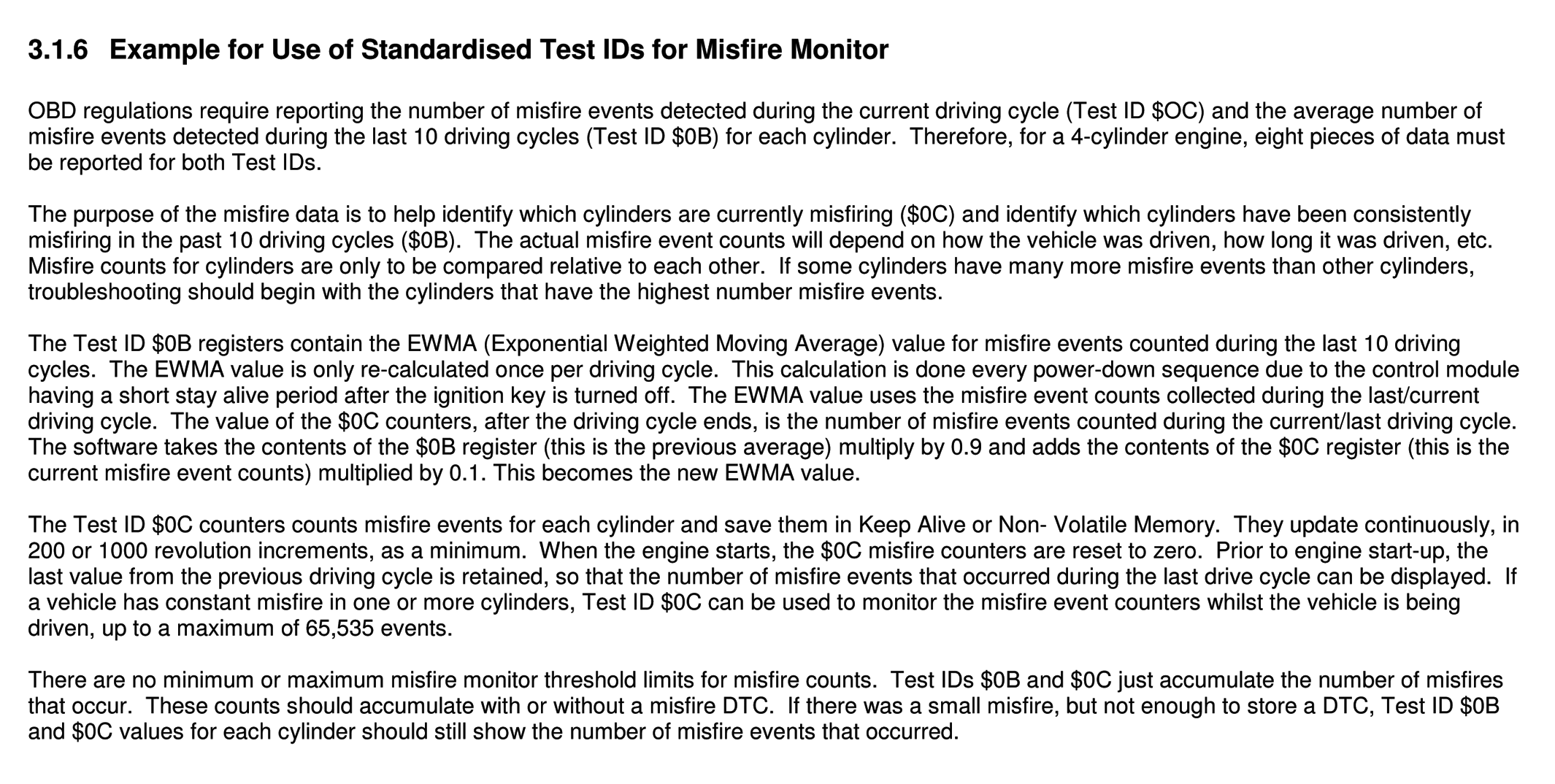

Fig 9: Example For Use Of Standardized Test IDs For Misfire Monitor
G00105179Courtesy of LAND ROVER NORTH AMERICA, INC.

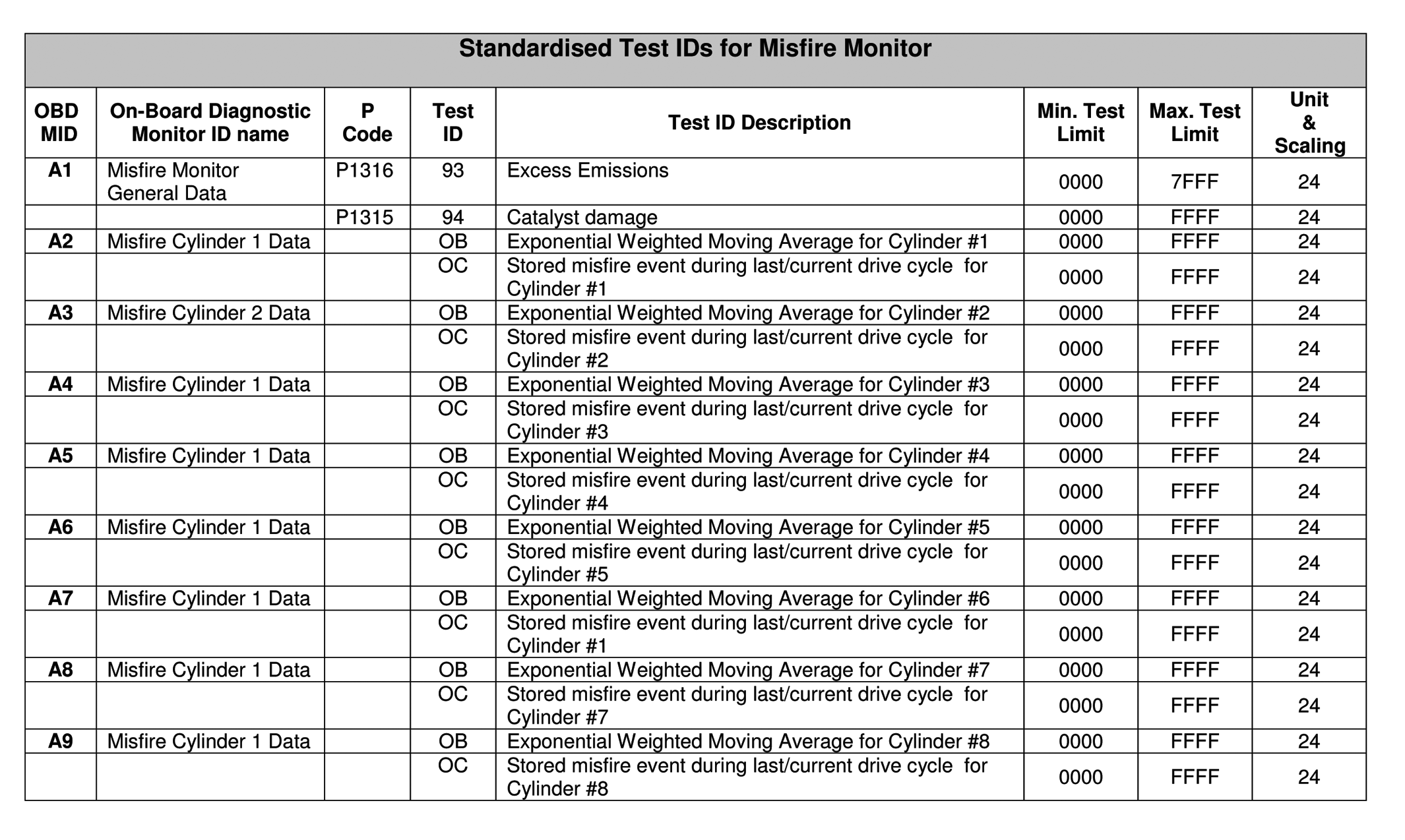

Fig 10: Standardized Test IDs For Misfire Monitor
G00105180Courtesy of LAND ROVER NORTH AMERICA, INC.
