Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|

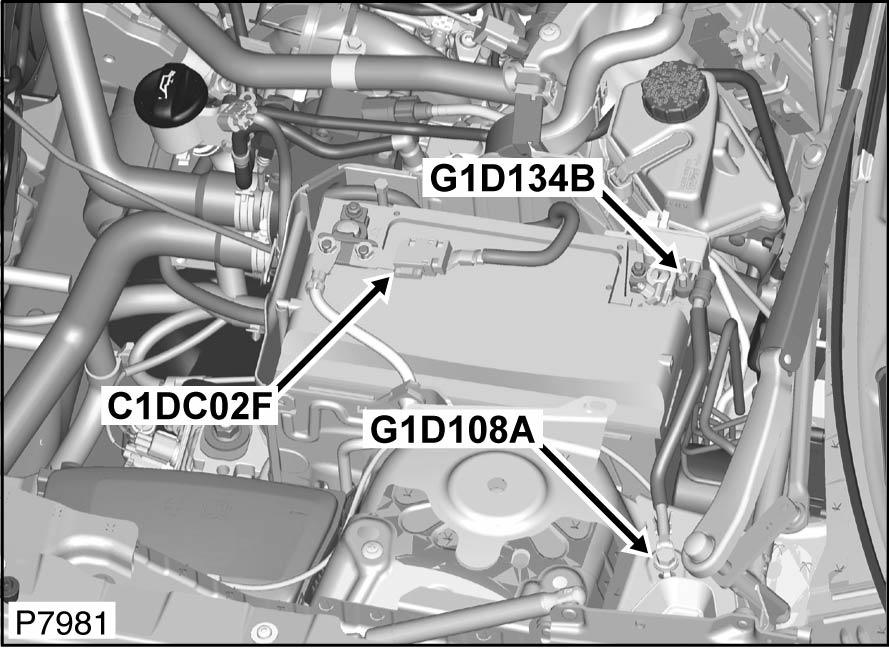

| G1D108A | Left front of engine compartment. See Figure. |
| G1D108D | Near battery. See Figure. |

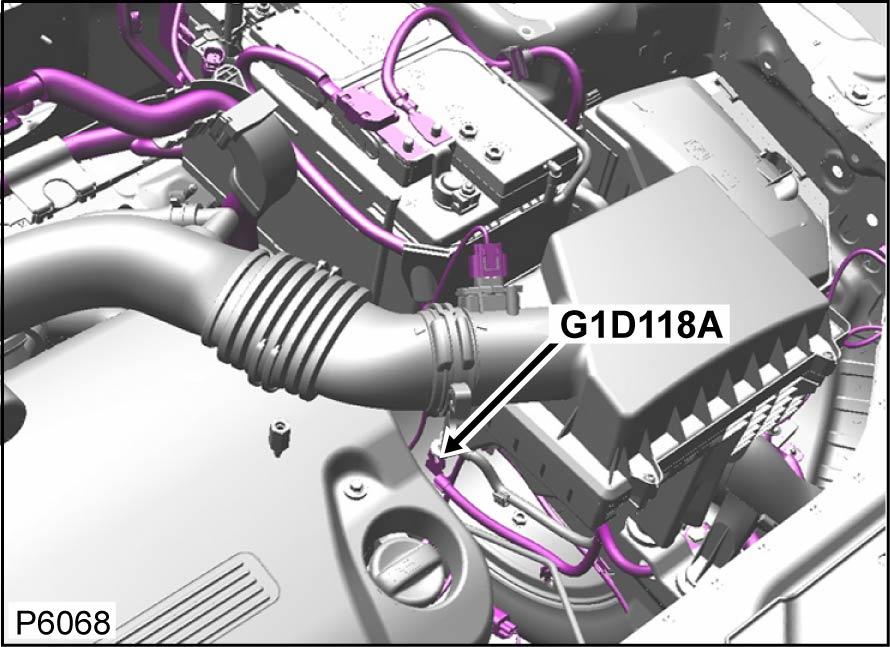

| G1D118A | Left front of engine compartment. See Figure. |
| G1D118B | Left front of engine compartment. See Figure. |
| G1D120A | Left front of engine compartment. See Figure. |
| G1D129 | Left front of engine compartment. See Figure. |
| G1D130A | Left front of engine compartment. See Figure. |
| G1D130B | Left front of engine compartment. See Figure. |
| G1D130C | Left front of engine compartment. See Figure. |
| G1D131A | Right front of engine compartment. See Figure. |
| G1D132A | Right front of engine compartment. See Figure. |
| G1D132B | Right front of engine compartment. See Figure. |
| G1E1243 | Right front of engine. |
| G1E1244 | Right front of engine. |
| G2D114 | Behind glove compartment. See Figure. |
| G3D102 | At right "D" pillar. See Figure. |
| G3D127 | Under front passenger's seat. |
| G3D133 | Under driver's seat. |
| G3D134 | Under left side of dash. See Figure. |
| G3D135 | Under driver's seat. |
| G3D138 | Under front passenger's seat. |
| G3D139 | Under front passenger's seat. |
| G3D174A | On floor, under driver's seat. See Figure. |
| G3D174B | Under left side of dash. See Figure. |
| G4AT22 | Behind left rear quarterpanel. See Figure. |
| G4AT22X | Behind left rear quarterpanel. See Figure. |
| G4D101A | Rear of headlining. |
| G4D101B | Rear of headlining. |
| G4D102B | At left "D" pillar. See Figure. |
| G4D149 | Behind left rear quarterpanel. See Figure. |
| G4D149B | At left "D" pillar. See Figure. |
| G4D149C | Behind left rear quarterpanel. See Figure. |
| G4D149D | Behind left rear quarterpanel. See Figure. |
| G4D149E | Center of tailgate. |
| G4D151B | At right "D" pillar. See Figure. |
| G6D139 | Behind glove compartment. See Figure. |
