Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|

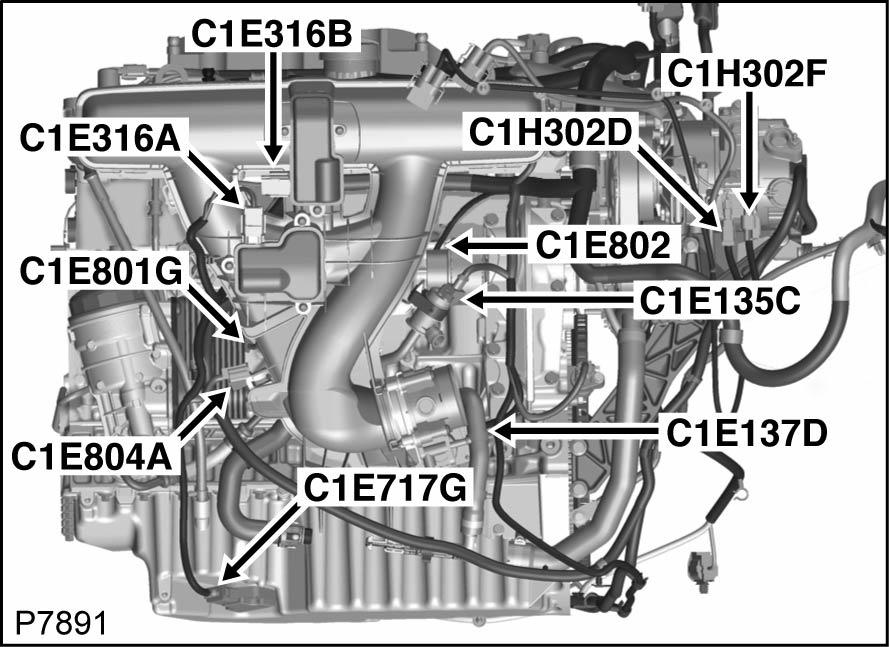

| Actuator (C1E316A) | Left front side of engine. See Figure. |
| Actuator (C1E316B) | Left front side of engine. See Figure. |
| Air Intake Stepper Motor (6) | Top right side of HVAC unit. See Figure. |
| Air Temperature Door Motor (Left) (C2H237) | On HVAC unit. See Figure. |
| Air Temperature Door Motor (Right) (C2H211) | On HVAC unit. See Figure. |
| Blower Motor (17) | Left side of HVAC unit. See Figure. |
| Central Door Locking Motor (Driver) Connector (C1451) | Rear of driver's door. See Figure. |
| Central Door Locking Motor (Left Rear) Connector (C7PL71) | Rear of left rear door. See Figure. |
| Central Door Locking Motor (Passenger) Connector (C6PL64) | Rear of front passenger's door. See Figure. |
| Central Door Locking Motor (Right Rear) Connector (C7PL71A) | Rear of right rear door. See Figure. |
| Door Mirror Connector (Driver) (C5PM26B) | Front of driver's door. See Figure. |
| Door Mirror Connector (Passenger) (C5PM31B) | Front of front passenger's door. See Figure. |
| Driver Forward/Rearward Seat Motor (C0720) | Under driver's seat. See Figure. |

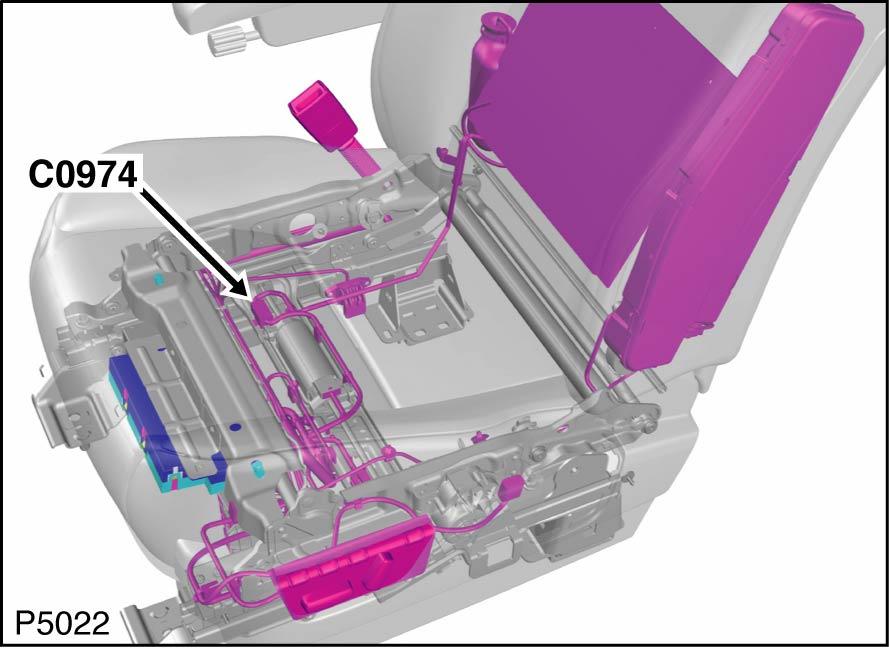

| Driver Seat Lumbar Pump (C0974) | Under driver's seat. See Figure. |

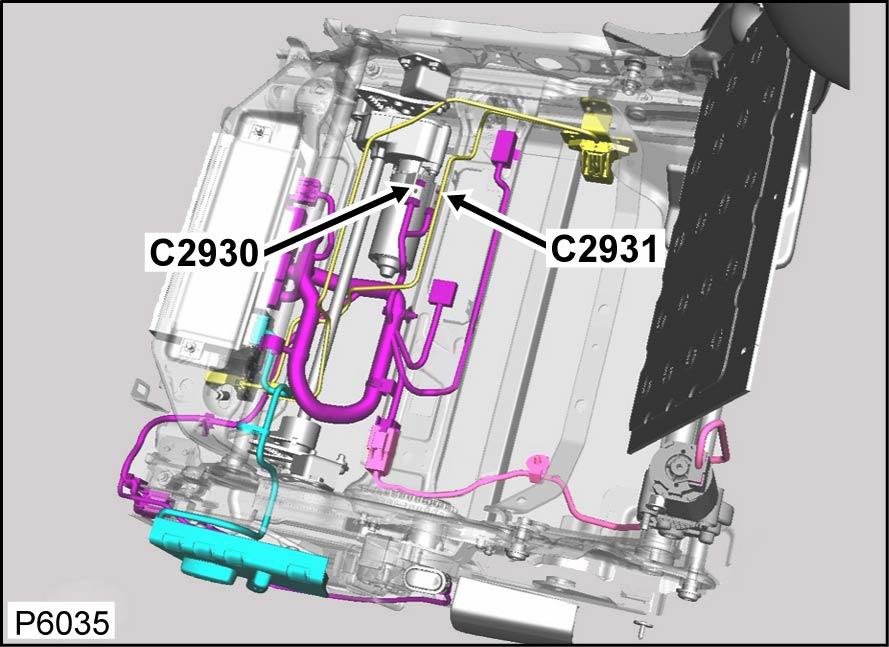

| Driver Seat Tilt Motor Connector (C2930) | Under driver's seat. See Figure. |
| Electric Throttle Unit (C1E137D) | Left side of engine. See Figure. |
| Face/Feet Air Distribution Stepper Motor (16) | Left side of HVAC unit. See Figure. |
| Front Blower Motor (C2H123D) | Behind center of dash. See Figure. |
| Front/Rear Screen Washer Pump Connector (C1RW14E) | Behind right side of front bumper. See Figure. |
| Front Seat Height Motor Connector (Driver) (C0097) | Under driver's seat. See Figure. |
| Fuel Burning Heater Water Pump (C3HF03A) | Rear of engine compartment. See Figure. |
| Fuel Fired Booster Heater Pump (C3HF03) | Under right rear side of vehicle. See Figure. |
| Fuel Tank Unit | On top of fuel tank. |

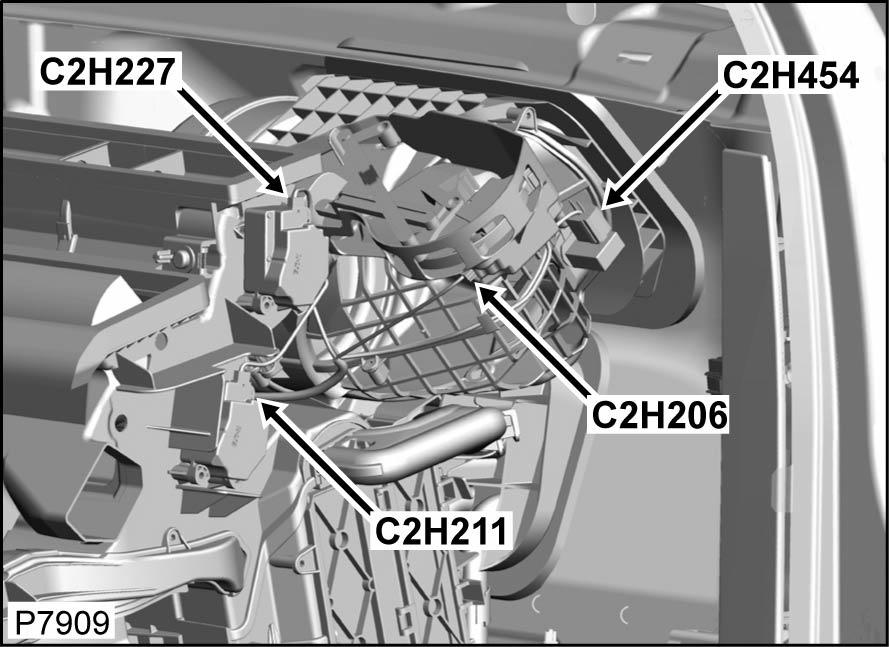

| Intake Air Door Motor (C2H206) | On HVAC unit. See Figure. |
| Leak Detection Pump (C4E229) | Under left rear of vehicle. See Figure. |
| Power Wash Pump Connector (C1RW14C) | Behind right side of front bumper. See Figure. |

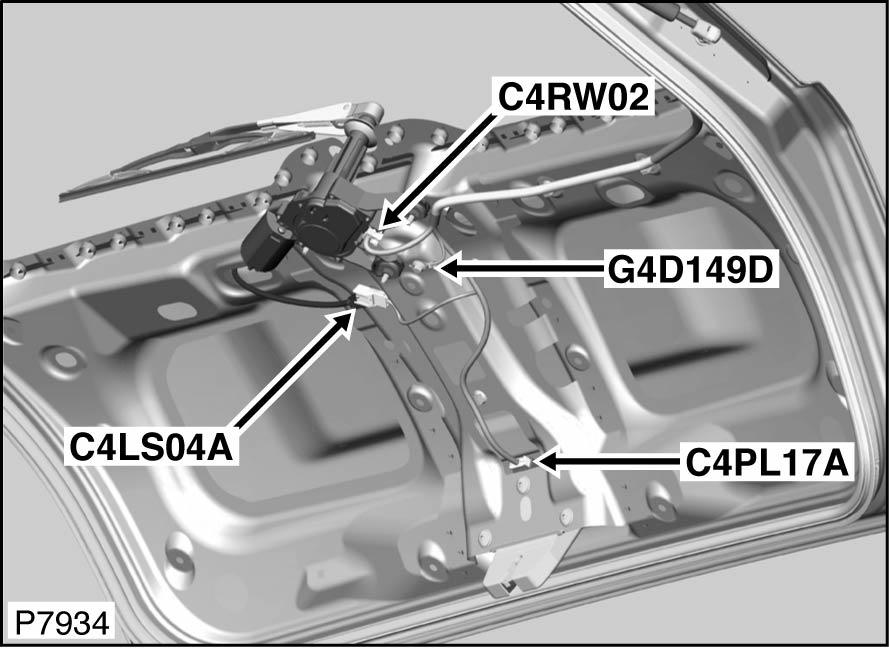

| Rear Wiper Motor (C4RW02) | Center of tailgate. See Figure. |
| Screen Air Distribution Door Motor (C2H227) | On HVAC unit. See Figure. |
| Seat Recline Motor Connector (Driver) (C0718) | Under driver's seat. See Figure. |

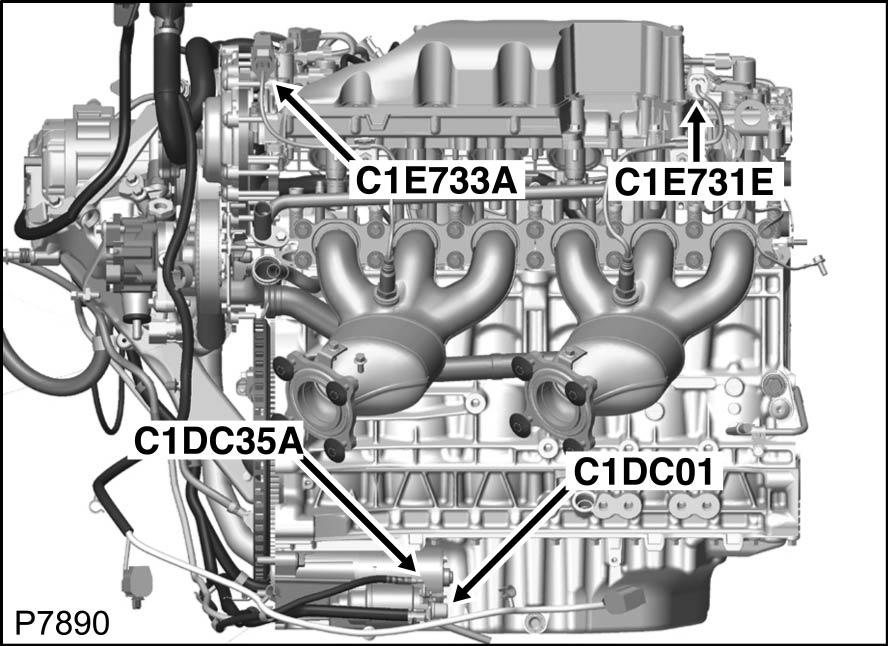

| Starter Motor (C1DC01) | Right rear of engine. See Figure. |
| Tailgate CDL Motor (C4PL17A) | Lower center of tailgate. See Figure. |
| Temperature Blend Stepper Motor - LH (14) | Left side of HVAC unit. See Figure. |
| Temperature Blend Stepper Motor - RH (9) | Right side of HVAC unit. See Figure. |
| Window Motor (Driver) Connector (C5PW11A) | Center of driver's door. See Figure. |
| Window Motor (Left Rear) Connector (C7PW22A) | In left rear door. See Figure. |
| Window Motor (Passenger) Connector (C6PW20A) | Center of front passenger's door. See Figure. |
| Window Motor (Right Rear) Connector (C7PW22A) | In right rear door. See Figure. |
| Windshield Distribution (Defrost) Stepper Motor (8) | Top right side of HVAC unit. See Figure. |
| Windshield Wiper Motor Connector (C1RW01A) | On left side of firewall. See Figure. |
